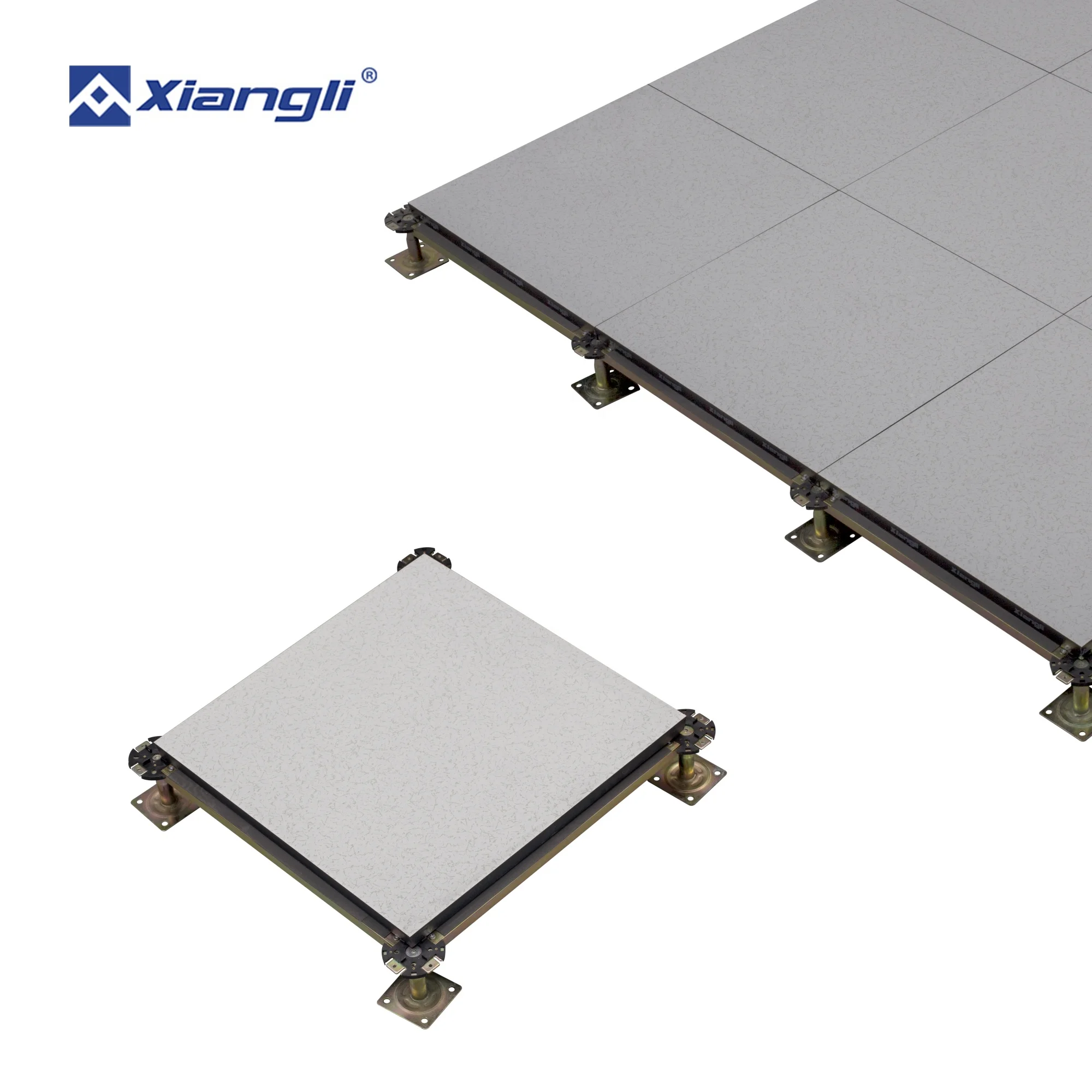

600mm Steel Encased Calcium Sulphate Raised Access Floor

Product Overview

Description



1.Full galvanized steel encased the Calicum sulphate, very good sealing and water-proof

2.High dimensional precision, strong loading ability and shockproof

3.Adjustable height for pedestal , assembly agility, large wire, good exchangeability

4.Elegant appearance for paving wildly brand top tiles

5.light weight ,high loading capacity ,excellent raised flooring in 21th

6.High recycled, convenient removing, saving cost, long performance life



Structure

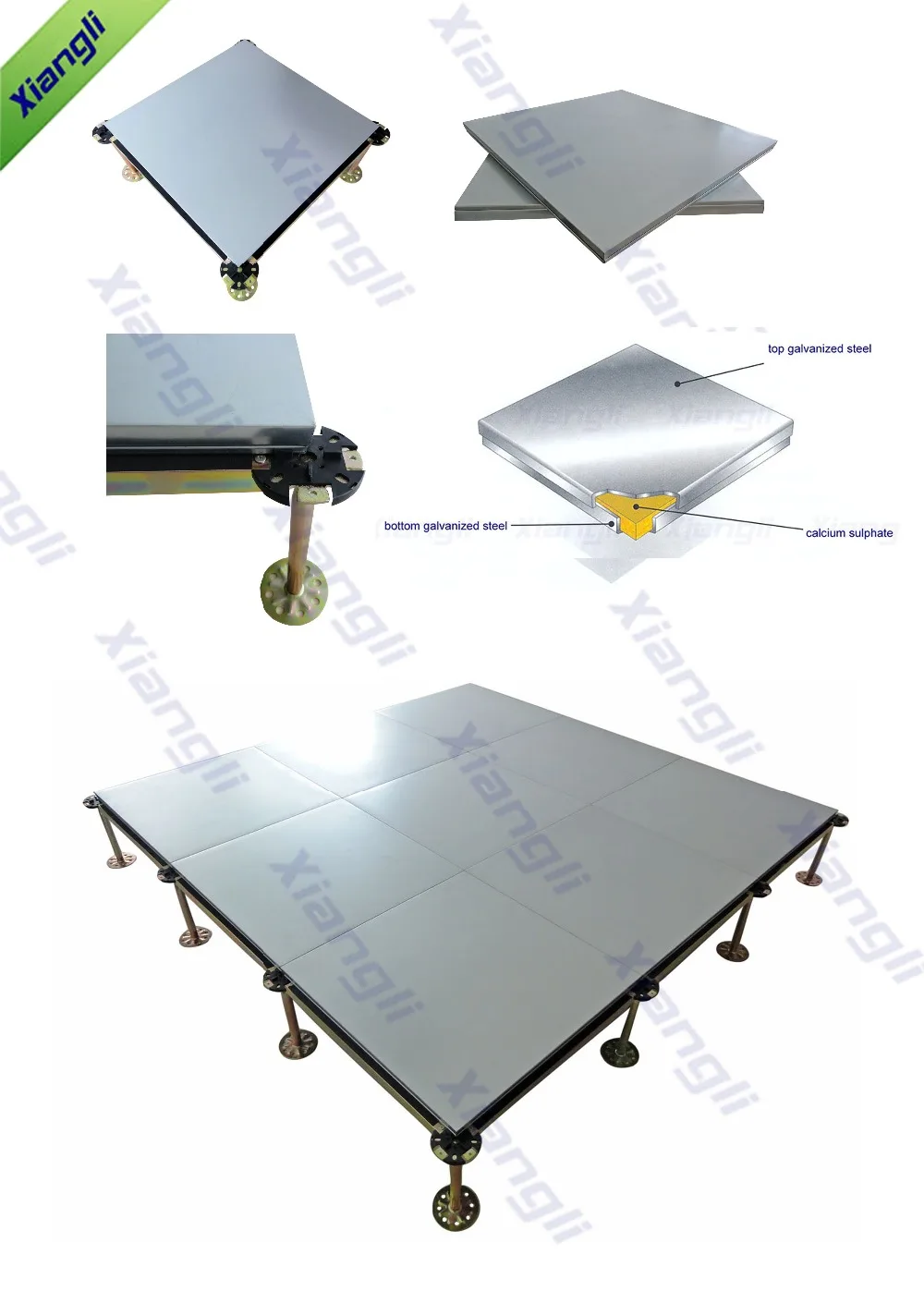

1. Galvanized steel plate encased the calcium sulphate in sx faces ,steel sealed edge ,with or without coner lock hole in four corner, wildly brand top tiles could be carpet, HPL PVC tiles or other tiles as you like.

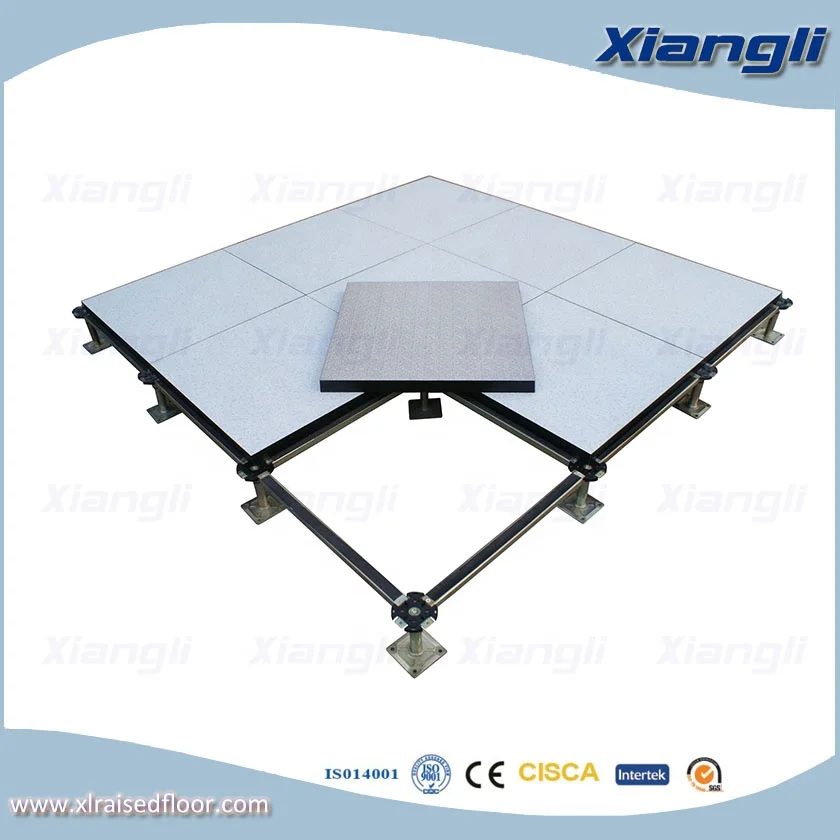

2.Accessories -die casting steel structure pedestal plastic gasket on top ,height could be 70mm ---1500mm , with or without square tube stringer steady connect the system



Application

Wide range of the application all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office



Technical parameter

International	Size(mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	Rolling load(N)
			LB	N	KG				10 times	100000 times
FS800	600x600x31	A	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	600x600x31	A	≥1000	≥4550	≥450	≥670	≥13350	≥23000	4450	3560
FS1250	600x600x31	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
FS1500	600x600x31	A	≥1500	≥6675	≥670	≥1005	≥19892	≥34500	6675	5340
FS2000	600x600x31	A	≥2000	≥8900	≥906	≥1340	≥26700	≥46000	8900	7120



Standard Pedestal SPEC:

FFH(mm)	tube diameter(mm)	adjustment +(mm)	adjustment – (mm)
~600	φ25	25	25
700~900	φ32	25	25
1000~1500	φ42	25	25



Other height could be customized.

Standard Stringer SPEC: 20x30x540mm



New product: Steel Encased Calcium Sulphate Raised Access Floor + Magnetic Carpet
