China Manufacturing Machinery Coil Feeder Press Machine Pneumatic Servo NC Roll Feeder For Stainless Steel Stamping
- Category: Coil Slitting Machine >>>
- Supplier: Shenzhen Hong-Er Machine Equipment Co. Ltd.
Share on (60015268720):
Product Overview
Description
Product Description
China Manufacturing Machinery Coil Feeder Press Machine Pneumatic Servo NC Roll Feeder For Stainless Steel Stamping
Features
High performance Yaskawa servo motor and drive
Air cylinder with built in stroke adjustment
Easy adjustment pilot roll
Roller catenary section support
Press mount bracket with +/-50mm adjustment
Pre-wired cable set in flexible sealtite conduit
Ergonomic desk-type slant top electric control cabinet
Controller
High reliability Mitsubishi Controller
User friendly Weinview touchscreen
Multi-language capability
10 segments Feeding length setting
Optional servo feed automation functions
Many other standard features
Optional Device
1, Adjustable bracket with ± 50mm adjustment

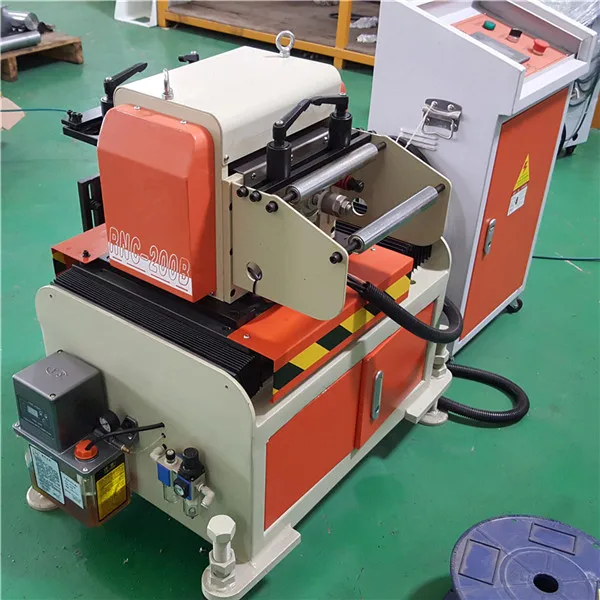

2, Zigzag type servo feeder
Servo Feeder Machine Specification
* Machine Spec can be customized according to your specific demands.
Name | Manufacturing Machinery Coil Feeder Press Machine | ||||||||||||
Model | RNC-200 | RNC-300 | RNC-400 | RNC-500 | RNC-600 | RNC-700 | RNC-800 | ||||||
Max. Coil Width | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm | 700 mm | 800 mm | ||||||
Material Thickness | 0.2 - 3.2 mm | ||||||||||||
Releasing System | Pneumatic type | ||||||||||||
Feed Roll | Upper Roll diameter 65mm, Bottom Roll diameter 80mm | ||||||||||||
Feeding Length | 9999.99mm | ||||||||||||
Feeding Speed | Maximum 20m per minute | ||||||||||||
Feeding Accuracy | ± 0.1 mm | ||||||||||||
Servo Motor | Yaskawa, Japan | ||||||||||||
Servo Drive | Yaskawa, Japan | ||||||||||||
PLC | Mitsubishi, Japan | ||||||||||||
Touch Screen | Weinview, Taiwan | ||||||||||||
Power | 0.85Kw | 1.3Kw | 1.8Kw | 1.8Kw | 2.9Kw | 2.9Kw | 2.9Kw | ||||||
Customer Application

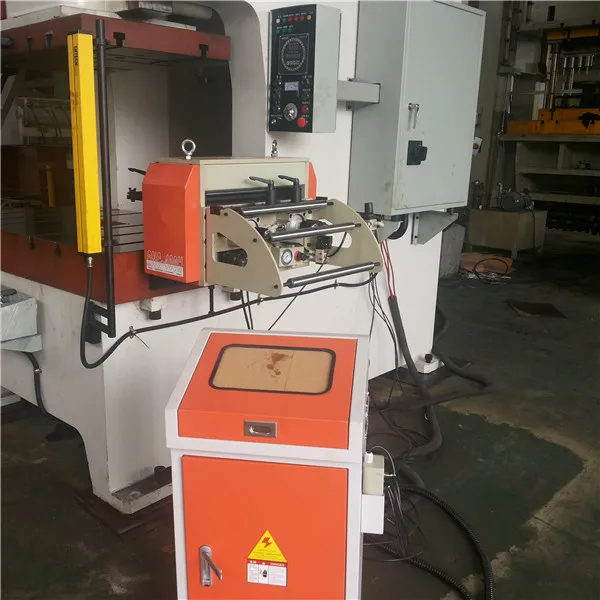

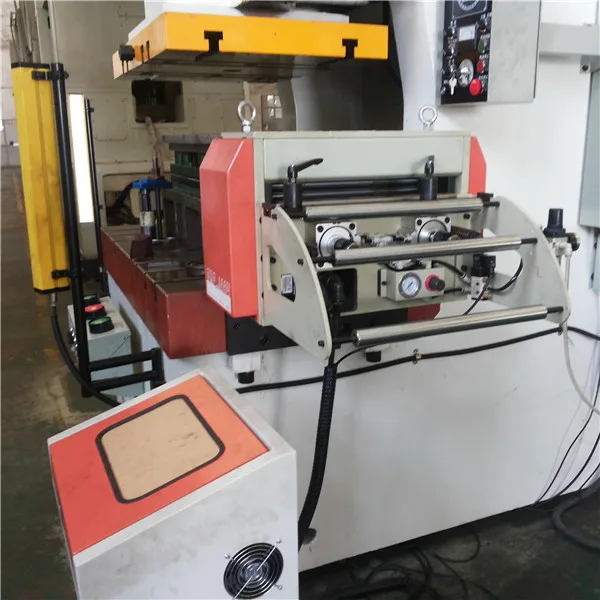

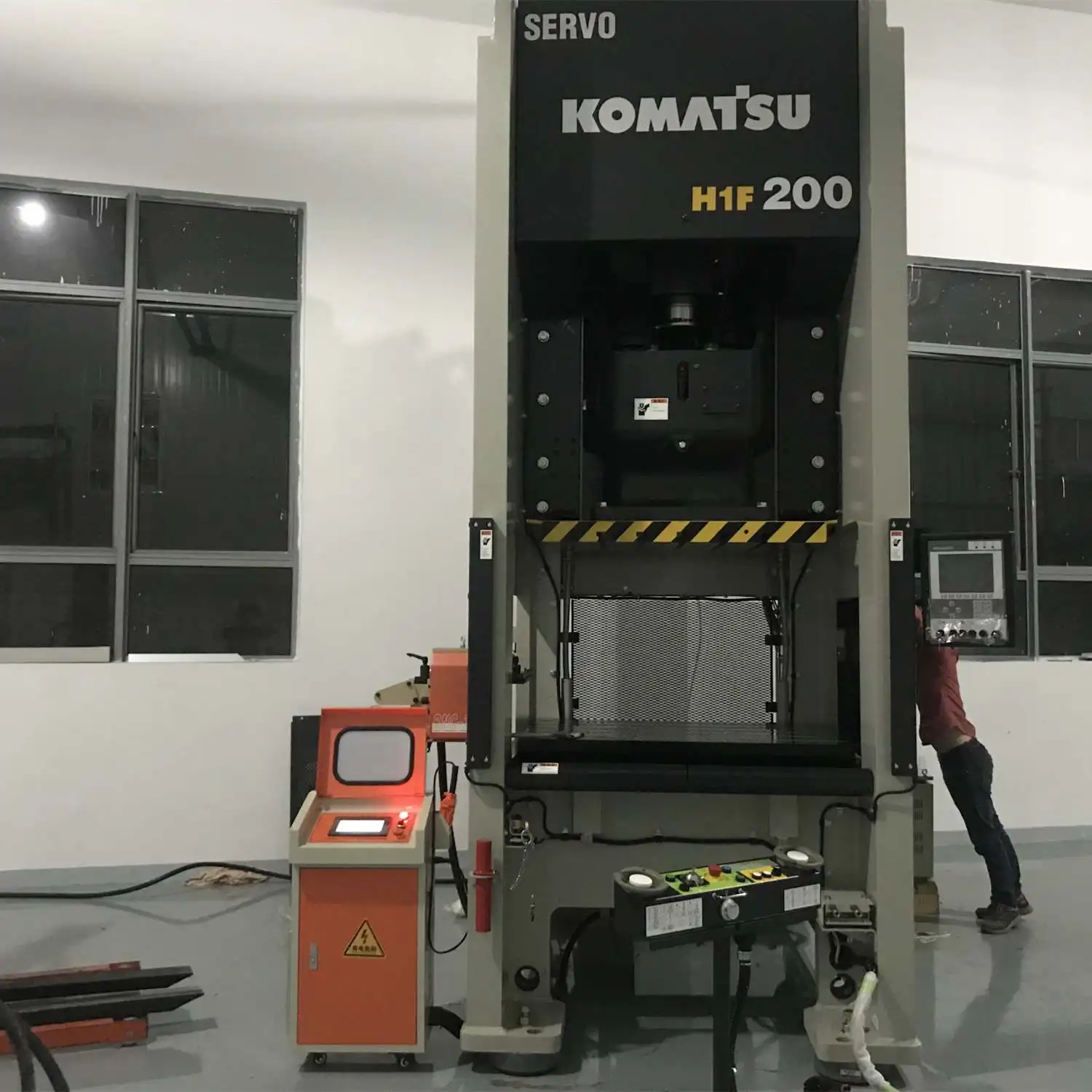

NC Servo Feeder for Pressing Line
Application: Metal Stamping Line
Model: RNC-300

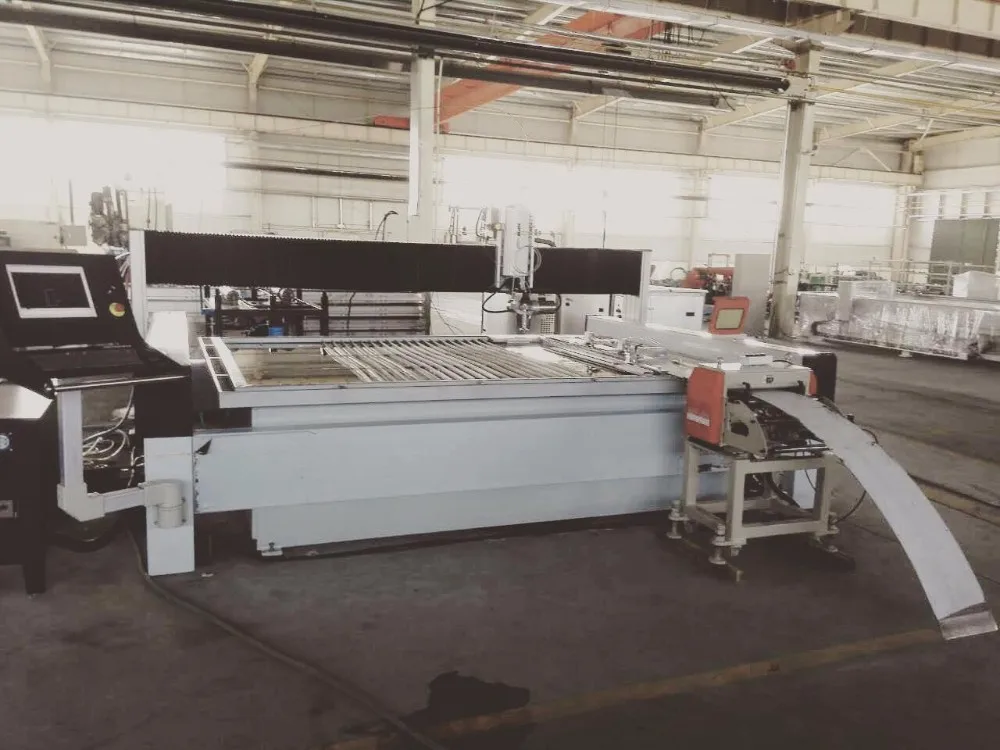

NC Servo Feeder with Water Jet Cutter
Application: Water Jet Cutting machine
Model: RNC-400
Packing & Delivery

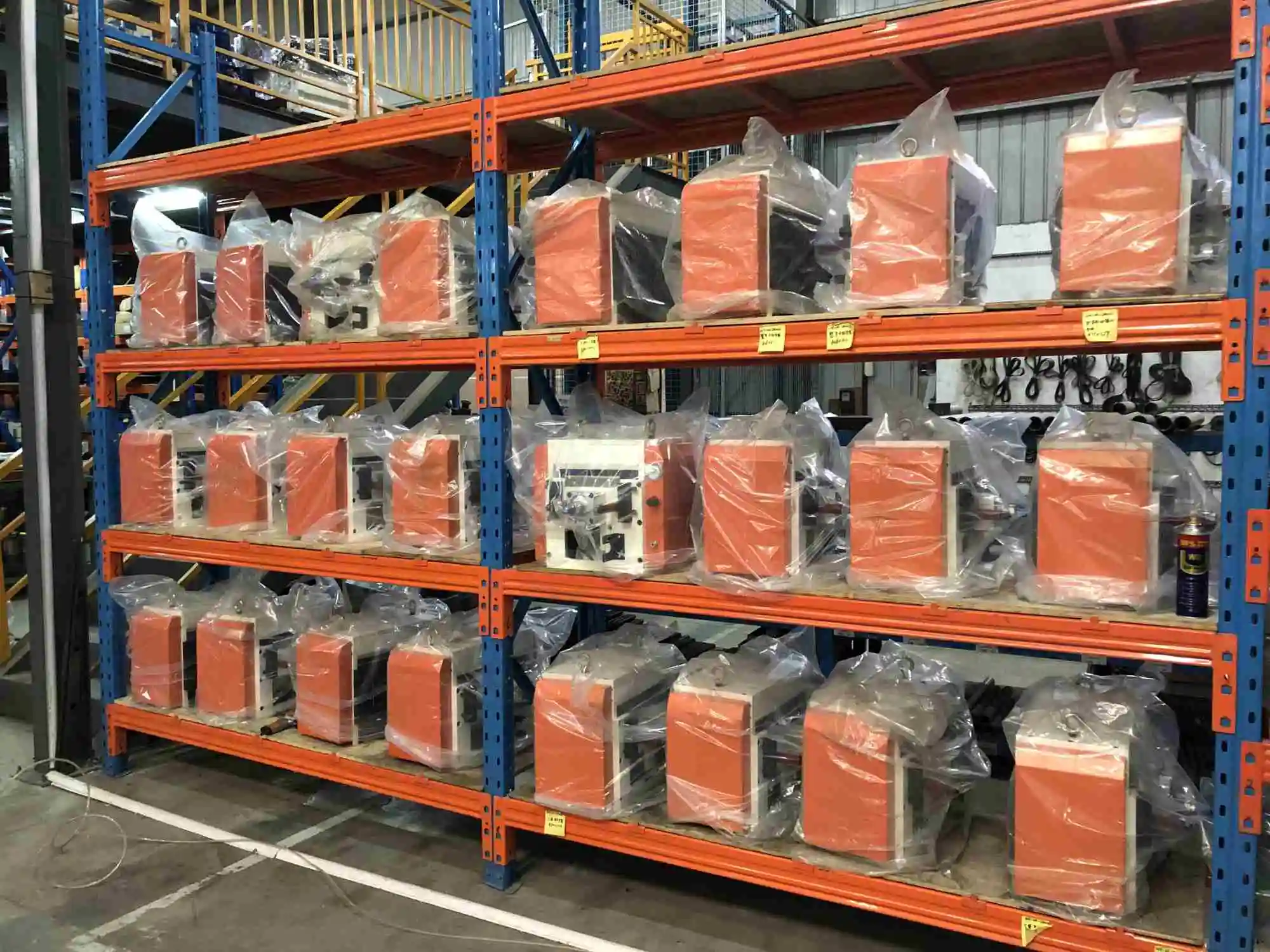

NC Servo Feeder machines
wrapped up with plastic film
Fix NC Servo Feeder machines
into wooden case
Delivery NC Servo Feeder
machines to Shenzhen port
About HongEr Company
HongEr is one of the leading press peripheral equipment brand in China.
Our mission is to provide our customers with the very best quality coil handling solutions and after sales service.
We offer a wide range of coil handling equipments, including Decoiler, Straightener, Feeder, Press Machine and Dies, as well as numerous after sales services for individuals, small businesses, mid-sized and large companies and multinational corporations.
Metal coil processing can be carried out faster and more accurately with an HongEr machine for better reliability, less waste and improved productivity.
For more information about how our coil handling equipment can support your business and help improve your productivity contact us directly, we are always happy to work with customers to identify your exact requirements so we can provide the very best, tailored solution.
CNC Machining Workshop

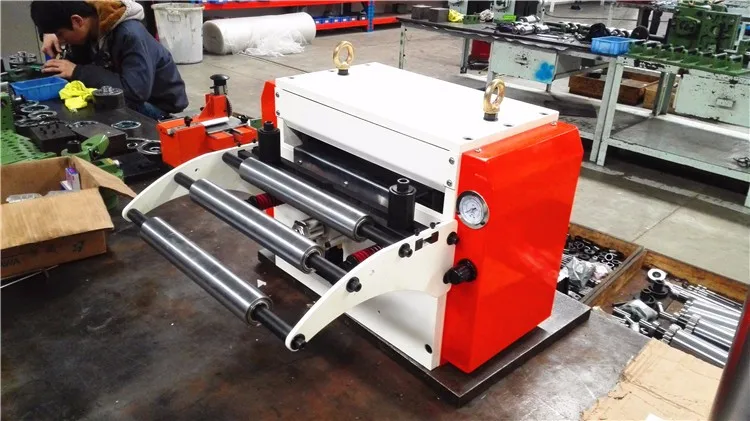

Assembly Workshop
Certifications
Exhibitions
Service
Application Feasibility Test
24-7 sales service
Lifetime Technical Support
Free After-Sales Service 1 year
Customization
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it's 3-7 days if standard uncoiler machines are in stock.
Or it's 15-20 days if need customization
Q: How long is the warranty time?
A: 1 year warranty. If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q: How does your factory do regarding quality control?
A: Quality is priority. Hong-Er People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Do you sell ONLY standard machines?
A: No, most of our machines are made according to customers specifications, using international brand components.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have another question, pls feel free to contact us now.
