Product Overview
Description
Product Description

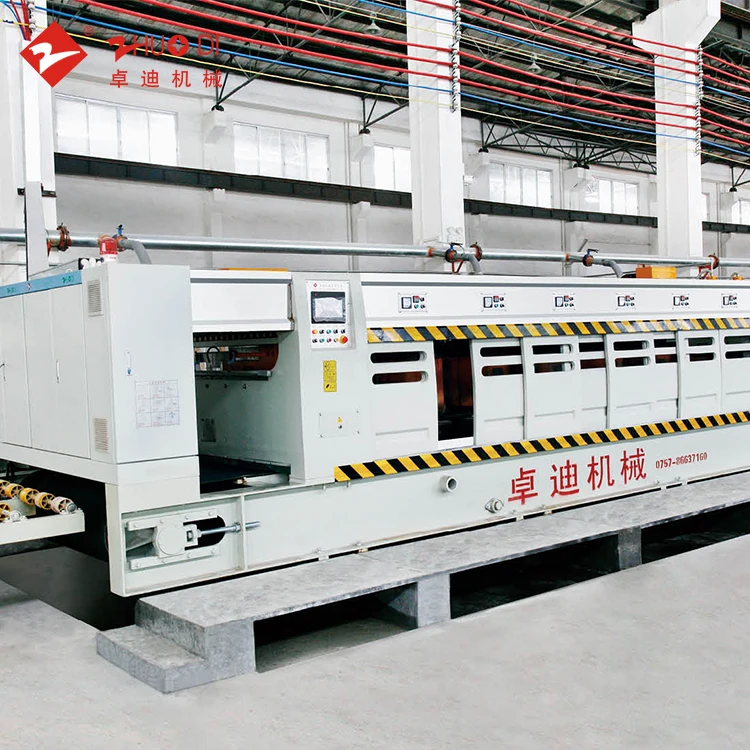

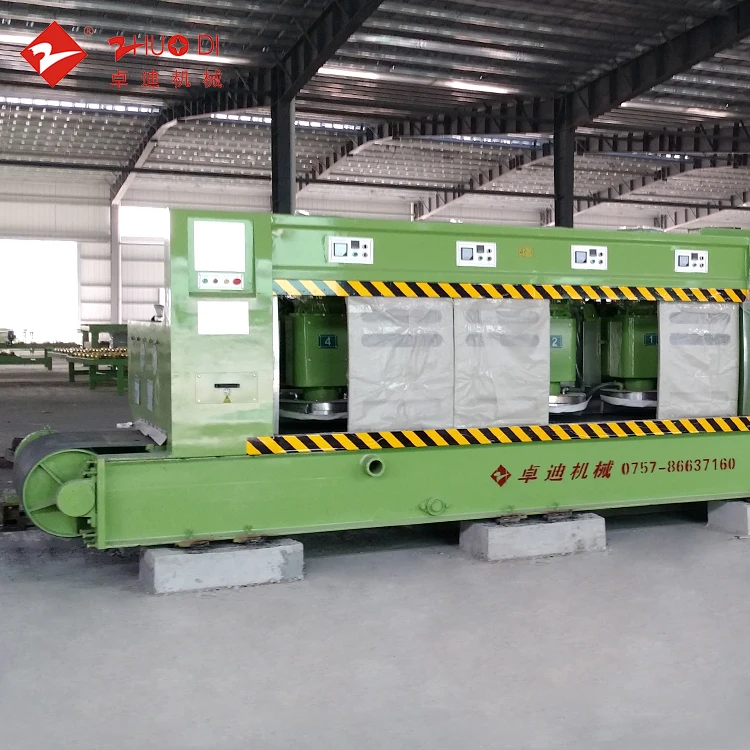

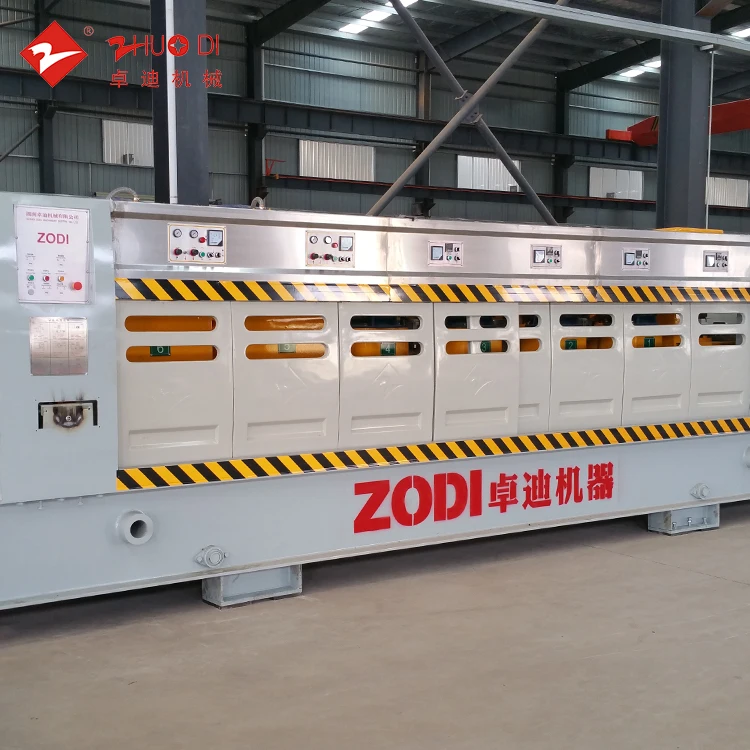

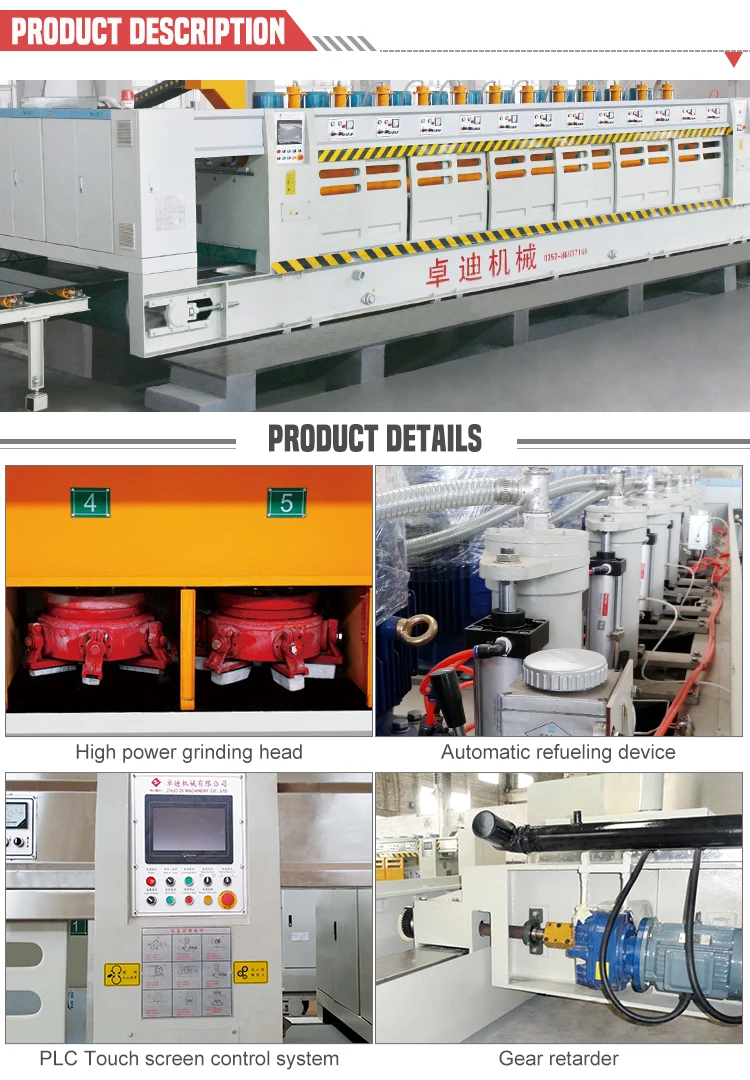

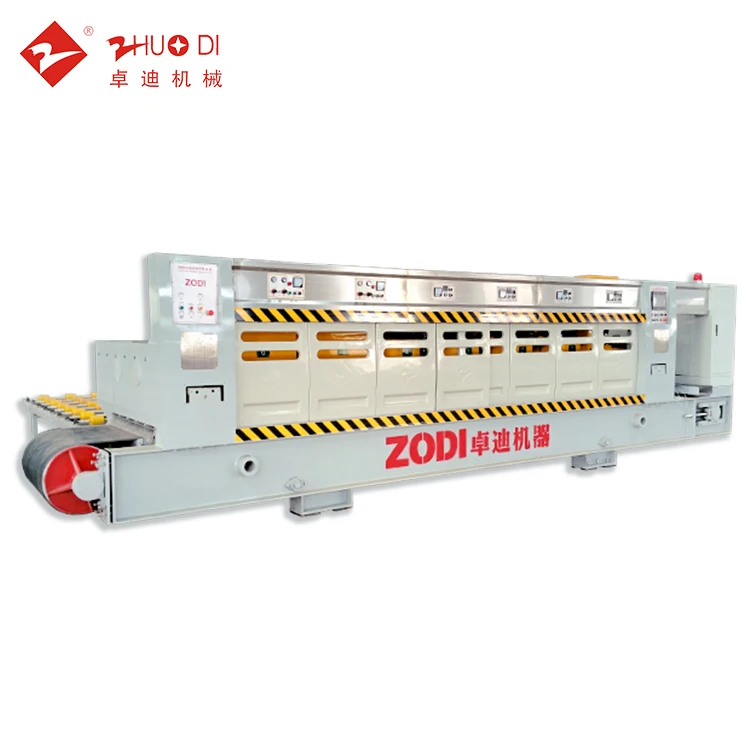

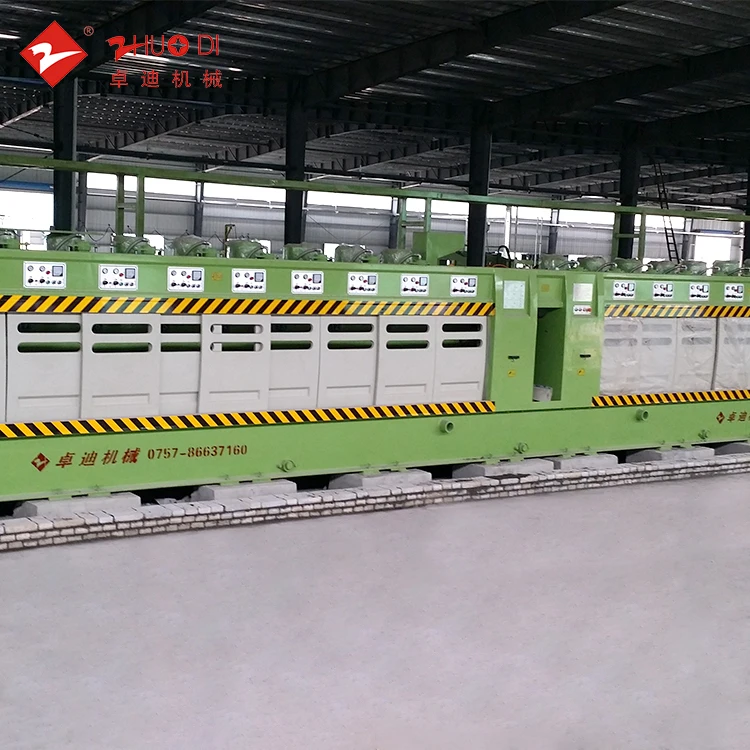

Disc Type Polishing Machine This machine is used in polishing the surface of the granite and quartz stone slabs. It adopts the latest technology of quartz stone polishing field. It has features of rational structure, precisely manufacture, running stable and high efficiency. Most of the parts are using famous brands in the world. Thorough the PLC control with touch screen, it realizes the intelligent control. |
| Tchinical Parameters | ||||||||||||
| Model | Edge graind head | Work wudth (MM) | Work thickness (MM) | Conveying speed (M/MIN) | Roller feed-in power (KW) | prime conveying power (KW) | Swaying motor power (KW) | Gross install power (KW) | Gas consumption (L/Min) | Water consumption (L/Min) | Weight (T) | Dimension (M) |
| ZP600/16 | 16 | 400~600 | 8~20 | 10~16 | 11 | 4 | 4 | 184 | 260 | 420 | 23 | 12*2.67*2.3 |
| ZDP800/16 | 16 | 500~800 | 8~20 | 10~16 | 11 | 4 | 5.5 | 185.5 | 260 | 420 | 23.8 | 12*2.87*2.3 |
| ZDP1000/16 | 16 | 700~1000 | 8~20 | 6~12 | 11 | 4 | 2.2×2 | 184.4 | 260 | 420 | 24.6 | 12*3.07*2.3 |
| ZDP1200/16 | 16 | 900~1200 | 8~20 | 4~8 | 11 | 4 | 2.2×2 | 184.4 | 260 | 420 | 25.4 | 12*3.27*2.3 |
| ZP600/18 | 18 | 400~600 | 8~20 | 10~16 | 11 | 4 | 4 | 206 | 300 | 480 | 26 | 13.2*2.67*2.3 |
| ZDP800/18 | 18 | 500~800 | 8~20 | 10~16 | 11 | 4 | 5.5 | 207.5 | 300 | 480 | 26.8 | 13.2*2.87*2.3 |
| ZDP1000/18 | 18 | 700~1000 | 8~20 | 6~12 | 11 | 4 | 2.2×2 | 206.5 | 300 | 480 | 27.6 | 13.2*3.07*2.3 |
| ZDP1200/18 | 18 | 900~1200 | 8~20 | 4~8 | 11 | 4 | 2.2×2 | 206.5 | 300 | 480 | 28.4 | 13.2*3.27*2.3 |
| ZDP600/20 | 20 | 400~600 | 8~20 | 10~16 | 11 | 7.5 | 3×2 | 234.3 | 325 | 525 | 31 | 16.23*2.67*2.3 |
| ZDP800/20 | 20 | 500~800 | 8~20 | 10~16 | 11 | 7.5 | 4×2 | 234.3 | 325 | 525 | 32 | 16.23*2.87*2.3 |
| ZDP1000/20 | 20 | 700~1000 | 8~20 | 6~12 | 11 | 5.5 | 2.2×2 | 234.3 | 325 | 525 | 33 | 16.23*3.07*2.3 |
| ZDP1200/20 | 20 | 900~1200 | 8~20 | 4~8 | 11 | 5.5 | 2.2×2 | 234.3 | 325 | 525 | 34 | 16.23*3.27*2.3 |
| NOTICE:We support customized service, you tell us the specific parameters of the required equipment specifications,we will design and quote you as soon as possible. |
1. Can you provide me with the product parameters
one polishing line two press lines semi-Auto distribution.
full production line dimension:117800*76840*14300mm(L*W*H)
Final slab dimension:760*2440mm;800*3100mm
thickness:10-30mm
daily capacity:360 slabs/day(20 hours)
annually capacity:260.000sqm/year
3. What is the size of the whole factory
one polish line can support 2 press lines
whole line dimension:136250*98280*10500mm(L*W*H)
Final slab dimension:1600*3200mm
thickness:10-40mm
daily capacity:480 slab/day(20hours)
annual capacity:720.000sqm/year
4. Do you have a perfect after-sales service system
with professional R&D team,providing pre-sales services,and timely solution.
12 year in engineered quarts stone production experiences,we can provide full training and technical support for our customers.we will
grow with our customers and develop new products with our customers.
with zhuodi machinery ,it's possible to produce any design of quartz.we also can customize and design the machine according to the actual demand,
ensure the easy operation during the production with the low cost,high production and high quality.
