Диммируемая Светодиодная панель 0 10 в 60x60 30x30 30x120 30x60 30x90

Product Overview

Description

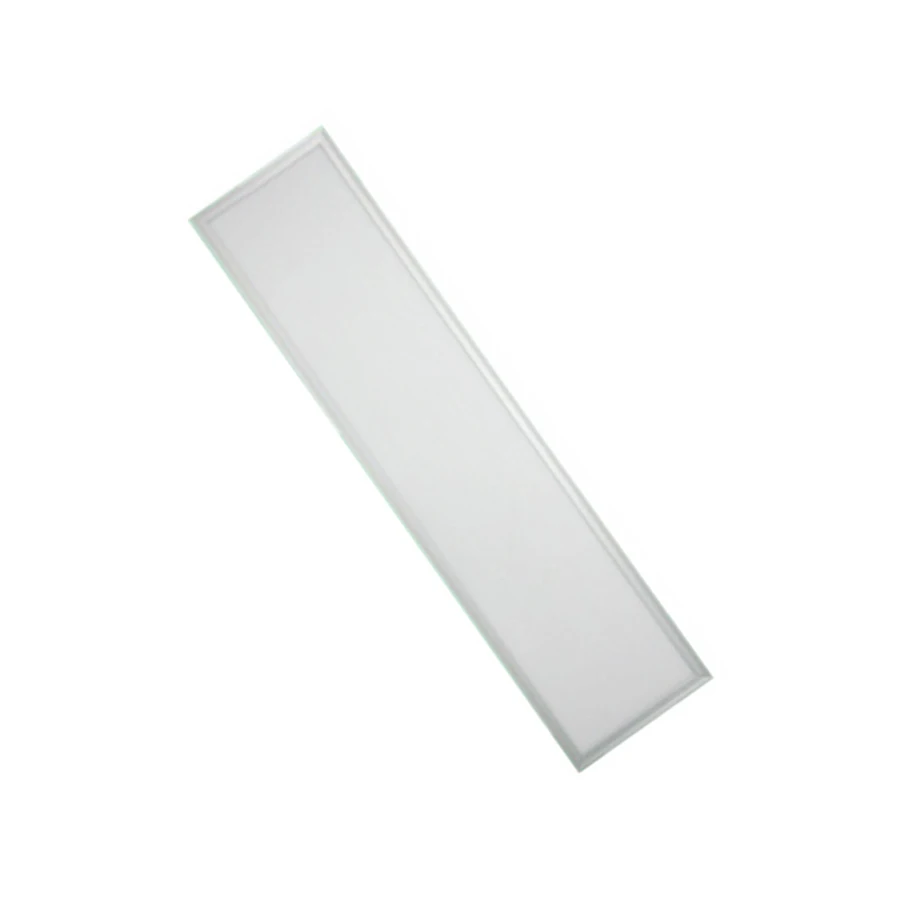

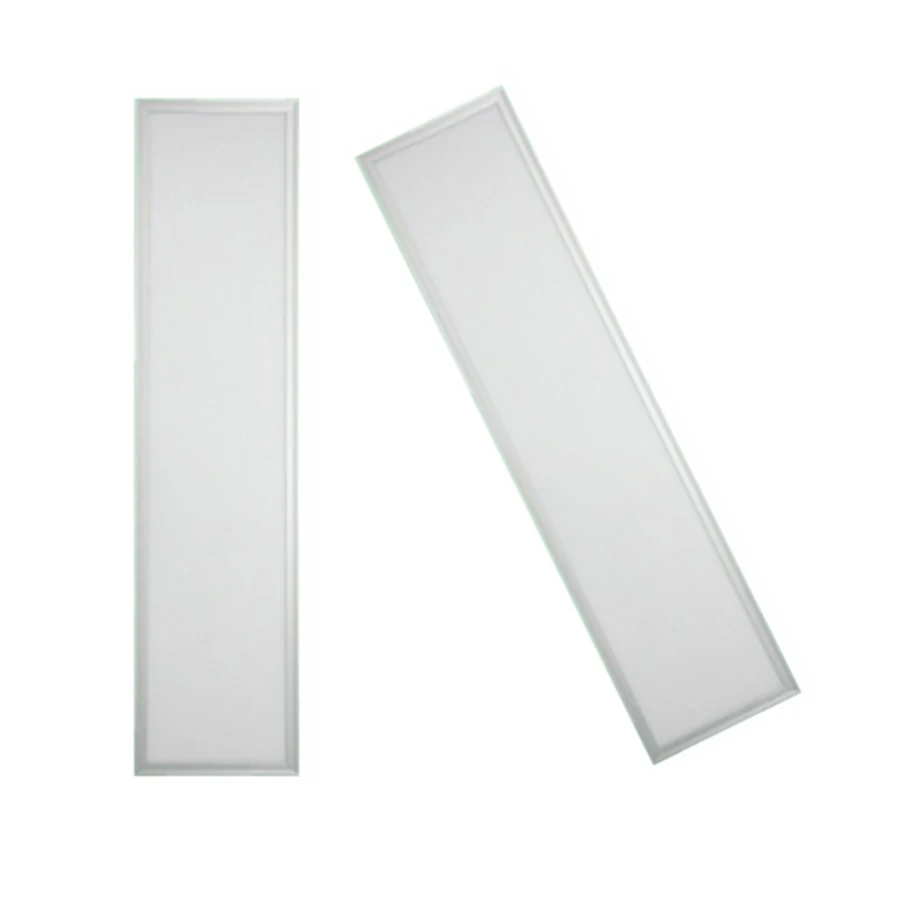

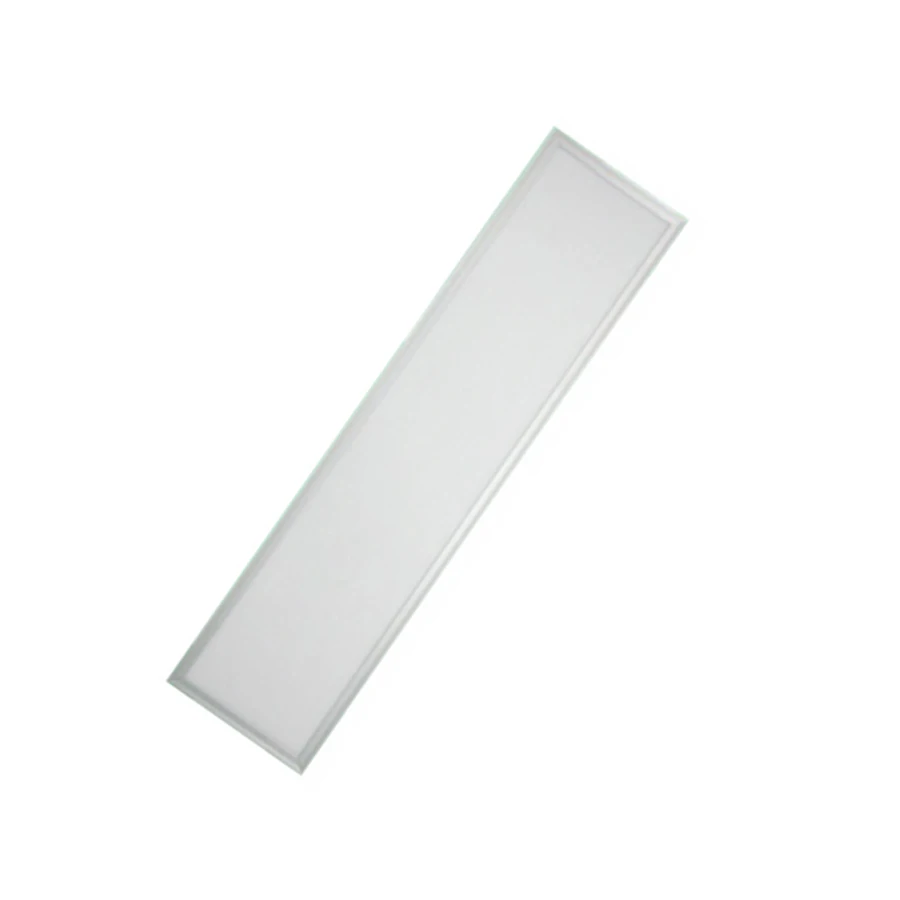

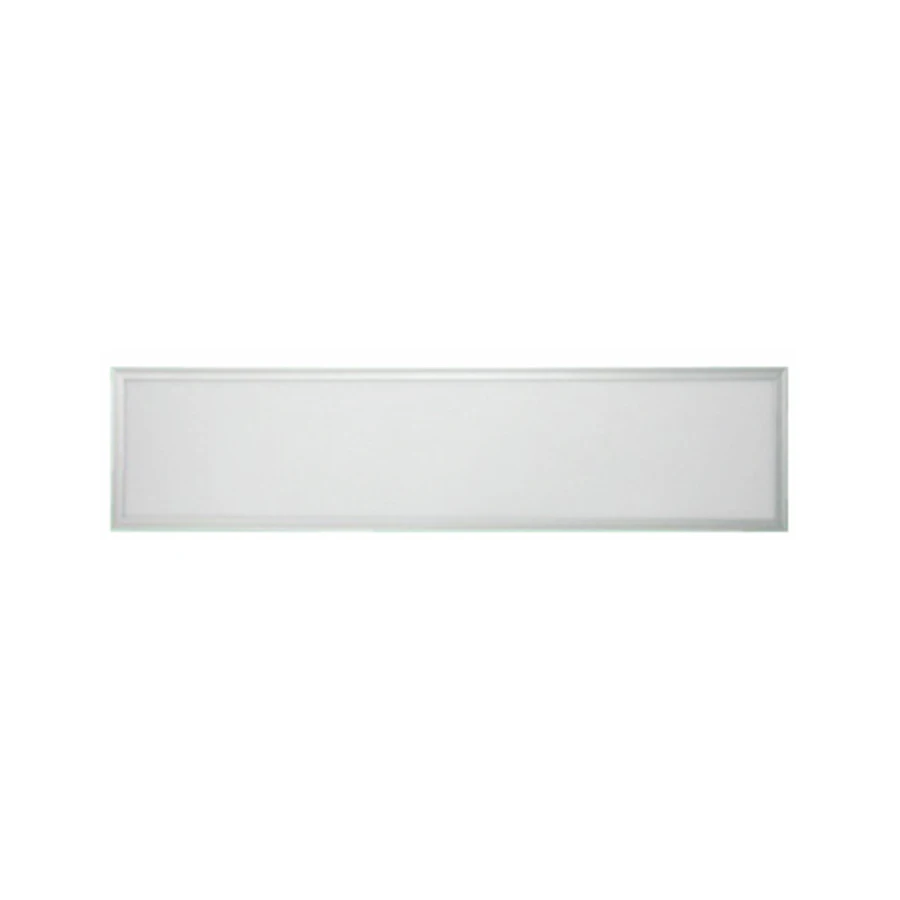

300*1200mm led panel lights (3014smd)



Technology index



300*1200*12mm Aluminium Frame,   Opal Diffusing Panel	PL12030-72	AC100-240V	Warm White Natural Whie Cool White	2700-7000 K	120°	72W	704 pcs	5400-5700 LM	External LED constant current driver
	PL12030-54	AC100-240V		2700-7000 K	120°	54W	528 pcs	4000-4300 LM
	PL12030-48	AC100-240V		2700-7000 K	120°	48W	462 pcs	3600-3800 LM
	PL12030-42	AC100-240V		2700-7000 K	120°	42W	418 pcs	2900-3200 LM
	PL12030-36	AC100-240V		2700-7000 K	120°	36W	352 pcs	2700-2900 LM

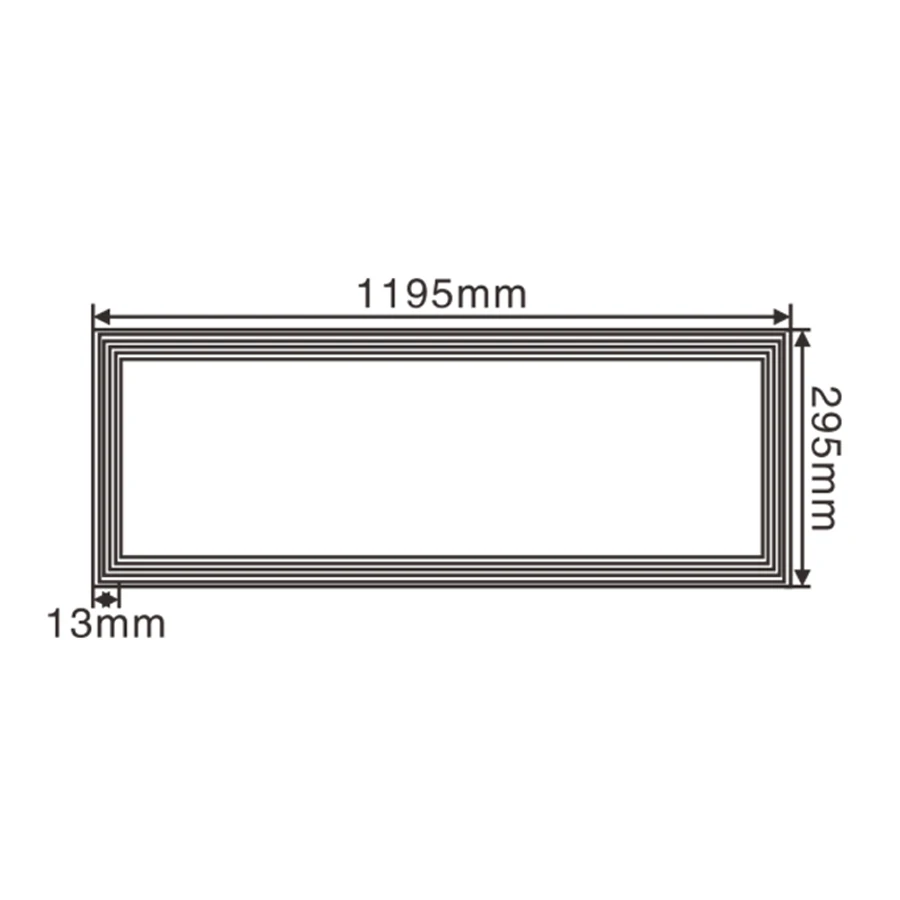

Product size design









Remarks:



1. The above dimension are based on “mm”



2. There is a tolerance about ±0.5mm





Intensity of illumination figure

  3.Highlights & Features



Highlights:

• Imported super bright SMD LED,high luminous intensity and efficiency.

• Industry's leading luminous efficiency,Top ranking in China.

• Super Longlife designed driver ,MTBF estimated at 60,000 hours, UL & Tuv Listed.

• Extra insulation design, withstand voltage of 3750V

• Super high light transmit shell distribute uniformed light.

• Leading heat management,low termperature increase,largely increase the lifetime

• 3 years warranty available for option and lifetime cost price mantaince and care for sure.

• Manufacturer directly amd massive production volume, guarantee lowest price for same quality.



Features:

1.     Energy Saving. Saving 55%-70% electricity cost to traditional Panels.

2.     Advanced super longlife and stable driver.

3.     Professional thermal management.

4.     Instant on, no warm up time required.

5.     No noise, no flickering.

6.     No UV or IR radiation in the beam, mercury free.

7.     Anti-shock, anti-moisture.

8.     Aluminum alloy 6063 body and leading light transmitting Optical PMMA cover.

9.     Exquisite small appearance. Easy to install with mounting brackets.

10.   Eco-friendly. No mercury and other harmful materials

11.   No delay on start.

12.   Long life span, longer than 50,000H



Warranty : 3 Years,



All products we sell,if in warranty period,we repair and replace for free,if not in warranty period we repair and replace for the cost of thecomponents. If customers want to replace the fail products that are not covered by warranty terms,we give 5% discount in price for customer to buy new,for the same products only.



Product installation drawing





 Applications



Hotels

conference/meeting rooms.

Factorieds or Office

Commercial/Institution buildings.

Hospitals.

Places  where every saving and high color

Rendering index lamps are needed.
