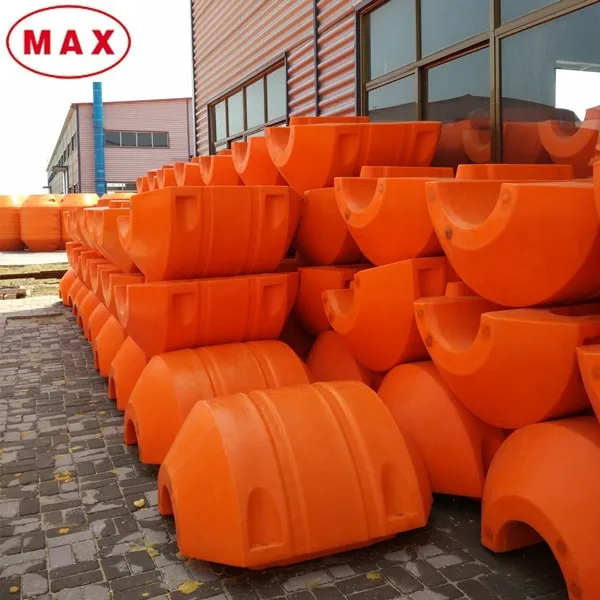

Polyurethane foal filled floater, plastic used pontoon floats for boats

Product Overview

Description

Polyurethane foal filled floater, plastic used pontoon floats for boats

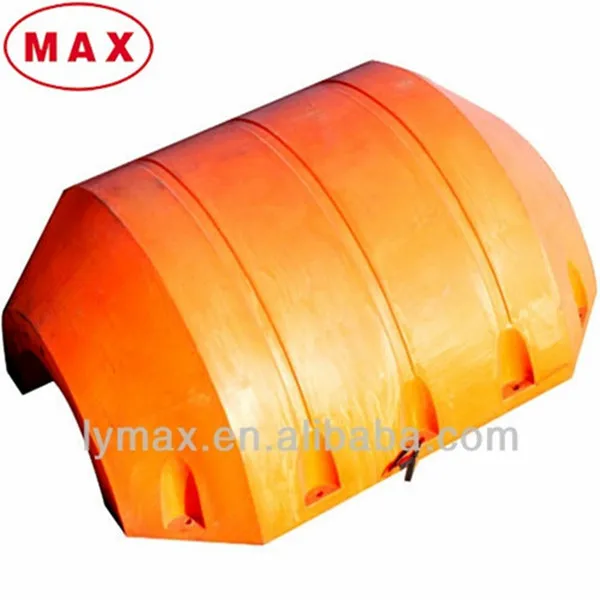

Product Structure:





















Product Introduction:

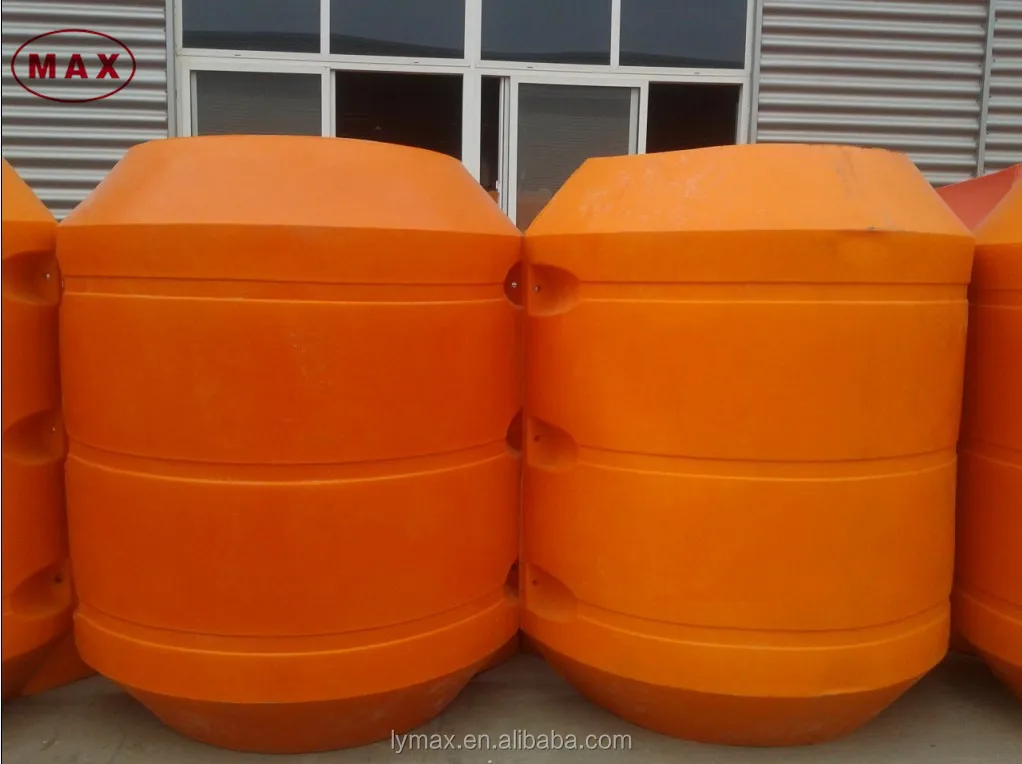

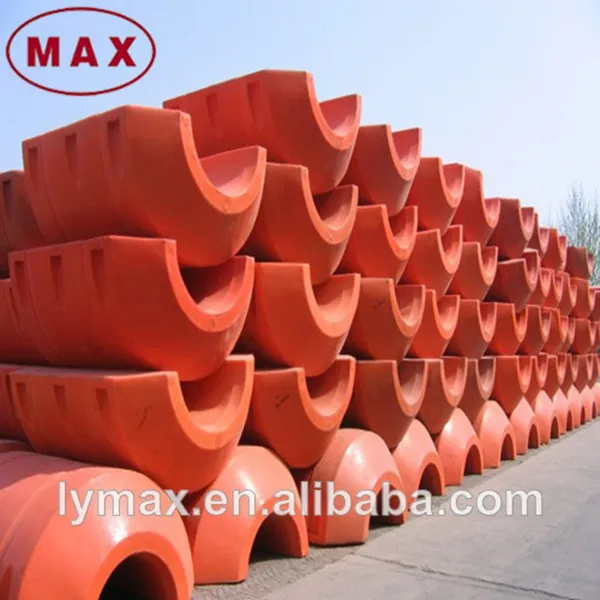

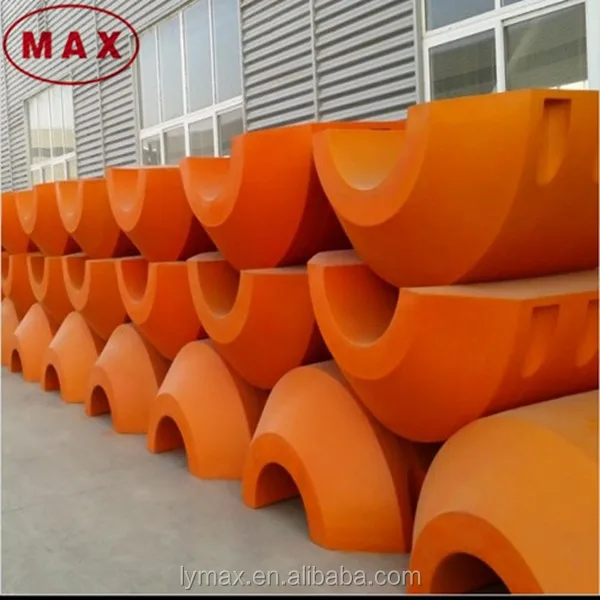

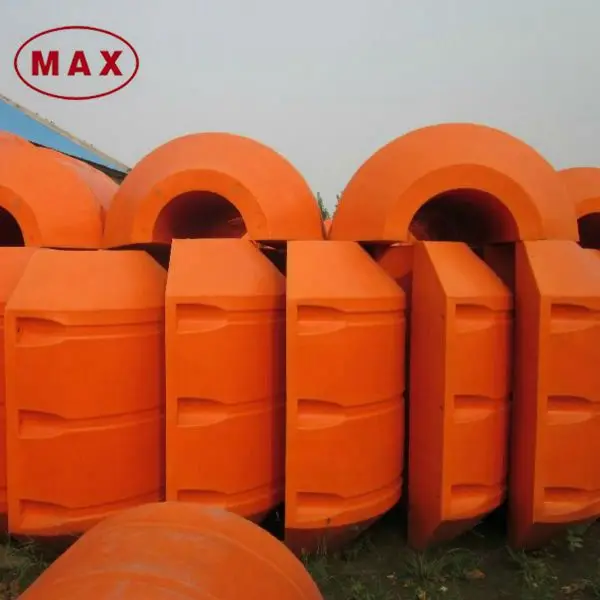

The hull of Polyurethane foal filled floater, plastic used pontoon floats for boats are made from medium density polyethylene material with excellent flexibility, filled with high strength polyurethane foam inside. With reasonable structure and good performance.Floats become the ideal substitution of the traditional steel floater for the floating dredging pipes.

Product Characteristics:
A. The floating body is equipped with shock and wave resistance, compact and reasonable structure, easy installation and excellent performance. Being floating materials for mud delivery pipeline on water, it becomes the first choice of dredging customers.
B. Good Toughness, strong environmental stress cracking resistance (ESCR), and being appropriate for offshore and lake construction.
C. Light weight, high resistance to wear, being convenient to install and transport, and low cost of transportation and transformation.
D. Resistance to corrosion and climate, 3 times more than steel buoy in terms of life span.
E. Easy, fast and flexible assembling diversified modeling.
F. Low price and cost performance is significantly better than that of steel buoy.
G. Being popular with customers because of its consistent quality, novel modeling reasonable price and excellent service.
H. Light weight, big Buoyancy.
I. resistance to impact, and acid-proof alkaline, anti-corrosive etc
J. very low absorption rate
D. Simple installation and low maintenance costs
E. service temperature range-60°C-80°C

Product Function:

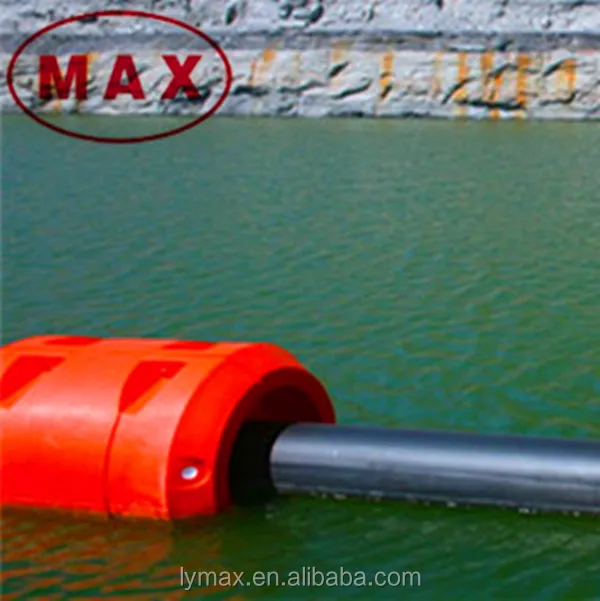

A: Make sure the delivery line float on the surface of the water.
B: The orange red shell can be Anti-collision Warning signs, to protect the pipeline.
C: Convenient for pipeline check and repair.
D: Shorten the construction period and reduce the project cost and maintenance cost.
Product Applications:
1.Plastic used pontoon floats for boats are used for dredging or dredging project.
2.It can be used in dredger, dredging pipe etc. in the sea, lake or river;
3.Particular used in laying the pipes on the water used in dredger project.

Remarks:

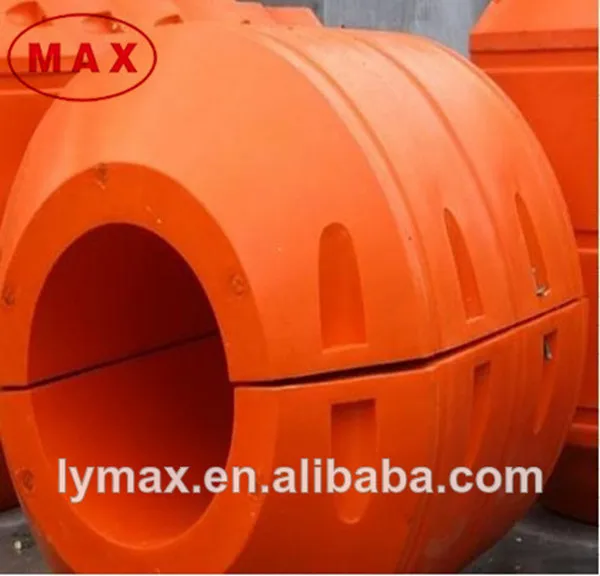

1.2 pieces of floats form 1 set, 2 sets of floats form 1 pair. 1 pair of float could float 6 meter long steel dredging pipe and 1.5m long rubber hose.
2. The floats size as in the specification table below are all available.

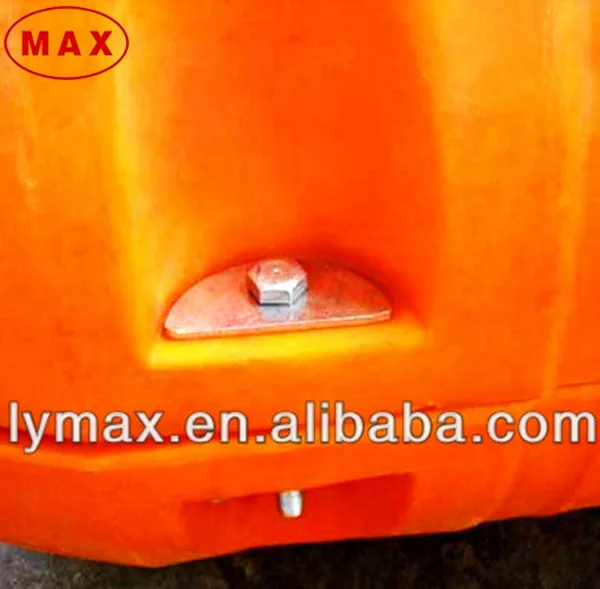

Connection way: bolts & nuts

Product Specification:

Floater I.D. (mm)	Floater O.D.(mm)	Floater  Length(mm)	Thickness  of Plastic(mm)	Floater Buoyancy force(kg)
220	500	800	7	200
300	700	1200	7	420
375	1100	1100	7	920
414	1100	1200	8	1020
430	1200	1200	8	1200
480	1300	1300	8	1500
580	1400	1550	9	2219
630	1400	1700	11	2400
680	1480	1800	11.5	2930
730	1600	1900	12	3593
780	1600	2000	13	3800
830	1800	2000	14	4800
880	1800	2200	15	5140
940	2200	2500	16	8180
