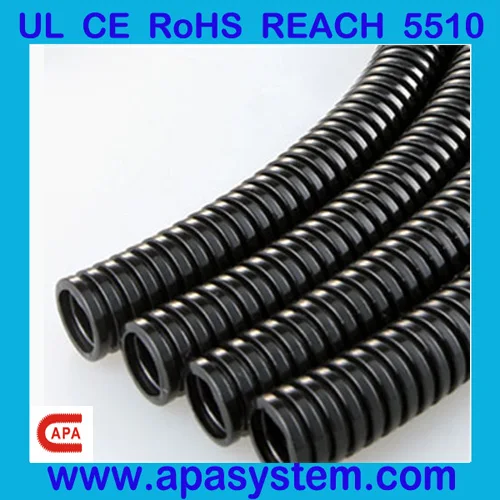

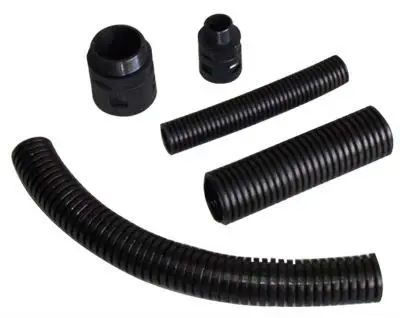

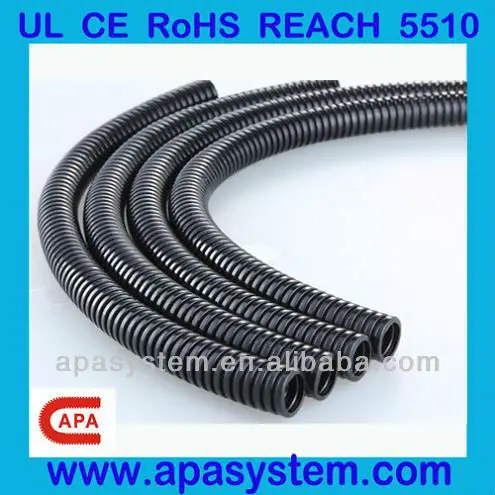

Best Seller Plastic Corrugated Flexible pipes

Product Overview

Description









1 material:polyamide,polypropylene,polyethylene

2 temperature range: -40C----150C

3 Min I.D:6.5,O.D 10 Max I.D:46.5 O.D54.5

4 Protection degree:IP68

5 Flame-retardant:V0,HB



FEATURES:

flexible and excellent tenacity, glossy surface, heavy-wall, high mechaical strength, wind resistant, anti-frction, resistant to oil, acid and solvents, uv-resistant, insulated, free of halogen, phosphor and cadmium.



APPLICATIONS:

machine building, electric automatic control system, vechicle building, heavy equiment, electric power plant,  metro, electric locomotive, etc.



MARKS:

Pipes only for wires and cables,no other usages such as for water,gas,food,etc.

More details pls contact us or visit our website



SEPCIFICATIONS:

Size: 1/4", 5/16", 3/8", 1/2", 3/4", 1", 1-1/4", 2", 12, 12.5, 18.5, 25, 32

Item No.	Size	I.D.(MM)	O.D.(MM)	Stat.R(mm)	Dyn.R(mm)	Packing Meter/roll
NL207-H	1/4"	6.0	10.0	13	30	200
NL207-H	5/16''	9.5	13.0	15	40	100
NL207-H	3/8"	11.5	15.8	20	50	100
NL207-H	1/2"	15.5	21.2	30	70	100
NL207-H	3/4"	21.5	28.5	40	100	100
NL207-H	1"	27.5	34.5	45	120	50
NL207-H	1-1/4"	36.0	42.5	80	150	25
NL207-H	2"	46.0	54.5	90	180	25
NL207-H	12	8.3	12	35	60	100
NL207-H	12.5	8.9	12.5	30	60	100
NL207-H	18.5	13.8	18.5	30	60	100
NL207-H	25	19.5	25	35	80	100
NL207-H	32	25.5	31	40	100	50













Oversea Expo:

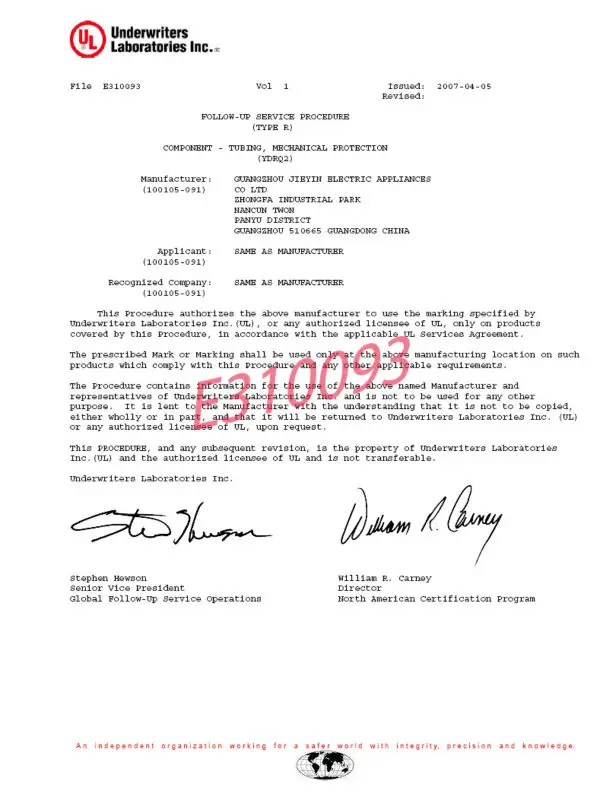

Polyamide hose UL certificate:
