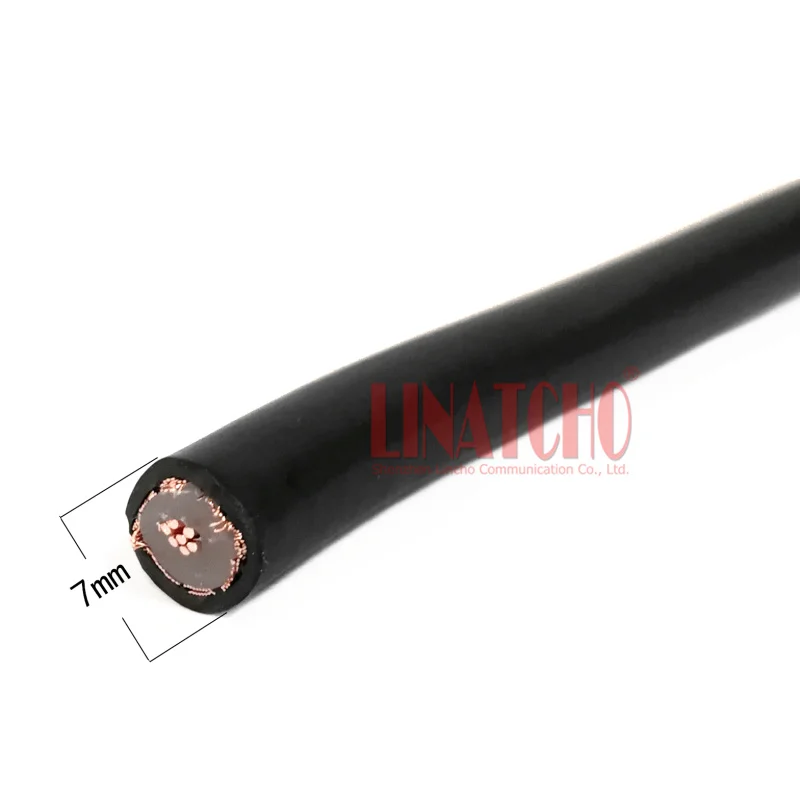

7MM 50ohm communication 5D SYV 50 5 copper core coaxial cable
- Category: >>>
- Supplier: Shenzhen Lincho Communication Co. Ltd.
Share on (60016773181):
Product Overview
Description
Specification
NAME | SYV-50-5 coaxial cable | STANDARD | GB/T14864-1993 | PRODUCT NO. | ||||
SPECIFICATION | ||||||||

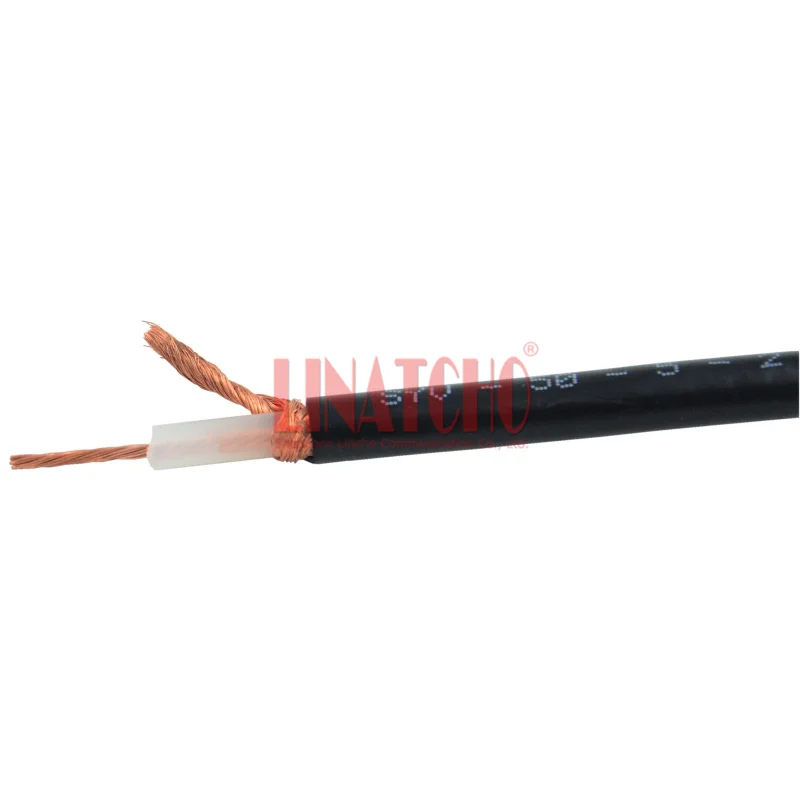

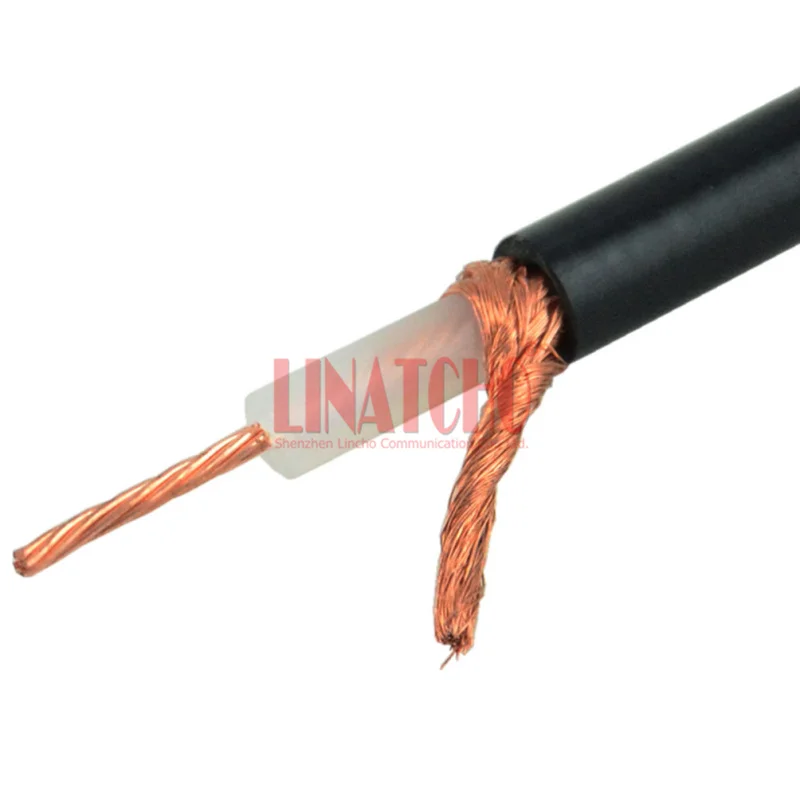

NO. | STRUCTURE | SIZE | MATERIAL | COLOR | ||||
1 | CONDUCTOR | 7/0.2mm | BC | yellow | ||||
2 | INSULATION | 5mm | PE | white | ||||

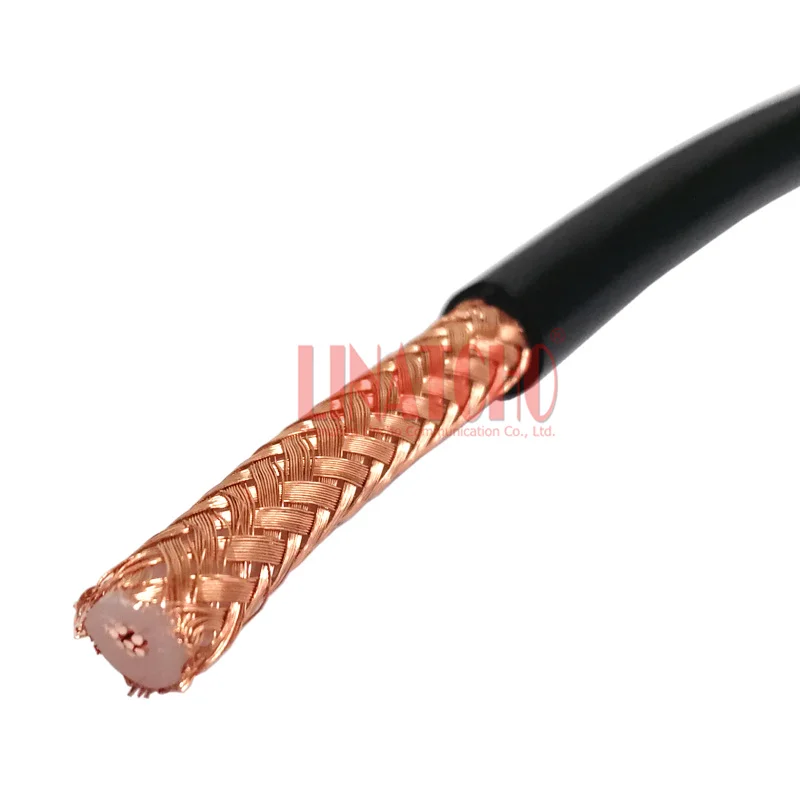

3 | WIRE BRAID | 5.7mm | BC | yellow | ||||
4 | JACKET | 7.5mm | PVC | black | ||||
ELECTRICAL & PHYSICAL PROPERTIES | ||||||||
ITEM | UNIT | VALUE | ||||||
CAPACITANCE | Pf/m | 82 | ||||||
IMPEDANCE | Ω | 50±3 | ||||||
VELOCITY RATIO | % | 82 | ||||||
BENT RADIUS | mm | 40 | ||||||
MAX VOLTAGE | VMS | 1000 | ||||||
MAX FREQUENCY | MHz | 3000 | ||||||
TEMPERATURE SCOPE | °C | -25 -- +70 | ||||||
VSWR | 40-3000MHz | ≤1.1 | ||||||
ATTENUATION | 400MHz | DB/m | 0.132 | |||||
800MHz | DB/m | 0.189 | ||||||
1500MHz | DB/m | 0.268 | ||||||
1800MHz | DB/m | 0.297 | ||||||
2500MHz | DB/m | 0.358 | ||||||
Products Description
1. High-performance of attenuation allows coaxial cable to be used in different RF systems, such as 3g, 4g mobile communication.
2. Wide range of applications, such as indoor distribution, broadcast, various base stations, wireless cellular, and others.
3. Lower VSWR, perfect shielding effectiveness, and extraordinary inter-modulation performance lead to fewer energy loss and outer interference.
2. Wide range of applications, such as indoor distribution, broadcast, various base stations, wireless cellular, and others.
3. Lower VSWR, perfect shielding effectiveness, and extraordinary inter-modulation performance lead to fewer energy loss and outer interference.
Details Images
Packing & Delivery

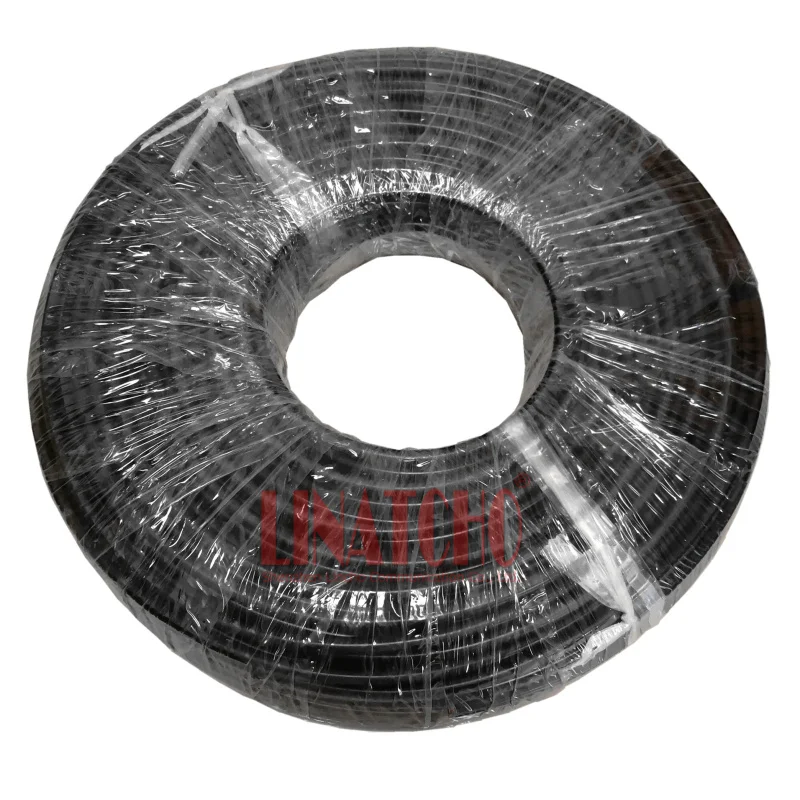

1.PACKAGE: Natural carton package or OEM service.
2.LEADTIME: 3-5days for samples, order depand on the quantity.
3.SHIPPING METHOD: DHL, EMS, UPS etc as you want
2.LEADTIME: 3-5days for samples, order depand on the quantity.
3.SHIPPING METHOD: DHL, EMS, UPS etc as you want
4.RETURN and WARRANTY: 100% QC inspection before shipment. Accept exchange within 7 working days after you received. Pls contact us before you return. Our service representitive will help you.
5.MINIMUM ORDER: 2 pcs, Sample order and trial order are welcome.
Company Profie
Why Choose Us
1. We are professional antenna and accessories mamufacturer for 15 years.
2. Our sales manager will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
2. Our sales manager will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
