1200 Degree Tilting Rotary Tube Furnace Heat Treatment Rotary Tube Furnace Laboratory Electric Tube Furnace

Product Overview

Description

STA-1200-DWB-001 tube rotary furnace for annealing





Furnace tube size: dia40/50/60/80/100mm

Type: Resistance Furnace

Rated Power: 2.5KW

Furnace Tilt Angle: 0-30℃variable

Certificate: CE

Advantage: Energy-saving

Max temperature: 1200C

Working temperature: 1100C

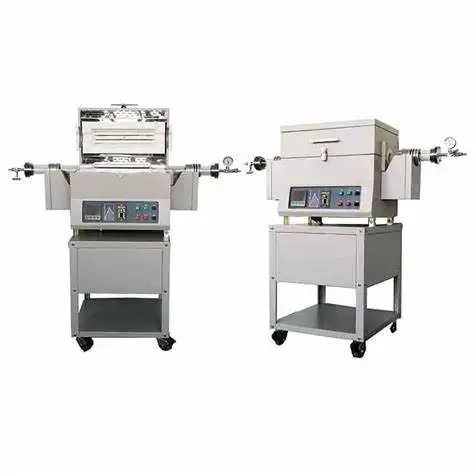

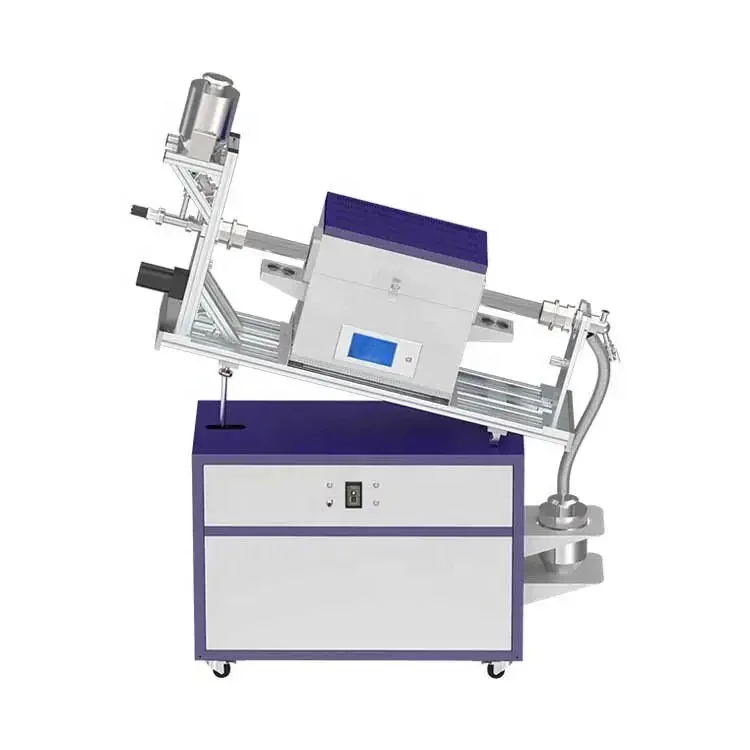

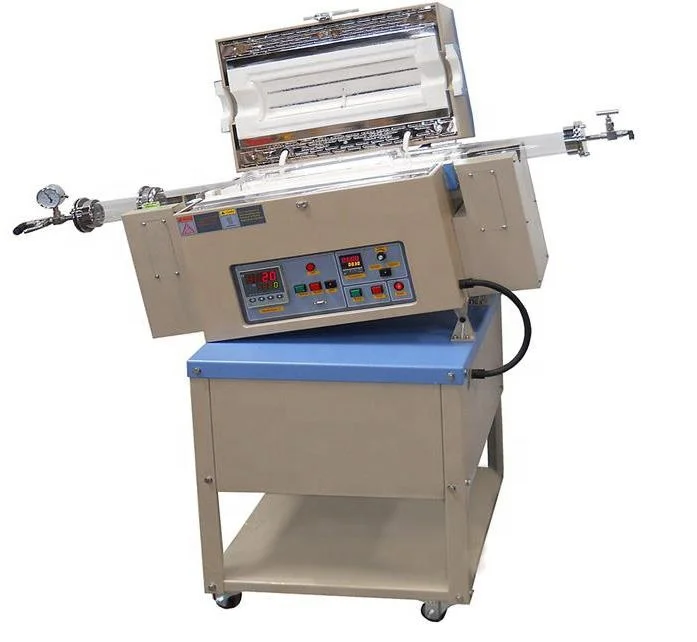

Rotary Tube Furnace

STA rotary tube furnace is designed for calcining inorganic compound with better uniformity, especially excellent for preparing Li-Ion battery cathode materials with conductive coating, such as LiFePO3, LiMnNiO3, etc in R&D Laboratory.



Technical data



Furnace tube	outer dia.40/60/80/100mm
Heating zone length	205/350/440mm
Max.temperature	1200'C
Working temperature	1100'C
Temperature control	30 segments programmable and PID auto control
Heating rate	0~20'C/min
Heating element	Fe-Cr-Al-Mo wire
Furnace structure	double shell with fan cooling
Temperature accuracy	+/-1'C
Tube rotating speed	0-7 RPM variable
Furnace tilt angle	0-30' variable
Power	2.5Kw



Standard accessory:



Tube plug 4pcs; quartz tube 1pc; vacuum pump 1 set; Sealing flange1 set; vacuum gauge 1pc;



crucible clip 1pc; thermal gloves 1pair; operation manual 1 pc



Warranty:



Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
