Product Overview

Description

OSMT-3A OSMT-B Xenon Lamp  solar panel flash tester

MODEL:OSMT-A	OSMT-B



-Xenon Lamp Solar Simulator Function



 Use to test the electric performance of Mono-Si or Poly-Si solar modules and record the results in files.



-Machine Features



l  four-line measurement,14-bit 4-channel high speed synchronous acquisition card



l  10 parameters display,Measurement Parameter displays in Tabulation and Graphic way



l  Temperature automatically compensating



l  Voice counts off and prompts, Counting prompt of flash times



l  24 continuous work



l  import Xenon lamp



-Xenon Lamp Solar Simulator Technical Features



MODEL	OSMT-A	OSMT-B
Lamp spectrum	In line with iec60904-9 spectral Irradiance distribution requirement(AM1.5)
Light intensity	200m_1200W/M2 continuous adjustable
Light intensity non-uniformity	≤±2% [A]	≤±3%
Light intensity instability degree of irradiation(STI)	≤±0.5% [A]	≤±2%
Light intensity instability degree of irradiation(LTI)	≤±2%	≤±2%
Test results consistency	≤±0.5%[A]	≤±1%
Single flash time	10ms~40ms	10ms
Effective test range	2000×1100mm /5W-300W
Measuring voltage	0-100V(resolution 1mV)
Measuring current	0-20A(resolution 1mA)
Power Supply	AC220V/50HZ/2KVA
Test parameters	Isc,Voc,Pmax,Vm,Im FF,EFF,Temp,Rs,Rsh
Xenon Lamp service time	200,000flash times	100,000flash times
Weight	600kgs	500kgs

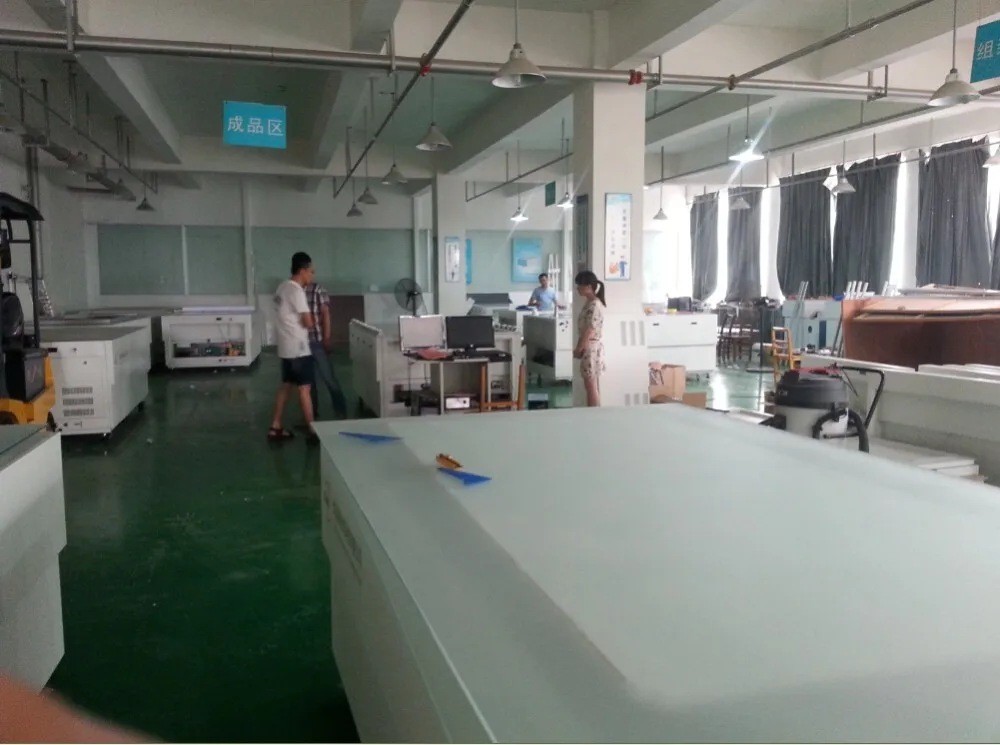

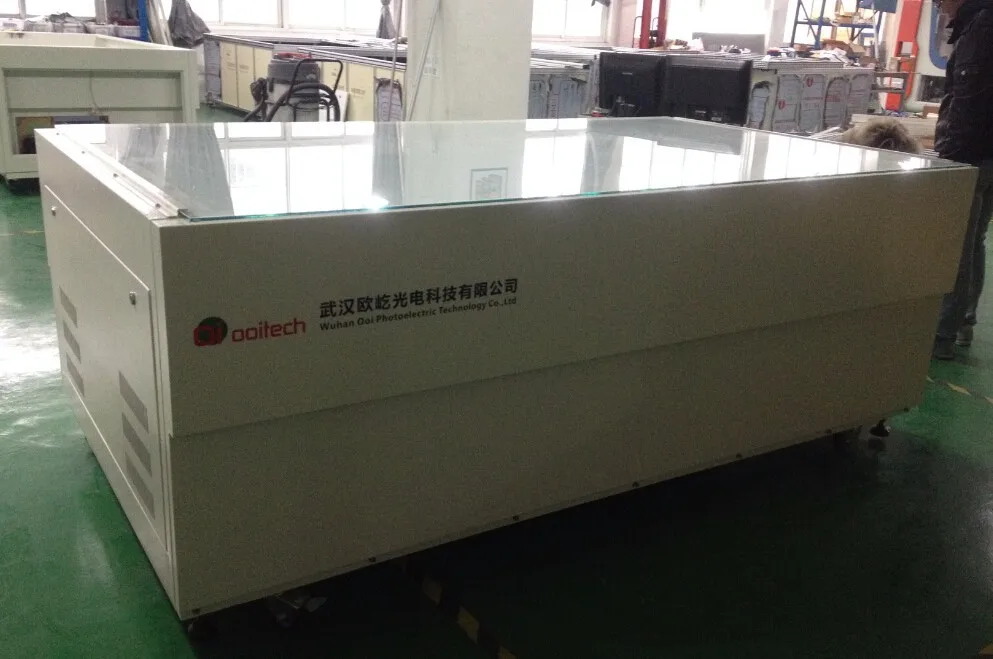

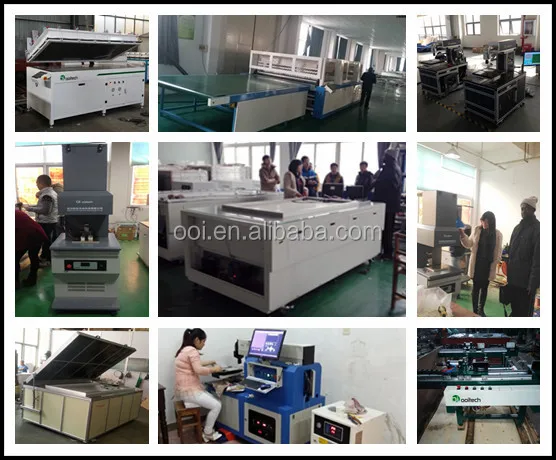

Factory Picture:
