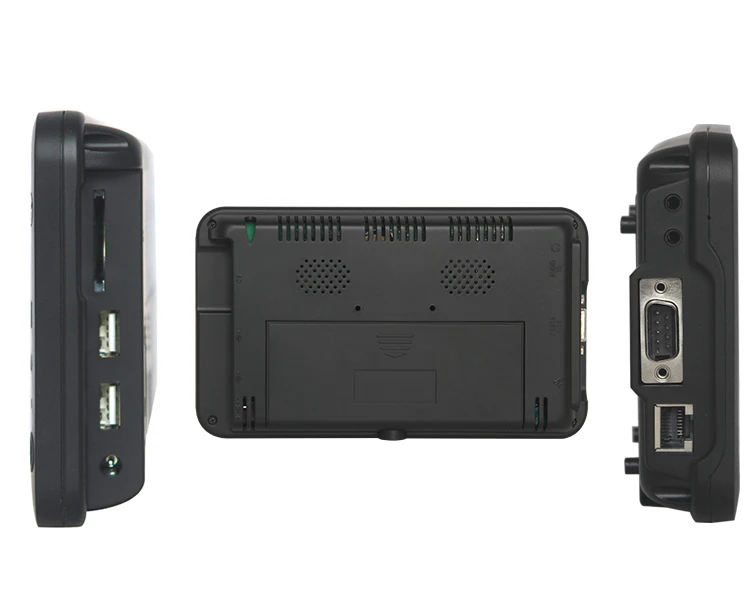

7 WINCE embedded car computer all in one touch screen monitor support visual basic
- Category: Car PC >>>
- Supplier: Shenzhen Feelworld Technology Co. Ltd.
Share on (60017618502):
Product Overview
Description

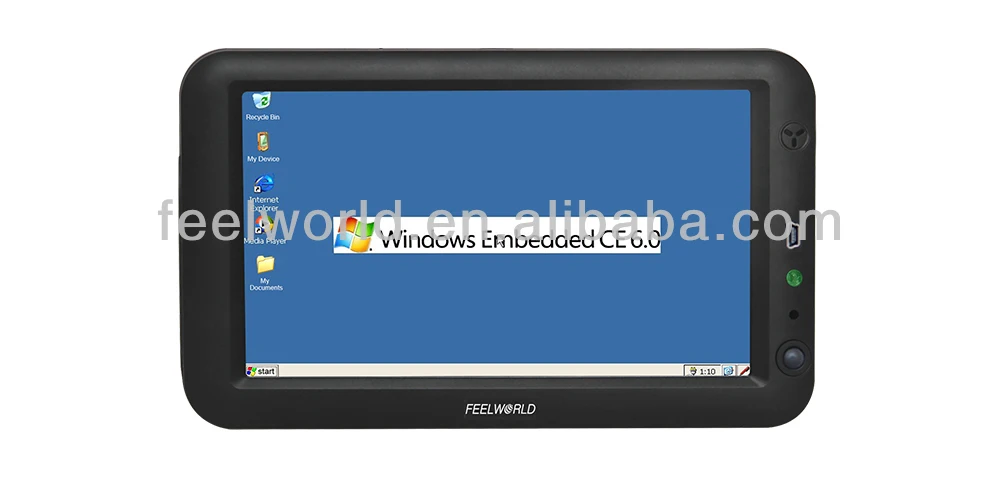

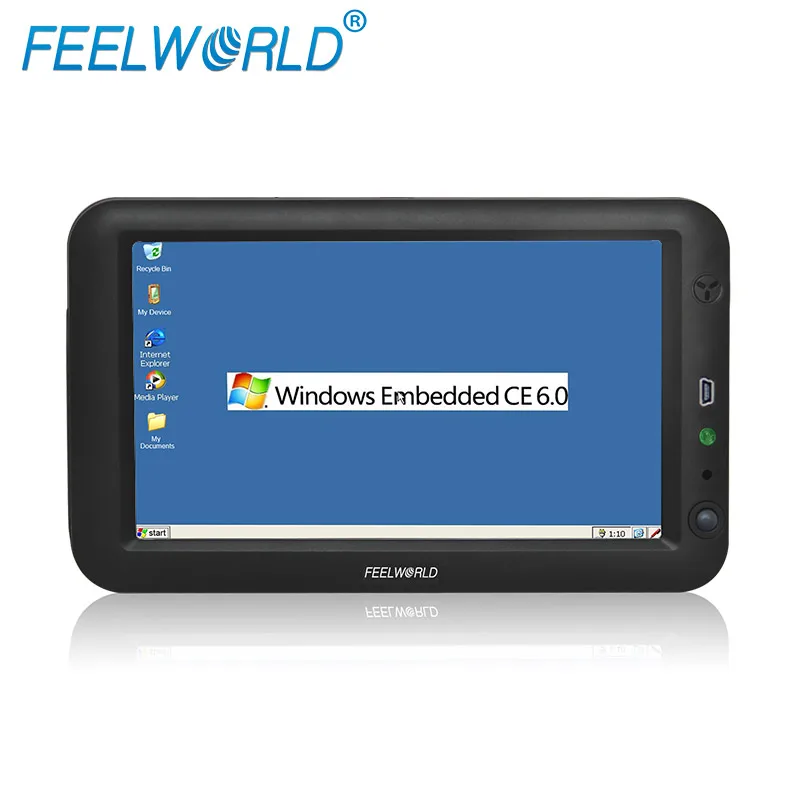

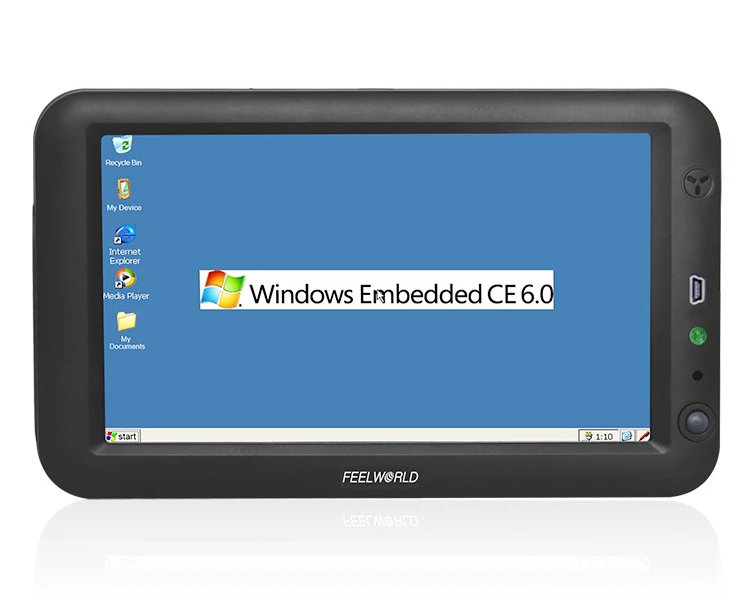

7 WINCE embedded car computer all in one touch screen monitor support visual basic
7 WINCE embedded car computer all in one touch screen support visual basic
Integration with industrial grade 7-inch LCD high-brightness LCD screen, configure the military resistance touch Screen, which is characterized by high temperature, high linearity, sensitivity is good, make operation more convenient

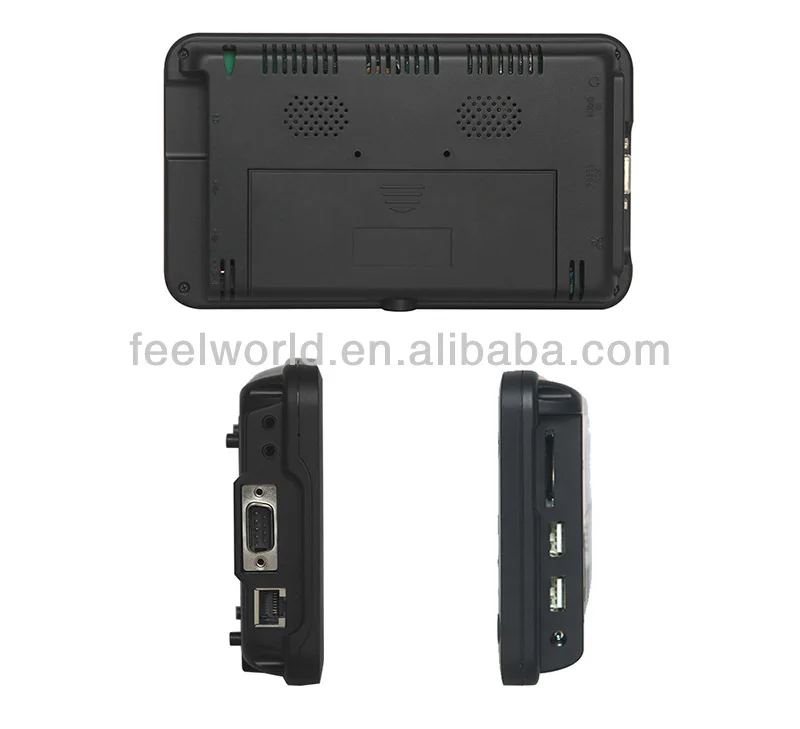

This machine adopts stable performance low-power industrial motherboard, onboard core Samsung 6410 program. Externally supplied 232 serial port, Ethernet port, USB port, SD card slot, audio interface Mouth,can be widely used in engineering controls, equipment testing, instrumentation, security monitoring, medical
Devices, high-end embedded applications such as smart terminals.
| Description | 7" WIN CE 6.0 Touch PC | ||
| Model No. | FW659PC | ||
| CPU | Samsung s3c 6410 | ||
| 667MHZ | |||
| Memory | DDRII SDRAM 256MB(MAX to 512MB) | ||
| Nand Flash | 2GB(MAX to 4GB) | ||
| LCD Screen | Resolution: 800x480 | ||
| Dot pitch: 0.0642(W) × 0.1790(H) mm | |||
| Brightness: 400 cd/m² | |||
| Contrast: 500:1 | |||
| View Angle: 70/70 (L/R) 50/70(U/D) | |||
| Operation System | WINDOW CE 6.0 | ||
| Features: | Mini USB Input | USB Device 2.0 input for PC | |
| Memory Card Insert | SD Card Insert,Max to 32G | ||
| WIFI(optional) | Wi-Fi RT2870 Wireless Adaptor, support IEEE802.11b/g(Standard) IEEE802.11g (6M/S) | ||
| Bluetooth(optional): | Bluetooth V2.0,2.4GHz for Data Transmission | ||
| Li-Battery(optional): | 7.4V 2500mAH; Work Hour:4 hour | ||
| Built-in speaker | |||
| Interface: | Mini USB 2.0(OTG) | 1 | |
| USB Host 1.1 | 2 | ||
| Lan Port RJ45 | 1 | ||
| RS232 | 1(support to 2) | ||
| 3.5MM Earphone Jack | 1 | ||
| 3.5MM Audio Input | 1 | ||
| Support Visual Basic,EVC,Visual Studio,net framework 3.5 | |||
| Support keyboard, mouse and U disk | |||
| Support RS232 ,TTL(Optional) | |||
| Input Voltage: | 9V-24V | ||
| Max Consumption: | ≤8 W | ||
| Work Temperature: | 0°C~ 50°C 0~85% RH | ||
| Store Temperature: | -10°C~ 60°C 0~75% RH | ||
| Unit Size: | 195Lx118Wx35H(mm) | ||
| Unit Weight: | 390g | ||
| Applications: | |||
| Industrial control system | |||
| Automotive media center, telematics and navigation | |||
| Ultra mobile PC | |||
| Personal Media Player | |||
| Home automation and media center | |||
| Order management system | |||
| E-education device | |||
| Advertising digital signature | |||

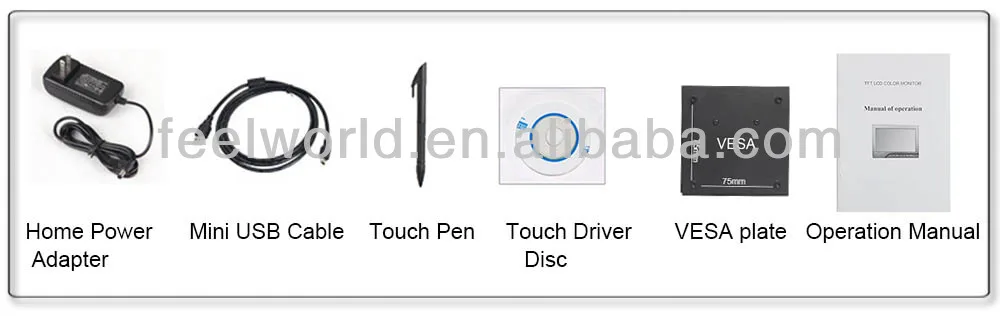

| Accessory | Optional Accessory | Packing | |
| Home Power Adapter | Li-Battery | Box size | 35x20.5x7.1CM |
| Mini USB Cable | External GPS | Per box G.W. | 3kgs |
| Touch pen | External USB Cameras |
Per Carton | 10pcs |

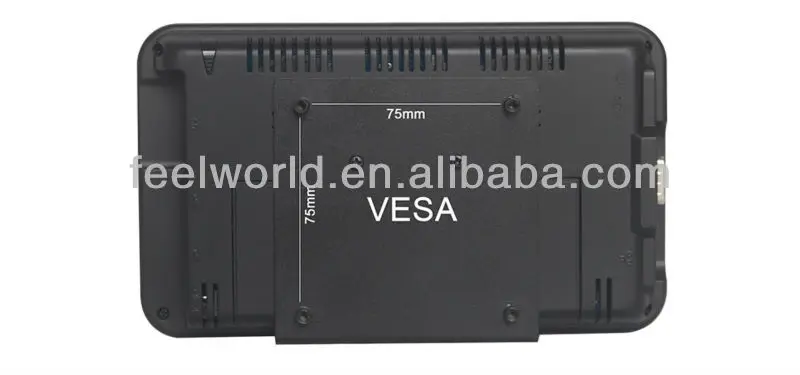

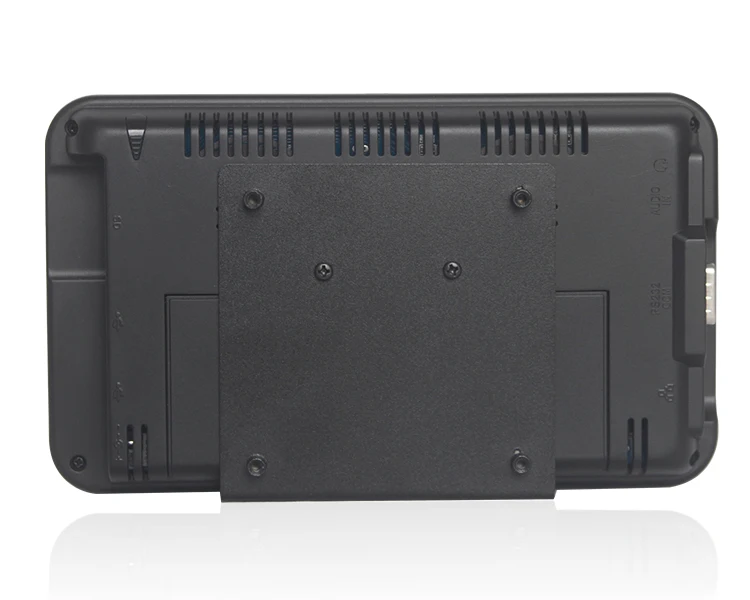

| VESA plate (659) | 9P RS232 F-F Cable (P9 + 5V ) | Carton Size | 48x44x36cm |
| Drive Disc | Car Power Adapter | N.W. | 19kgs/carton |
| Operation manual | 3.5mm Audio Cable | G.W. | 20kgs/carton |
