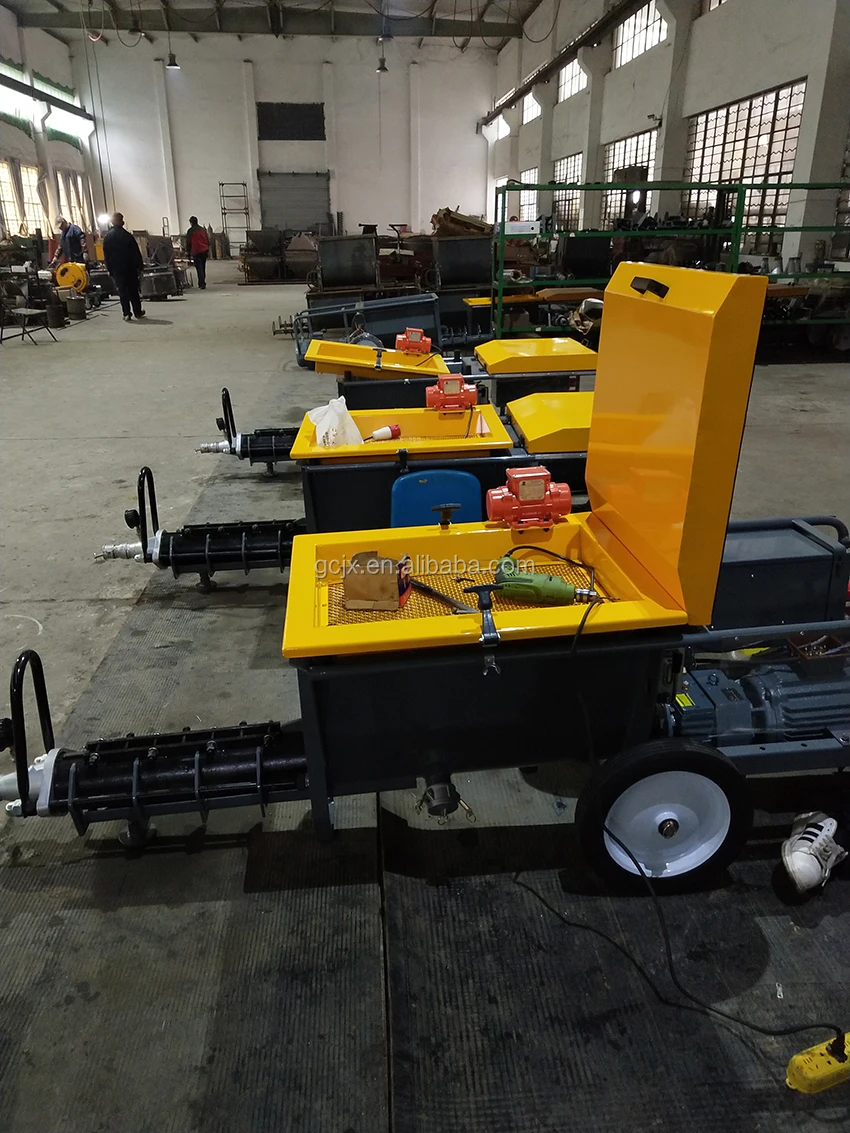

1. JP70-P,JP70-S plastering machine is multi-functional large output plastering machine introduced Italian technology.
2. JP70-P plastering machine has the combined functions of pumping, bonding and plastering. It's suitable for different characteristics dry ready-mixed mortar construction.
3. With modular structure, it's easy to move, dissemble and operate.
4. JP70-P can spray and pump max height: 30m and distance:50m, max pumpable grain size:8mm.

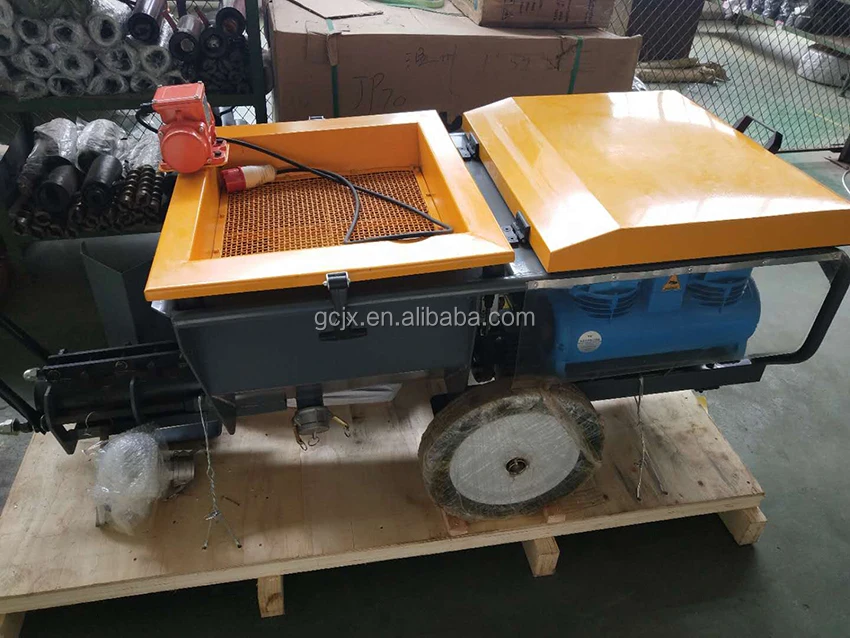

Old design:

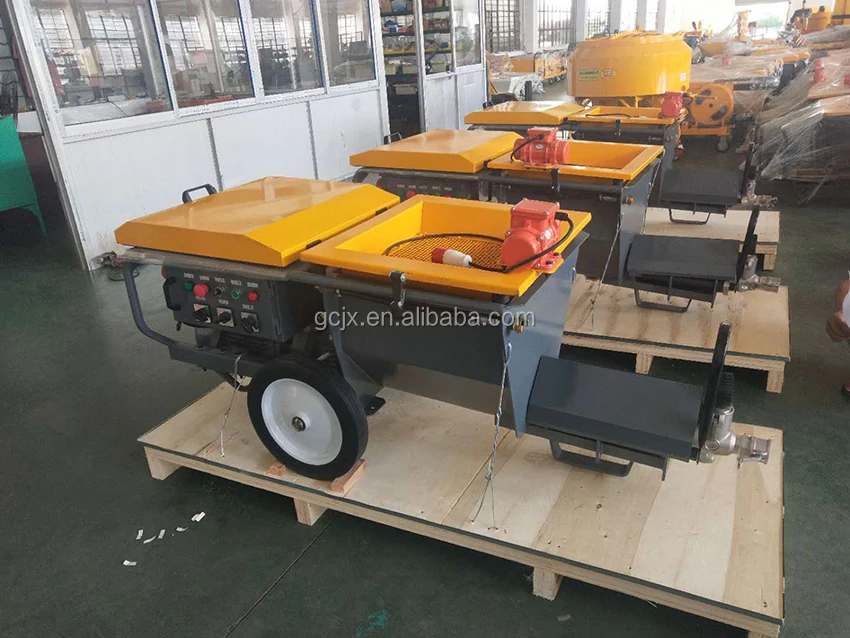

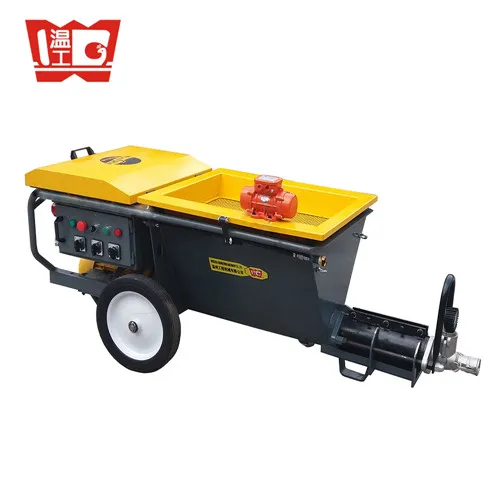

New design:
Technical parameters of JP70 Mortar plastering machine
Model
—
JP70-P
JP70-S
Supply power
—
400V 50Hz
400V 50Hz
Motor power
kw
3.7/4.4
3.7/4.4
Compressor power
kw
2
—
Maximum grain size
mm
8
8
Output
l/min
50
50
Delivery pressure
bar
30
30
Horizontal delivery distance
m
60
60
Vertical delivery distance
m
30
30
Hopper volume
L
120
120
Net weight
kg
275
275
Dimension (L×W×H)
mm
2040×820×950
2040×820×950

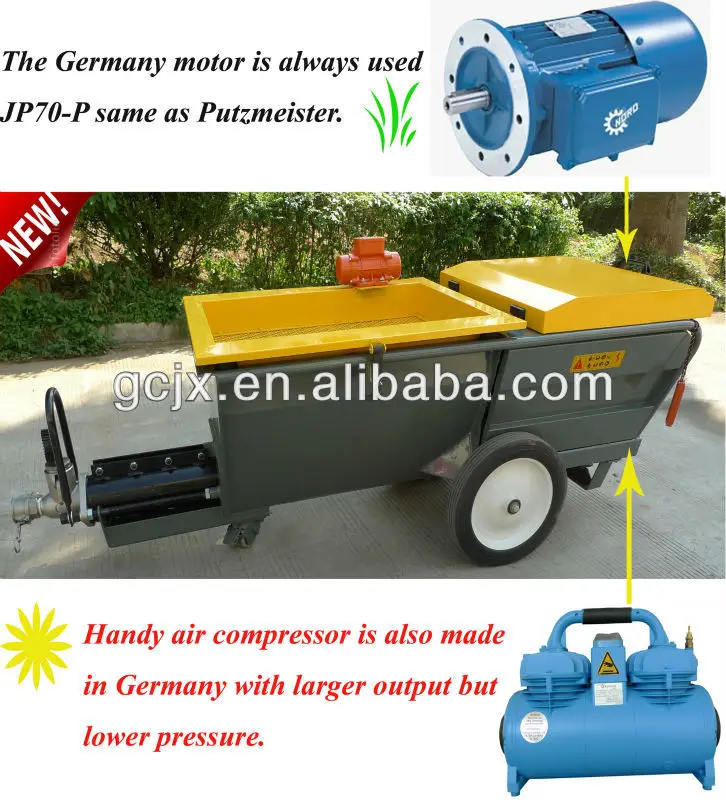

1. JP70-P plastering machine is installed air compressor and motor, the motor and air compressore are both imported from Germany. The quality you can be no worried too much.
JP70

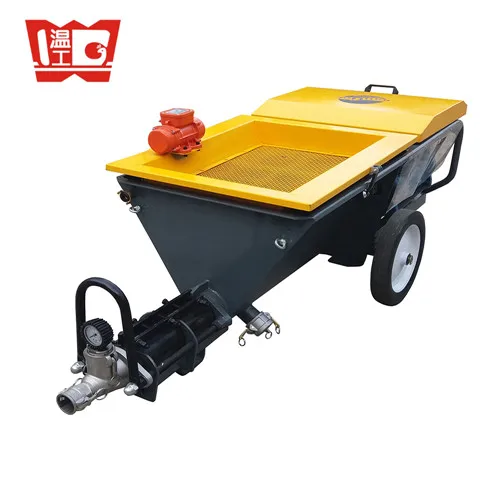

JP70 mortar spraying machine
JP70 is the application of modern technology - a large capacity mortar spraying machine, which has pump conveying, bonding, spraying functions. High conveying efficiency, long pumping distance, easiness of pumping large particles of material, these can be used for spraying already-mixed mortar and field mixing mortar. Set the screw pump anti-wear control mechanism; with a direct separation of the screw rotor and stator on machine; adjust the displacement and remote control functions, pressure sensor control. It is suitable for conveying and spraying variable kinds of plastering mortar, insulation mortar, bonded mortar, fiber mortar, facing mortar, interface mortar, floor mortar, fire mortar, refractory mortar, self-leveling mortar, masonry mortar, reinforced mortar, fill mortar and pouring mortar.

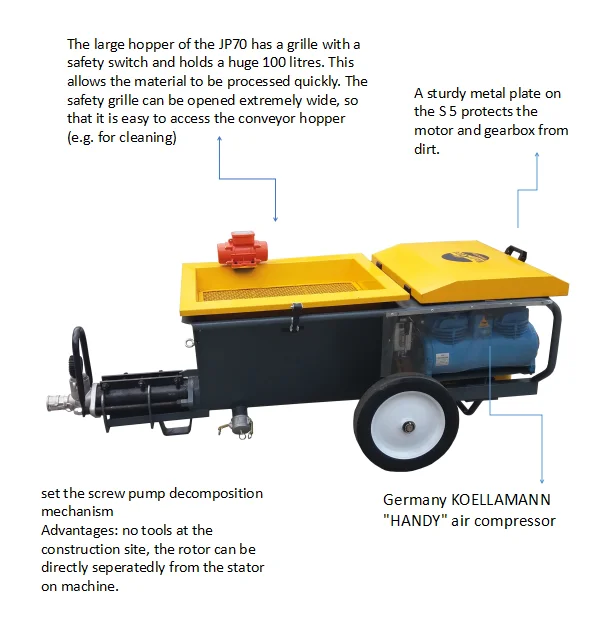

**The modular system of the JP70 is based on a worm pump with a powerful 5.5 kW drive.The basic version is particularly suitable for users who pump and spray pumpable wet mortars with grain sizes of up to 6 mm.
Model
—
JP70-P
JP70-S
Supply power
—
400V 50Hz
400V 50Hz
Motor power
kw
4.0/5.1
4.0/5.1
Compressor power
kw
2
—
Maximum grain size
mm
6
6
Output
l/min
70
70
Delivery pressure
bar
30
30
Horizontal delivery distance
m
60
60
Vertical delivery distance
m
25
25
Hopper volume
L
100
100
Net weight
kg
280
210
Dimension (L×W×H)
mm
2290×680×660
2290×680×660

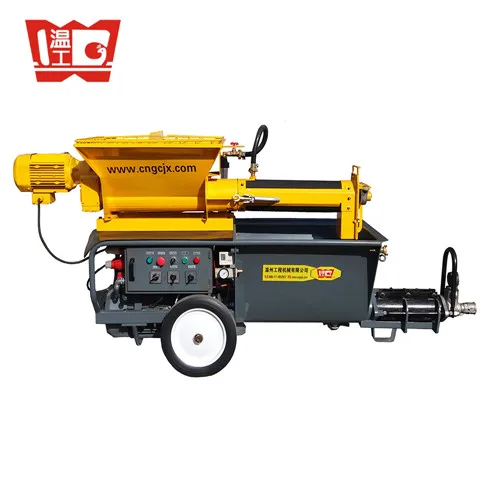

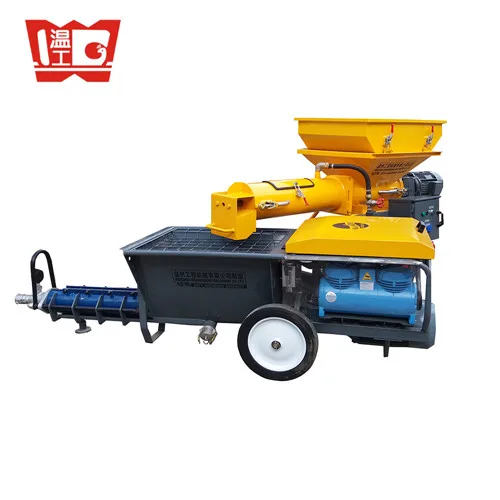

**JP70 works with Continuous mixer machine:

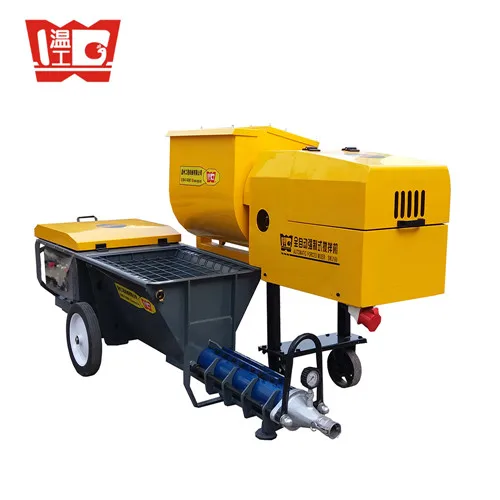

**JP70 works with SWJ-160 mixer machine:

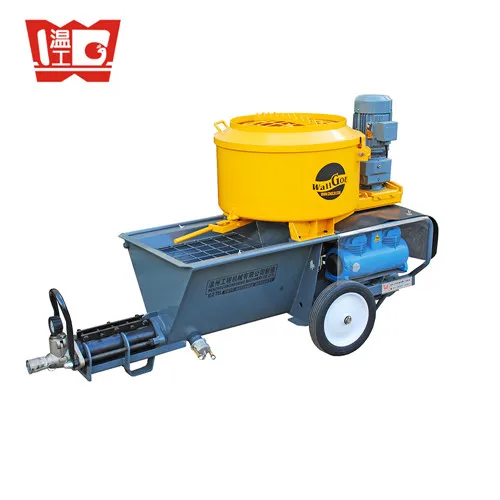

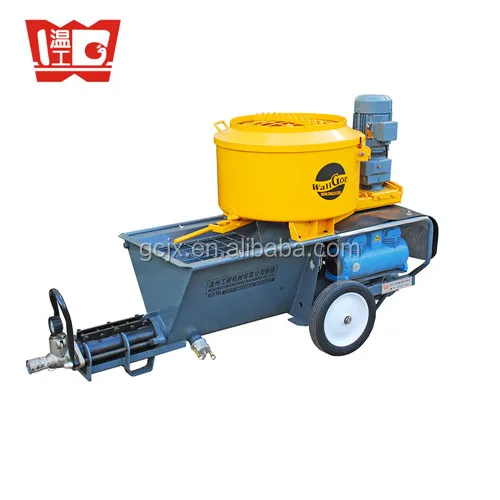

**JP70 works with pan mixer machine:
(could be seperatedly also)

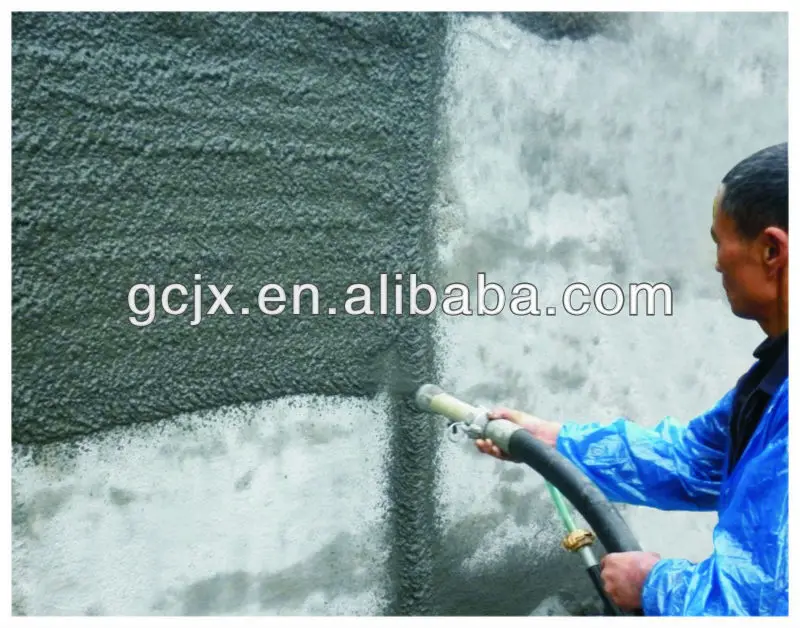

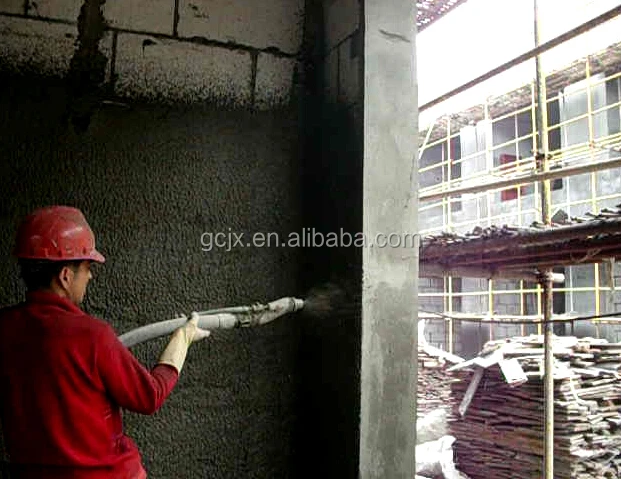

2. you can see the plastering effect with fast speed about 1000-1200m2 per 7hours.
3. JP70-P standard spare parts

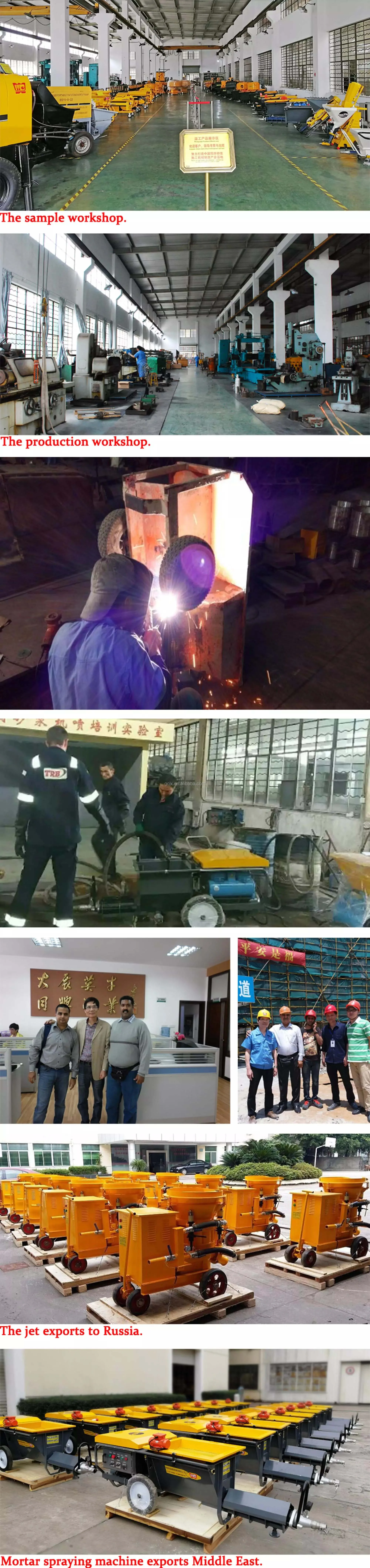

Exhibition & Visitng
