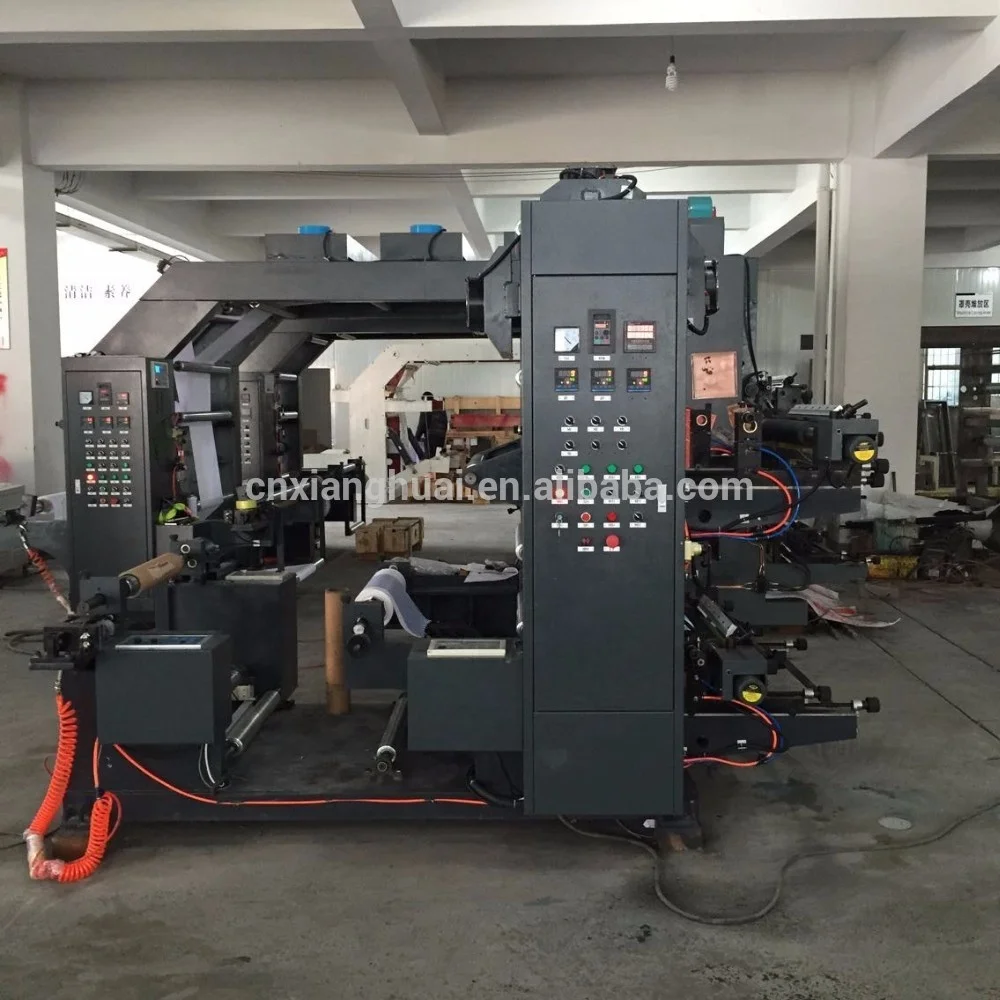

Flexographic Printing Machine For Paper Film





flexo printing machine with ceramic roller (3)







I. Features:
1.Flexible starting,accurate color register,high speed,75mm cast iron thickness wall,good stability.
2. The meter counter can set printing quantity and will stop the machine automatically when the material is out.
3. Lifts and lowers the printing plate cylinder manually, it will automatically stir the printing after lifting.
4. The printing ink is spread by the knurled cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360 degree continuous and adjustable length register device.
7. The imported frequency control device of motor speed can adapt to different printing speeds.
8. There are inching stopping buttons on the plate roller base and material rolling rack so as to make it easy to operate the machine when the plate is installed.








II. parameters:




















































































printing machine Model



YTB-2600



YTB-2800



YTB-21000



YTB-21200



Printing Machine color



2color(2+0,1+1)



2color(2+0,1+1)



2color(2+0,1+1)



2color(2+0,1+1)



Max. Material Width



600mm



800mm



1000mm



1200mm



Max. Printing Width



560mm



760mm



960mm



1160mm



Printing Length



200-1100mm



Printing Speed



5-90m/min



5-90m/min



5-90m/min



5-90m/min



Max. Diameter of Roll Material



Φ600 mm(Non woven, filmΦ1000mm)



Total Power



       9kw



10kw



11kw



12kw



Plate Thickness (including two-sided glue paper)



2.38mm



Machine Weight



2000kg



2200kg



2400kg



2600kg



Overall Dimension



3.3*1.6*2.3m



3.3*1.8*2.3m



3.3*2.0*2.3m



3.3*2.2*2.3m



Working Voltage



380V 3-phase 50Hz



Main Devices:


1) EPC web guider + Auto tension controller


2) Air Shaft


3)Ceramic Anilox Roller + General Doctor Blade


4)Motor(Taiwan) + Electric Parts (Siemens)









Extra Optional Devices:


1)      Enclosed Doctor Blade


2)      PLC Control


3)      Computer Graphics Detection System







We retains the right to modify parameters without previous advice.



parameter of cutting machine production line:


pDetailed Pictures 2.jpg2.jpgrinting and cutting machine for paper hdpe bag production line





If you are interested our flexographic printing machine, welcome to visit our factory and test run the machine!


Contact me please for detailed information!
