industrial water cooling chiller price for extruder/injection

Product Overview

Description

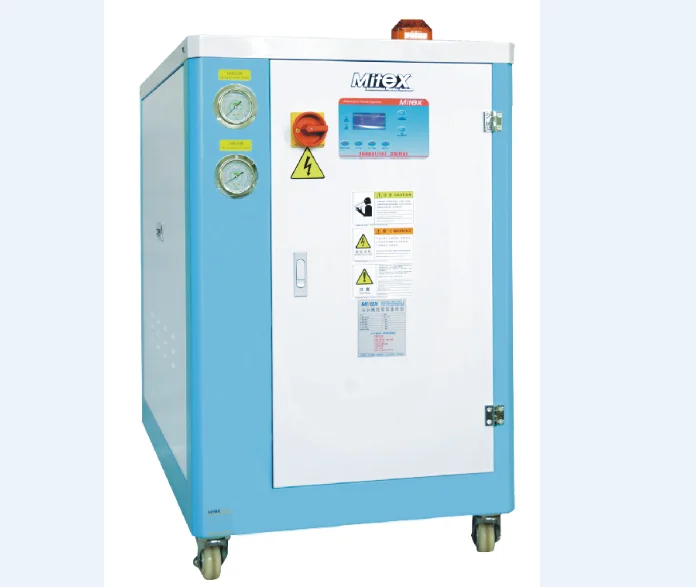

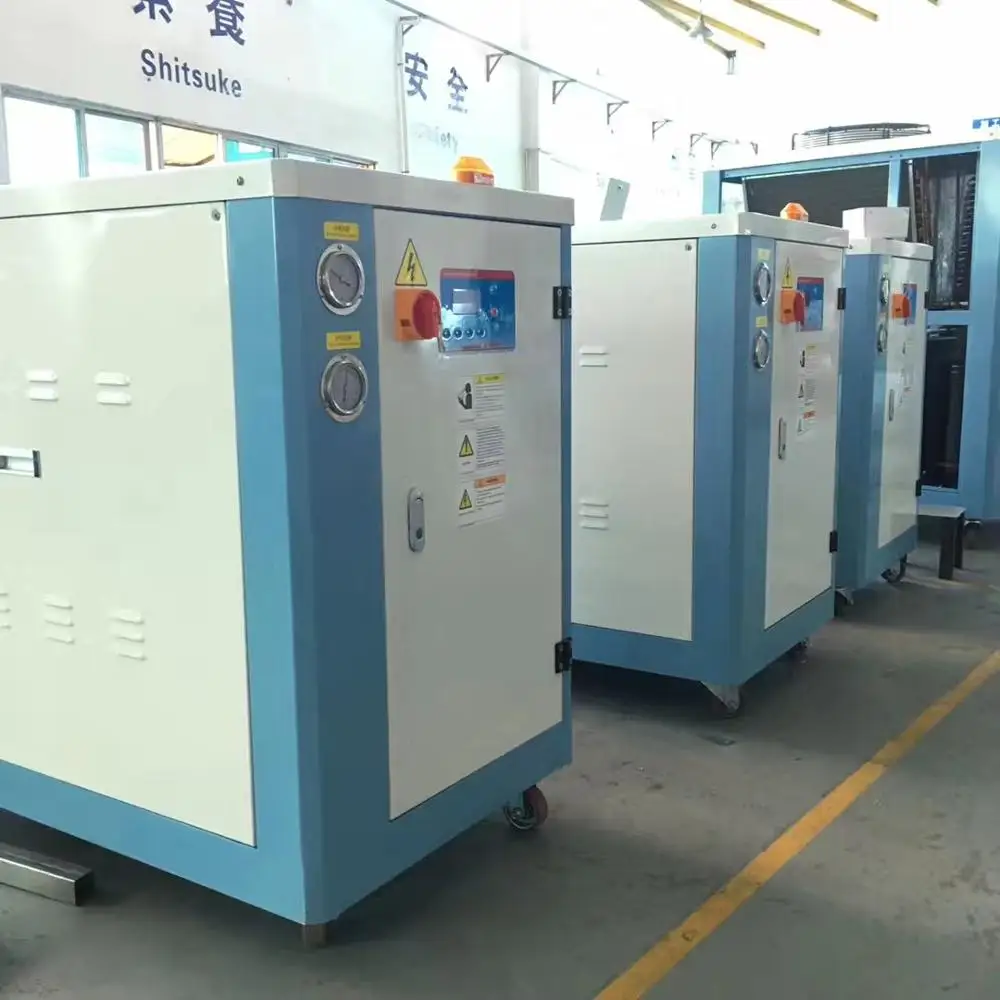

industrial water cooling chiller price for extruder/injection





The water cooled chiler is applied to plastics industry to precisely control moulds temperature so that molding cycle can be reduced and quality would be improved. Also MTC series can be applicable for electronic and machinery manufacturing to ensure normal operation temperature for devices.











1.Cooling temperature Range of water cooled chiller is 5~25 degree
2. Tube in shell evaporator,Insulated water supply Tank made of stainless steel(Tube in shell evaporator used Above MIC-10W)
3.water cooled chillers equipped with anti-freeze thermostate
4.water cooled chiller Adopt R22 or R407C Refrigrant.
5.Refrigration loop controlled by high&Low pressure switches to ensure stable operation.
6.water cooled chiller equipped with Compressor and Pump overload protection
7.Adopt precise Taiwan temperature controller with an accuracy of 0.1 degree

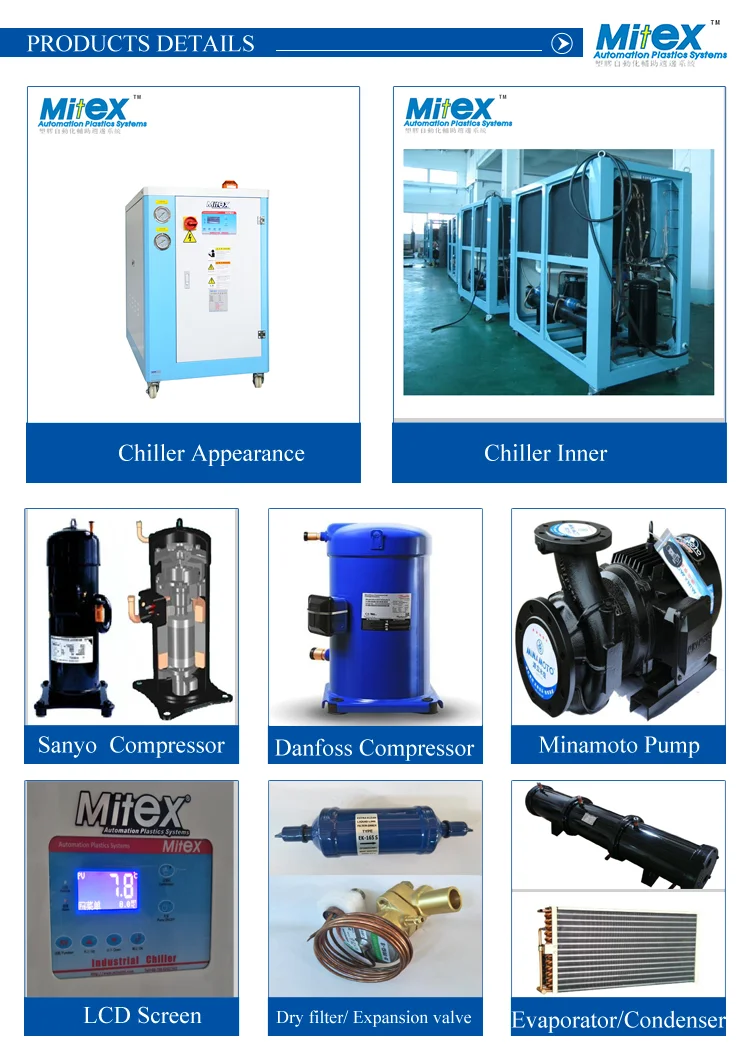

8.Adopt Japan Sanyo/Danfoss Compressor
9.Vibration Absorber used to prevent compressor vibration damage to refrigerant pipeline(above MiC-10W)
10.Double Compressor design(above MTC-10W),can automatically working together,or one stop.

11.LCD screen,English&Chinese available for easy operation.























FAQ

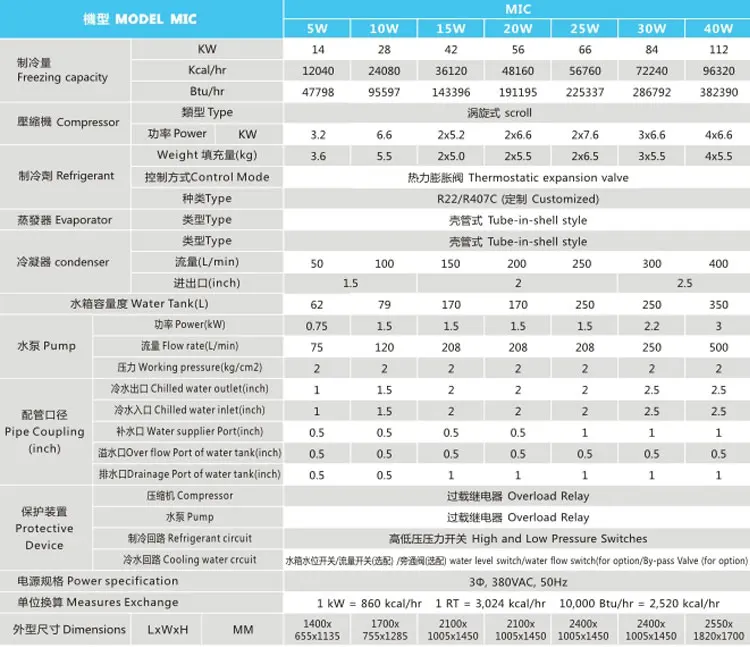

Model Selection Reference



Mould Clamping Force(T)	Moulding Capacity(Kg/hr)	Cooling Capacity Require(KW)
≤250	≤25	6
≤450	≤45	11
≤650	≤65	14
≤850	≤85	18
≤1300	≤130	27
≤1800	≤180	38
≤2500	≤250	52
≤3000	≤300	62
≤4000	≤400	84
≤5000	≤500	104
≤6000	≤600	126
