ul rohs ce approved flexible accordion pipe for cable protection
- Category: >>>
- Supplier: Guangzhou Jieyin Electric Appliances Co. Ltd. [Guangdong China]Guangzhou
Share on (60017963005):
Product Overview
Description
Product Description

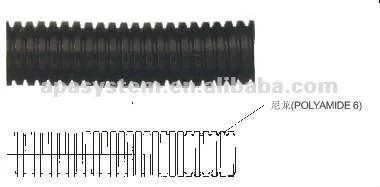

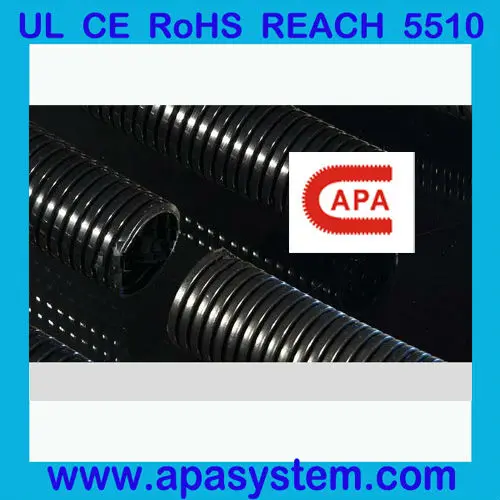

flexible electrical conduit/electrical conduit pipe /electric wire protection tube
1 Material:polyamide(PA6)
2 Temperature range: -40C----150C
3 Min I.D:6.5,O.D 10 Max I.D:46.5 O.D54.5
4 Protection degree:IP68
5 Flame-retardant:V0,HB
FEATURES:
flexible and excellent tenacity, glossy surface, heavy-wall, high mechaical strength, wind resistant, anti-frction, resistant to oil, acid and solvents, uv-resistant, insulated, free of halogen, phosphor and cadmium.
APPLICATIONS:
machine building, electric automatic control system, vechicle building, heavy equiment, electric power plant, metro, electric locomotive, etc.
MARKS:
Pipes only for wires and cables,no other usages such as for water,gas,food,etc.
More details pls contact us or visit our website.
OUR FACTORY:
MORE DETAILS, PLEASE FEEL FREE TO CONTACT US, ANY COMMEMT IS WELCOMED.
SPECIFIACTION
| ITEM NO. | SIZE | I.D.(MM) | O.D.(MM) | STAT.R(MM) | DYN.R(MM) | Packing Meter/roll |
|---|---|---|---|---|---|---|
| NL206 | 1/4" | 6.5 | 10 | 15 | 30 | 200 |
| NL206 | 5/16" | 10.0 | 13 | 20 | 40 | 100 |
| NL206 | 3/8" | 12.0 | 15.8 | 30 | 50 | 100 |
| NL206 | 1/2" | 16.0 | 21.2 | 40 | 70 | 100 |
| NL206 | 3/4" | 22.0 | 28.5 | 50 | 100 | 100 |
| NL206 | 1" | 28.0 | 34.5 | 60 | 120 | 50 |
| NL206 | 1-1/4" | 36.0 | 42.5 | 80 | 150 | 25 |
| NL206 | 2" | 46.5 | 54.5 | 100 | 180 | 25 |
| NL206 | 12 | 8.3 | 12 | 35 | 60 | 100 |
| NL206 | 12.5 | 9.4 | 12.5 | 35 | 60 | 100 |
| NL206 | 18.5 | 14.3 | 18.5 | 35 | 60 | 100 |
| NL206 | 25 | 20.0 | 25 | 45 | 80 | 100 |
| NL206 | 32 | 26.0 | 31 | 55 | 100 | 50 |
