Hight productivity Metal parts auto feed screwdriver machine for hardware assembly

Product Overview

Description

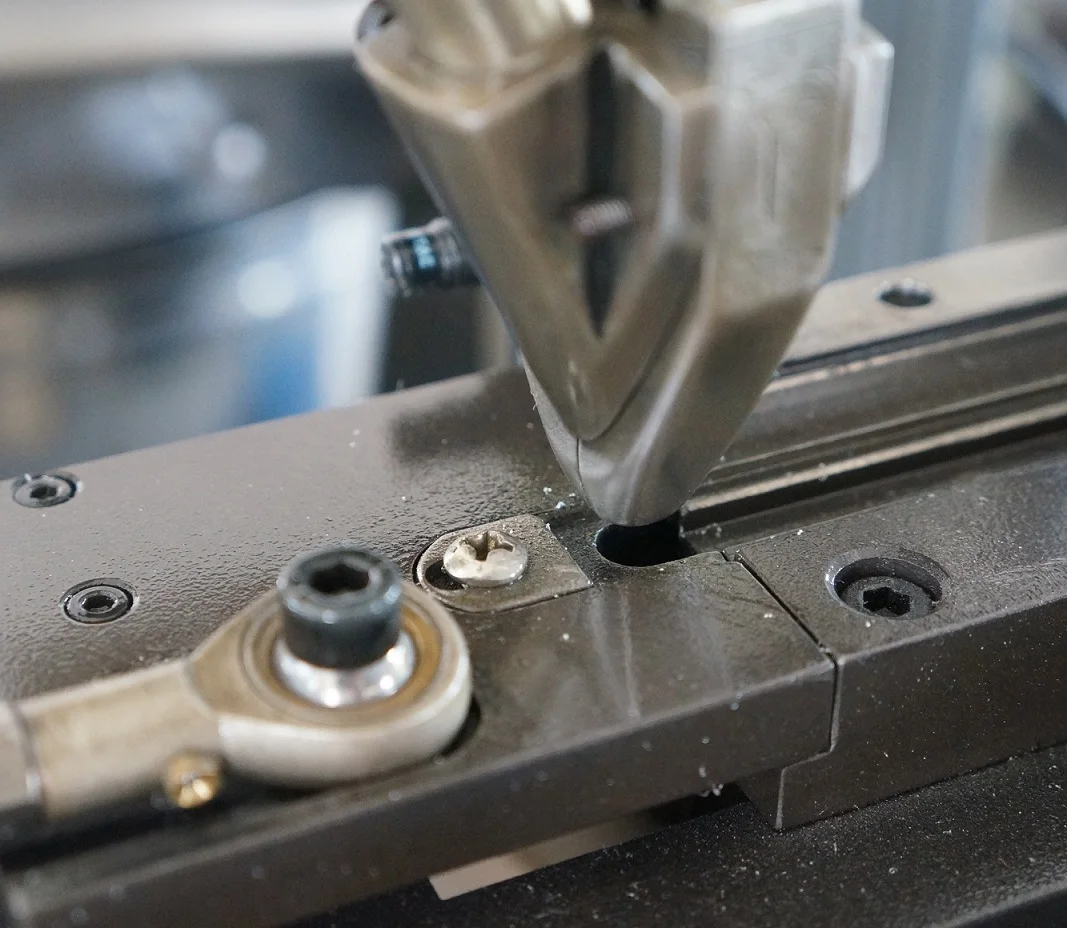

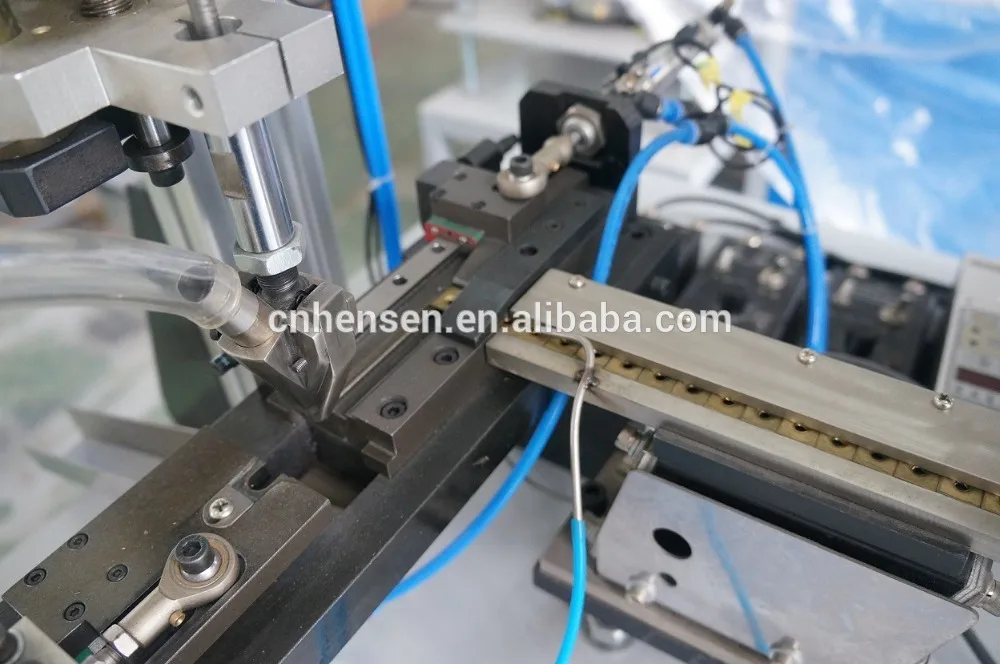

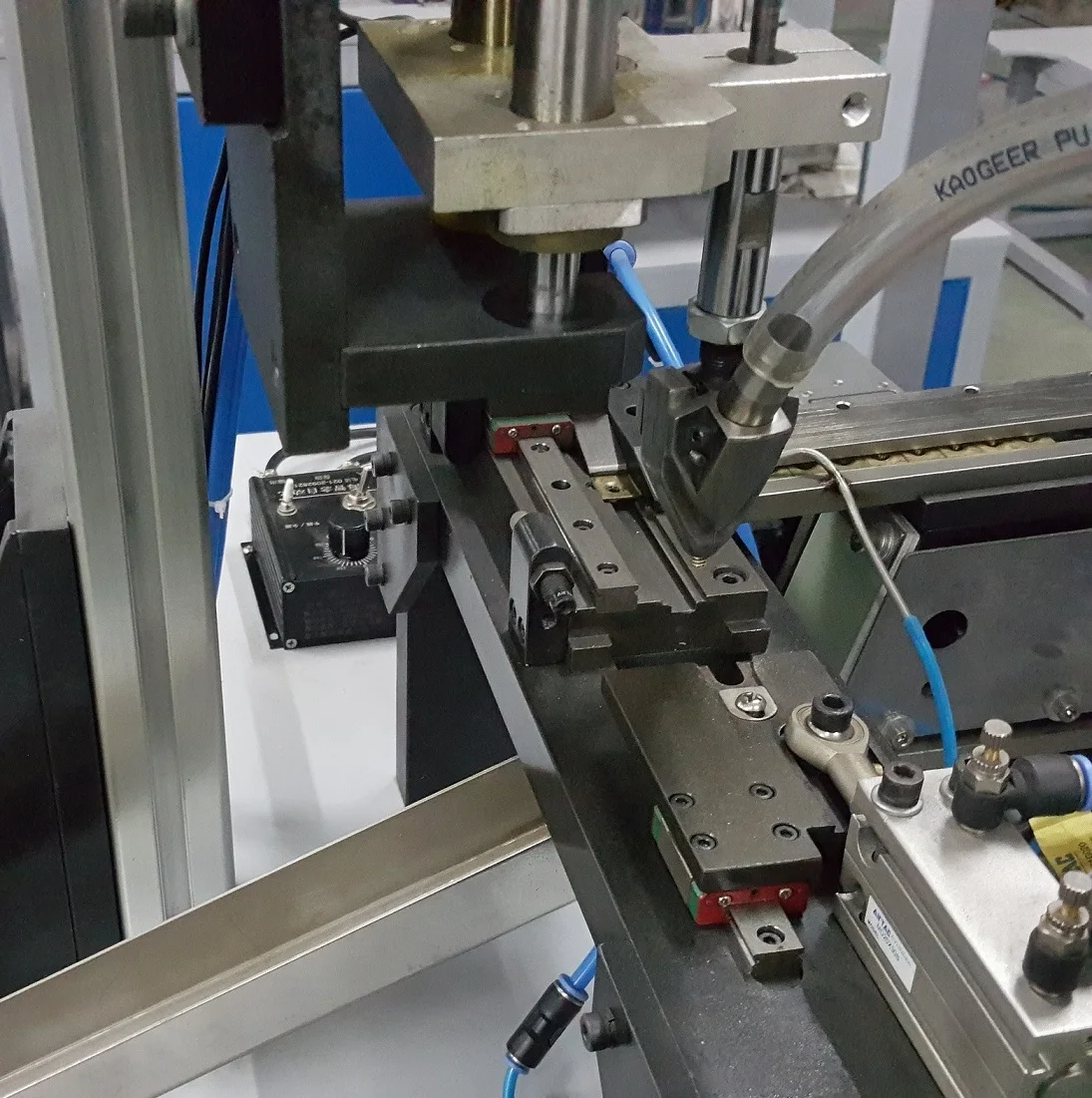

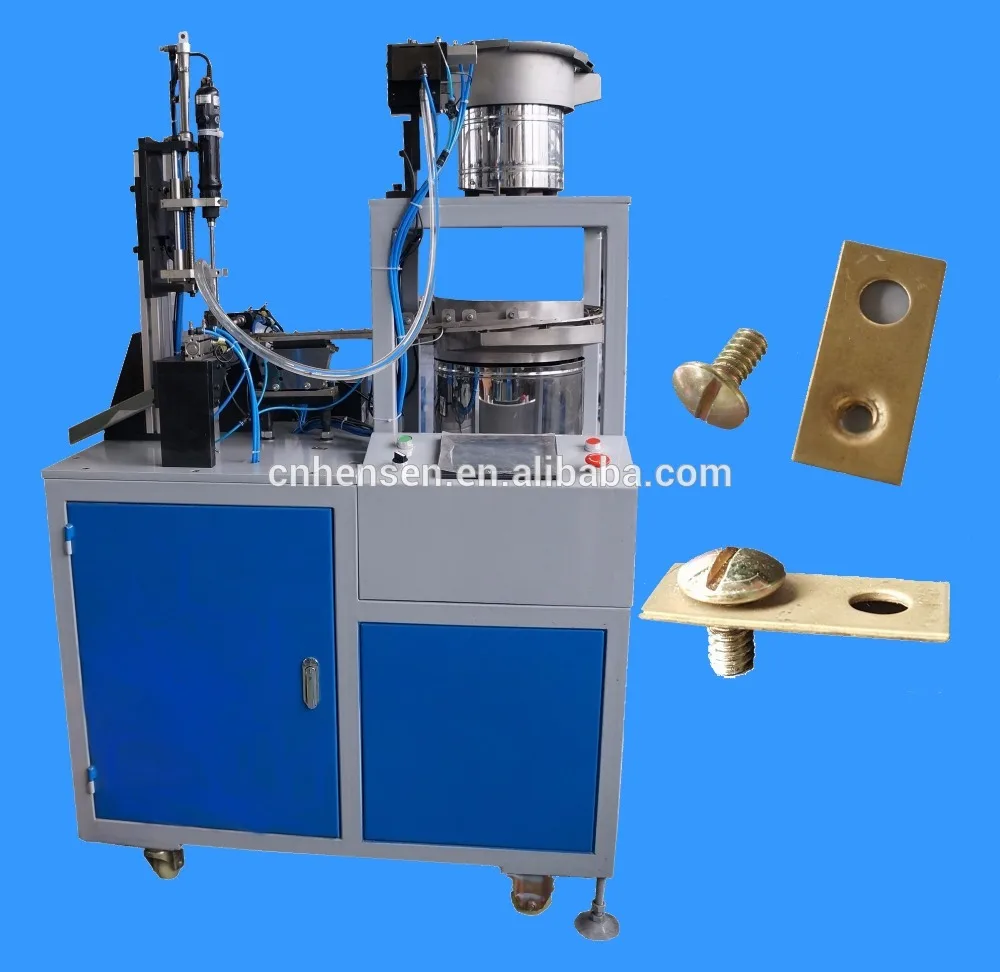

Metal parts auto feed screwdriver machine



Technical Parameters

Efficiency: one product / 3.5-4 seconds
Power supply: 110V AC/220V AC (50Hz/60Hz)
Using air source :0.4-0 .8 Mp
Screw: M2-M5 (maximum length of 50mm)
driver: According to customer requirement
screwdriver torque: according to customer requirements (the machine is 0.3-1.9 Nm)
Fixture Exercise: Intermittent circumference divided
Product fixture: multiple sets
Electric screwdriver Brand: Taiwan Kilews (torque automatic clutch)
PLC: Mitsubishi
Touch screen: Panasonic
Pneumatic components: SMC or AirTAC
Dimensions: according to product design
Lock Screw Quantity: Max: 24
Inspection: Drain the slide lock lock slick floating teeth
Allowable failure rate: 0.1%
Discharge: Robot unloading

Advantages
1. The actual processing according to customer requirements with a single or multiple          product lock screws.
2. lock screws can be flexible and change the number, when you need to do when the number is less than a preset  number of screws, you only need the extra shielding lock screw mechanism on it.
3. on a machine by replacing the product will be able to fine-tune the fixture and doing other screws the same generic product.
4. can be installed according to the requirements of customers in a position to put the product safety light curtain, when the operator's hand into his lock screw area, the machine immediately stop the action before you can continue to be run by an operator to manually reset the device.
5. Screw driver arrive after automatic electric clutch torque will automatically ensure that each lock screws Vice torque control ± 10%.
6. main parts are die steel production, wear-resistant, anti-plastic deformation, equipment, body spray paint, oil and scratch resistant.
