Top 10 Explosion proof ATEX IP Camera for Industry Hazardous Area Oil Filed

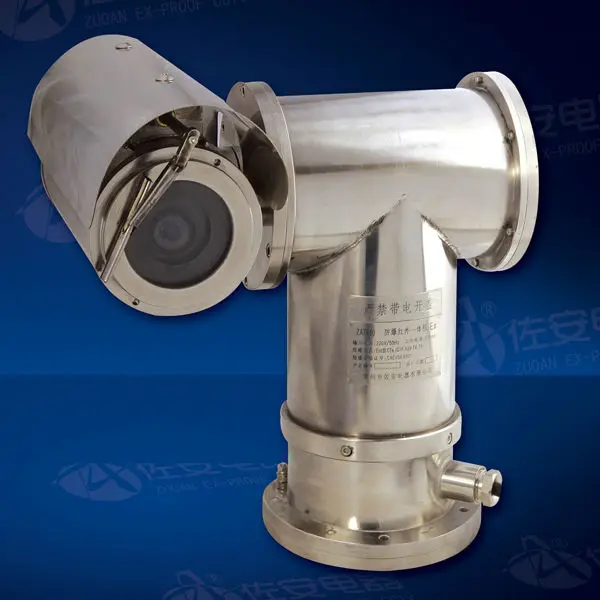

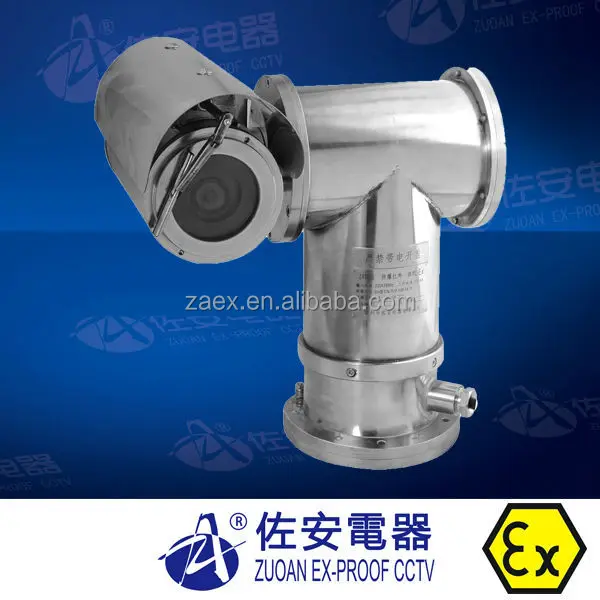

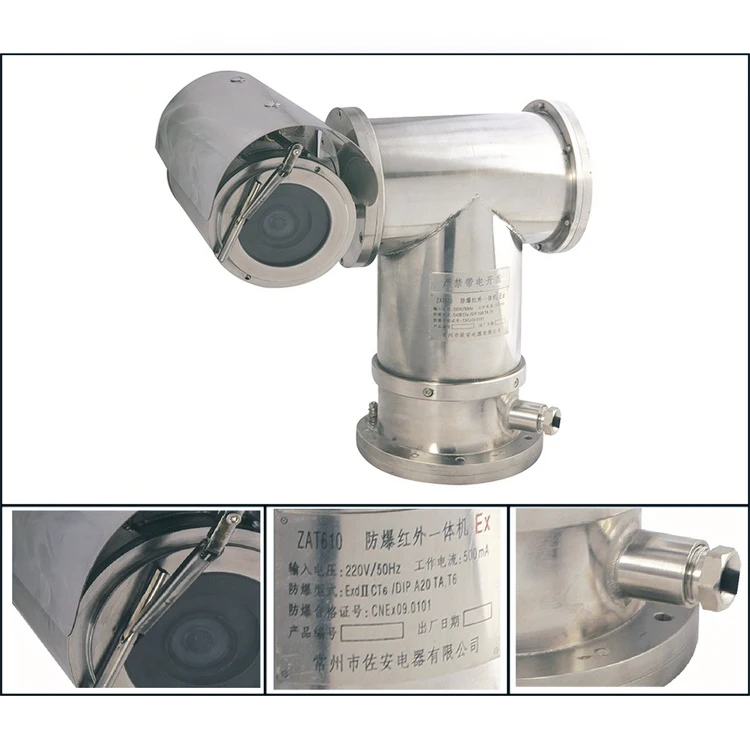

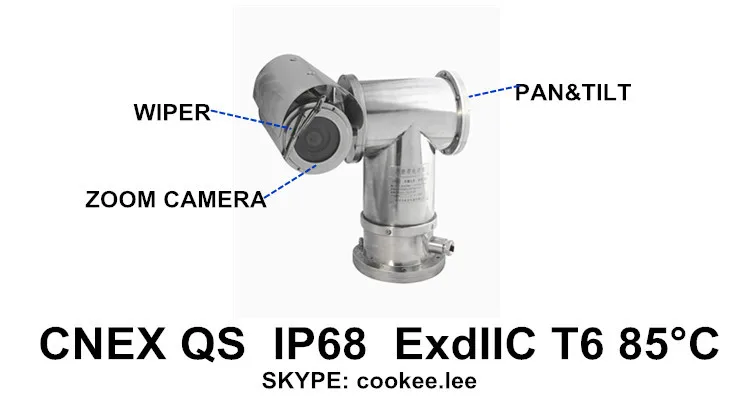

If your security and surveillance needs include monitoring extreme, flammable, and explosive environments, the ZUOAN atex IP ptz camera ZAT610-3 is built for your environment. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. CZ610-3 explosion proof atex ip camera regards as a small explosion proof video supervising system, which consists of explosion proof camera, pan/tilt and decoder. The 304, or optional 316L, stainless steel housing is IP67rated for all weather use and is corrosion/explosion resistant. its housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement.Base and bracket installation options allow for 360 degree continuous pan rotation and +90 degree ~.90 degree tilt camera operations.The camera is equipped with sun shield and wiper, with an auto-heat option for outdoor monitoring.

Applications



With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,

Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.









Main Features



·ATEX, CNEx certificated

·Adopts stainless steel 304 or 316L

·Surface finish: electropolished or corrosion resistant paint finish

·IP68

·1 cable gland

·Tempered glass with nanometer paint film

·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.

·installation: mounted on ceiling, wall with pan &tilt, brackets.

·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.

·Communication : Pelco-D/ Pelco-P/TCP/IP

·Communication rate: 2400~19200bps

·Resolution: 2.0MP/1.3MP/ 560TVL

·Sensor: CCD/HD-CMOS

·Output: AV/H.264/SDI/H.264

·Camera: SONY, SAMSUNG

·Telephoto limited speed: optional

·Variable angle: horizontal 360°, vertical 0~90°

·Preset patrol: 256/ 128 points



Product Parameter



Model	ZAT610-3-S-IP		ZAT610-3-S
Atmospheric pressure	80KPa~106Kpa
Auto keep temperature	0°C ~ 65°C  (32°F~149°F)
Relative Humidity	≤95% (+25°c)
Ex-proof mark	CNEX:  ·ExdⅡCT6  /·DIP A20 TA, T6
CNEX certificate no.	CNEx: 14.0068
Ingress Protection	IP68
Power supply	AC85-265V
Electric current	2000mA		1600mA
Tempered window glass	Φ 100x thick:8 mm (in),Φ 80x thick:12 mm (in)
Material	SS304 (industrical chemical factories, outdoors and so on)  SS316L(in highly corrosive areas such as marine, petrochemical, naval and offshore platforms)
Package LxWxH	396*280*367mm 15.6x11x14.4in
Net weight	22KG/ 48.4LBS
Variable angle	horizontal rotation: 360° continuous   vertical rotation:-90° to +90°
Variable speed	rotation speed: 10°/S (max)
stepping motor Wiper	Yes
telephoto speed limit	Yes
Preset patrol	128
Control way	RS485
Control protocol	TCP/IP		PELCO-D/PELCO-P, other
Communication way	network transmit		AV
Relative products
Flexibility tube	explosion proof flexibility tube,NGe25×1000, NGe25×1500, NGe25×2000  {φ25MM× 1000MM (L), φ25MM× 1500MM (L), φ25MM× 2000MM (L)}
Others	ZAZ610-B, brackets for ZAT610-3,ZAT610,ZAT610-5 series. ZAJS400, ex-proof monitor ; ZAJ320, screen control panel; ZA-JXD4 junction box; ZAJ320 optical transceiver ;ZAJ300, ditital video server(DVS) box,  ZAJ340, hard disco video; ZAJ340,network video recoder .
