IP68 Bear 0 200 Degree Heat Resistant Camera For Furnace, Steel Mills
- Category: >>>
- Supplier: Changzhou Zuoan Electronics Co. Ltd.
Share on (60018718939):
Product Overview
Description

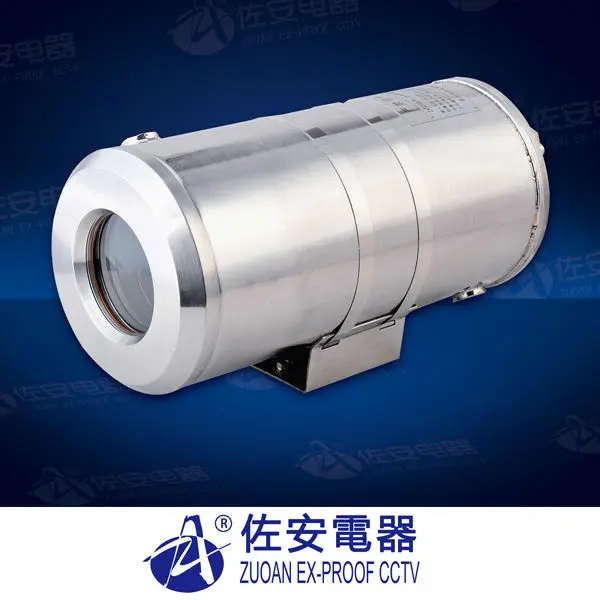

IP68 Bear 0-200 Degree Heat Resistant Camera For Furnace, Steel Mills
Product Description
ZAFC106 explosion proof hest resistant camera takes the double stainless steel, Dissection can be water, cold air and other cool media. It suits for the circumstances with high temperature, and with explosive gas and dust. The inner construction is broad, and can install any kinds of CCD camera or integration camera. It is used in a wide range, the enclosure protection is high. It is widely used in steel, glass factory, furnance monitoring system.
Main features:
·CNEx certificated
·Adopts two layers of stainless steel 304 or 316L for high temperature resistant
·Surface finish: electropolished or corrosion resistant paint finish
·IP67
·2 cable glands
·Tempered glass with nanometer paint film
·Cooling way: compress air or auto running water
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: lens decoder, auto-heating,
·Output: AV/optical fiber/twisted pair
Product Parameter
| Model | ZAFC106-S-F | ZAF106-S-S | ||
| Atmospheric pressure | 80KPa~106Kpa | 80KPa~106Kpa | ||
| Ambient Temperature | –25°c~+150°C (-13°~302°F) | 0°c~+250°C (32°~482°F) | ||
| Relative Humidity | ≤95% (+25°C) | ≤95% (+25°C) | ||
| Ex-proof mark | CNEX: ·ExdⅡCT6 /·DIP A20 TA, T5 | |||
| CNEX certificate no. | CNEx 13.4248 | |||
| Ingress Protection | IP67 | IP67 | ||
| Voltage Input | AC85-220V,AC24V, DC24V,DC12V, optional | |||
| Power supply (within) | AC85-265V | |||
| Tempered window glass | Φ 100x thick:8 mm (in),Φ 80x thick:12 mm (in) | |||
| Overall dimension LxWxH | 375*163*185mm 14.8x6.4x7.3in | 375*163*185mm 14.8x6.4x7.3in | ||
| Material | SS304 (industrical chemical factories, outdoors and so on) SS316L(in highly corrosive areas such as marine, petrochemical, naval and offshore platforms) | |||
| Cooling Way | press air | tap water | ||
| Cooling media pressure | ≤35°C(95°F), air supply:0.4-1.0L/s | ---------- | ||
| Lens decoder | optional | optional | ||
| Output | AV/ optical fiber/ twisted-pair | AV/ optical fiber/ twisted-pair | ||
| Relative products | ||||
| Brackets and Pan& tilt | ZAZ100-B, bracket for ZAF100A,100B, 102, 103,1031,1032,105,106 series ZAY200B, pan and title for ZAF100A,100B,102, 106 series | |||
| Others | ZAJS400, ex-proof monitor ; ZAJ320, screen control panel; ZA-JXD4 junction box; ZAJ320 optical transceiver ;ZAJ300, ditital video server(DVS) box, ZAJ340, hard disco video; ZAJ340,network video recoder | |||
