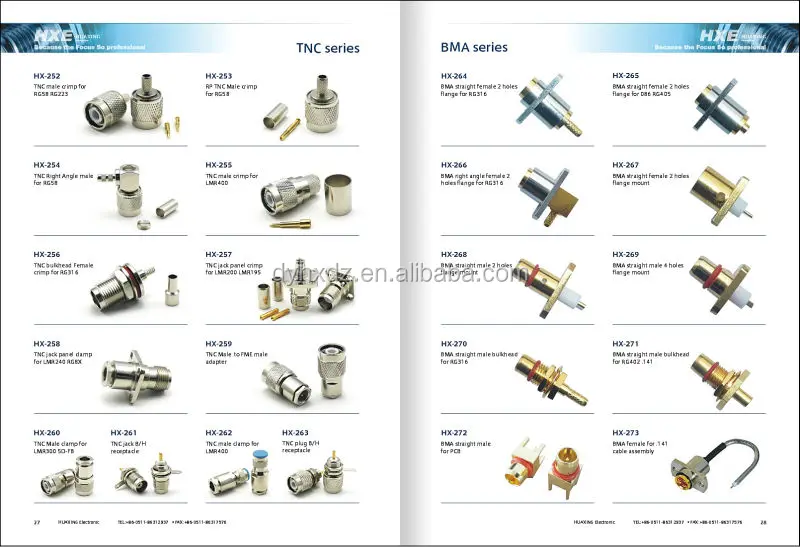

TNC BNC SMA SMB 7/16 DIN RF Connector

Product Overview

Description

Specifications

1.Body:Brass/Nickel Plated
2.Insulators: PTFE
3.Certification: RoHS/ISO9001:2008
4.Frequency range:0-11 GHz

•	Threaded coupling interface ensures connector will not de-couple in vibration-intensive applications
•	Many TNCs are recognized under the component program of Underwriter's Laboratories and have undergone stringent testing from an independent laboratory
•	Performance from 0 - 11 GHz operations in many applications



•	Antennas	•	Base Stations	•	Cable Assembly
•	Cellular	•	Components	•	Instrumentation
•	Mil-Aero	•	Networks	•	Radar
•	Telecom



Electrical
Impedance	50 Ω
Frequency Range	0 - 11 GHz
Voltage Rating	500 volts peak
Dielectric Withstanding Voltage	1,500 volts rms
VSWR	M39012 straight connectors: 1.3 max @ 0 - 11 GHzM39012 right angle connectors: 1.35 max @ 0 - 11 GHz
Contact Resistance	Center: contact 1.5 mΩOuter contact: 0.2 mΩ
Braid to Body	0.1 mΩ
RF Leakage	-60 dB minimum @ 3 GHz
Insertion Loss	0.18 dB @ 9 GHz
Insulation Resistance	= 5,000 MΩ
Mechanical
Mating	7/16 threaded coupling
Braid/Jacket Cable Affixment	Crimps: hex braid crimp Clamps: screw-thread nut and braid clamp
Center Conductor Cable Affixment	Crimps: crimp or solder All others: solder only
Captivated Contact	All crimps unless specified otherwise
Cable Retention	Crimps: 20 - 100 lbs Clamps: 20 - 50 lbs
Material
Male Center Contacts	Brass, silver or gold plated
Female Center Contact	Beryllium copper or phosphorous bronze, silver or gold plated
Other Metal Parts	Brass with nickel finish (except for M39012 which are silver)
Insulators	TFE, Delrin
Clamp Gaskets	Synthetic rubber, silicone rubber
Crimp Ferrule	Copper
Environmental
Temperature Range	-65°C to +165°C
Weatherproof	Clamps with clamp gaskets, Crimps with heat-shrink tubing
Hermetic Seals	Pass helium leak test of 2x10-8 cc/sec
Shock	MIL-STD-202, method 202
Vibration	MIL-STD-202, method 204, test condition D
Moisture Resistance	MIL-STD-202, method 106
Corrosion	MIL-STD-202, method 101, test condition B
Temperature Cycling	MIL-STD-202, method 102, test condition D
Altitude	MIL-STD-202, method 105, test condition C

Note: These characteristics are typical but may not apply to all connectors.
