Product Overview
Description
Bead mill series:
This series horizontal bead mill has strong versatility and easy operation. PLC is used for control; analogous drawing and touch
screen are available (optional). The adjustable dynamic separator is made of highly wear-resistant hard alloy with the features of
self-cleaning and interval-adjusting. The interval can be adjusted to 0.2mm and the abrasive medium less than 0.6mm is chose for
the end users to increase the fineness. Volume variable piston type milling chamber changes energy density and barrel pressure to
attain best dispersion and milling results. Mechanical seal and sealing lips are all imported from Germany, which help to crack
the hard nut that material tends to leak from the milling chamber in high-viscosity milling operation.
screen are available (optional). The adjustable dynamic separator is made of highly wear-resistant hard alloy with the features of
self-cleaning and interval-adjusting. The interval can be adjusted to 0.2mm and the abrasive medium less than 0.6mm is chose for
the end users to increase the fineness. Volume variable piston type milling chamber changes energy density and barrel pressure to
attain best dispersion and milling results. Mechanical seal and sealing lips are all imported from Germany, which help to crack
the hard nut that material tends to leak from the milling chamber in high-viscosity milling operation.
Great cooling performance:
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Application:
Ink,coat,paint,pigment,pesticides,medicine, dye,cosmetic,sensitive film, foods, electronic paste, Battery industry:cathode
materials of the lithium iron phosphate batteries, Digital consumptive materials:digital jet printing ink, Mineral
pigment:titanium pigment,calcuim carbonate,ferric oxide, Ceramic materials:alumina oxide,zirconia,silicon carbide, Rare-earth
materials:zirconia,indium oxide,cerium oxide,etc, Pharmaceutical preparation, Cosmetic:pearl power.
materials of the lithium iron phosphate batteries, Digital consumptive materials:digital jet printing ink, Mineral
pigment:titanium pigment,calcuim carbonate,ferric oxide, Ceramic materials:alumina oxide,zirconia,silicon carbide, Rare-earth
materials:zirconia,indium oxide,cerium oxide,etc, Pharmaceutical preparation, Cosmetic:pearl power.

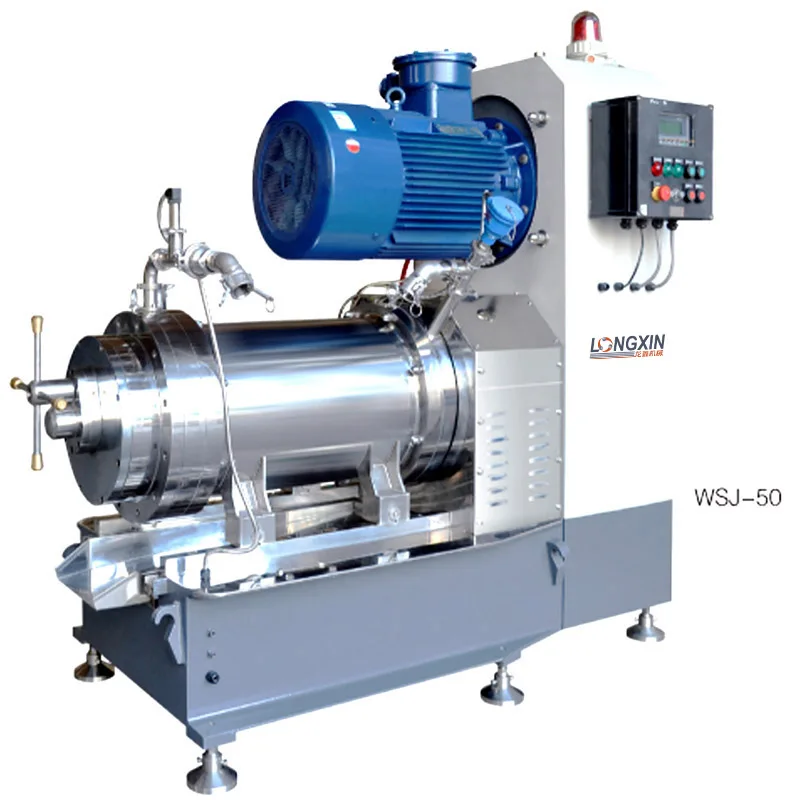

Model | WSJ-5 | WSJ-20 | WSJ-30 | WSJ-50 | WSJ-100 |
Power(KW) | 11-15 | 22 | 22-30 | 30-45 | 75-90 |
Volume(L) | 5 | 20 | 30 | 50 | 100 |
Beads(mm) | 0.6-2.0 | 0.6-2.0 | 0.6-2.0 | 0.6-2.0 | 0.6-6.0 |
Output(L/h) | 5-300 | 50-600 | 150-1000 | 400-1800 | 500-3500 |
Cooling water(m³/h) | 1.5 | 1.6 | 1.8 | 2.0 | 4.0 |
Overall dimensions L*W*H(mm) | 1300*1100*1500 | 1420*1450*810 | 1710*1700*960 | 1800*1800*1000 | 2800*1500*2500 |
D(mm) | 1140 | 1280 | 1400 | 1500 | 1090 |
Weight(kg) | 850 | 1090 | 1150 | 1350 | 1800 |
