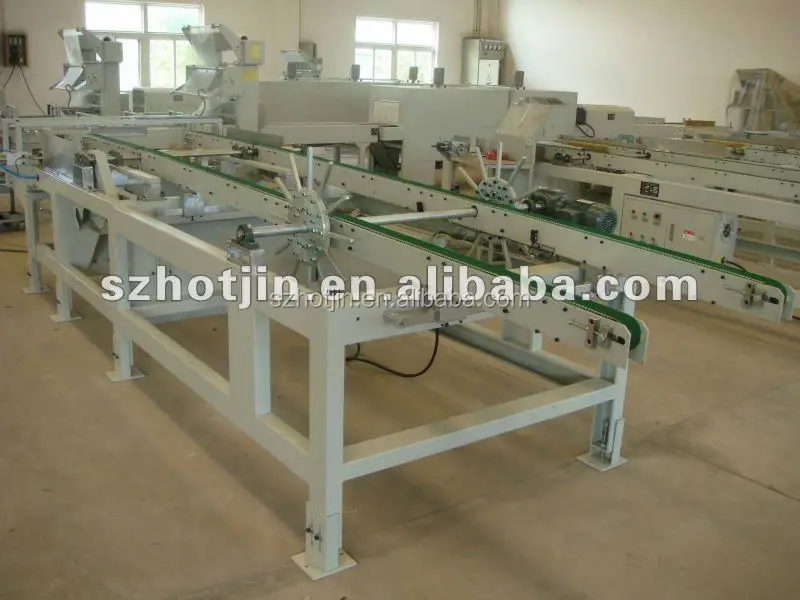

hotjin flooring packing machine
- Category: >>>
- Supplier: Suzhou Hotjin Precision Machinery Co. Ltd.
Share on (60018926149):
Product Overview
Description

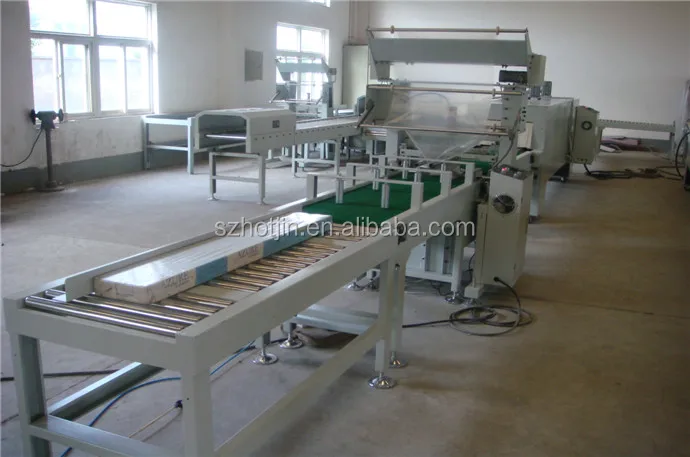

packing line
1. Function:
1) GP-253T automatic sealing and cutting machine: to realize the function of full automatic film covering.
2) GP-400ST/400T thermal shrinking: to realize automatic thermal shrinking after film convering.
3) GP-011T cooling conveying belt (with slide): Shrinked objects can naturally cool or be cooled by strong wind, and then, the objects will automatically slide on the slide to floor stacking area.
4) GP-001T working platform: manual operating platform for box filling before packing.
5) GP-701T pallet wrapping machine: to complete automatic wrapping of packed final finished products in stacking area for stacking so as to ensure convenient transportation.

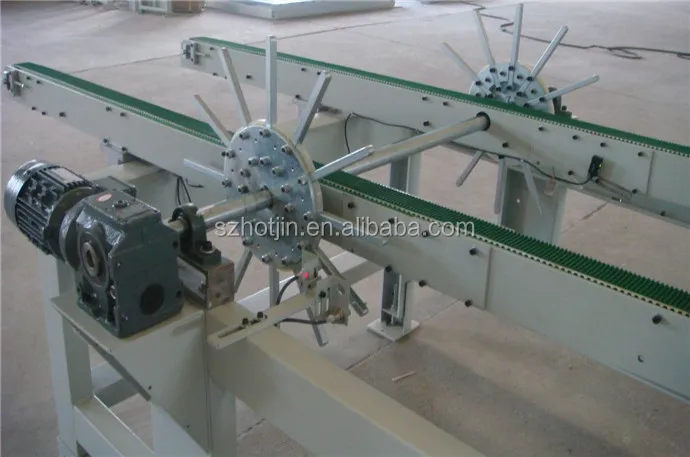

6) GP-027Z/027T automatic reversal board transfer line conveying line: to automatically reverse and stack the final finished floors so as to facilitate quality inspection and box filling.
Technical Parameters
Automatic packaging line | |||
model | BJZ426 | ||
power | 380v | ||
main motor power | Sealing and cutting machine heating | 1kw | 20 |
Shrinking machine heating | 19kw | ||
Main heating power | Track conveyor motor | 0.18kw×3=0.54 | 1.992KW |
Shrink film feed motor | 0.09kw×1=0.09 | ||
Heat shrink machine conveyor motor | 0.75kw×1=0.75 | ||
Heat shrink machine fan | 0.18kw×3=0.54 | ||
Cold fan | 0.018kw×4=0.072 | ||
Total power | 22.992kw | ||
Pressure | 0.3~0.5MPA | ||
Package Size | Packing length | 810—1215mm | |
Packing width | 125—380mm | ||
Packaging height | 50—144mm | ||
Work efficiency | 7—10bags | ||
The whole line size | 1255×1500mm | Machine Components: 1. Feed Roller Table 2.Bagging Machine 3.Heat Shrink Machine 4. Cooling Line | |
Remarks:total incoming line4×6square Equipment (to be reliably grounded) | |||
2. Major parameters:
Packing size of laminated floor: (800~1215) x (120~320) x (48~120).
