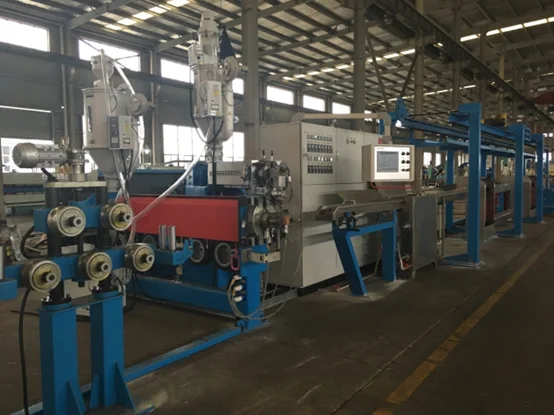

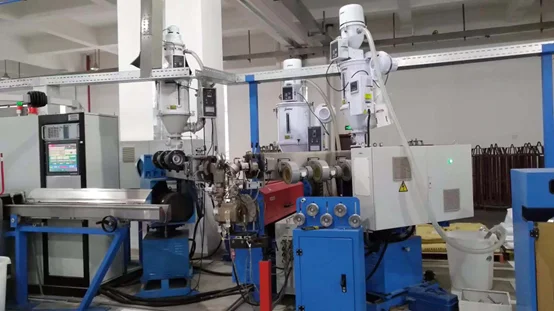

PVC PE Wire and cable extrusion machine

Product Overview

Description

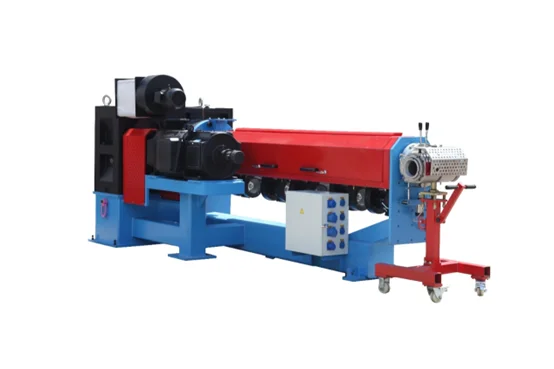

Wire and Cable Extruders



Our extruders are designed for processing a wide range of materials, such as PVC, PE, XLPE, HFFR and others to make automotive wire, BV wire, coaxial cable, LAN wire, LV/MV cable, rubber cable and Teflon cable, etc. Special design on our extrusion screw and barrel supports final products with high quality performance. For different cable structure, single layer extrusion, double layer co-extrusion or triple-extrusion and their crossheads are combined.

 Main characters:

1, adopted excellent alloy while nitrogen treatment for screw and barrel, stable and long service life.

2, heating and cooling system is special designed while the temperature could be set in the range of 0-380℃ with high-precision control.

3, friendly operation by PLC+ touch screen

4, L/D ratio of 36:1 for special cable applications(physical foaming etc.)

 1.       High efficiency extrusion machine

Application: Mainly used for insulation or sheath extrusion of wires and cables
