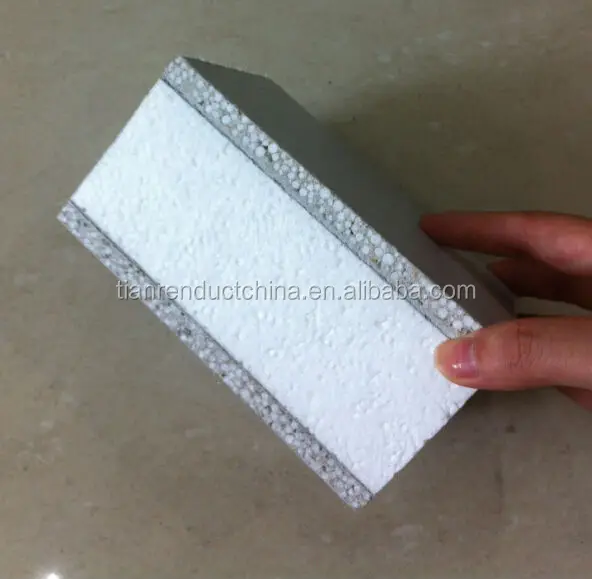

prefabricate 150mm EPS sandwich roof panel osb sip pannell sandwich panels for sale

Product Overview

Description



Terasun Structural Insulated Panels (SIPS)

Thermal conductivity Insulation core: 0.0375 W/m.K

TSM/TCB facings: 0.20 W/m.K

Facings 6-20mm TSM/TCB Board

Core High performance Expanded Polystyrene insulation of typical density 27 g/cm3

Board size Manufactured to individual projects

What are SIPS?

Structural Insulated Panels – SIPS - are an advanced method of construction, offering superior insulation, structural strength and air-tightness over traditional construction methods or systems. SIP panels are used in floors, walls and roofs for residential, industrial, educational and commercial applications, providing ecologically friendly and energy efficient buildings.



SIP technology has been developed around composite (or sandwich) panel techniques, creating a product with excellent structural and thermal characteristics.



SIPS consist of two parallel faces - usually Oriented Strand Board, sandwiching a rigid core of Polyurethane (PU) foam or Expanded Polystyrene (EPS), making them lightweight, quick to erect and free from problems of compression shrinkage and cold bridging associated with other forms of construction.



Facings materials vary with the advanced techniques, MgO board, fiber cement board, wood bonded cement board, etc. These boards currently have replaced traditional facing, OSB. Our TSM/TCB board is also a perfect choice used as facing boards.

TSM BOARD

TCB BOARD





AVAILABLE LENGTHS

Standard Board Lengths: 2.4m, 2.7m, 3m, etc

AVAILABLE WIDTHS

Standard Blank Panel Width of 1200mm



Fire Rated

Internal and External TSM and TCB facings have Class 1 incombustibility to EN-13501-1 2007





QUALITY & DURABILITY

Terasun SIPS Insulated Panels are manufactured from the highest quality materials, using state of the art production equipment to rigorous quality control standards, complying with ISO9001 standard, ensuring long-term reliability and service life.



PACKING

Terasun SIPS panels are stacked horizontally and the pack is wrapped in polythene.

The number of panels in each container depends on panel length and weight.

Length:2400mm   Width:1200mm



Panel thickness(mm)	75	100	125	150	180
No.panel/20GP	80	60	44	36	32



Accessories

Fasteners

To be corrosion resistant screws for joining of panels and attachment of panel to frames, roof and

corners. In addition, Zinc galvanised screws, nails or staples should be used for spline and plate

attachments.

Construction Adhesive

Adhesive for installing accessories and dimensional timber.

Caulk

Compatible with all components of the panel and adjacent materials.





SIPs are manufactured under closely controlled factory conditions and can be custom designed for each application. The result is a building system that is extremely strong, energy efficient and cost effective. Strict quality control procedures are implemented by Terasun Co. in the manufacture of SIPs to ensure quality and consistency of panels.

With all SIPS it is the insulation core that provides excellent thermal properties due to the limited amount of timber studs required. Equally air permeability due to the large format nature of the supplied panels is much lower than traditional construction due to the small number of joints in the structure.

There are two fundamental applications for SIPs; full structural and infill for a concrete, steel or engineered timber frame. In all cases the product will be engineered for load bearing capability, racking resistance and wind loading .
