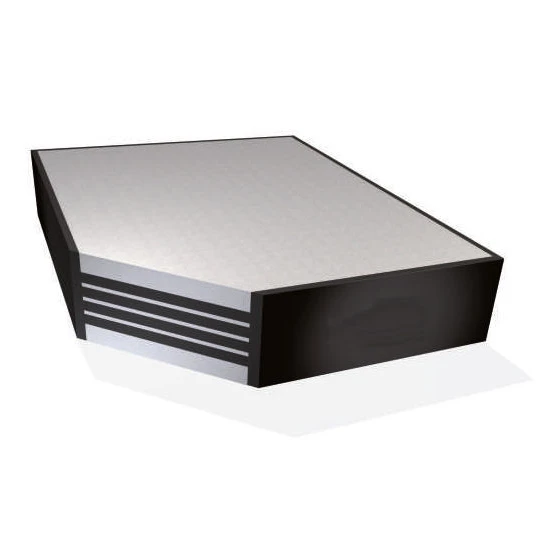

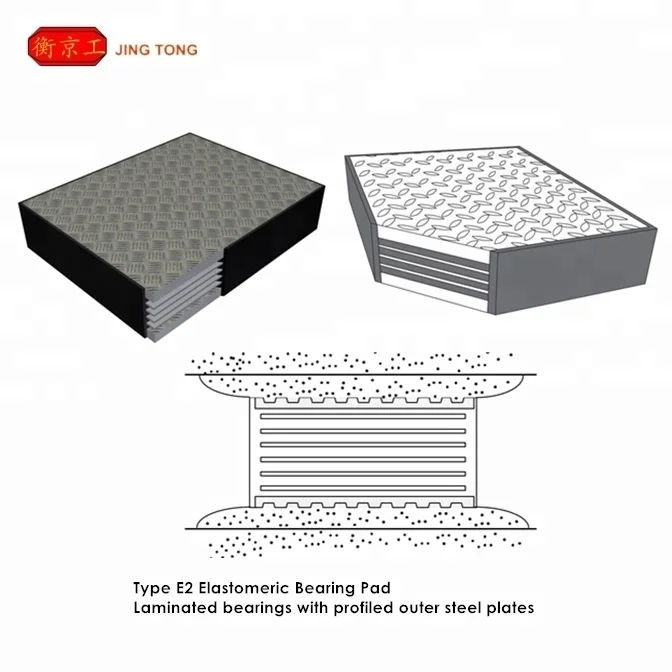

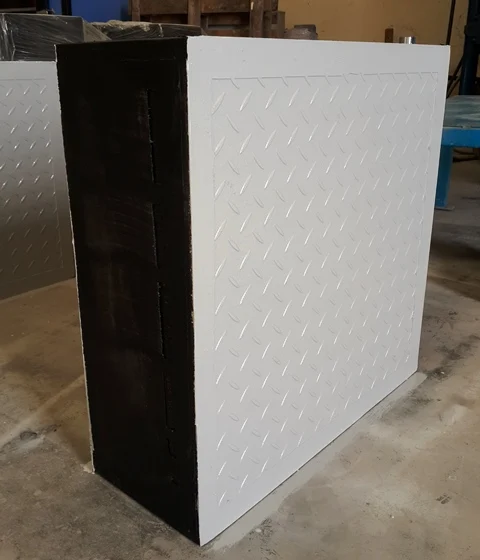

Type E2 Elastomeric Bearing pad with top & bottom checkered plate

1. Product Name: Elastomeric Bearing Pad Neoprene Bearing Pad

2. Size: 400*500*90/500*500*110/600*600*157/800*800*197mm etc.

3. Standard: BS EN 1337 / JT/T4-2004 / GB 20688.4-2007 etc.

4. Certification: ISO9001, SGS, CE, BV

Production Details

Being throug high temperature and pressure, more thick costs more time.

Packing Details

Packed on pallet by PE film
Other package asked by buyer are acceptable .

High quality

Inside and top and bottom steel plate

Sufficient equipment

More than 20 advanced equipment in our workshop ensure timely delivery time for large orders. Additional, it can ensure standardized production, which accord with international standard.

Perfect Package & delivery

All the products are inspected before loading, then they will be perfectly packed. Then our skilled loading team will operate the forklift and other equipment for easy and fast loading.

Multiple models for products

Mostly standard bearing pad models to produce standard bearing pads, including pot bearing, laminated bearing pad, spherical bridge bearing, HDR & LRB etc. bearings.

Factory

Workshop

Our Workshop

Hengshui JingTong Rubber Co., Ltd. is a specialist for manufacturing and exporting bridge bearing pad. We provide international standard bearing pads to meet your needs. There are laminated bearing pad, Lead rubber bearing, pot bearing, spherical bridge bearing and high damping rubber bearing. The excellent isolation effect and reliability of our bearing pads have been globally verified and examined by several actual cases. We are very glad to provide you the best quality and economical products.

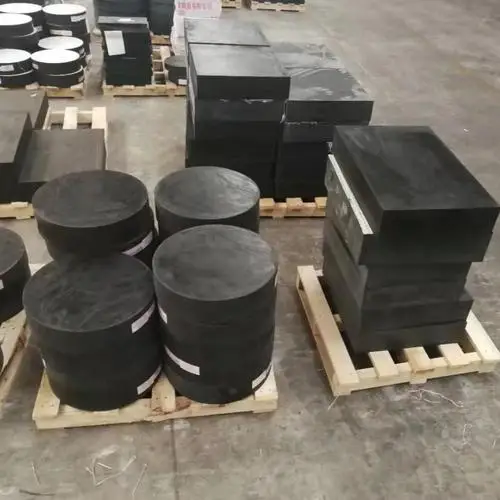

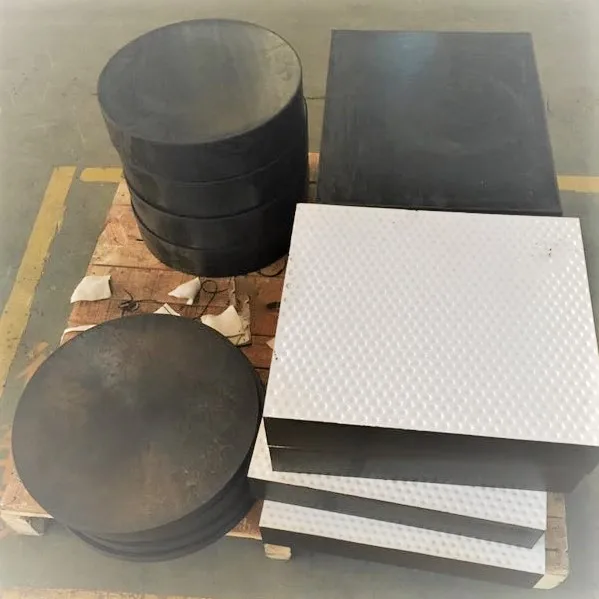

Warehouse

Our Warehouse

Warehouse

Our Warehouse

HDR High damping rubber bearing, also called HDR bearing pad, is one of seismic isolation bearing. It has excellent seismic isolation performance to effectively reduce the bridge damage caused by earthquake.HDR bearing pad is composed of specialized designed rubber with high damping performance, sandwiched together with steel plate layer. When installing, the high damping rubber bearing is commonly used with top and bottom steel plate and connection accessories.

LRB Lead rubber bearing, has similar structure with high damping rubber bearing. It is an important component of seismic isolation bearing. It is composed of laminated rubber bearing and lead core. The lead core can not only bear the heavy load and horizontal force, but also absorb energy through plastic deformation of hysteresis damping.Lead rubber bearing can be divided into round and rectangular shapes for different application. Additional, the lead core quantity can be single or multiple to supply maximum flexibility in the bridges or building.

Pot bearing is a kind of bearing which is composed of pot, elastomeric pad, stainless steel plate, sealing ring and other components. It is designed for bearing the combinations of vertical loads, horizontal loads, longitudinal and transverse displacements and rotations. Pot bearing is ideal bearing for large bridge with the features of large horizontal displacement, light weight, simple structure and easy operation.

Laminated Rubber Bearing classification
According to the using condition
It is made of Chloroprene rubber (CR), which is suitable for the -25 °C to +60 °C temperature applications.

It is made of natural rubber (NR), which can perform well in -40 °C to +60 °C.
According to sliding type
Fixed type. It refers to the standard laminated rubber bearing without sliding performance.
Sliding type. The top surface are designed with Teflon (PTFE) board for sliding.

● Type A Elastomeric Bearing

Laminated bearings fully covered with elastomer comprising only one steel reinforcing plate

● Type B Elastomeric Bearing

 Laminated bearings fully covered with elastomer comprising a minimum of two steel reinforcing plates

● Type C1 Elastomeric Bearing

Laminated bearings with outer steel plates and bolts.

● Type G Guided Bearing

Horizontal guided bearings transfer loads in both longitudinal and transverse directions.

● LRB- Lead Rubber Bearing

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

● Elastomeric bearing with hole

Elastomeric  bearing with holes with inside reinforced steel palte. Rubber block is without inside reinforced plate.

ISO 9001: 2015

BS EN 1337

BV certificate certify that we are trully manufacturer

What is your terms of packing?

A: Generally, we pack our goods in plastic round small barrels then in carton boxes on pallet or packed in iron barrels directly.

 If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery if total amount more than 5,000USD.

Normally TT in advance. We'll show you the photos of the products and packages before you pay the balance.

The bank account will final confirmed through PI.

How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost or the courier cost.Some clients need special documents, that if we received the deposit in advance that total amount more than 5000USD, then we will undertake.Or buyer need undertake its cost, but i will try to make better way about that.

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
