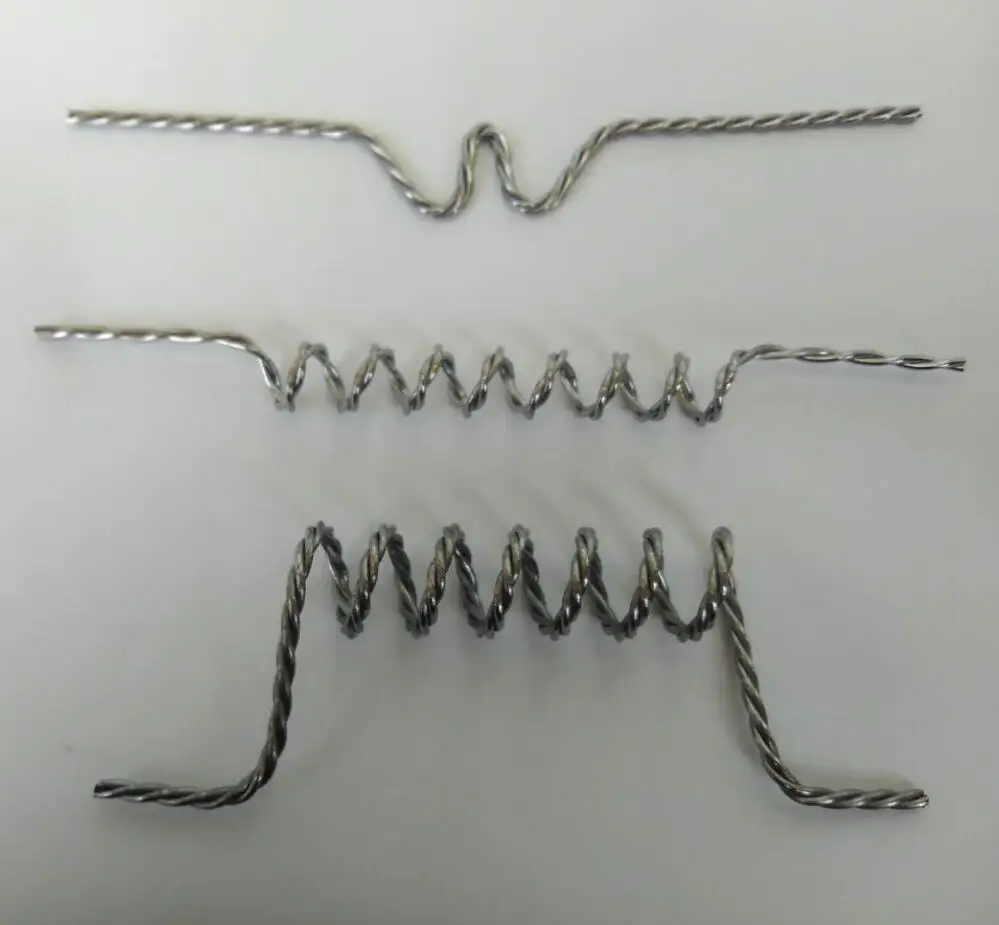

Twisted spiral Tungsten Wire for Vacuum Coating film

Product Overview

Description

Tungsten Wire Filament Vacuum Metalizing Heater.

Our Advantage

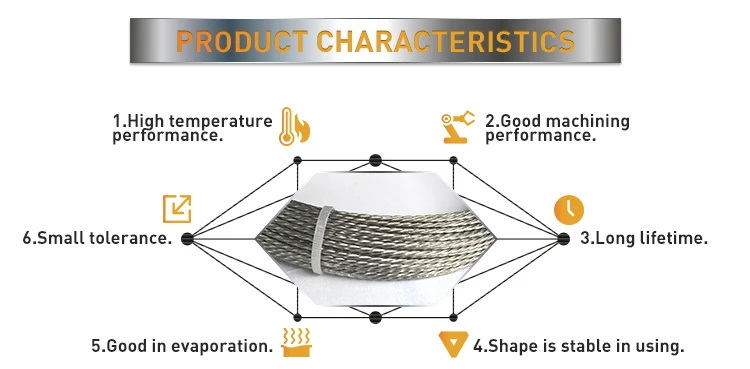

1. Superior performance: long lifetime; shape is stable in using; small tolerance.

2. High quality raw materials: raw material is from state-owned enterprise. electric resistance is stable, tungsten is good at temperature rising, good in evaporation.

3. Professional: since 1991, in 28 years experiences in vacuum tungsten filaments production. we have the Professional team in research, production and sales. establish partnerships with at least 38 countries.

4. Service: you can get our quick response within 24 hours.

It is suitable for use as heating for vacuum metalizing.The film material is placed in a heater in a vacuum chamber, and under high vacuum conditions, it is heated by a heater(tungsten twisted wire) to evaporate it . Mainly applied as heating element for vacuum metalizing in car light, mirror, plastic, ABS, PP and decorations etc.



The company produces tungsten wire from 0.5mm to 1mm, The diameter specifications can be customized according to customer requirements.we provide free sample up to 0.2kg.



wire gauge	0.5--1.0mm
purity	99.95%
surface	polishing
density	19.35g/cm³
materail	tungsten
Tensile Strength	2800MPa
Tungsten color	silver
Diameter telorance	±0.02mm
Boiling Point	5927℃
Melting  point	3390℃
Chemical composition	W
Grade	first grade
application	vacuum coating

Tungsten has a high melting point, high resistivity, good strength, and low vapor pressure.  When the mean free path of vapor molecules is larger than the linear dimension of the vacuum chamber, the atoms and molecules of the vapor escape from the surface of the evaporation source and are rarely impacted or obstructed by other molecules or atoms.

1. Why make choice from you?
    With more than 20years in vacuum tungsten manufacturing, in stable quality, production,               delivery, and service.

2. Do you provide samples? Is it free or extra?
    Yes, we can provide samples for free, but do not pay for shipping.

3. How long is your delivery time?
    If the goods are available, it is usually 3-5 days. If the goods are out of stock, then 7-10 days.



4. What's your best-selling size?
    Single wire diameter 0.6mm or 0.8mm, 3 or 4 tungsten wires strand together.

5. Do you accept customization?
    Yes, we can according to your application or drawings processing.

6. What is the shipping cost?
    It mainly depends on weight, volume, packing size and destination port.

7. Do you have any MOQ limit?
    Our  MOQ is 1 kg.
