Tobee Effluent Handling
$12,600
4CFM single stage rotary vacuum pump with low noise
- Category: >>>
- Supplier: Nanbei Instrument Limited
Share on (60019064166):
Product Overview
Description
4CFM single stage rotary vacuum pump with low noise
Description
1.Aluminum hosing , easy to carry.
2. Vacuum pump oil included.
3. Suitable for ALL the main voltage.
4. Individual design for special customers.
5.100% copper wire
Technical Data
Model |
| NB-2A | NB-3A | NB-4A | NB-5A |
Flow Rate | 220V /50Hz | 4CFM 120L/min | 6CFM 180L/min | 8CFM 212L/min | 9CFM 260L/min |
110V /60HZ | 4.8CFM 144L/min | 7.2CFM 216L/min | 9.6CFM 255L/min | 11CFM 312L/min | |
Ultimate Vacuum | 10Pa/75Microns | 10Pa/75Microns | 10Pa/75Micros | 5Pa/35Microns | |
Motor Power(HP) | 1/3 | 1/2 | 1/2 | 3/4 | |
Motor Speed (r/min) | 220V /50Hz | 1440 | 1440 | 1440 | 1440 |
110V /60Hz | 1720 | 1720 | 1720 | 1440 | |
Inlet port | 1/4SAE | 1/4SAE | 1/4SAE | 1/4SAE | |
Oil Capacity(ml) | 250 | 320 | 700 | 700 | |
Dimension(mm) | 315*125*240 | 340*135*260 | 390*145*280 | 425*155*280 | |
Weight(kg) | 8.8 | 9.8 | 15.5 | 16 | |

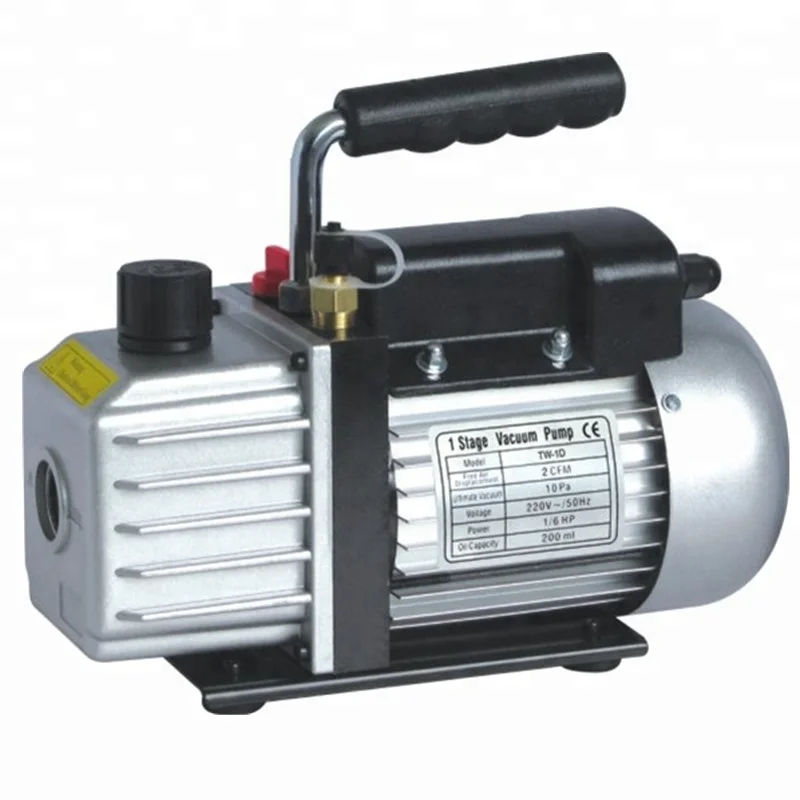

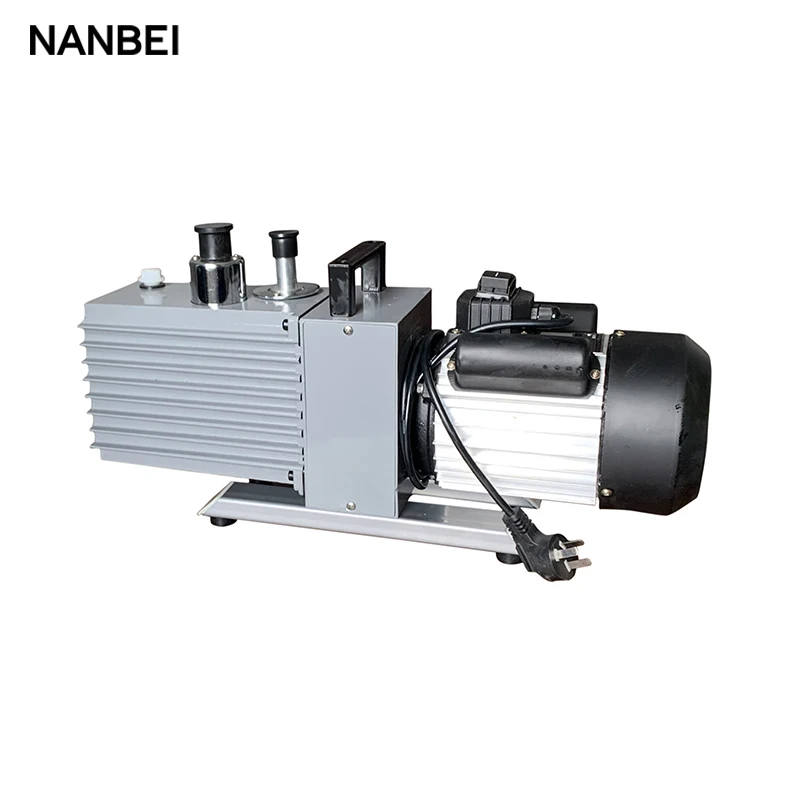

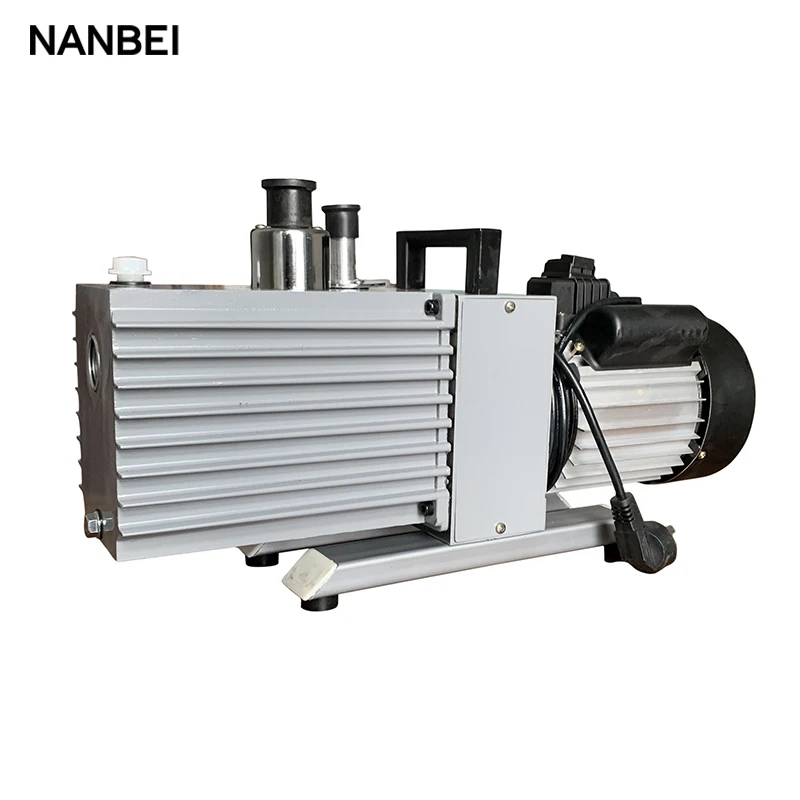

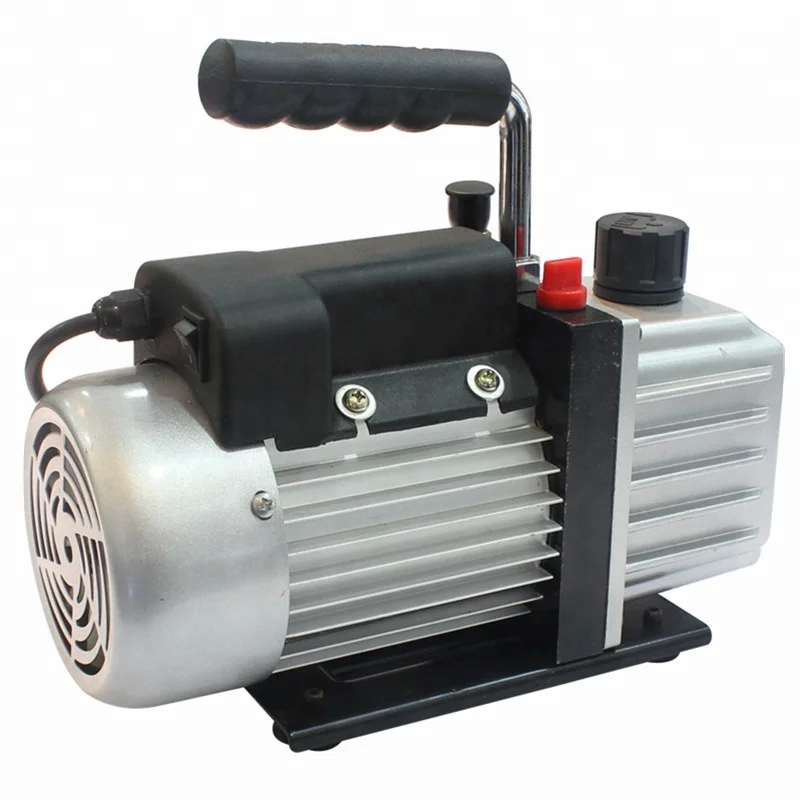

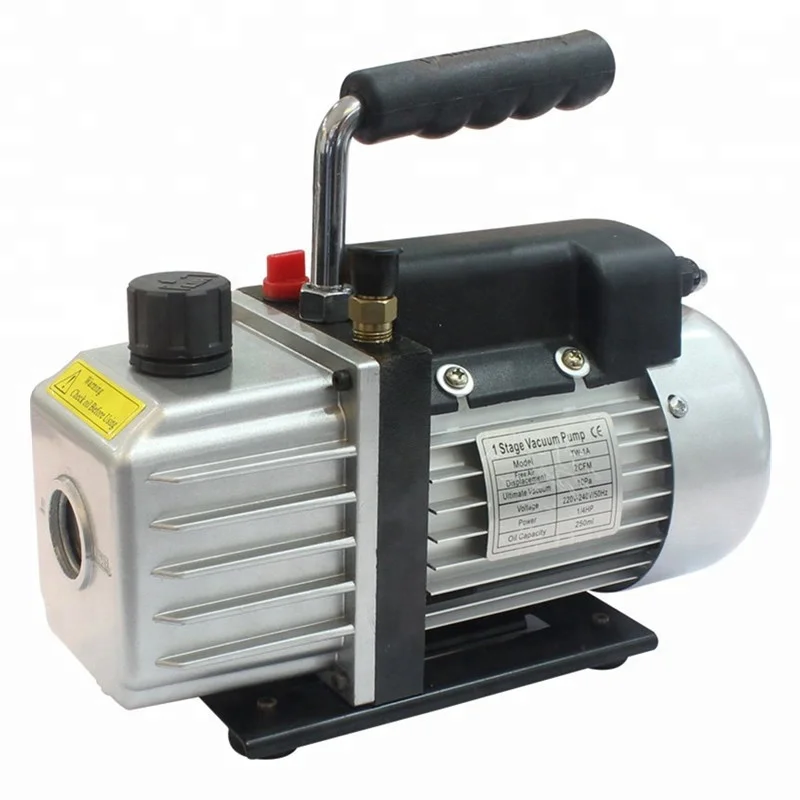

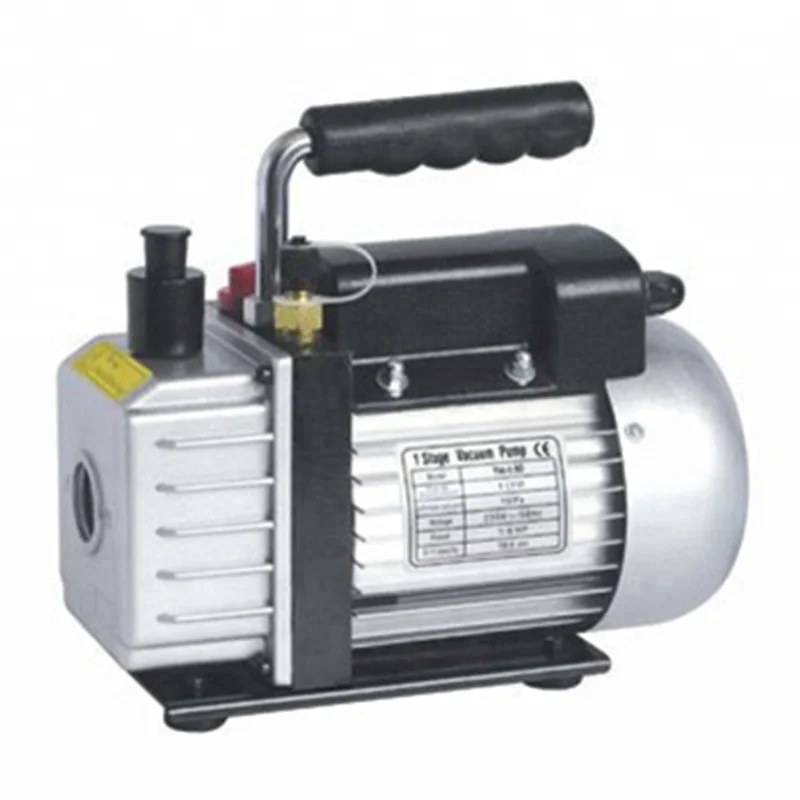

Pump Pictures
Packing Picture
Factory pictures
Our Company
1.Company Show
2.Factory Show
Our Services
1.Certification
2.Warranty and After-Sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training.♥♥
Contact us
We do not just sell equipment,we pay more attention to provide users with
high quality service!
