JIACHENG JCJX 650P Microphone Cable Wire Making Equipment Twist Bunching Machine or Stranding Machine
- Category: >>>
- Supplier: Jiangsu Jiacheng Technology Co. Ltd.
Share on (60019388633):
Product Overview
Description
JCJX-650P Microphone Cable Twist Bunching Machine ,Cable Making Equipment
Application
1, mainly used for computer cable,earphone cable,electric cable,telephone cable,network cable twisting.
Technical parameter
| Machine type | JCJX-650P |
| Finished wire range | 0.49-1.7mm |
| Soft copper wire indivedual | φ0.18-1.0mm |
| Insulated wire individual | None |
| Stranging section area | 0.18-6mm2 |
| Max wire stranded | φ1.0mm |
| Standard lay length | 11.61-66.03mm |
| Spool diamension(flange o.D) | φ630mm/MAX |
| Gross weight | 100KG |
| Max.speed | 2000RPM |
| Machine weight | 3500kg |
| M/C diamension | 2200×960×1050 |
| Main motor | 7.5KW |
| Brake | Magnetic brake |
| Bobbin loading,unloading type | Manual hydranlic pressure |
| Twisting direction | S or R |
| Bearing in machine | SKF made in Sweden and NSK made in Japan |
| Timimg belts | Timimg belts made in Japan |
| Electic parts | Made in Japan and made in Taiwan |
| Transverser | Transverse and distance can be adjusted by bearing transverse |
| Take-up tension | Mecanism priction constan strain |
| Auto stop unit | The machine will stop automatically if there is any wire breakageWhen the counter has reached to your disired output length, warning soud will be heard and the machine stops |
| Painting | Apple green(or according to customers requirements) |
| Application | For hook-up wire,power supplycord,computer cable, ribbon cable, telephone cable, network cable coppaer standing. |

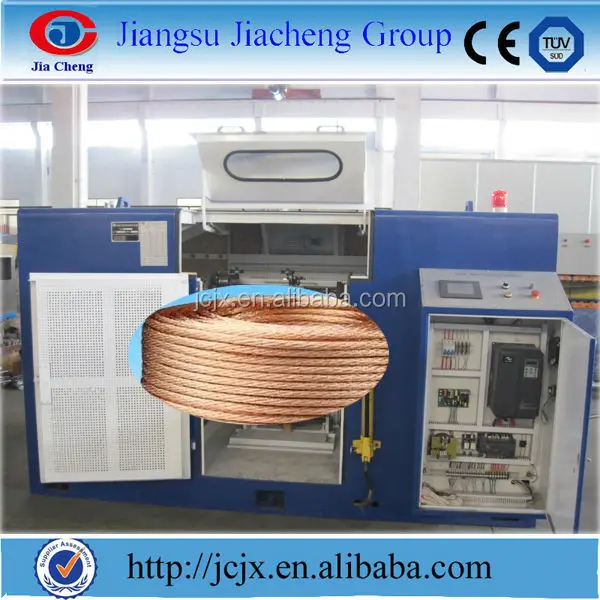

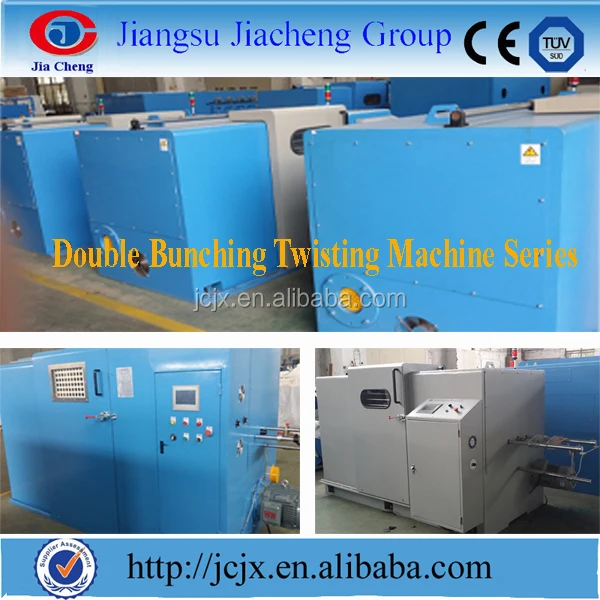

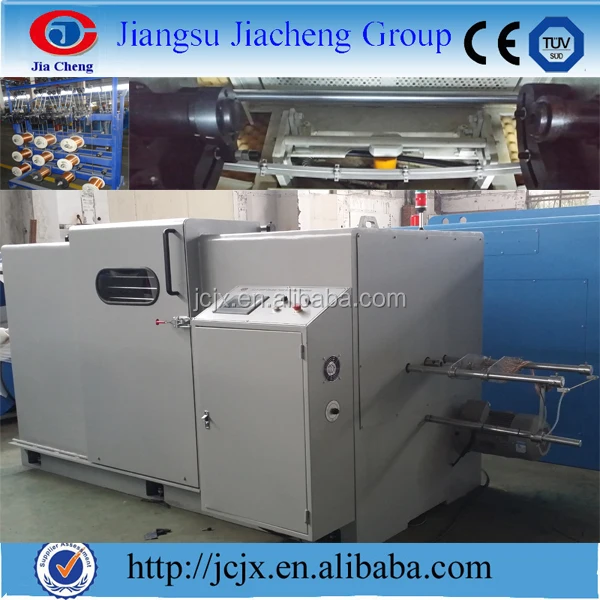

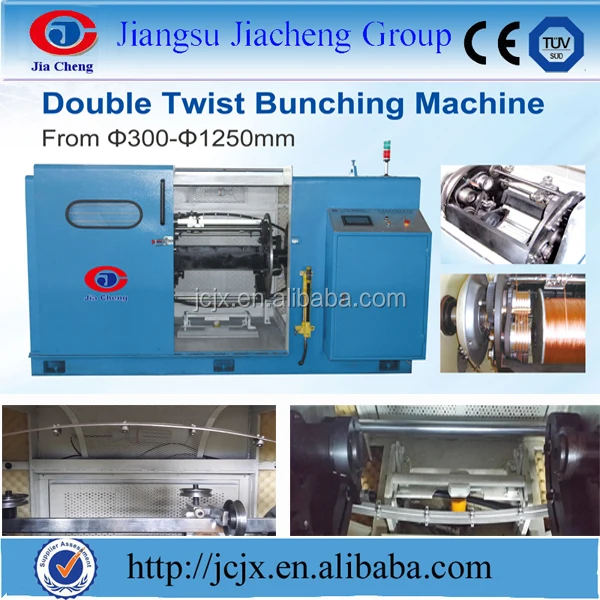

Machine image

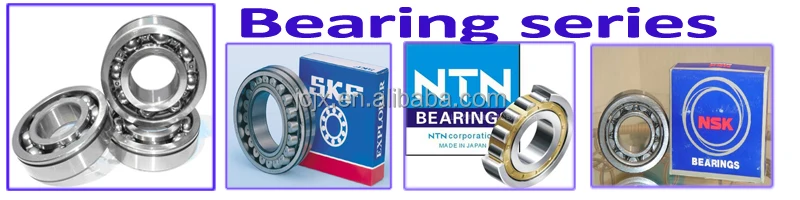

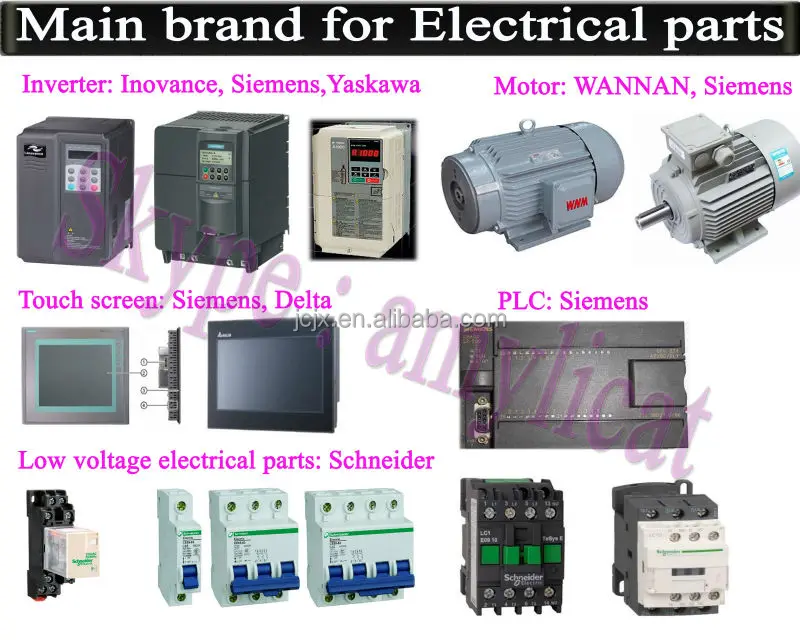

Main parts brand

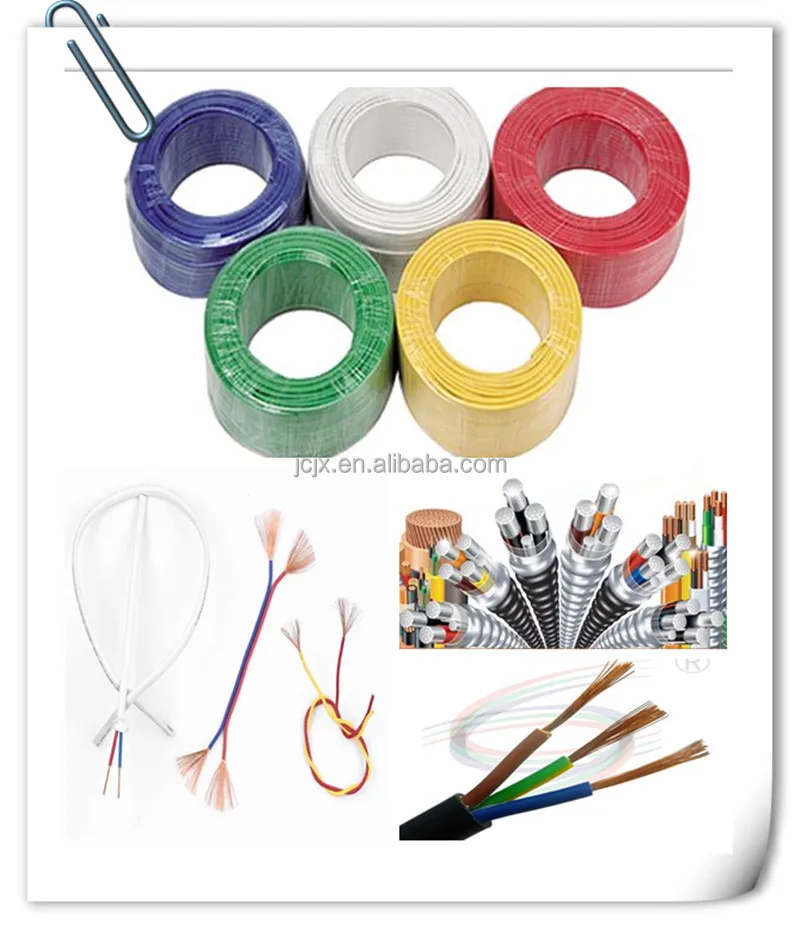

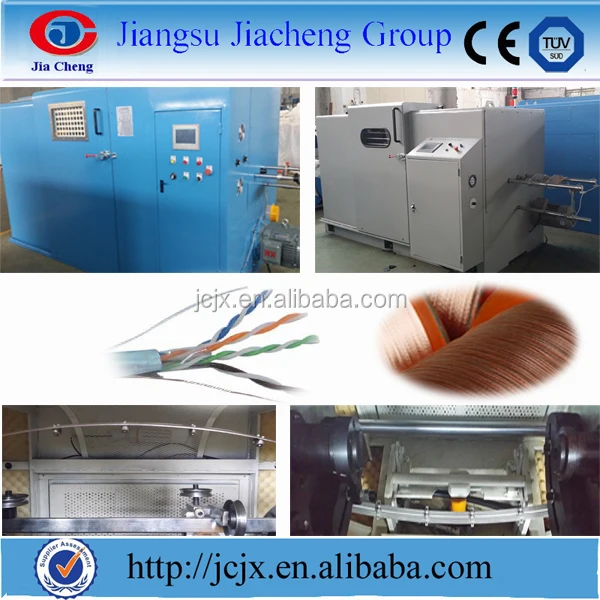

Finished products
Certification
About us
Jiangsu Jiangcheng , was founded in 1990,the occupied area of the company is 70000 square meter, with 9 story office building and multiple workshops that are modern and standardized. It is a professional manufacture in making all kinds of high speed wire drawing machine, rigid frame stranding machine, annealing and tinning machine, bunching machine, extruder and so on.

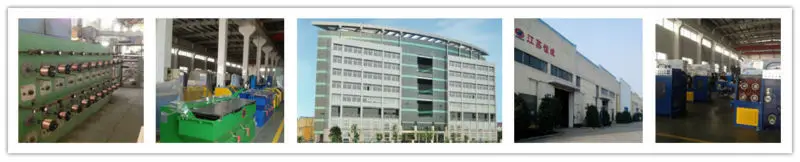

View of our factory
The after -sales service
Pre-sale training:
In order to guarantee the customers are able fully to operate the machine, if the customer need,
we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
Guarantees
Since the shipment date, 12 month for mechanical part, and 6 month for electrical parts
Our exhibition
Worldwide market and exhibition:
Our Jiangsu Jiacheng is one of the top 10 manufacturers of producing wire and cable machinery in China. Our products have exported to India,Iran,Pakistan,Vietnam,Malaysia,Kenya,Syria,Brazil,Egypt,Bangladesh,Russian,
Turkey, Spain, UAE and so on. We take part in the international wire and cable machinery exhibition every two year, we also participate the exhibition in the foreign countries.
