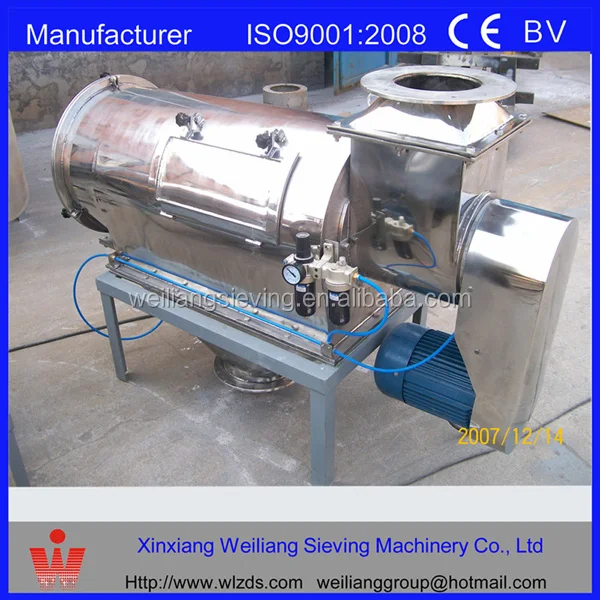

xxnx factory direct sales stainless steel centrifugal airflow screen for particle powder flour spice
- Category: >>>
- Supplier: Xinxiang Weiliang Sieving Machinery Co. Ltd.
Share on (60019454506):
Product Overview
Description
PRODUCTS DESCRIPTION
xxnx factory direct sales centrifugal airflow screen for particle powder spice
The cylinder screen-mesh is placed inside the machine, the materials mixed with airflow and atomization pass the screw conveyor device, enter the cylinder screen cage. The undersize material are sprayed through the screen cloth and discharge from the fine outlet, meanwhile under the centrifugal force and the cyclone propelling power, which caused by the rotor vane inside cylinder screen cage, the oversize material, which cannot cross the wire cloth, is discharged from the coarse outlet along the cylinder screen cage.
Features
Ultra high throughput per square meter of cloth area
Three-bearing shaft support, drilled fro air purge
Dust-free, sanitary operation
Self-cleaning
Smooth and quiet operation
Toll-less screen change
Easy access to all internal working parts
Three-bearing shaft support, drilled fro air purge
Dust-free, sanitary operation
Self-cleaning
Smooth and quiet operation
Toll-less screen change
Easy access to all internal working parts
DETAILS IMAGES

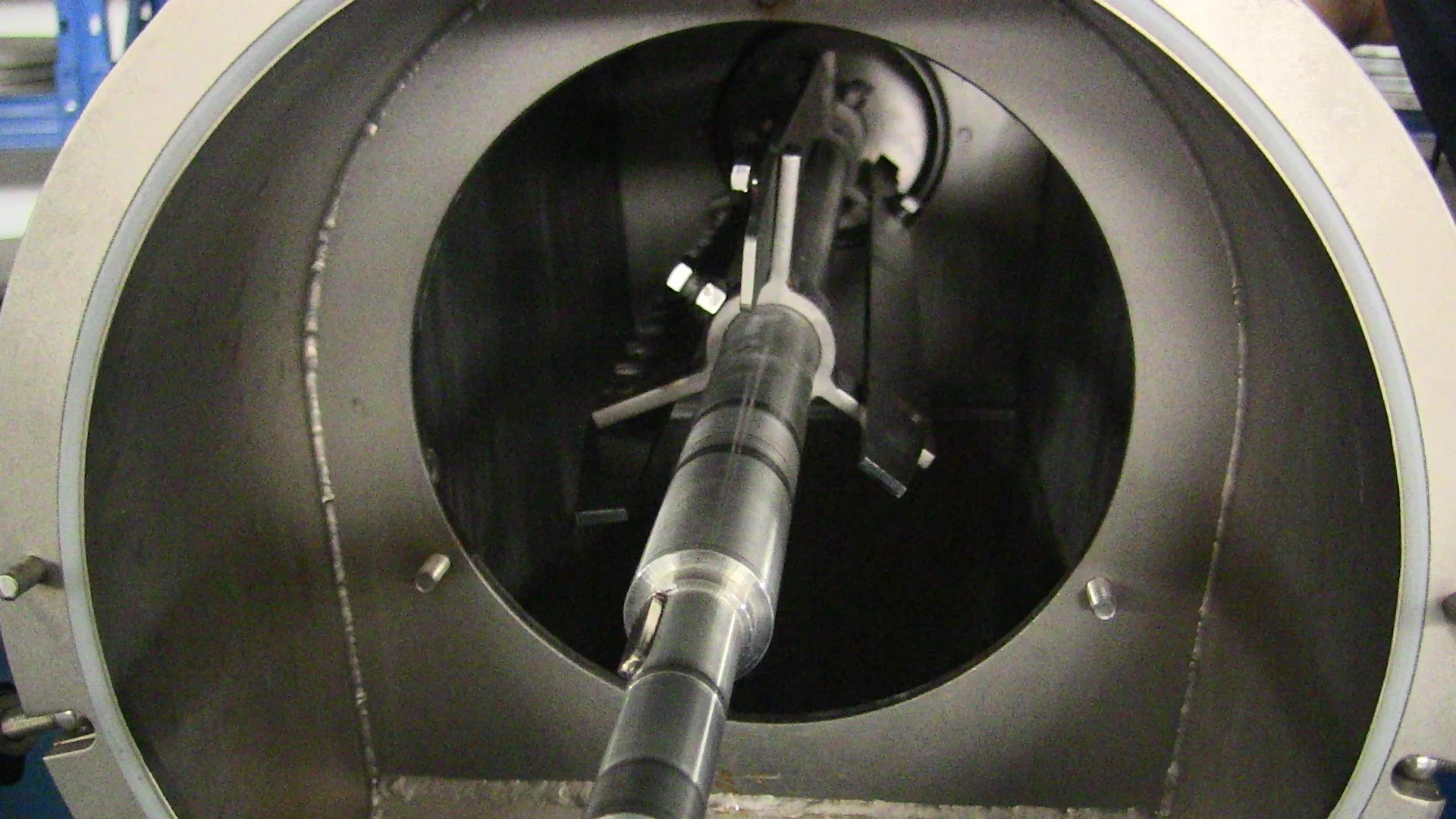

INSIDE OF CENTRIFUGAL SCREEN
Chief axis
wind wheel
wheel blade
Nylon mesh
SUS304 mesh
PRODUCT SPECIFICATIONS
Model | Material | Screening area of screen cage (m2) | Power (KW) | Speed (r/min) | Imput pressure (Mpa) | Output gas quantity (m3/min) | Motor type | Apply to |
WLQ18-85 | Q235A/ SUS304/ SUS316L | 0.47 | 2.2 | 1000 | 0.2 | 0.1-0.2 | Normal/ Explosion proof | <500 mesh |
WLQ30-85 | Bucket capacity | 0.81 | 4 | 4 | 0.2 | 0.2-0.4 |
APPLICATION
PACKAGING
CERTIFICATION
OUR COMPANY
Xinxiang Weiliang Sieving Machinery Co., Ltd.
Weiliang was founded in 2006,after 16 years efforts, it has developed quickly, which has become one of the leading manufacturers in fine screening field in China. Since now Weiliang has exported high quality screeners to 53 countries and have gained high recognition and trust of numerous customers all over the world. Additionally,Weiliang has 2600m2 first-class testing workshop, where our team of professionals will conduct personalized material samples test,which includes density, moisture, capacity and so on, which help to settle down the most suitable models for our customers.
CONTACT US
WhatsApp
WeChat
Charlotte Wang
Xinxiang Weiliang Sieving Machinery Co., Ltd
https://bosscreener.com (English)
//www.wlzds.com/ (Chinese)
Tel: 0086-373-5816161
0086-18837329654 (WhatsApp)
E-mail: weiliangscreener@163.com
FAQ
1. What is the after-sales service of your factory?
Our machines are guaranteed for 12 months, excluding screens. During the warranty period, we will replace damaged parts for our clients. And we will continue to provide customers with operation guidance through the network. We are available to offer help all the time.
2. What is the delivery time from the factory?
The lead time for general products is 15-30 days, but bulk products and customized products require longer production time, generally 30-60 days. (Excluding shipping time)
3. What is the quotation for the product based on?
According to different models, mesh size (based on material properties and estimated screening yield), materials (Q235A, SUS304 or SUS316L), layers, and motor voltage and frequency to give quotations.
