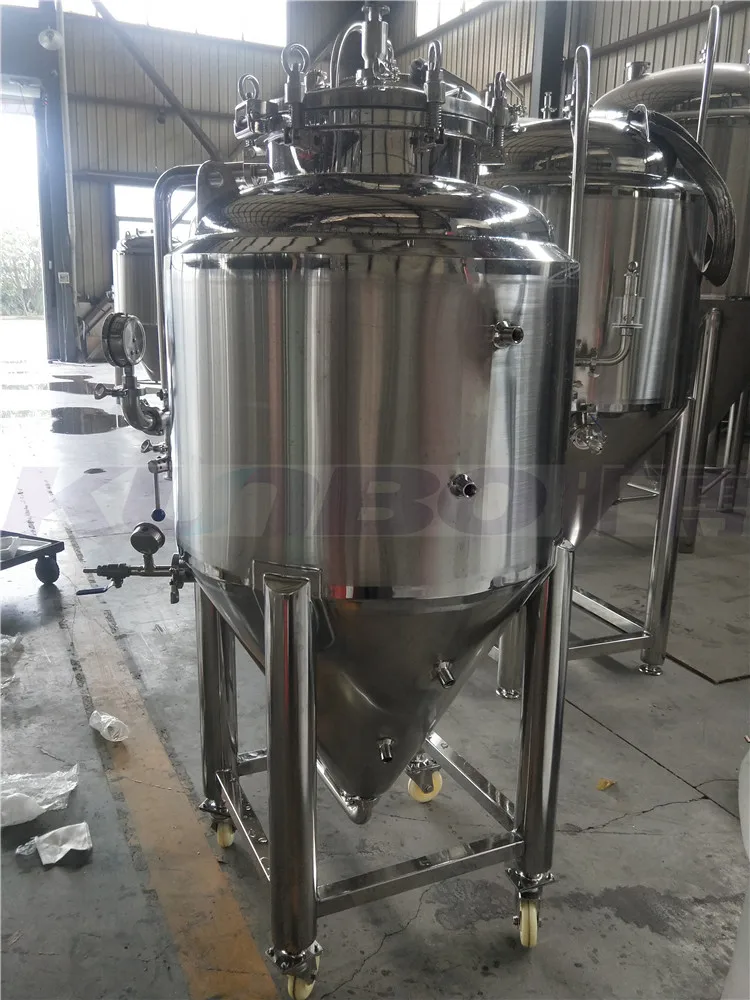

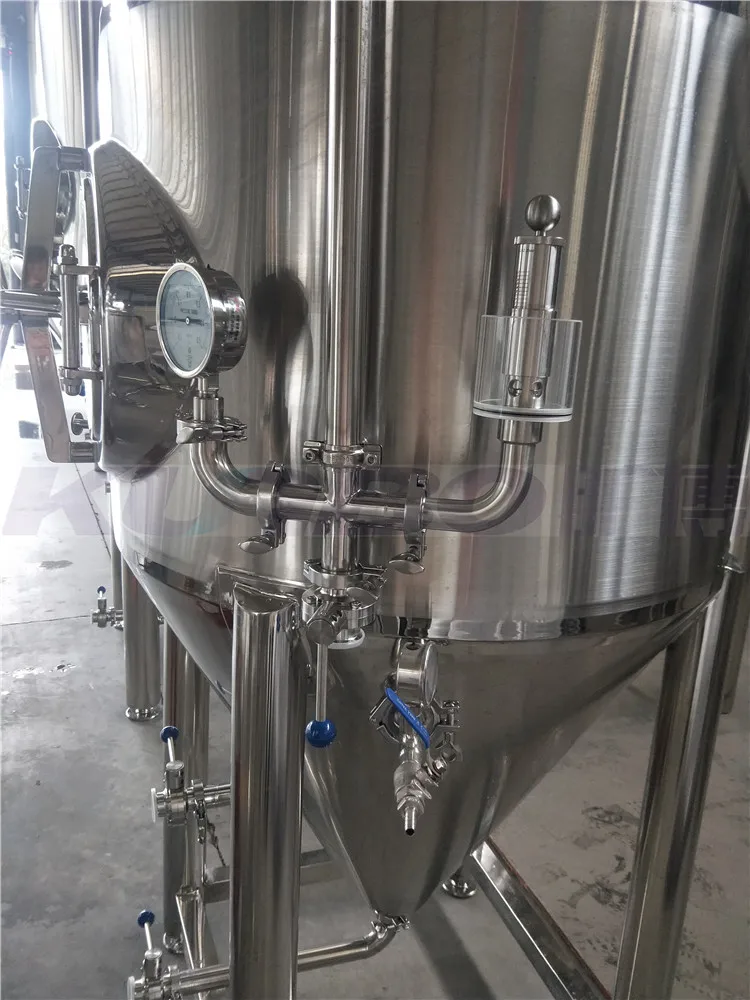

100 Gallon Stainless Steel Tank Conical Beer Fermenter

Product Overview

Description

Stainless Steel 200-300L Beer Wine Brewery Conical Fermenter
Company introducation	We Kuangbo is a production enterprise of pharmaceutical, dairy, food and beer-making equipment, alongside biological engineering, chemical containers, and bespoke products. Our products are widely used in beer production, pharmaceuticals, beverage industries, biotechnology and other fields.
Usage	it is used for beer fermentation
Material	1.SUS304, 316L
	2.jacket: dimple jacket
	3.insulation layer: PU
	4.as to the thickness, we can make it according to your requirement.
Configuration	safty valve, CIP spraying ball and pipe at the side of the tank, outlet with valve and racking arm as your requirement, temperature gauge and sample valve
Our advantage	1.we can supply various kinds of volume, minimum 50L, maximun 10,000L and even larger.
	2.PU insulation is adopted, jacket will be dimple jacket
	3.interior surface is 3A finish and exterior is 2B finish
	4.we also can equip you with a cooling system as your requirement.
	5.competitive price and also higher quality tank.
Minimum order	one unit
Payment term	T/T or L/C
Package	export standard package
Market	at home and abroad



Technical Parameters
Working       Volume (L)	Dimension of Tank(D*H)mm	Total Height(H)mm	Diameter of Inlet&Outlet(mm)	PU Insulation(mm)	Man Hole Size(mm)
500	800*800	1750	Dia 38	50	440*320
1000	1000*1200	2200	Dia 38	50	440*320
1500	1100*1400	2500	Dia 38	50	550*430
2000	1200*1500	2700	Dia 38	50	550*430
3000	1400*1700	3150	Dia 51	50	550*430
4000	1500*2100	3450	Dia 51	50	550*430
5000	1600*2200	3590	Dia 51	50	550*430
6000	1700*2200	3690	Dia 51	50	550*430
8000	1800*2700	4350	Dia 51	50	550*430
10000	2000*2800	4450	Dia 51	50	550*430
