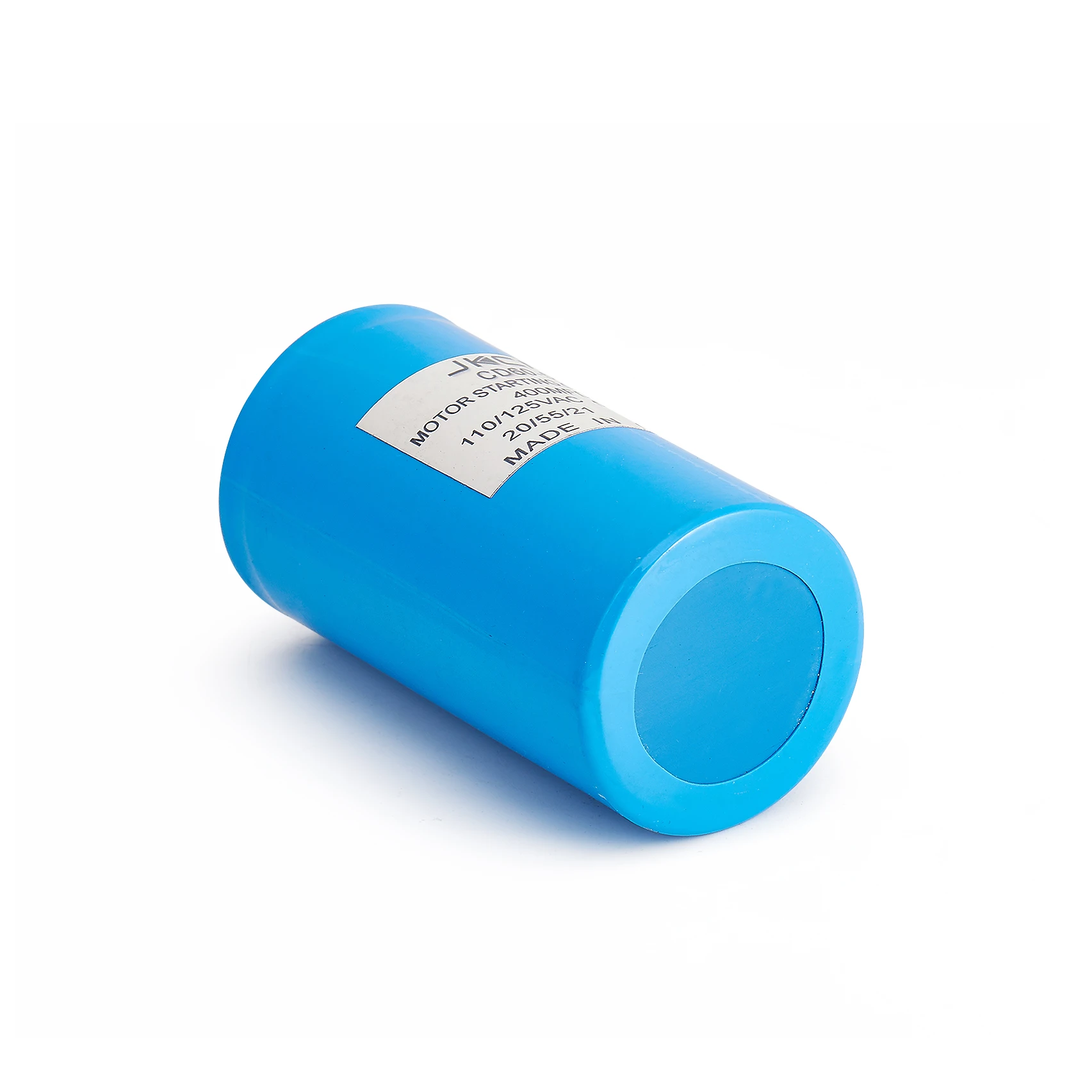

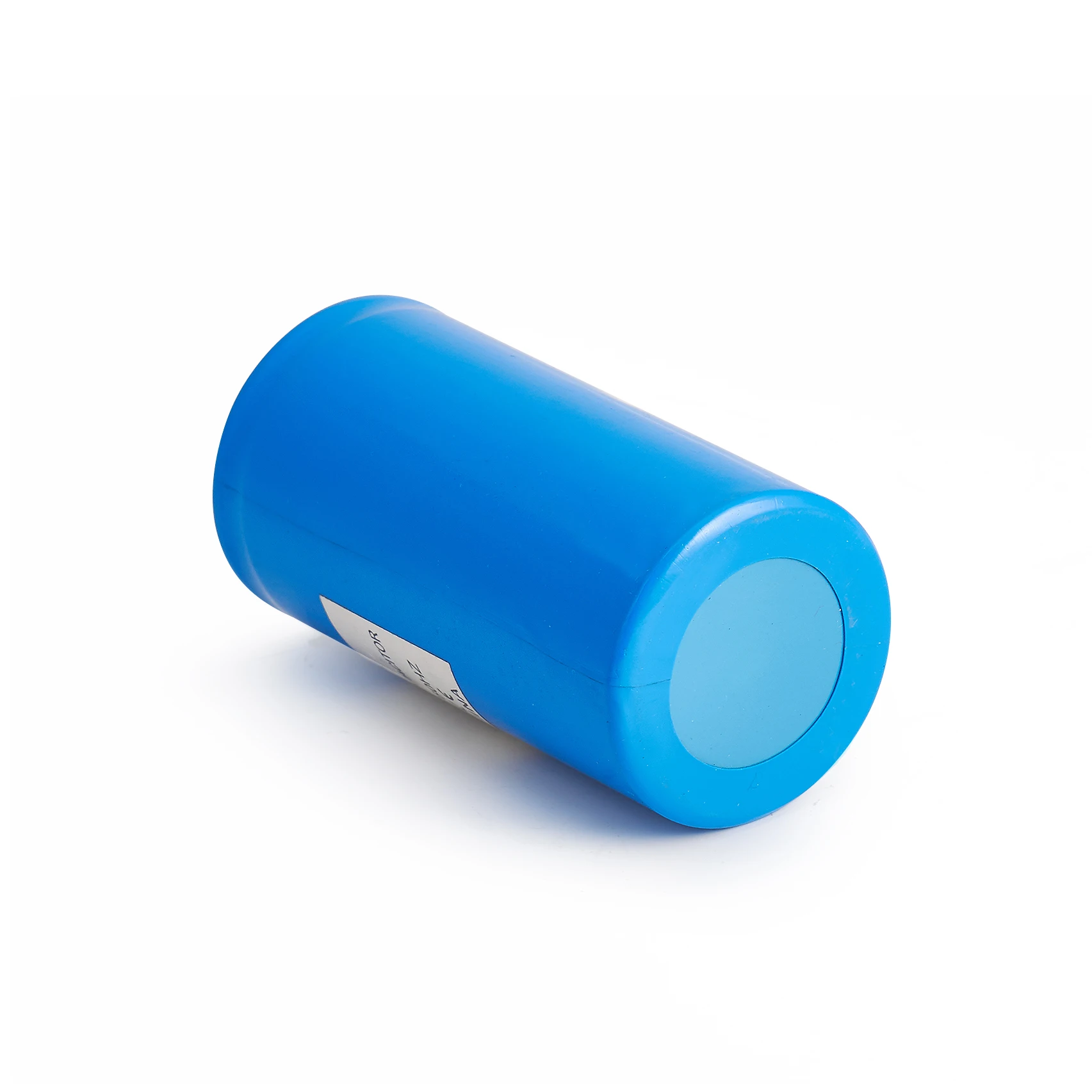

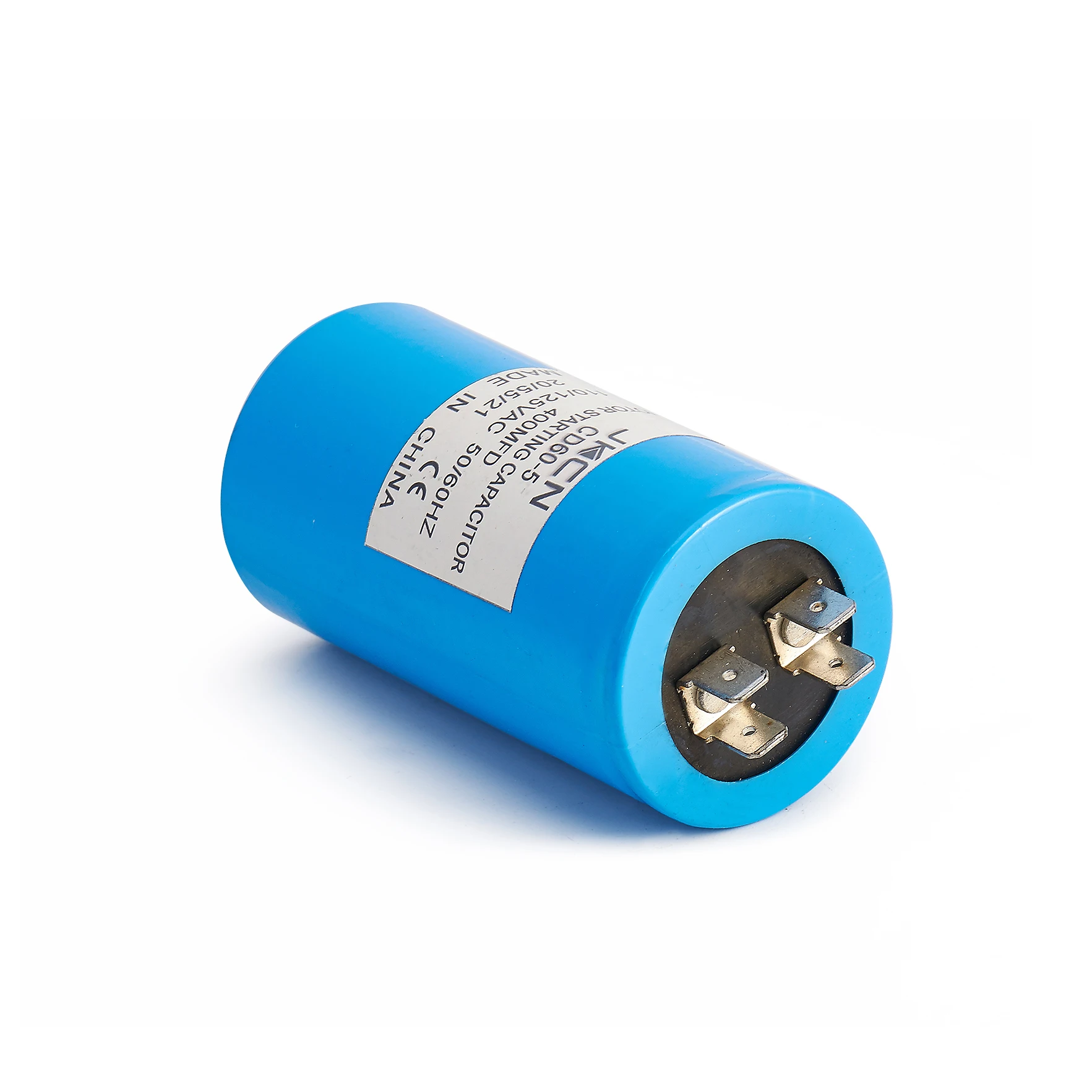

High quality AC Metalized Polypropylene Capacitor Motor Starter Capacitor (CD60 Series, with CE) ,sh capacitor
- Category: >>>
- Supplier: Zhejiang Jiukang Electric Co. Ltd.
Share on (60019756167):
Product Overview
Description
Why choose us
1. More than 20 years' production experience in capacitors-- our company was establised in 1993.
2. A wide range of products, including motor running capacitor, fan capacitor, low voltage shunt capacitor, float switch , contactor for switching capacitor , reactive power compensation installation etc.
3. A good image: first class automaatic rolling machines, advanced production environment, and advanced production technology etc.
4. Certification: passed the ISO9001 quality management system certificate, ISO14000 environment management system, CBB series capacitors have attained CQC, CE, Roh and UL certificates; low voltage reactive power compensation device have got CCC certificate.
With years of export experience along with excellent quality, advanced services and competitive prices, Electrical accessories has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Electrical accessories has won numerous customers' trust and support.
Certifications
Products Description

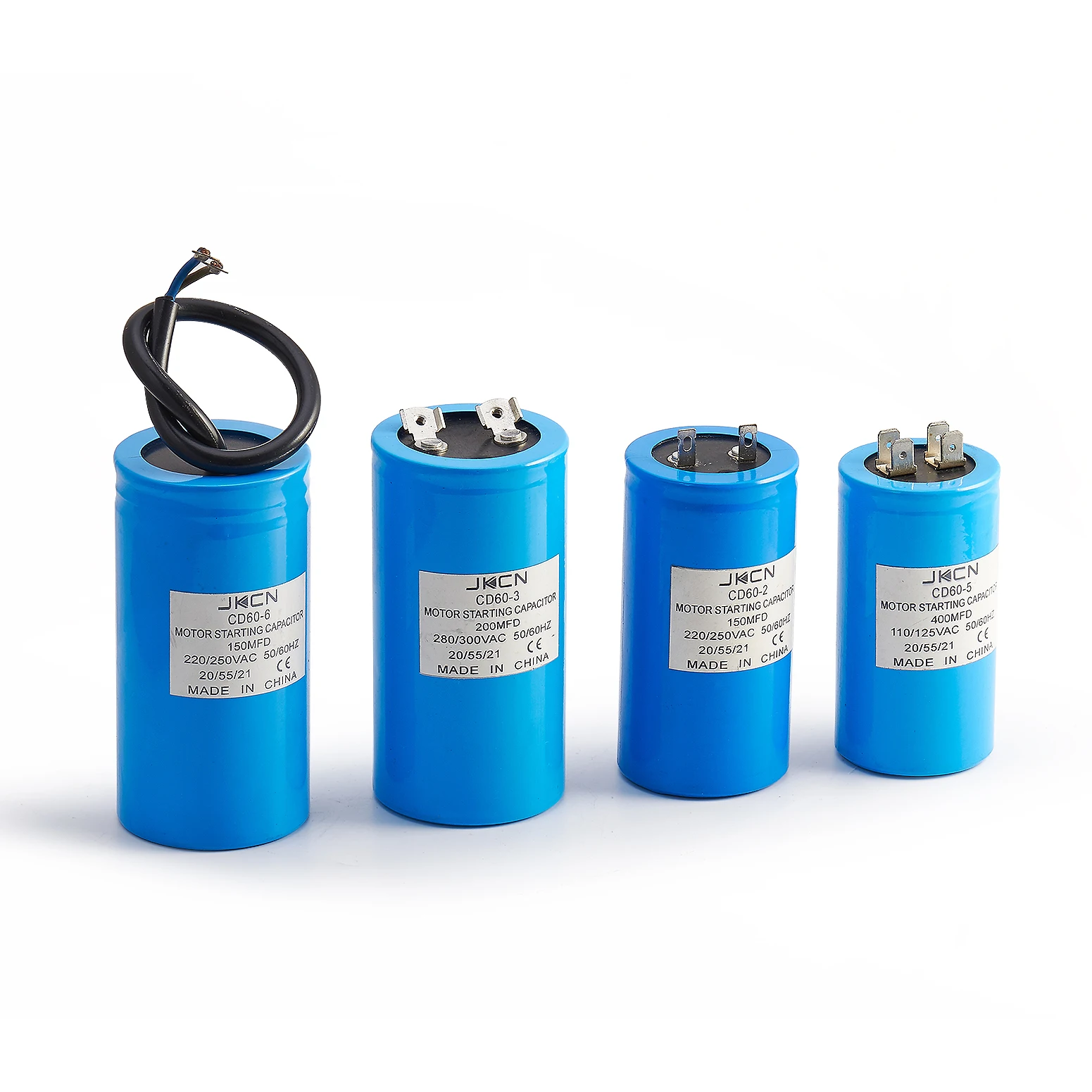

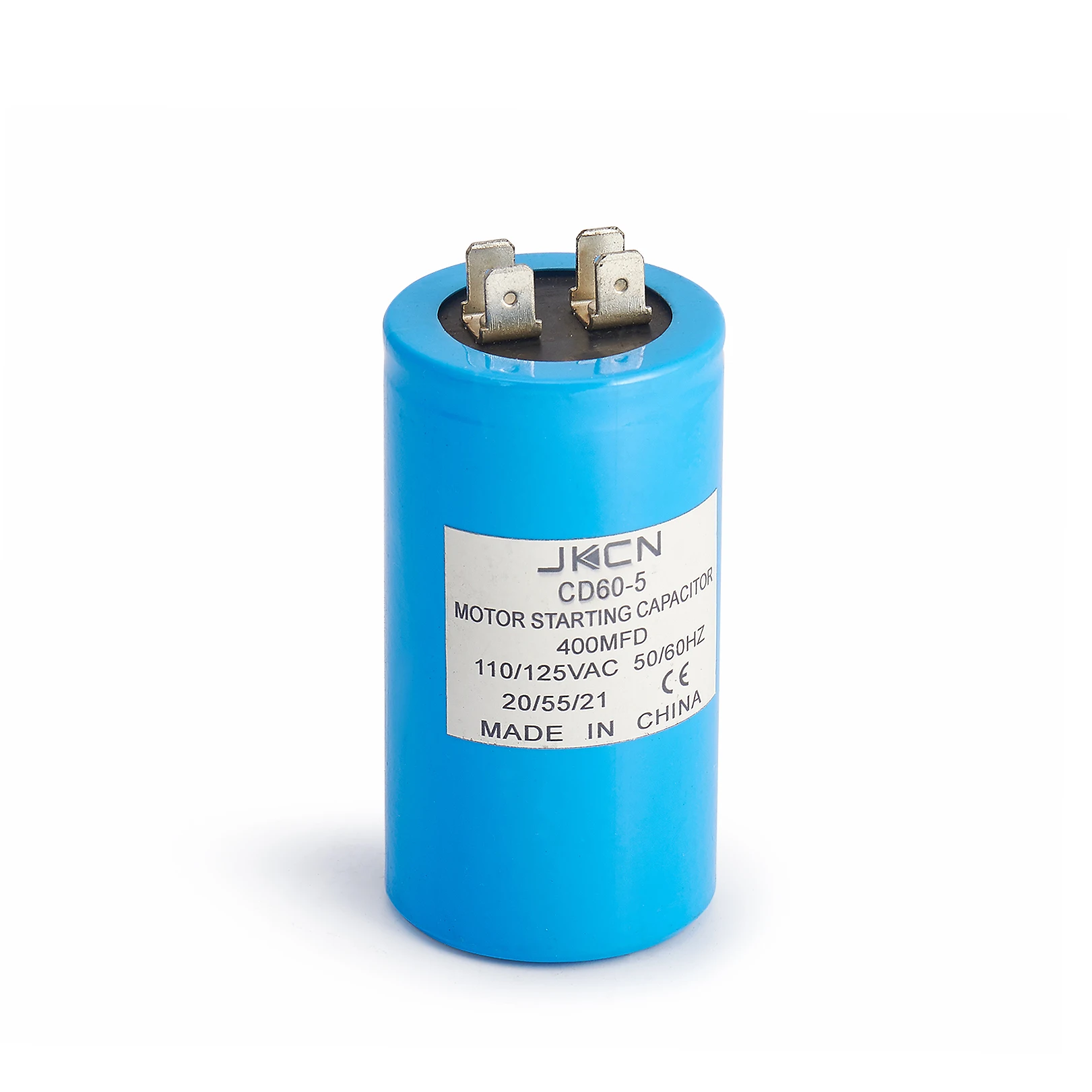

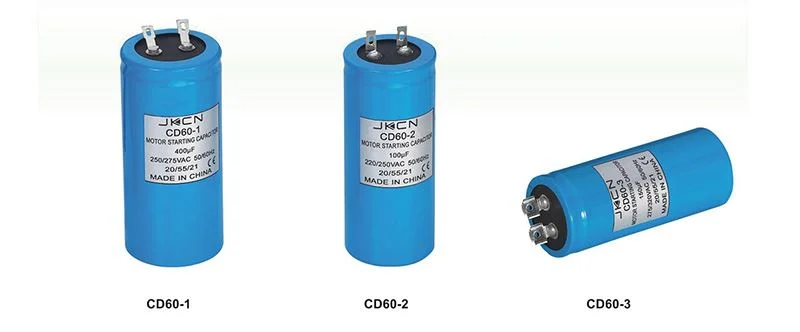

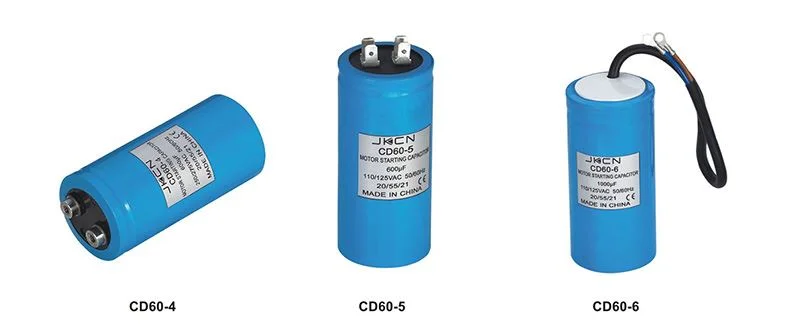

CD60 Start Capacitor Features
CD60 Start Capacitor are suitable for single Alternating current motor with 50Hz or 60Hz for the use of starting, which can make the motor obtain a higher turning distance under a lower starting current.
Main technical parameter
Working Temperature Range | -25-+55°C |
Rated Voltage Range | 110-330vac |
Rated Capacitance Range | 50-1000 uf |
Rated Permissible Tolerance of Capacitance | 0-+20% |
Tangent of Loss Angle(tg δ )(20°C.100Hz) | Tg δ ≤0.10, tgδ≤0.15 |
CD60 Start Capacitor Performance | +551C,110-165vac, on 1 second, off seconds, 30000times |
+55X： ,220-330vac, on 1 second, off 59 seconds, 15000 times | |
Changing rate of capacitance: + 15% within original measuring value | |
Tangent of loss angle: =0.20 | |
Withstand Voltage Between Terminals | Applied 1.2 times working voltage, for 2 seconds, without breakdown |
Withstand Voltage Between Terminal and case | 2000vac,for 10 seconds, without breakdown |

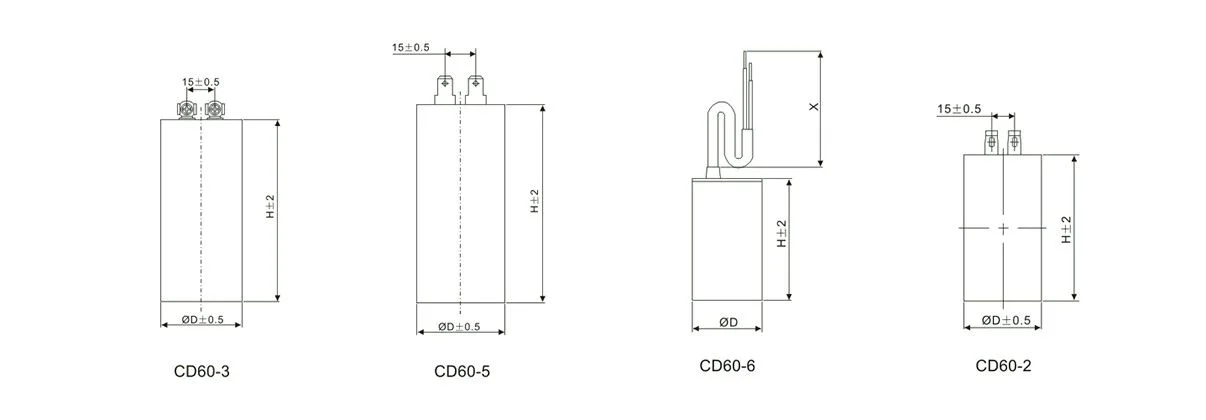

Dimensions(mm） | Dimensions(mm） | |||||
Nominal Capacity (μF) | Voltage 115V(mm) | Voltage 200/250V(mm) | Voltage 330V(mm) | |||
20-25 | 34x80 | 34x80 | 34x80 | |||
25-50 | 34x80 | 34x80 | 34x80 | |||
50-63 | 34x80 | 34x80 | 42x80 | |||
63-80 | 34x80 | 34x80 | 42x80 | |||
88-156 | 34x80 | 34x80 | 50x100 | |||
145-216 | 34x80 | 45x88/50x100 | 50x100 | |||
216-290 | 34x80 | 50x100 | 50x100 | |||
290-360 | 34x80 | 50x100 | 55x100 | |||
360-552 | 34x80 | 50x100 | ||||
540-708 | 42x80 | 50x100 | ||||
708-850 | 42x80 | 60x100 | ||||
850-995 | 42x80 | |||||
900-1000 | 50x100 | |||||
1000-1200 | 50x100 | |||||
Related Products
Customer visiting
FAQ
1. Q: How does your factory do regarding quality control?
A: Quality first. We always attach great important to quality control form begin to end and have 100% test before delivery. Our factory has gained CE, CCC, CQC, ISO, VDE, UL, etc.
2. Q: How do you provide after- sale service ?
A：Our products warranty is one year, If our products have any quality problems, we are responsible for return, replacement ,repair until customers are satisfied. we will continue to provide best service after the warranty period.
3. Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
4. Q: Would you offer free sample?
A: We will offer you free sample for the motor capacitors. for power capacitor will not be free, but the customers have to pay the sample cost and the courier cost.
5. Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, the specific delivery
time depends on the items and the quantity of your order.
A: Quality first. We always attach great important to quality control form begin to end and have 100% test before delivery. Our factory has gained CE, CCC, CQC, ISO, VDE, UL, etc.
2. Q: How do you provide after- sale service ?
A：Our products warranty is one year, If our products have any quality problems, we are responsible for return, replacement ,repair until customers are satisfied. we will continue to provide best service after the warranty period.
3. Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
4. Q: Would you offer free sample?
A: We will offer you free sample for the motor capacitors. for power capacitor will not be free, but the customers have to pay the sample cost and the courier cost.
5. Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, the specific delivery
time depends on the items and the quantity of your order.
6. Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF. 7. Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
7.Q：What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
8. Q:Do you accept OEM?
A: Welcome, you can send your own design of product and LOGO, if you have good quantity, it absolute no problem to do OEM.
9. Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: EXW, FOB, CFR, CIF. 7. Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
7.Q：What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
8. Q:Do you accept OEM?
A: Welcome, you can send your own design of product and LOGO, if you have good quantity, it absolute no problem to do OEM.
9. Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
