ZAF100A CCTV Housing Explosion Proof IP Camera Casing
- Category: CCTV Camera Housing >>>
- Supplier: Changzhou Zuoan Electronics Co. Ltd.
Share on (60019903242):
Product Overview
Description

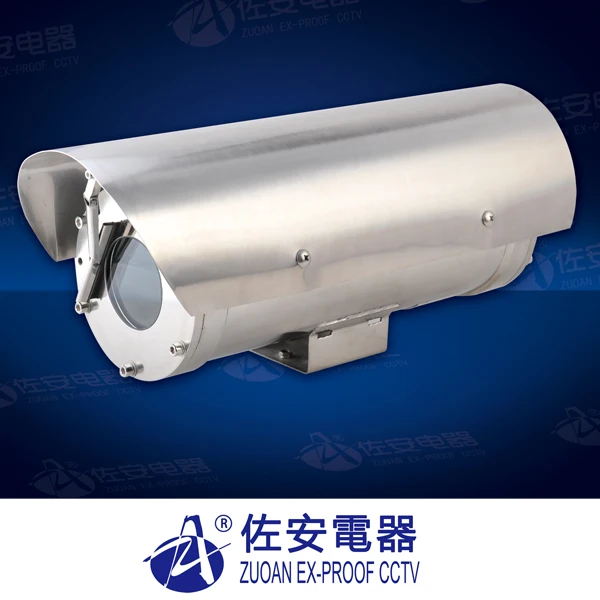

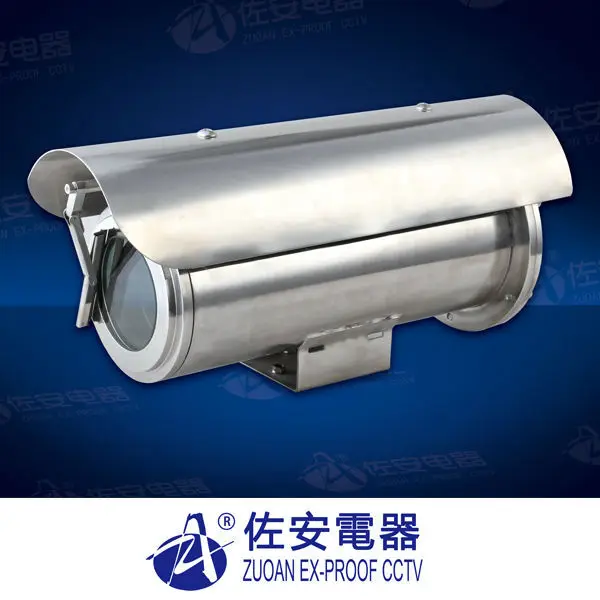

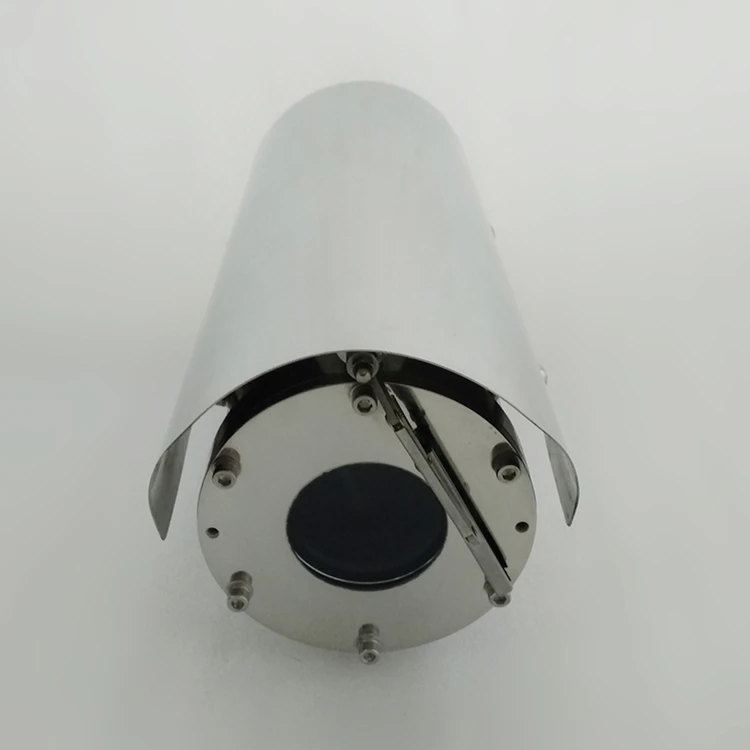

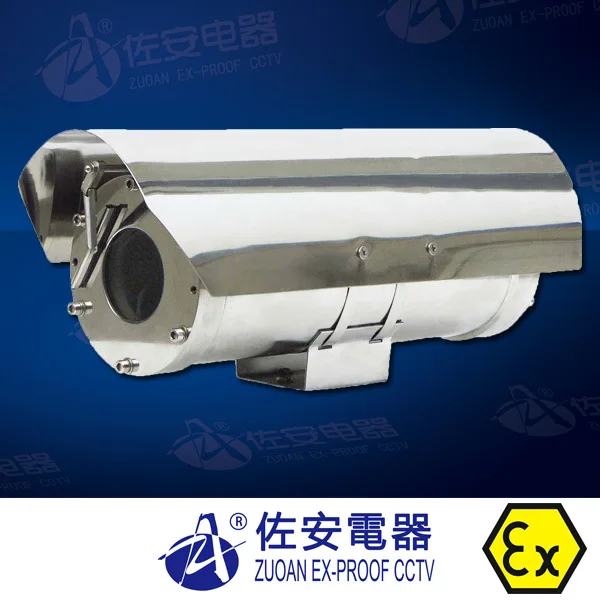

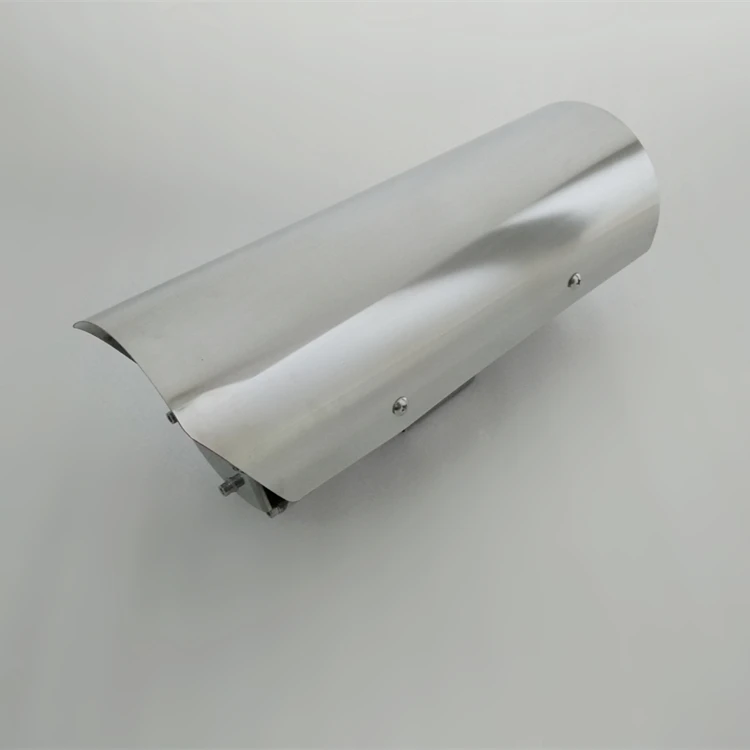

ZAF100A CCTV Housing Explosion Proof IP Camera Casing
Description:
ZAF100A series is ZUOAN one of the most popular explosion proof camera housings/ cavity/ enclosure with rain brush, wiper system. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF100A series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP66,which means dust tight, and can protect against powerful water jets. ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera,dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF 100A housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement. ZAF100A serise adopts 12mm thickness tempered window glass, with sun shiled, window wiper,which is fit for outdoor and indoor mounting. ZAF100A series can be mounted on fixed brackets(model: ZAZ100-B) for one point surveillance;it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF100A camera housing has three size: 420*195*194mm, 380*175*165mm, 280*165*134mm.98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation.on the other hand, ZUOAN also offer integrated housing with installed camera.
Applications:
With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,
Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Main features:
·CNEx certificated
·Adopts stainless steel 304 or 316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP66
·2 cable glands
·Tempered glass with nanometer paint film
·Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·Installation: mounted on ceiling, wall with pan &tilt, brackets.
·Optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
·Communication and : Pelco-D/ Pelco-P
·Output: AV/optical fiber/twisted pair/H.264
Product Parameter:
| Model | ZAF100A-S-H | ZAF100A-S-M | ZAF100A-S-L |
| Atmospheric pressure | 80KPa~106Kpa | 80KPa~106Kpa | 80KPa~106Kpa |
| Ambient Temperature | –25°c~+60°c (-13°~140°F) | ||
| Relative Humidity | ≤95% (+25°c) | ≤95% (+25°c) | ≤95% (+25°c) |
| Ex-proof mark | CNEX: ·Ex d IIC T6 /·DIP A20 TA, T6 | ||
| CNEX certificate no. | · CNEX certificates no: CNEx 12.0006 | ||
| Ingress Protection | IP66 | IP66 | IP66 |
| Voltage Input | AC85-220V,AC24V, DC24V,DC12V, optional | ||
| Power supply (within) | AC85-265V | AC85-265V | AC85-265V |
| Tempered window glass | Φ 100x thick:8 mm (in) / Φ 80x thick:12 mm (in) | ||
| Overall dimension LxWxH | 420*195*194mm 16.5x7.7x7.6in | 380*175*165mm 15x6.9x6.5in | 280*165*134mm 11x6.5x5.3in |
| Internal usable area | 300*80*80mm 11.8x3.1x3.1in | 260*80*80mm 10.2x3.1x3.1in | 210*65*65mm 8.3x2.6x2.6in |
| Net weight | 9.5KG /20.9LBS | 7.5KG / 16.5LBS | 4.5KG / 9.9LBS |
| Material | SS304 (industrical chemical factories, outdoors and so on) SS316L(in highly corrosive areas such as marine, petrochemical, naval and offshore platforms) | ||
| Auto-heating | optional | optional | optional |
| Auto-cooling | optional | optional | optional |
| Wiper | yes | yes | yes |
| wiper decoder | yes | yes | yes |
| lens decoder | yes | yes | yes |
| Control | RS485 | RS485 | RS485 |
| control protocal | Pelco-D/Pelco-P | Pelco-D/Pelco-P | Pelco-D/Pelco-P |
| output | AV/ fiber/ twisted-pair/H.264 network | AV/ fiber/ twisted-pair/H.264 | AV/ twisted-pair |
| Relative products | |||
| Brackets and Pan& tilt | ZAZ100-B, bracket for ZAF100A,100B, 102, 103,1031,1032,105,106 series ZAZ104-B, bracket for ZAF104 ZAY200B, pan and title for ZAF100A,100B,102, 106 series ZAY210, pan and tilte for ZAF 103,1031, 104,105 series. | ||
| Flexible conduit | explosion proof flexibility tube {16MM× 1000MM (L), 20MM× 1000MM (L) | ||
| Other | ZAJS400, ex-proof monitor ; ZAJ320, screen control panel; ZA-JXD4 junction box; ZAJ320 optical transceiver ;ZAJ300, ditital video server(DVS) box, ZAJ340, hard disco video; ZAJ340,network video recoder | ||

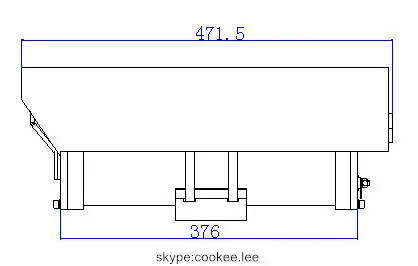

TECHNICAL DRAWING:
Related Product
CLICK HERE CLICK HERE CLICK HERE CLICK HERE
CLICK HERE CLICK HERE CLICK HERE CLICK HERE
FAQ
What is hazardous locations/ area?
Hazardous locations/ area refer to a place where contains of flammable gas, vapor, VOCs( volatile organic chemicals),
dusts, powder. In industry plants like chemical process plant, oil, natural gas, petroleum, offshore platform, refinery, coal mine, handling of large quantities of flammable liquids, dust, gas creates a risk of leaks. Many other area would also have a dangerous concentration of flammable substances during process upsets, equipment deterioration
or maintenance, or during an incident.
What is explosion proof products?
To meet the criteria for the explosion proof rating, all explosion proof products have an enclosure, which must be able to
contain any explosion originating within its housing and prevent sparks from within its housing from igniting vapors,
gases, dust, or fibers in the air surrounding it. it is the enclosures ability to prevent an internal spark or explosion from
causing a much larger blast.equipment must meet the temperature requirements of the specific application in which
it is to be installed. This means that the operating temperature of the motor (and its enclosure) or other component
cannot be greater than the lowest ignition/combustion temperature of the gases or dusts in the atmosphere
where the component is to be installed.
What’s the vandal proof/ vandal resistant camera?
A vandalproof camera is a camera and housing intended to resist vandalism, making sure the camera will continue
to operate in conditions where people attempt to break it or impair its function.
Buyers should not use vandal proof products in hazardous area, or replace the vandal proof products
as explosion proof products.
