72V DC generator charger manufacturer

Product Overview

Description

1. Easy to operate, suitable for a large range of application,  ideal for home and business.

2. Rare earth permanent magnetic digital inverter alternator to insure high efficiency.

3.Low noise and easy operation,low fuel consumption

4..Compact structure and light weight

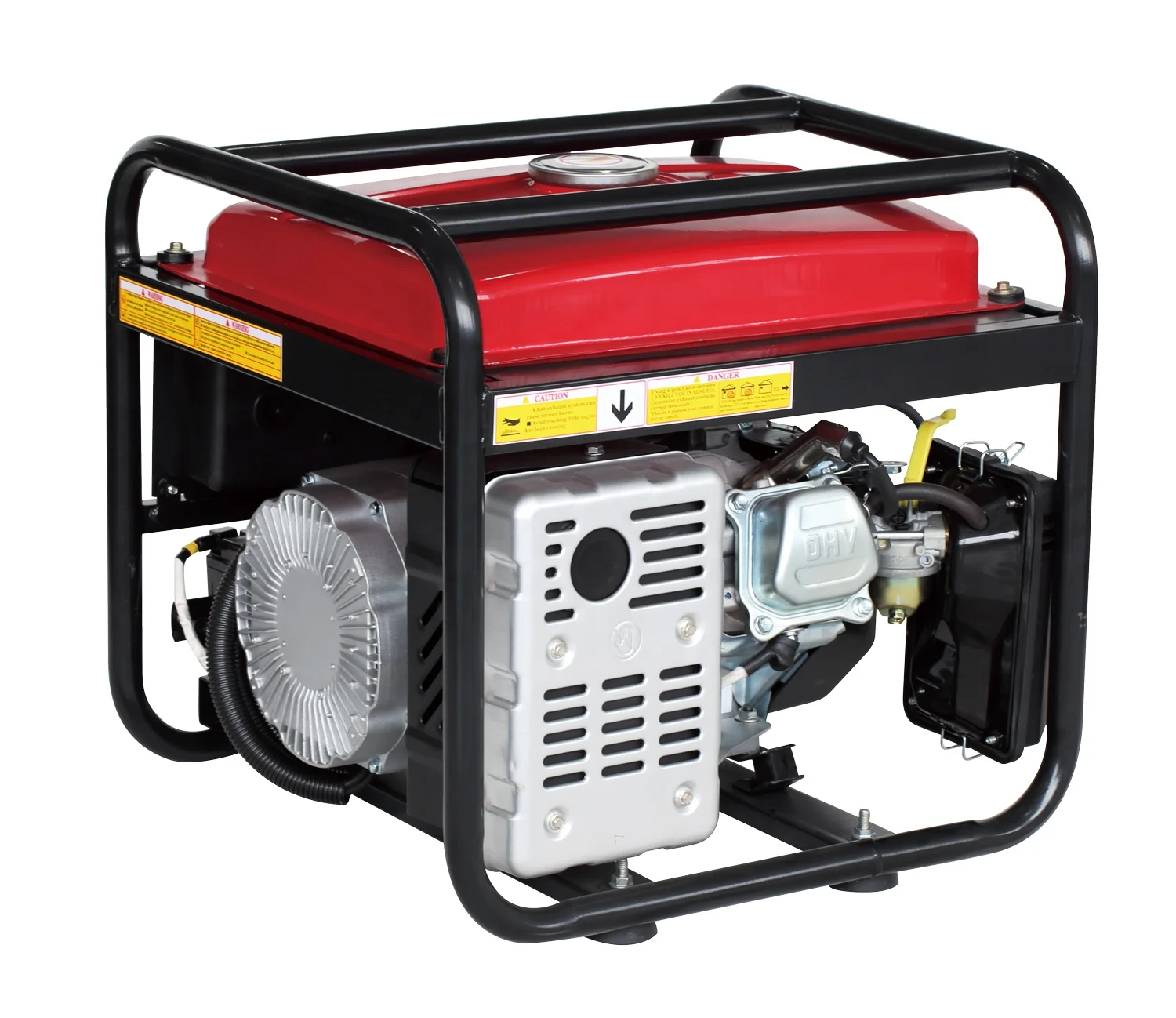

Genset
Model Name	W30A	W50A	W60A	W80A	W90A
Rated  output	3KW	4KW	5KW	8KW	10KW
DC voltage	24V/48V/60V	24V/48V/72V	24V/48V/72V	48V/60V/72V	48V/60V/72V
DC current	125A/60A/50A	160A/80A/55A	200A//100/70A	160A/130A/110A	200A/160A/135A
Transient Max current	1.7 times of rated current
output waveform	DC output
Fuel Tank(L)	12	12	17	36	28
Dimension(mm)	500*456*480	500*456*480	585x568×568	620×590×620	630*580*770
Net weight	38KG	40KG	65KG	73KG	117KG
Engine
Engine	170F	170F-2T	190F-T	192F-2T	2V80F
Engine Type	4-stroke, OHV, single cylinder, cylinder inclined, air cooled,petrol				4-stroke, OHV, 2cylinders,  air cooled,petrol
Displacement	212ml	223ml	420ml	459ml	744ml
Compression	9:01	9:01	9:01	9:01	8.5:1
Rated rev	3200r/min	3600r/min	3200r/min	3200r/min	3200r/min
Ignition system	T.C.I
Start system	Recoil hand-operated, electric system
Engine Max output	4KW	4.4KW	8.8KW	11KW	16KW
Fuel comsumption	≤370g/kw.h	≤370g/kw.h	≤370g/kw.h	≤370g/kw.h	≤370g/kw.h
Lube Oil capacity	0.6L	0.6L	1.1L	1.1L	1.4L
Alternator

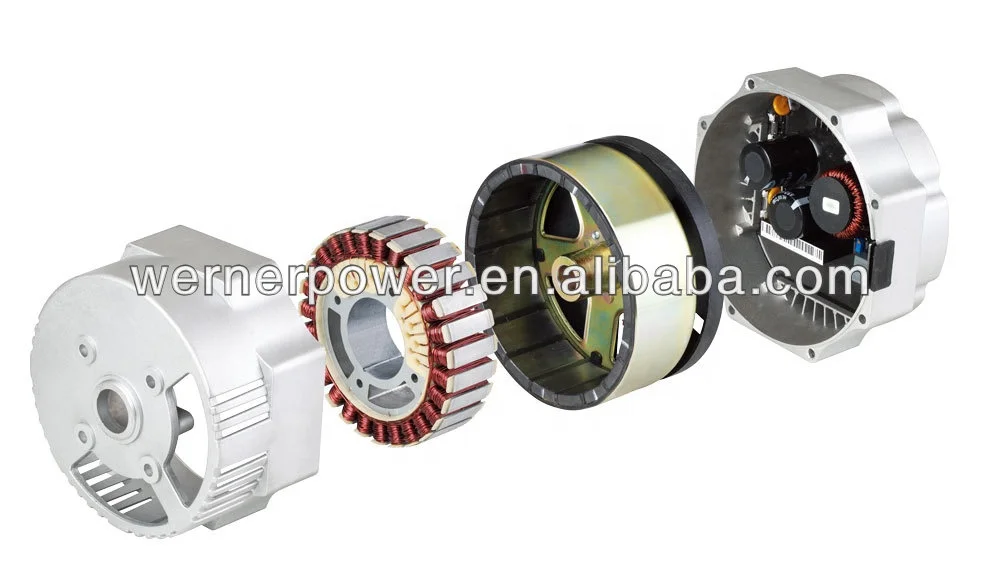

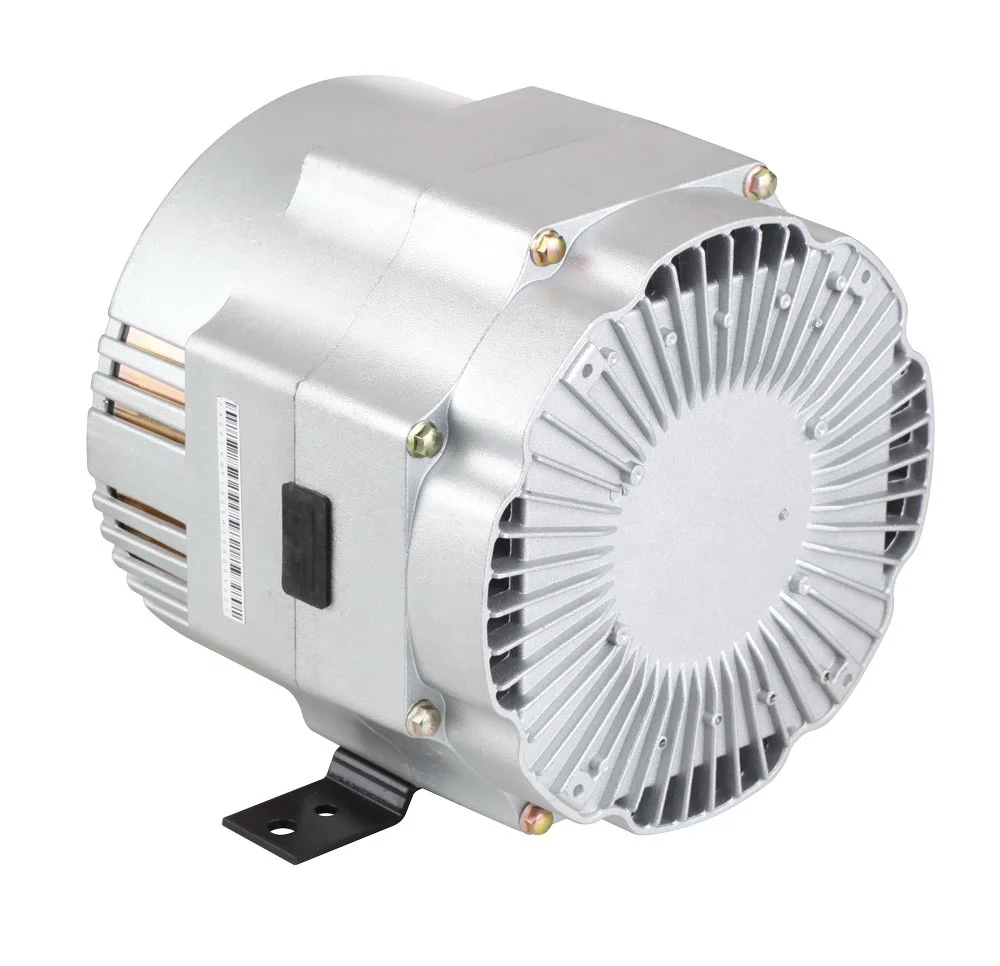

Alternator	PMG type DC alternator
Model Name	F30AD	F50AD	F60AD	F80AD	F90AD
Rated  output	3KW	4KW	5KW	8KW	10KW
DC voltage	24V/48V/60V	24V/48V/72V	24V/48V/72V	48V/60V/72V	48V/60V/72V
output efficiency	>90%

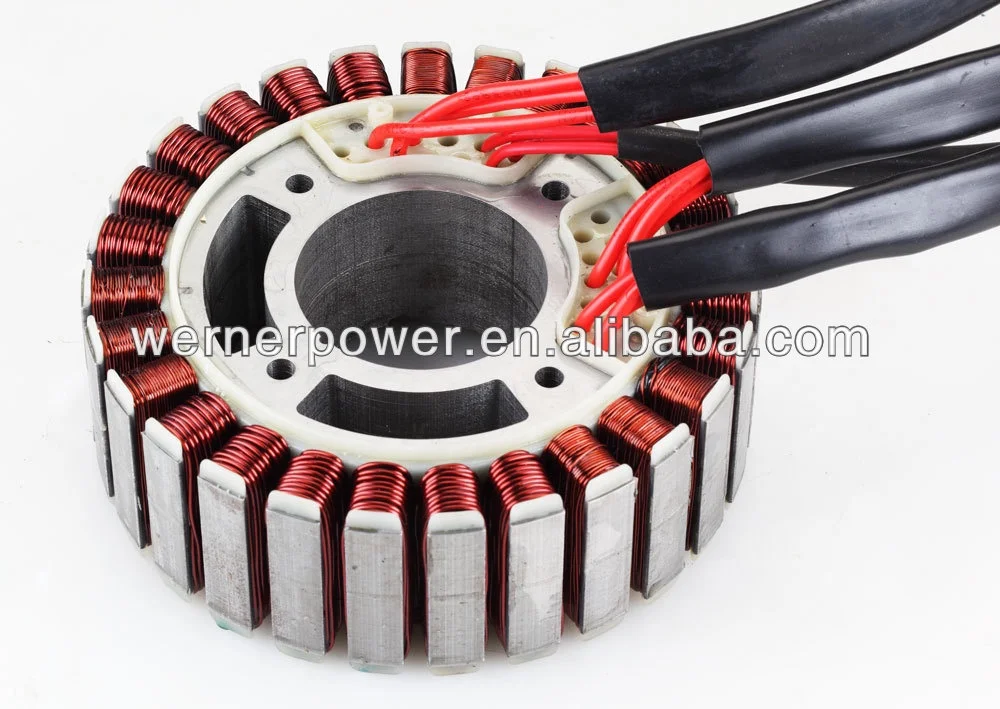

100% copper winding



LED Indication

Rectifier Modular
