Pillow filling machine Automatic pillow filling machine Sof pillow filling equipment Bed pillow filling machine price
Briefing of Automatic pillow filling machine :
Suitable for toys,neck-guard pillow,pet articles(pillow,beddings),car pillow and other small articals filling.
Can deal with polyester stample fiber,cotton, foam pieces,feather,woolen etc.And it can mix several materials together and fill them.
Using foot-valve to control filling and stop, easy to operate. With two workers filling simultaneously, enhance the production capacity.It is more than 15-20 times faster than the manual filling. Filling speed is adjustable.
The filling tube is changeable,with many different size, the customer can select filling tubes according to their own needs.
Parameter of Automatic pillow filling machine :
Model
Capacity
Air pressure
Voltage
Power
Dimension
Weight
ESF005A-1A
Fiber opening machine
120-150kg/h
NO
380V/50HZ
4kw
2200*880*920
(mm)
350kg
ESF007B
Foam shreeder
30-40kg/h
NO
380V/50HZ
4kw
690*600*1280
(mm)
90kg
ESF005-4
Sucking machine
fans
380V/50HZ
2.2kw
650*500*780
(mm)
40kg
ESF005-2
Filling machine
70-80kg/h
0.4Mpa
380V/50HZ
1.5kw
750*830*900
(mm)
80kg
ESF005-3
Mixing distributor
Volume
1.5cbm
NO
380V/50HZ
2.2KW
1200*1100*1600
(mm)
100kg

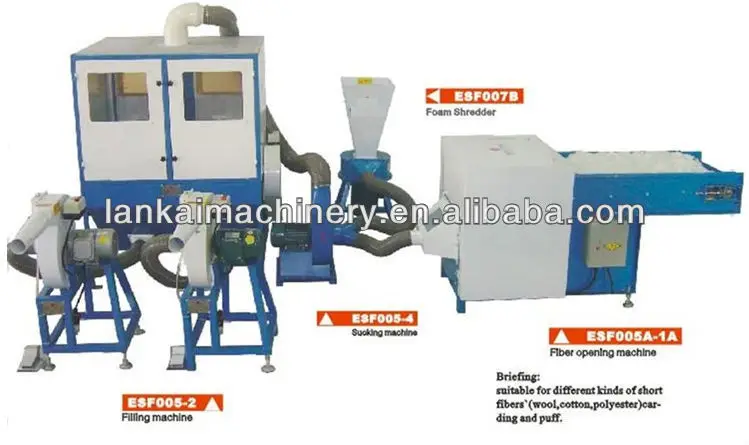

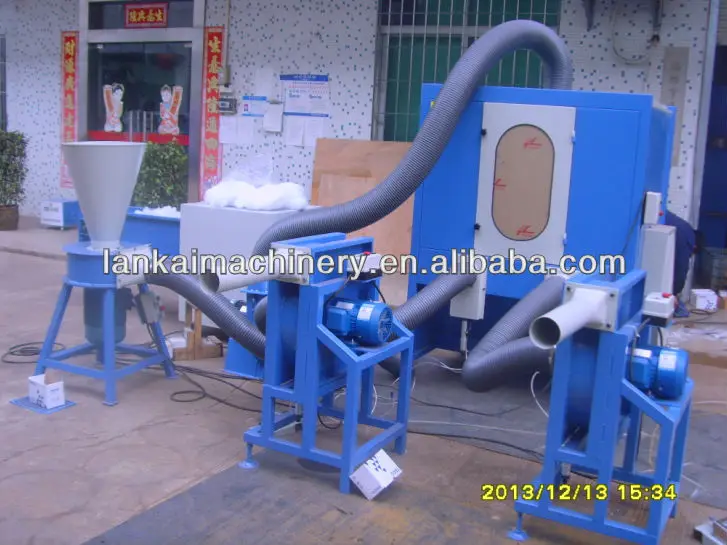

Here is the picture of Automatic pillow filling machine:
If you are interested in this Automatic pillow filling machine,please feel free to contact
