stud type fast switching thyristor
- Category: Thyristors >>>
- Supplier: Tianjin Century Electronics Co. Ltd. [Tianjin China]Tianjin
Share on (60020476958):
Product Overview
Description
Product Description

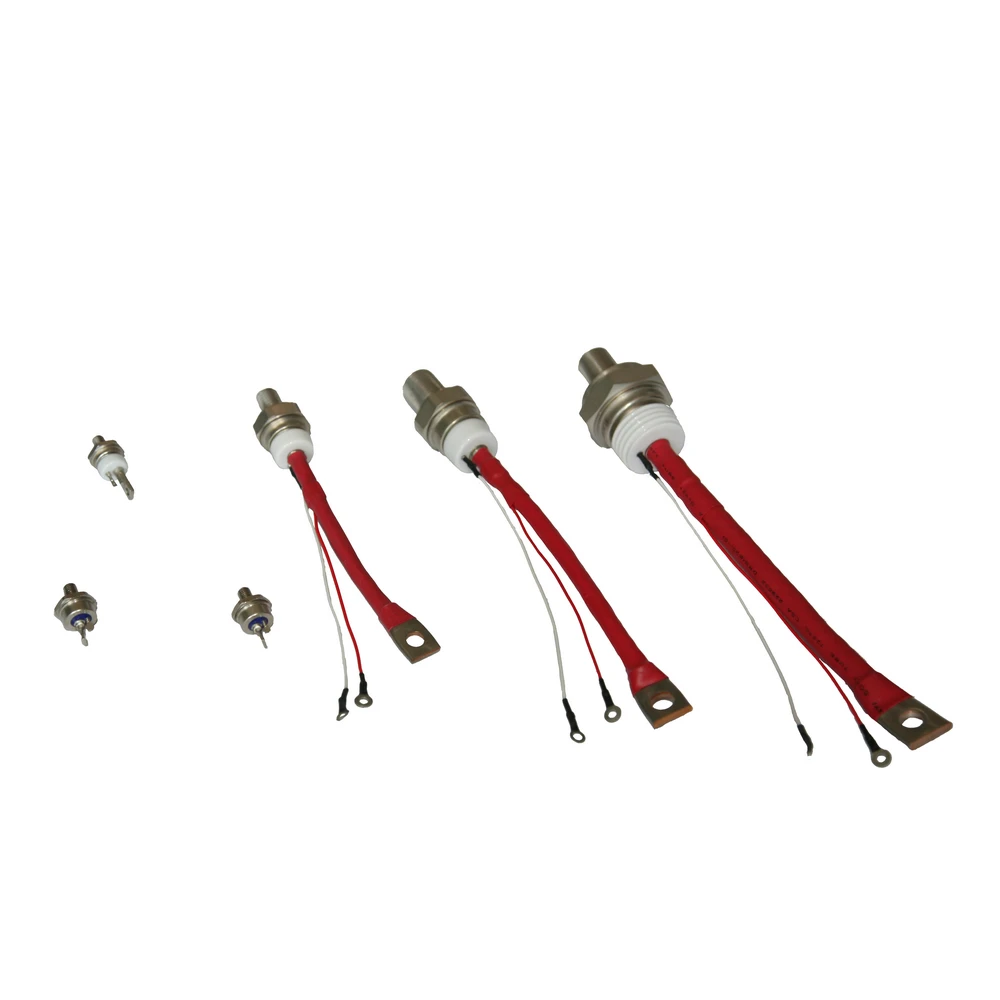

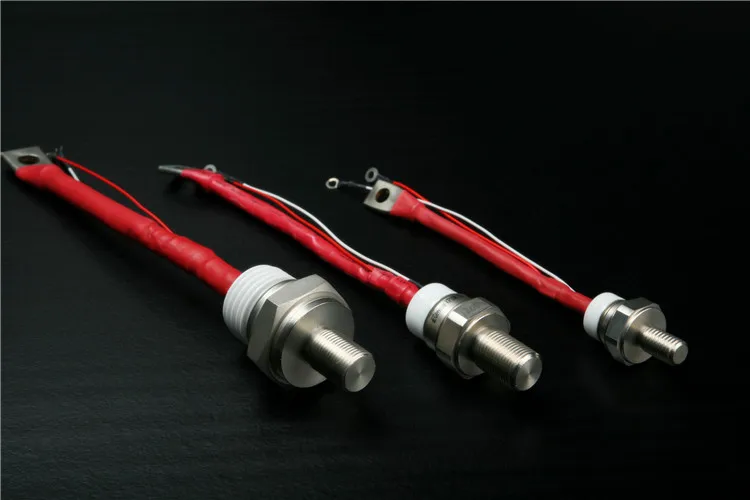

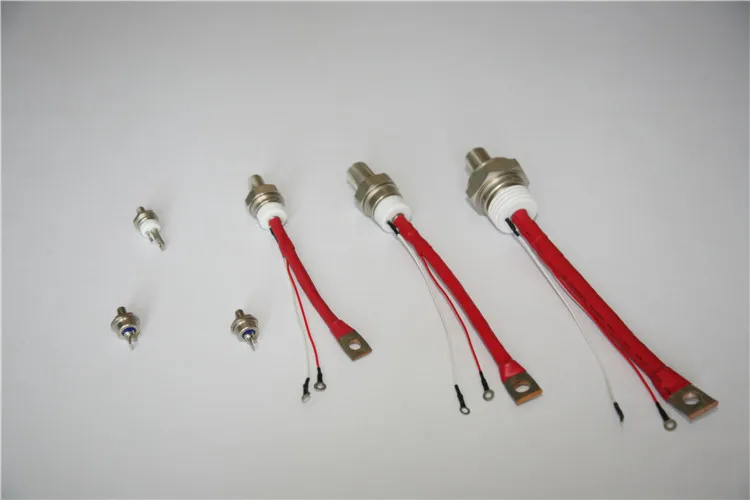

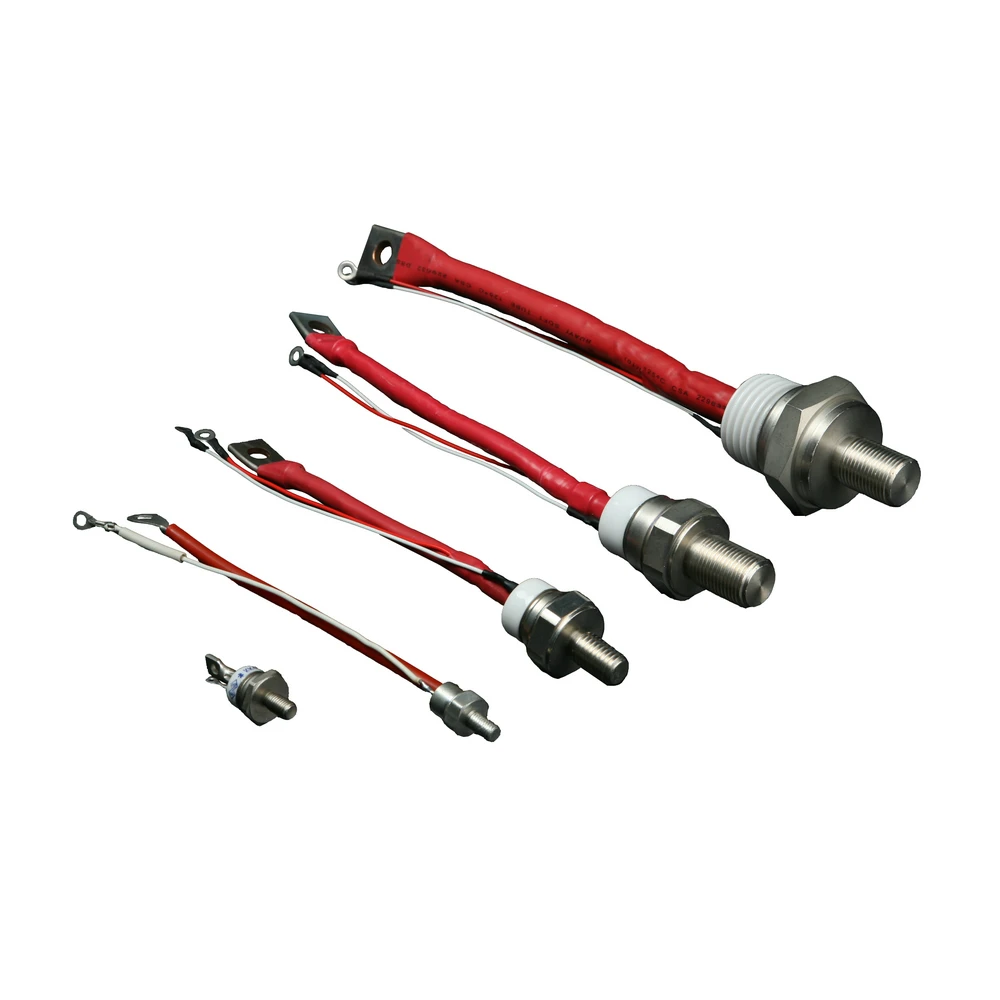

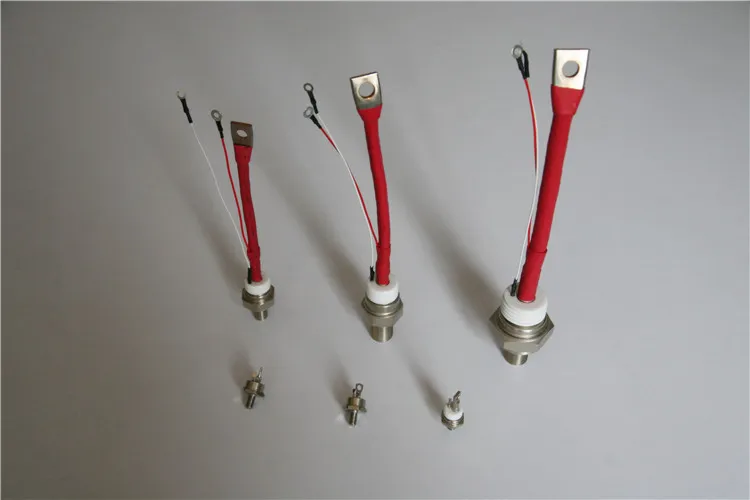

Fast Switching Thyristor -- Stud Type
|
Model |
IT(AV) @TC=70℃
A |
VDRM VRRM
V |
VTM |
IDRM IRRM
mA |
IGT
mA |
VGT
V |
dv/dt
V/μs |
di/dt
A/μs |
tq @115℃
μs |
tgt @115℃
μs |
Rthjc
℃/W |

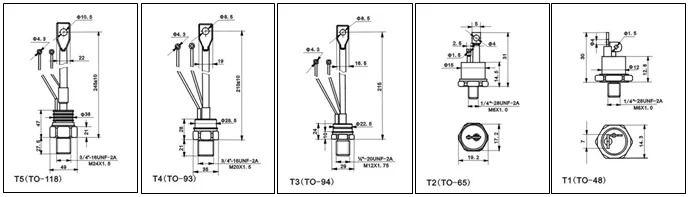

Outline |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V
|
@ITM
A |
||||||||||||
|
KK20 |
20 | 400~ 1600 | ≤2.6 | 60 | ≤10 | ≤100 | ≤2.0 | ≥50 | ≥50 | ≤20 | ≤3 | ≤1.0 | T1 |
|
KK50 |
50 | 150 | ≤20 | ≤0.4 | T2 | ||||||||
|
KK100 |
100 | ≤3.0 | 300 | ≤30 | ≤150 | ≤2.5 | ≤35 | ≤4 | ≤0.2 | T3 | |||
|
KK200 |
200 | 600 | ≥200 | ≥200 | ≤0.11 | T4 | |||||||
|
KK300 |
300 | 900 | ≤6 | ≤0.06 | T5 | ||||||||
|
KK100 |
100 | 1800~ 3000 | ≤3.0 | 600 | ≤25 | ≤200 | ≤2.5 | ≥100 | ≥500 | ≤30 | ≤0.11 | T4 | |
|
KK200 |
200 | 900 | ≤30 | ≤0.06 | T5 |
