Thin and light rubber conveyor belt for bucket elevator with super strong adhesion strength

Product Overview

Description

Thin and light rubber conveyor belt for bucket elevator with super strong adhesion strength

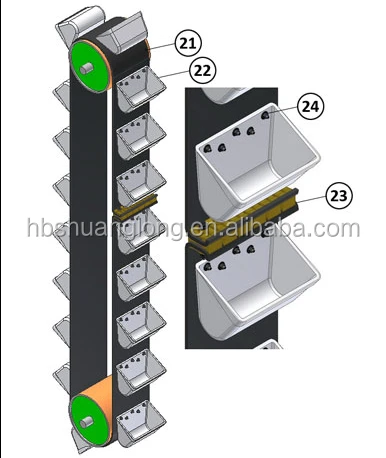

Bucket Elevators are used to elevate bulk materials vertically. A Bucket Elevator consists of a series of buckets attached to a belt with pulleys or sprockets located at the top and bottom of the unit.

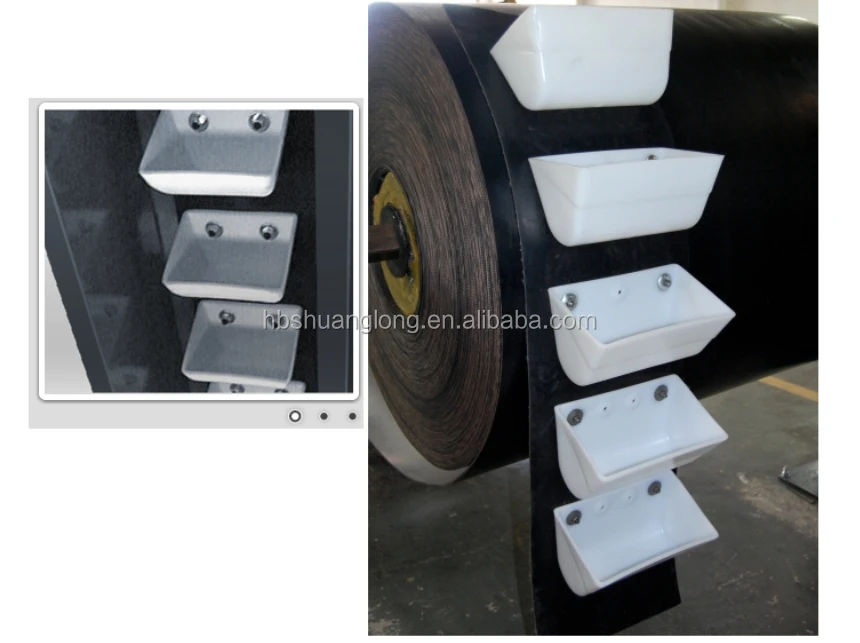

Elevator-bucket belt is composted of rubber belt and elevator-bucket. The core of belt has two kinds of structures’ fabric core and steel cord, which can be used for vertical elevated conveying, the requirements need the belt with high strength and low elongation, thus the elevator-bucket belt uses steel core or polyester (polyester fiber) canvas as strength ply of belt.



Bucket Elevators are used in many industries including chemical, aggregate, cement, mining ,agriculture and wastewater treatment industries for elevating bulk materials.



Features of conveyor belt for bucket elevator:



1.thin belt body,high strength

2.soft,good flexibility and troughability
3.good impact resistance
4.super strong adhesion strength between ply and cover
5.anti-abrasive,long service life



Applications of conveyor belt for bucket elevator:



It is suitable for conveying a variety of bulk materials,such as gravel,cement,grain,fertilizer,soda ash,food,sugar,clnker dust, and other bulk materials.



Specifications datas of general industrial conveyor belt:

carcass material	fabric type	single fabric thickness (mm/ply)	single fabric strength (N/mm)	Number of fabric piles	Cover rubber thickness (mm)		belt width (mm)	belt length (m)
					upper	bottom
Cotton Canvas (CC)	CC-56	1.10	56	2-10	2.0-8.0	0-4.5	200-2500	≤400
Polyester Cotton (TC)	TC-70	1.00	70	2-10	1.5-8.0	0-4.5	200-2500	≤400
Nylon (NN)	NN100	0.75	100	2-10	1.5-8.0	0-4.5	200-2500	≤400
	NN150	0.80	150
	NN200	0.90	200				300-2500
	NN250	1.15	250
	NN300	1.25	300	2-6
	NN400	1.45	400				500-2500
	NN500	1.55	500
Polyester (EP)	EP100	0.80	100	2-10	1.5-8.0	0-4.5	200-2500	≤400
	EP125	0.85	120
	EP150	0.90	150
	EP200	1.05	200				300-2500
	EP250	1.25	250
	EP300	1.35	300	2-6
	EP350	1.50	350				400-2500
	EP400	1.80	400
	EP500	2.00	500



  Hebei Ssangyong Rubber Co.,Ltd.

 Safety certificate of approval for mining products and certificate of ISO9001:2008 Standard :





We can also produce international standard conveyor belt for bucket elevator,such as DIN22102,AS1332,BS490,RMA,JISK6322,SANS1173,etc.



Standards	Cover Rubber			Adhesion
	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
DIN 22102	Mpa	%	mm3	N/mm	N/mm	N/mm
				(≤1.5mm)	(>1.5mm)
DIN 22102-Z	15	350	250	3.5	4.5	5
DIN 22102-W	18	400	90	3.5	4.5	5
DIN 22102-Y	20	400	150	3.5	4.5	5
DIN 22102-X	25	450	120	3.5	4.5	5
Standards	Cover Rubber			Adhesion
	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
AS 1332	Mpa	%	mm3	N/mm	N/mm	N/mm
				(≤1.9mm)	(>1.9mm)
AS 1332-N17	17	400	200	4	4.8	6
AS 1332-M24	24	450	125	4	4.8	6
Standards	Cover Rubber			Adhesion
	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
RMA	Mpa	%	mm3	N/mm	N/mm	N/mm
				(≤1.6mm)	(>1.6mm)
RMA-I	17	400		3	4.4	4
RMA-II	14	400		3	4.4	4
Standards	Cover Rubber			Adhesion
	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
SANS 1173	Mpa	%	mm3	N/mm		N/mm
A	18	400	70	5		7
C	20	400	150	5		7
M	25	450	120	5		7
N	17	400	150	5		7
