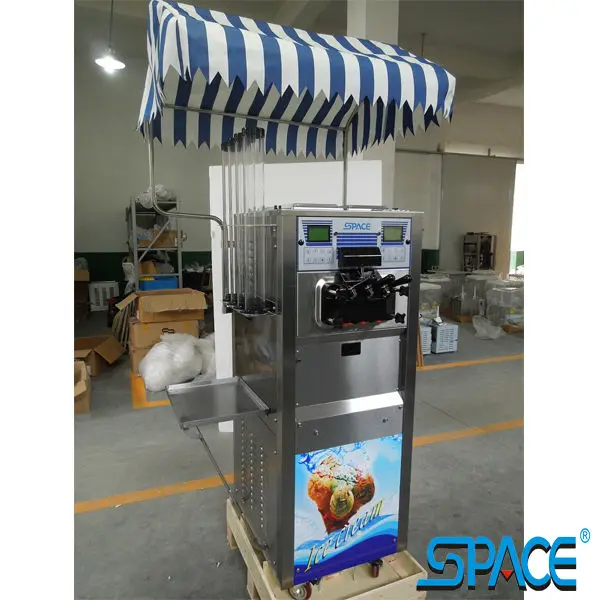

SPACE 6248 ice cream machine with umbrella serving table

Product Overview

Description

SPACE 6248 ice cream machine with umbrella serving table



Model: 6248
* Double control Systems
* 3 Compressors and 2 beater Motors



Model	Type	Voltage	Power	Output	Machine Size	Packing Size	N.W.	G.W.
6248	Gravity feed	220V/50Hz 60Hz	3400W	50L/h	550x650x1520mm	645x800x1665mm	215kg	235kg
6248A	Air pump feed	220V/50Hz 60Hz	3400W	50L/h	550x650x1520mm	645x800x1665mm	225kg	245kg



soft ice cream machine with umbrella serving table 6248



Soft-Serve Equipment

Twin twist flavor ,Floor,Gravity feed,Independent refrigeration and control system for each flavour
Feature
Offer all the popular soft serve variations from low or non-fat ice creams to custards,yogurt and sorbet.

FreezingCylinder
Two,1.8 Liters

Mix hopper
Two,12.5 Liters
Separate hopper refrigeration(Pre-cooling)maintains mix temperature below 4.4°C.

Microprocessor Controls
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.

Mix low light
The mix low light turns“ON”to alert operator to add mix,Preventing cylinder over freezing.

Standby
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4°C during long no-use periods.
Counter
Records number of dispenses per day and total number of dispenses.
Agitator in the hopper
Mixture has better liquidity,the temperature of the mix to be more nuniform
Output
48 Liters/Hour

(At 4°C Liquid & 24°C Ambient)

Motor

Two,1.25 HP



Refrigeration system

Main Refrigeration:

Two compressors:Two,3100 BTU/HR, R404a

Separate hopper cooling compressor:

One, 400 BTU/hr.R134a



Opotinal :

*Water cooling

*Cone dispenser



SPACE Comercial soft ice cream machine with umbrella serving table
