YNH3132 plc gear hobbing machine(only providing spare parts)
- Category: Gear Cutting Machines >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (60021142548):
Product Overview
Description

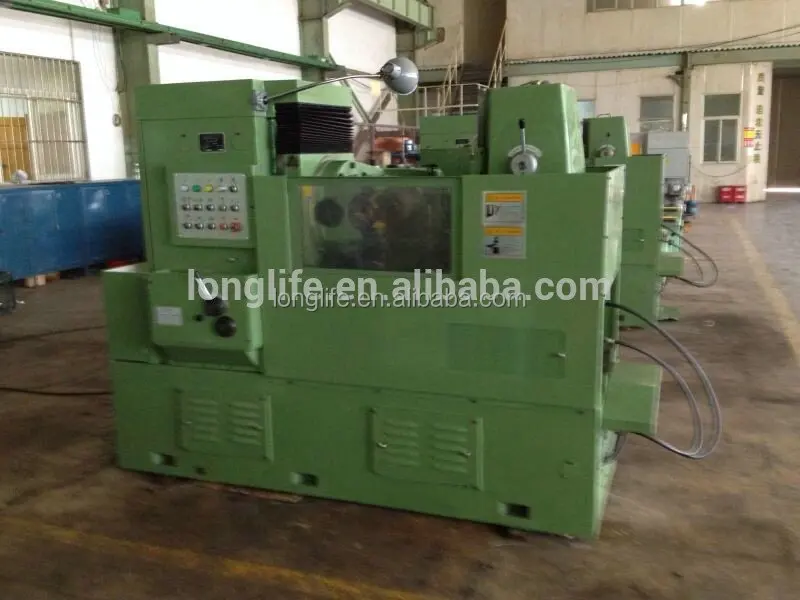

Y(NH)3132 plc gear hobbing machine
Declarations
According to the production arrangement, the YNH3132 PLC gear hobbing machine will be not manufactured in recent 6 months,
but the spare parts are provided as usual.
Recommended Hobber
YX3132(Ø320mm) 5-axis High-speed CNC Gear Hobbing Machine
YKX3132M4(Ø320mm) 4-axis CNC Gear Hobbing Machine
Y3180(Ø800mm) Hot-sale Gear Hobbing Machine
Main Featurers:
such y3132 gear hobbing machine/gear hobber has following features:
1. It is applicable to produce or process spur gear, helical gear, worm gear and sprocket in batch or piece unit.
2. This machine is provided with the characteristic of excellent steel resistance, high intension, high precision, easy-operating, adjusting and maintaining etc.
3. It can process gear with down milling and up milling method in axial or radial way.
4. According to the requirements of customer, this machine can be equipped with Siemens CNC System to process crown
gear and Small Taper Gear, and it can also heighten or lengthen machine tool.
Main Technical Data:
|
Specifications |
Unit |
Y3132 gear hobbing machine |
|
Maximum diameter to be hobbed |
mm |
320 |
|
Maximum modulus |
mm |
8 |
|
Maximum angel of helix |
|
±45° |
|
Worktable diameter |
mm |
360 |
|
Diameter of worktable bore |
mm |
80 |
|
Diameter from the hob center worktable centers |
mm |
30~300 |
|
Diameter form the hob center worktable surface |
mm |
235~535 |
|
Maximum diameter of hob |
mm |
160 |
|
Maximum length of hob |
mm |
160 |
|
Maximum axial movement of the hob |
mm |
55 |
|
Cone of the spindle bore |
r/mm |
MT 5 |
|
Hob spindle speeds in 8(9) steps
|
mm/r |
40~250(9) |
|
Axial federates |
mm |
0.4~4 |
|
Hydraulic withdrawal of the worktable |
mm |
50 |
|
Power of the main drive motor |
kW |
4 |
|
Total power consumption |
kVA |
7.5 |
|
Net weight/Gross weight |
kg |
4500 |
|
Machine overall dimension (length × width ×height) |
mm |
245×135×185 |
|
The measure of area (length × width ) |
mm |
2500×1900 |
Free Std Accessories
|
S.N |
Name |
Remark |
|
1 |
Hob arbors (Ø27, Ø32, Ø22) |
1pc/size |
|
2 |
Tools for installation and adjustment |
1 set |
|
3 |
Foundation bolts and block sizing | 1 set |
| 4 |
Manuals in English |
1 set |
