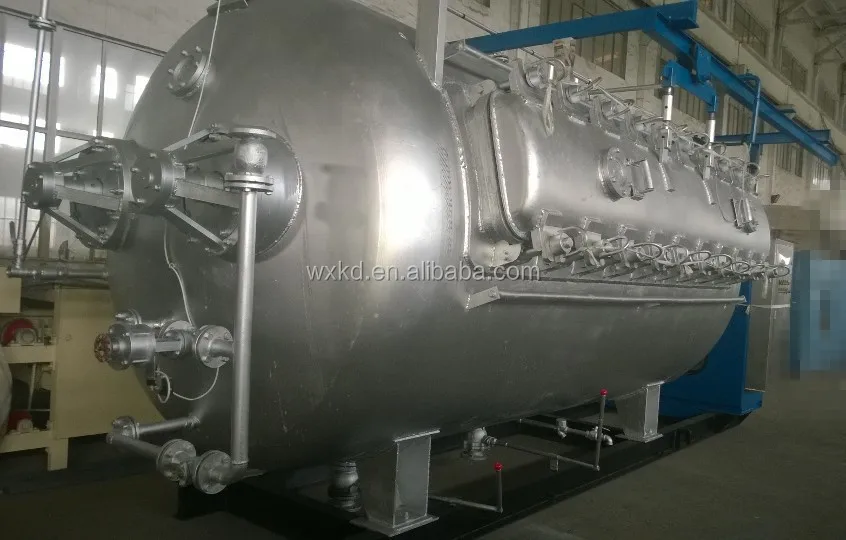

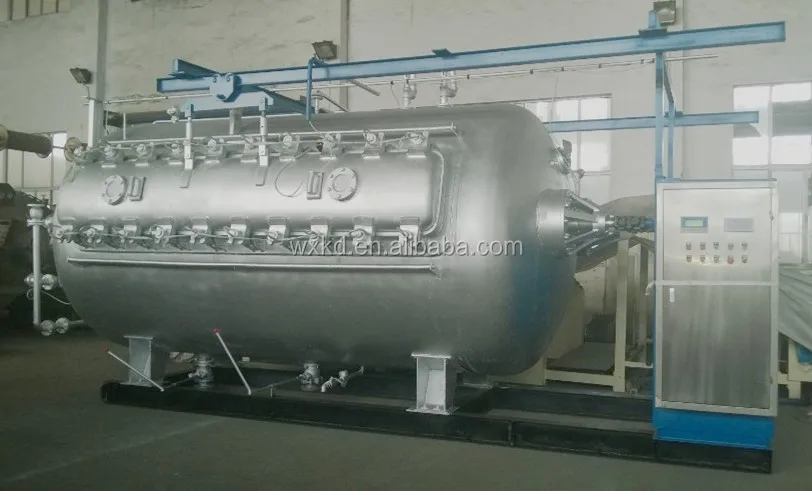

High temperature high pressure jigger dyeing machine

Product Overview

Description



GR1000-180  High temperature high pressure JIGGER DYEING MACHINE











Application



GR1800,one of dyeing equipment manufactured by our factory, is suitable for various synthetic, cotton and linen fabrics to be dyed with distributed, sulfur, vat, direct, and reactive dyes, scoured, soaped and cleansed at a constant rate and under a constant tension. It has the features of advanced design, reasonable structure, superior performance, safe and reliable operation.









Main Technical Parameter





Max. diameter of cloth roll :         Φ800mm



Max. working fabric width :         1800mm(2000mm)



Adjustable fabric tension :          0~60kg



Adjustable fabric rate :                20~80m/min



Diameter of main roller :               Φ220mm



Max working pressure :                  0.4Mpa.



Max working temperature:             140°C.



Liquor ratio  :                                     1:2
