PVC Turbo Mixer with inverter control
- Category: >>>
- Supplier: Zhangjiagang Tairong Machinery Co. Ltd. [Jiangsu China]Zhangjiagang
Share on (60022074355):
Product Overview
Description
TAIRONG MACHINERY
PVC Turbo Mixer with inverter control
3D Drawing for 800/2000 L Hot and cold Mixer
Model/specs | SRL-Z100/200 Hot mixing/cold mixing | SRL-Z200/500 Hot mixing/cold mixing | SRL-Z300/600 Hot mixing/cold mixing | SRL-Z500/1000 Hot mixing/cold mixing | SRL-Z800/1600 Hot mixing/cold mixing |
Total cubage(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effective cubbage(L) | 65/130 | 150/320 | 225/380 | 375/650 | 600/1050 |
Mixed speed(r/min) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 |
Heating & cooling manner | electric heating self-friction/water cooling | ||||
Mixed time | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
Motor Power | 14/22/7.5 | 30/42/11 | 40/55/11 | 47/67/15 | 60/90/22 |
Dimension(L×W×H)(mm) | 1950×1600×1800 | 4580×2240×2470 | 4800×2640×2480 | 4600×3000×4050 | 5170×3200×4480 |
Weight(kg) | 2200 | 3400 | 3600 | 4800 | 6200 |
SRL-Z Series Mixer units are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning.

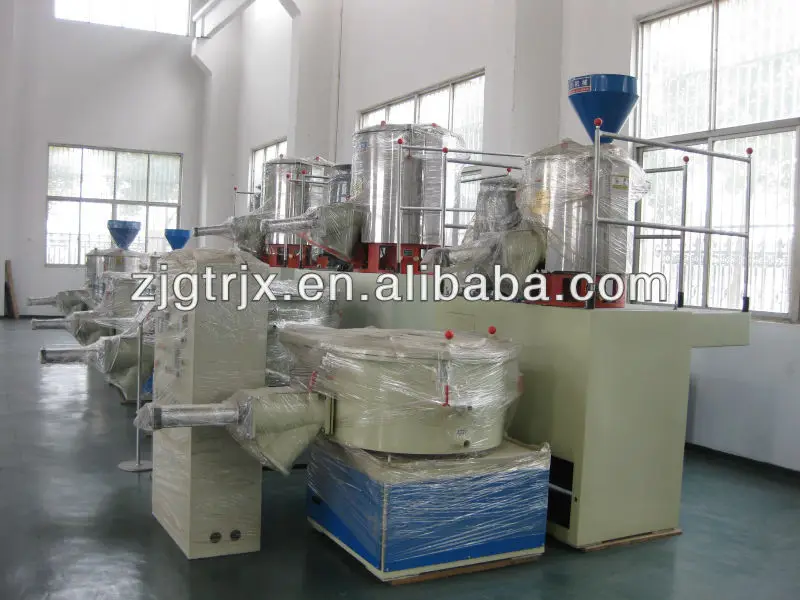

Reccntly we have made SRL-800/2000 L Hot and cold Mixer
SRL-1200/3000L Hot and cold mixer
Vertical Hot mixer
For vertical type hot and cold mixing unit
For horizontal type hot and cold mixing unit(in Brazil client's factory)
SRL-1200/3500L Hot and cold mixing machine shipping to brazil
If any inquiry,Welcome to contact us soon. Thanks.
Contact person:Mr Jason Mobile:86-15151456568
Skype:vipjasonwu
QQ/WEIXIN:413892721
Add:Zhangjiagang City Leyu Town(to shanghai 120Km)
