CITICIC has a first-rate Lime rotary kiln development, research and design team, perfect test and inspection means and excellent large rotary kiln manufacturing equipment and manufacturing technology, and has formed a complete technology and production system integrating Lime rotary kiln design, manufacture, install and debugging service.
Active Lime Kiln: Lime Rotary Kiln 1991 - Complete equipment supply - 600tpd Active lime production line 2005 - Complete equipment supply - 800tpd Active lime production line (largest in China) 2006 - In cooperation with Metso Minerals - 1000tpd Active lime project
CITICIC Lime rotary kiln technical characteristics: ♦ Kiln body is made of high quality composed of carbon steel or alloy steel plate and automatic welding; ♦ Tyre,Support Roller,Open gear adopts alloy cast steel; ♦ Sliding bearing with large gap not scraping tile bearing; ♦ Transmission device adopts hard tooth surface reducer, flexible diaphragm coupling, dc motor; ♦ Adopts hydraulic gear wheel; ♦ Preheater scales were used respectively to veiw of kiln head, and cylinder pressure tight seal; ♦ A slow drive device.
Description of Lime Rotary Kiln (Active Lime Calcining Equipment): Active lime can be widely used in a wide range of industries, such as steel, alumina, magnesium, calcium carbide, papermaking field, etc. As an important auxiliary material, active lime can not only help to improve the quality and output of steel, but also reduce the consumption and costs as well as ensure stable operation of steel industry. Considering the potential economic benefits of active lime for various fields, CITIC HMC Co., Ltd has developed the 1000t/d lime rotary kiln for customers worldwide. And now this machine has been well received by clients from Vietnam, Russia, Central Africa, and more.

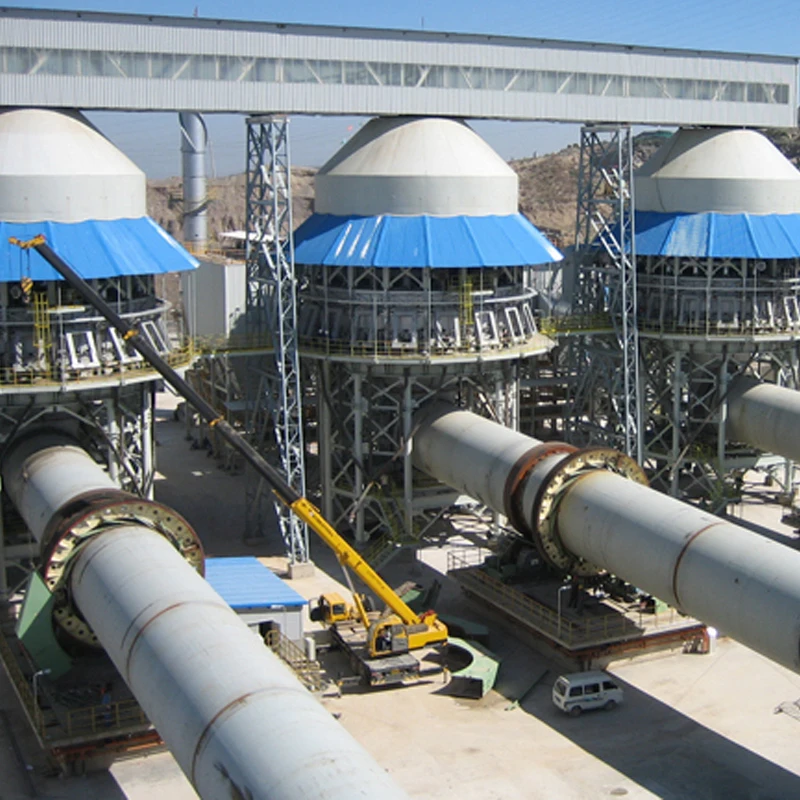

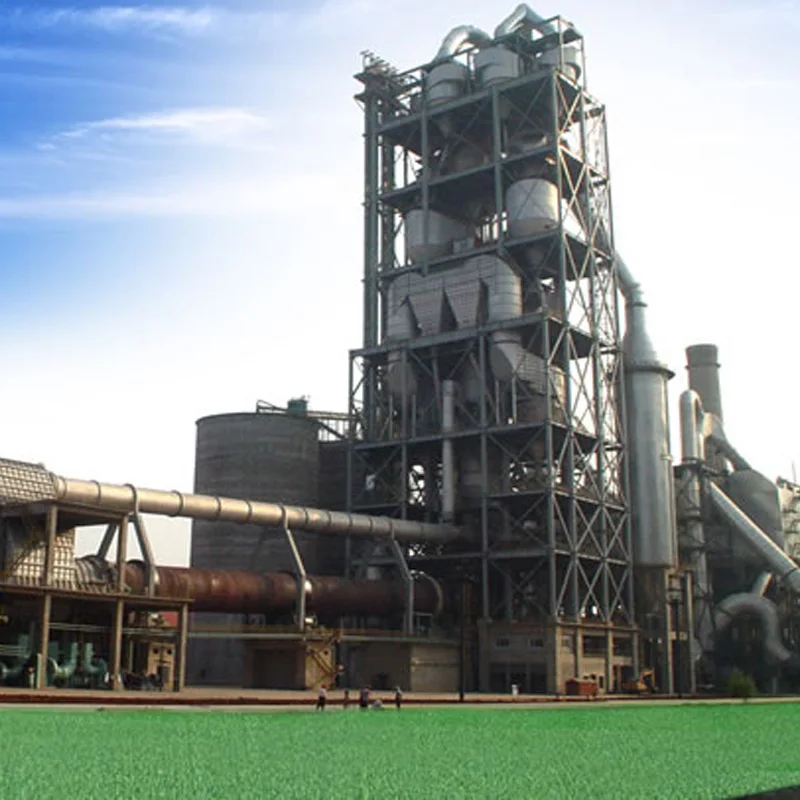

Advantages of Lime Rotary Kiln (Active Lime Calcining Equipment): 1. High productivity makes it possible for our lime rotary kiln to be used in large active lime production line. 2. Open-type calcining rotary kiln has a simple structure, and can discharge sulfurous gases timely, which makes it quite suitable for steelmaking. 3. It is capable of calcining 10 to 50mm fine limestone directly. 4. Vertical preheater has been equipped at the end of the kiln to make full use of high-temperature gases generated during calcining. It can preheat limestone to the decomposition conditions. In this way, it helps not only to increase the output, but also to decrease the heat consumption. 5. The equipped vertical cooler at the head of the kiln can help cool the high-temperature limestone, as well as make it convenient to convey and store. Besides, it can effectively increase the temperature inside the kiln, thus reducing the fuel consumption. 6. Waste gases, discharged from the vertical preheater, have a temperature ranging from 280°C to 350°C, and their dust content is about 20g/Nm3. So it is easy to deal with these gases according to the requirements of environmental protection. 7. With stable performance, our active lime calcining equipment is also suitable for mine exploitation
Specification of Lime Rotary Kiln
NO
Specification(m)
Drawing no.
The basic parameters
The main reducer
Main motor
Weight (t)
speed r/min
slope %
capacity t/d
model
Speed ratio i
model
power KW
speed r/min
1
Φ2.5×78
J919
0.49~1.47
3.5
70~96
PT800(3)
61.88
100
327.5
2
Φ3.2/3.4×60
J935
0.67~2.0
3
400
PT800(3)
55.09
100
340.31
3
Φ3.5×115
928
0.46~1.38
3.5
450
PT800(3)
61.88
75×2
776.81
4
Φ3.6/3.8×70
J939
0.4~2.0
3
600~660
BST-1790
46.146
160
480.4
5
Φ4.2×50
J940A
0.33~1.8
3
600~660
PT900(3)
56.43
160
521.3
6
Φ4.2×50
J944
0.2~1.8
3
600~660
PT900(3)
56.43
160
579
7
Φ3×46
J922A
0.45~1.8
3
200~220
ZSY450-63
63
SZN4-225-21
55
1000
201.8
8
Φ3.5×54
J969A
0.6~1.8
3.5
300~350
ZSY560-56
56
YP355S-8
132
750
340.7
9
Φ4.3×64
0.194~1.94
3.5
800
ZSY630-71
71
YZP355L-6
250
980
557.5
10
Φ4.9×69.5
0.179~1.79
3.5
1000
ZSY710-63
63
ZSN4-355-092
315
1000
750
