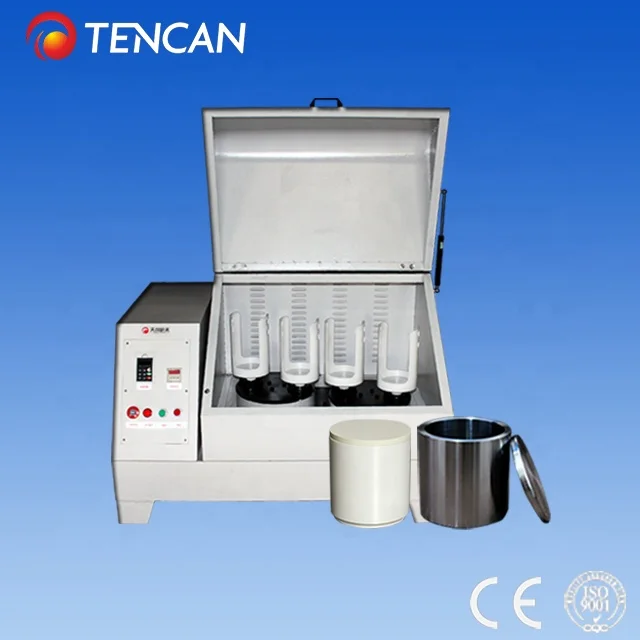

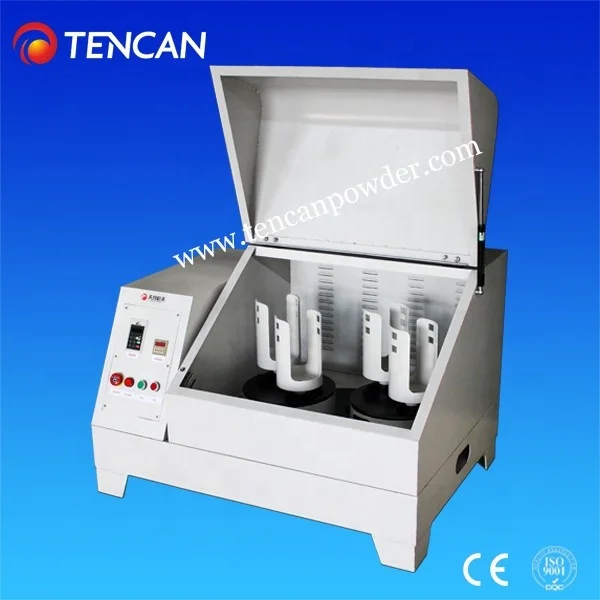

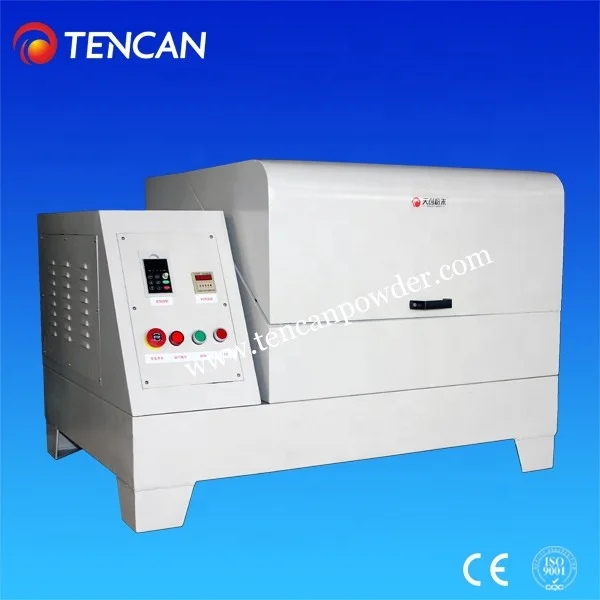

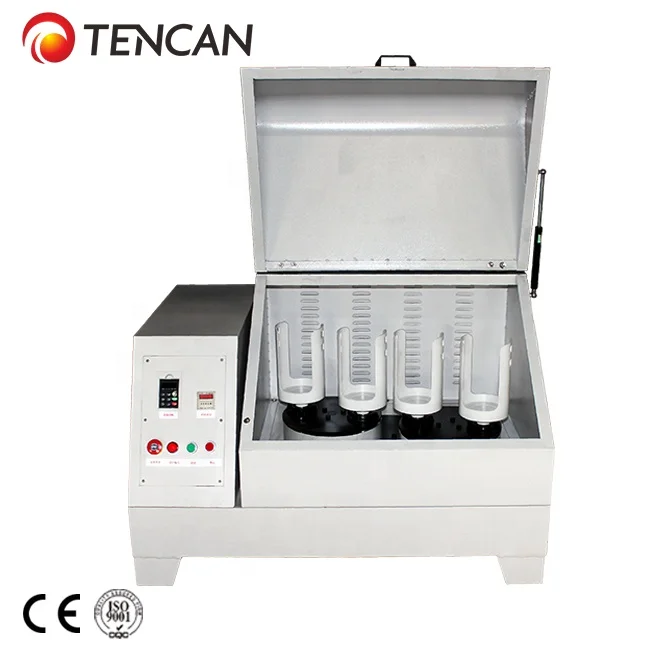

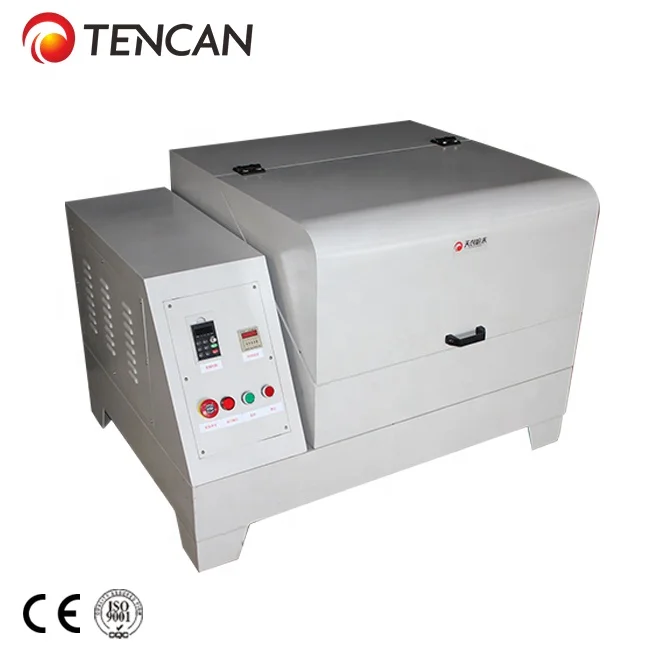

China Tencan 220V or 110V lab scale small pulverizer machine size reducer ultra fine dual planetary ball mill price

Product Overview

Description

High precise and efficient powder milling machine manufacture with CE Verified

 1. powder milling machine ,planetary ball mill



Applications:SXQM series of dual planetary ball mill is a kind of essential devise for labs, which want to mix, grind or produce high-tech new material in small lot. It is widely used in the following industries such as electronic, magnetism, medicine, ceramic,  geology, mineral, metallurgy, build material, chemical, light industry, beauty, environmental protection, and etc.





Features:
1. The mill pot makes two planetary movement, It enjoys high efficiency and small particle size under the high frequency percussion, linear collision force, friction force.( First in China)
2. Four different samples can be got at one time. It is convenient for the technologist to do the research and develop the new material.
3. Feed Granularity of Materials: Soil material ≤10mm, other materials ≤3mm.
4. Wet or dry grinding method. Minimum Granularity of powder amounts to 0.06 μm.
5. Frequency controlled, you can set the speed as per experiment effect.
6. Large turn disc revolution: 50-400rpm.
Small turn disc revolution: 100-800rpm.
Large planetary axis rotation: 100-800rpm.
Mill pot rotation: 200-1600rpm.
7. The planetary ball mill has timing power off, self-timing forward and inversion function. It can raise the efficiency by choosing one-way, alternately, continuously, time-setting operation.
8. Motor power: 0.4L, 2L, 4L: 0.75KW, 220V, 50Hz; 16L, 20L: 5.5KW, 380V, 50Hz.
9. Our planetary ball mill is functional which has low bary center, stable performance, compact structure, easy operation, reliable safety, low noise, and low wastage.



2. powder milling machine types for choosing













3.Lab Mill Accessory - Mill Pot and Mill Balls



Besides the  planetary milling pigments , our factory can also provide stainless steel pot,

zirconia pot, alumina pot, nylon pot, PU pot, tungsten pot, etc. And we can also provide

stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.

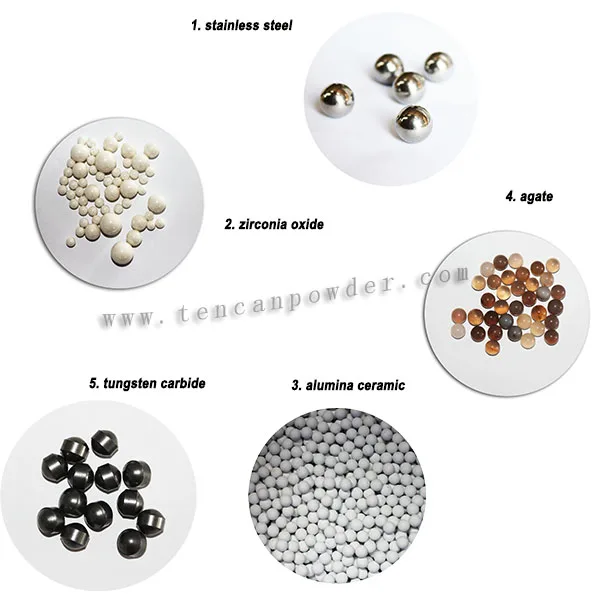

Grinding media balls

Stainless stell ball

Zirconia oxide ball

Alumina ceramic ball

Agate ball

Tungsten carbide ball

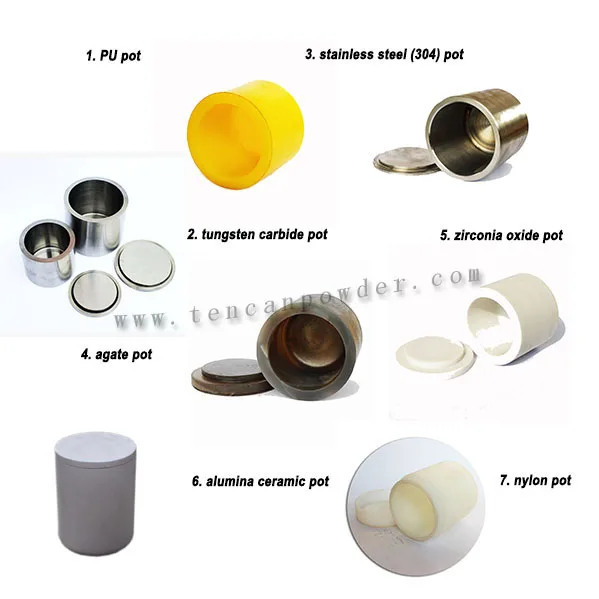

4.Mill pot

PU pot

Tungsten carbide pot

Stainless steel pot

Agate pot

Zirconia oxide pot

Alumina ceramic pot

Nylon pot







5.Packaging for powder milling machine











6.Certificates for powder milling machine





CE certificate     ISO 9001 certificate    patent certificat for planetary ball mills
