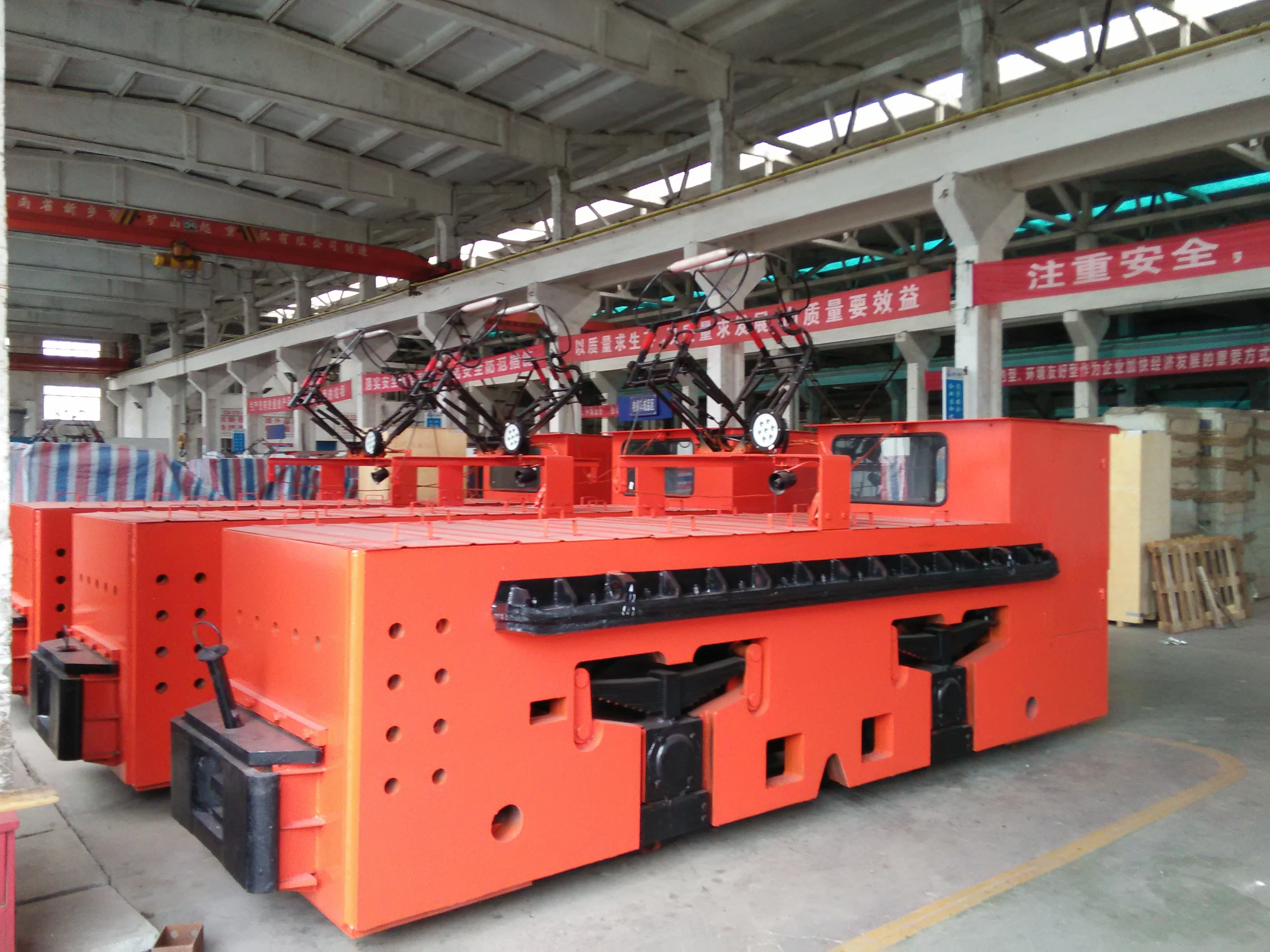

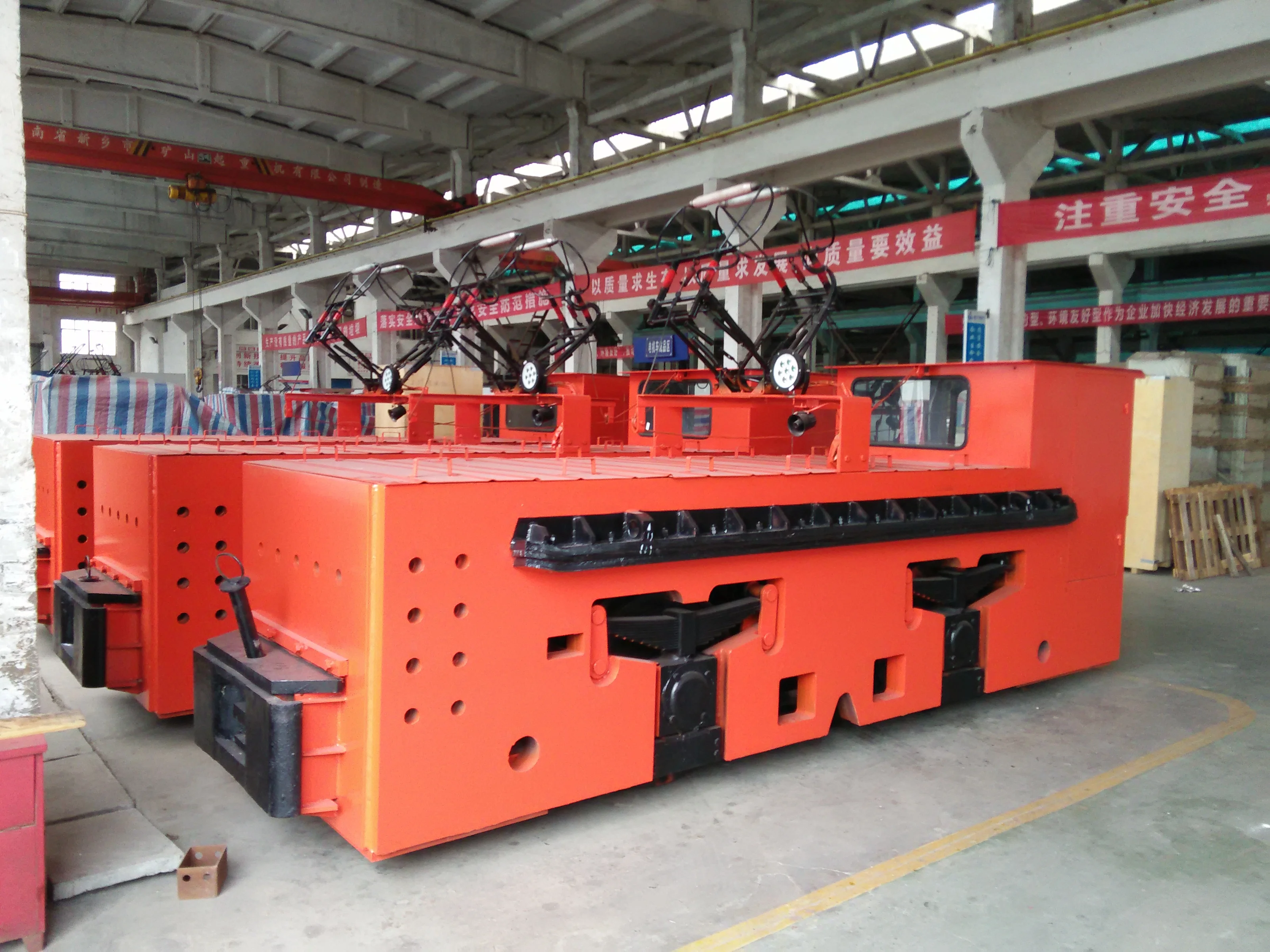

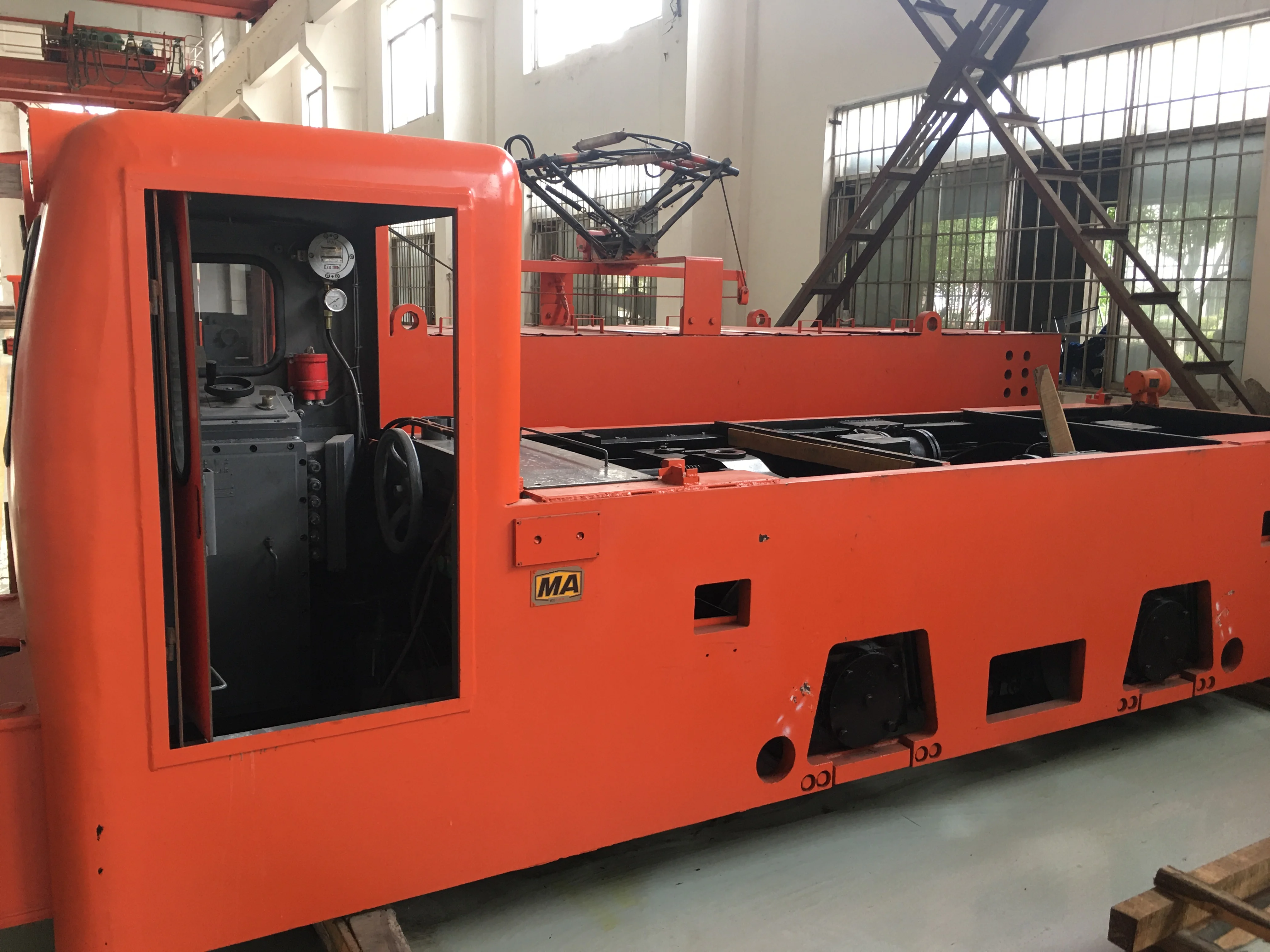

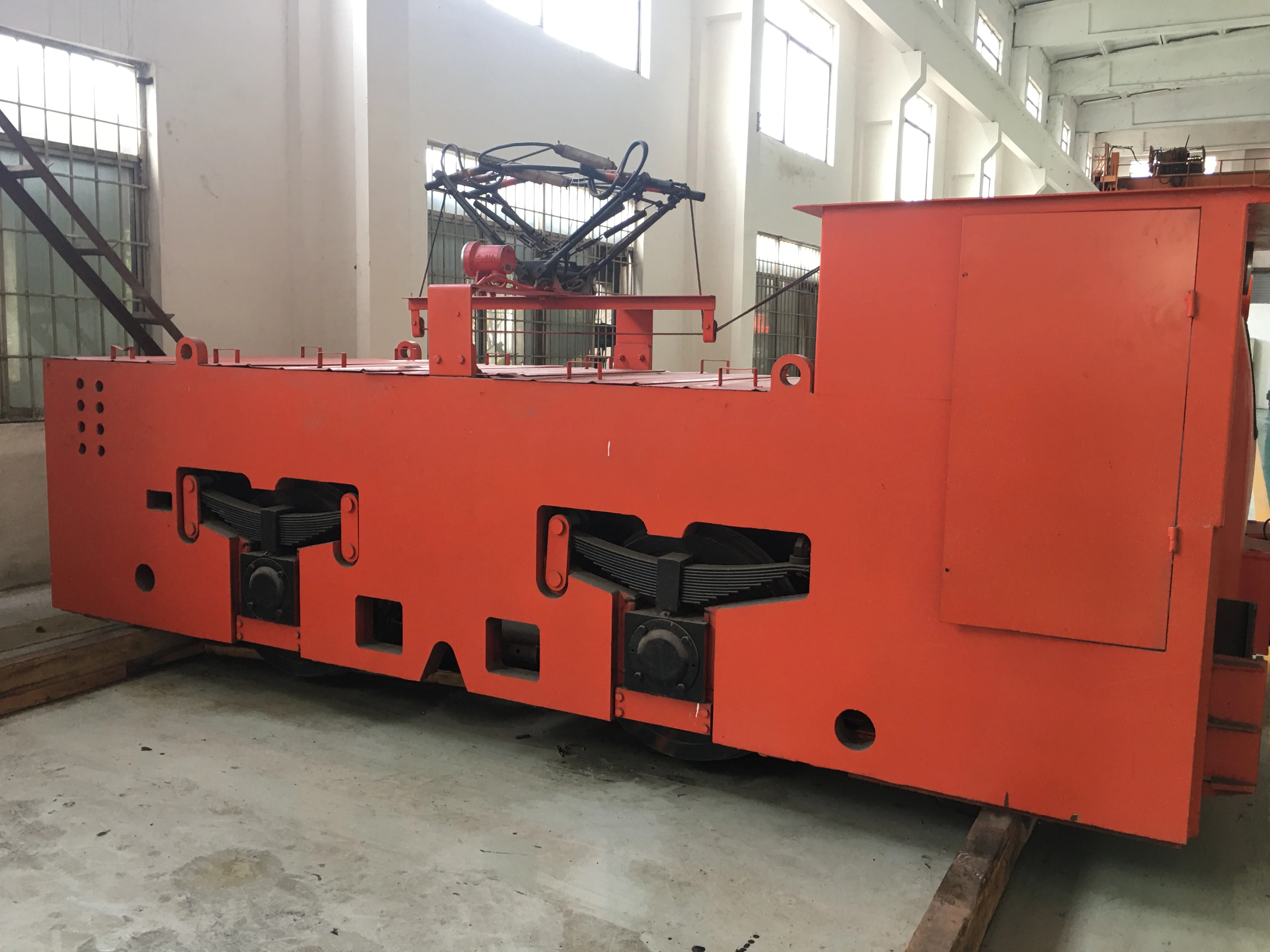

14 Tonne Narrow Gauge Electric Trolley Locomotive Stringing Overhead Line Wire Locomotive
Product Description
1. Techincal data for speed regulating: Resistance or IGBT
| Model Name | CJY14/6,7,9G(B) | |||||
| Adhesive Weight | 14 tons | |||||
| Track Gauge | 600, 762 or 900mm | |||||
| Hourly system traction | 26.68 kN | |||||
| Max. Traction | 34.3 kN | |||||
| Hourly system speed | 12.87km/h | |||||
| Voltage | 250V | 550V | ||||
| Power | 52kW×2 | |||||
| Size | Length | 4800mm | ||||
| Width | 1050,1212, or 1350mm | |||||
| Height | 1700mm | |||||
| Wheelbase | 1700mm | |||||
| Wheel diameter | Φ760mm | |||||

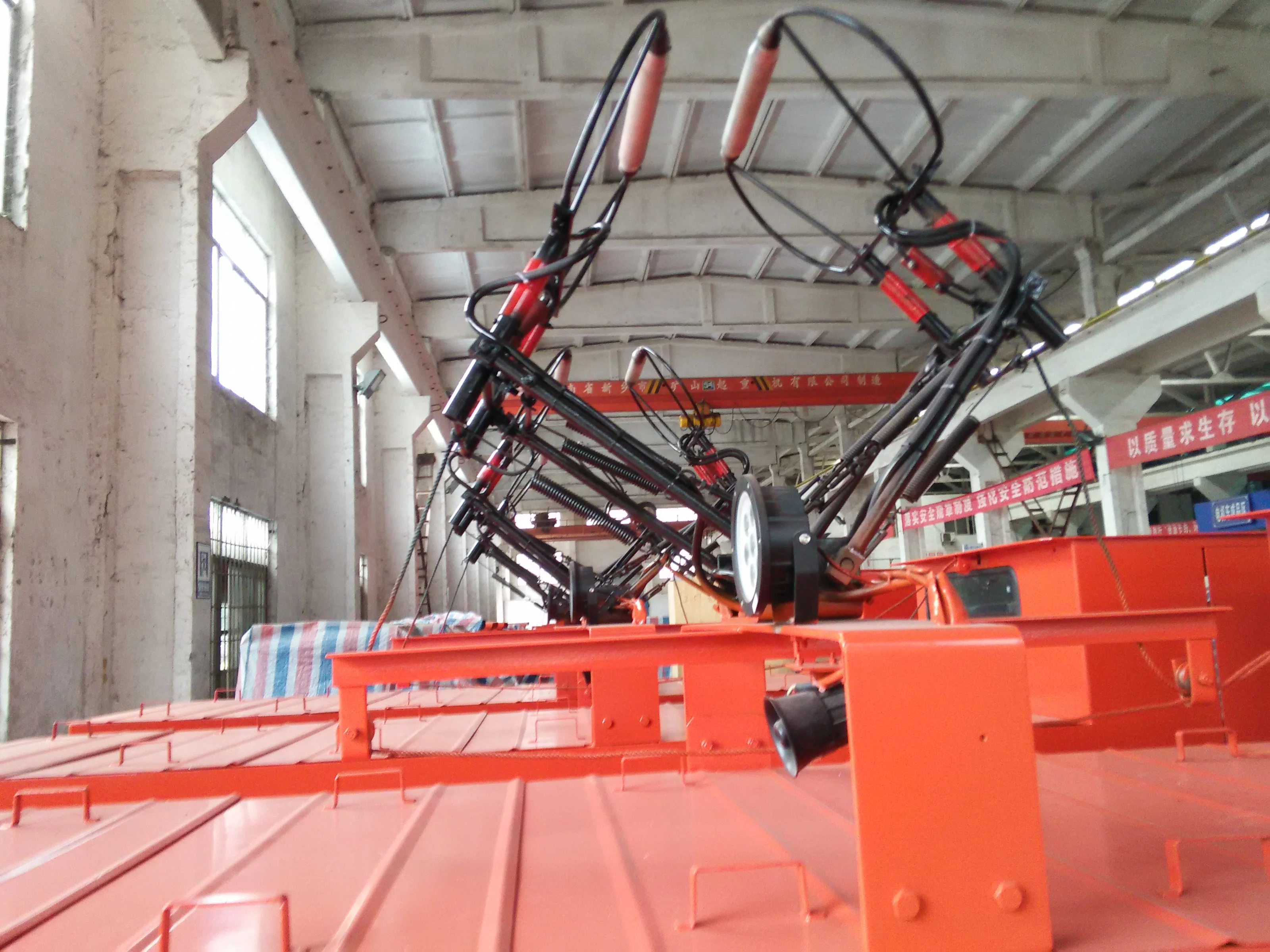

| Height of patograph | 2000~3200mm | |||||
| Height of traction | 320/430mm | |||||
| Min. Turning Radius | 12m | |||||
| Speed regulating mode | Resistance or IGBT | |||||
| Braking mode | Mechanical, electric and air brake | |||||
2. Techincal data for speed regulating: AC converter
| Model Name | CJY14/6,7,9GP | |||||
| Adhesive Weight | 14 tons | |||||
| Track Gauge | 600, 762 or 900mm | |||||
| Hourly system traction | 27.16 kN | |||||
| Max. Traction | 36.4 kN | |||||
| Hourly system speed | 11.2 km/h | |||||
| Voltage | 550V | |||||
| Power | 45kW×2 | |||||
| Size | Length | 4800mm | ||||
| Width | 1050,1212, or 1350mm | |||||
| Height | 1700mm | |||||
| Wheelbase | 1700mm | |||||
| Wheel diameter | Φ760mm | |||||
| Height of patograph | 2000~3200mm | |||||
| Height of traction | 320/430mm | |||||
| Min. Turning Radius | 12m | |||||
| Speed regulating mode | AC frequency converter | |||||
| Braking mode | Mechanical, electric and air brake | |||||
