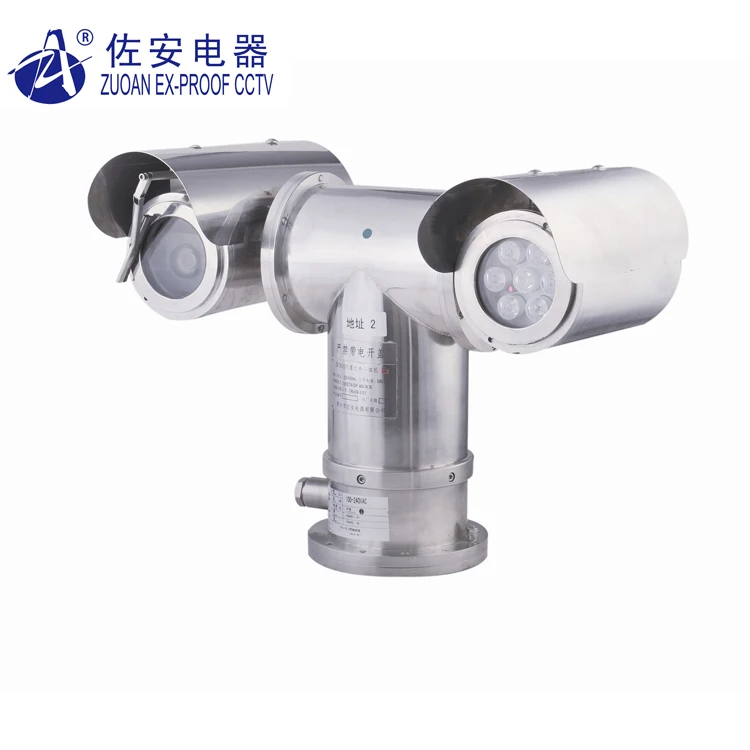

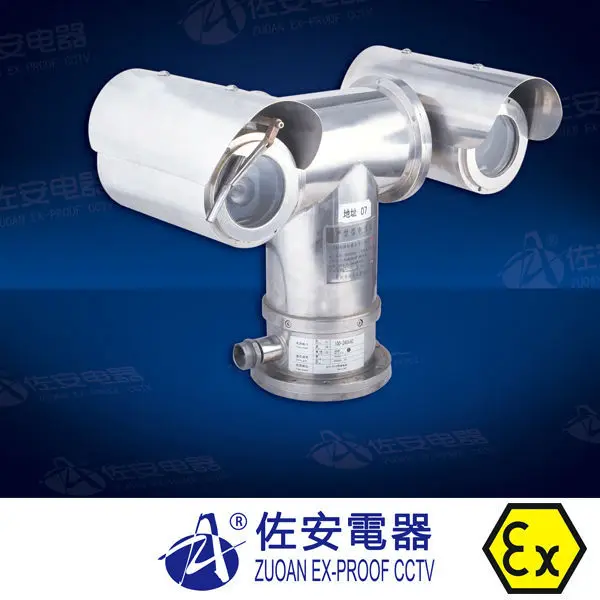

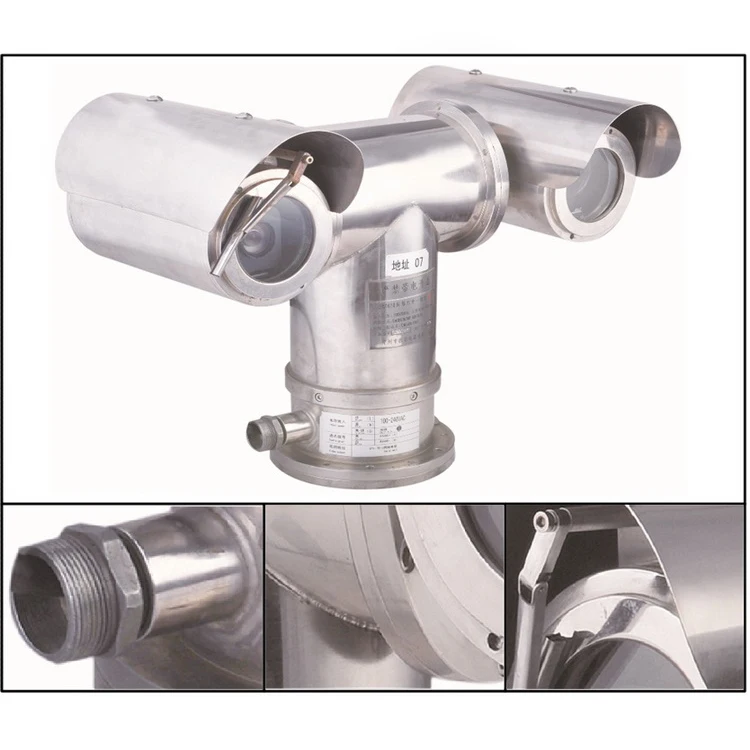

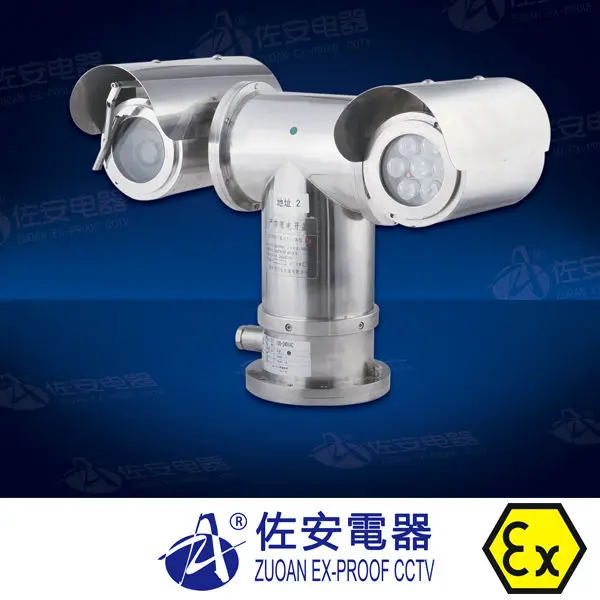

ZAT610 explosion proof thermal imaging PTZ camera/military camera
- Category: >>>
- Supplier: Changzhou Zuoan Electronics Co. Ltd.
Share on (60023240362):
Product Overview
Description
ZAT610 EXPLOSION PROOF MILITARY INFRARED THERMAL IMAGING CAMERA
WITH PAN AND TILT STATION FOR HARSH ENVIRONMENT
Applications:
With stringent certifications, explosion-proof CCTV housing cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,
Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Main features:
·CNEx certificated
·stepping motor drive
·Adopts stainless steel 316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP68

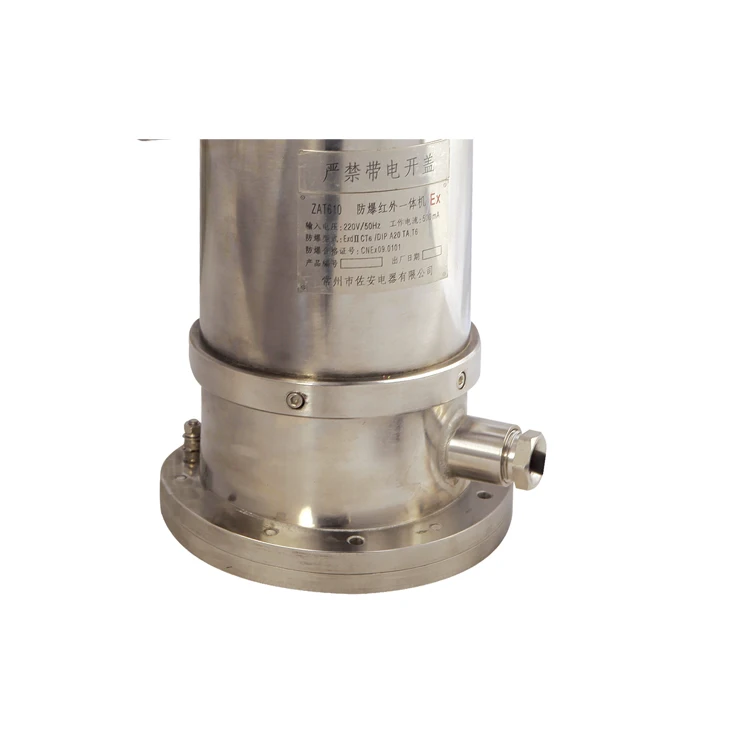

·1 cable gland
·Tempered glass with nanometer paint film for visiable light camera
Germanium front window for thermal imaging camera
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
·Communication : Pelco-D/ Pelco-P/TCP/IP
·Communication rate: 2400~19200bps
··Output: AV/H.264/RJ45
·Control: RS-232/RS485
·Camera: SONY, SAMSUNG, thermal camera
·Telephoto limited speed: yes
·Variable angle: horizontal 360°, vertical ±90°
·Preset patrol: 256/ 128 points

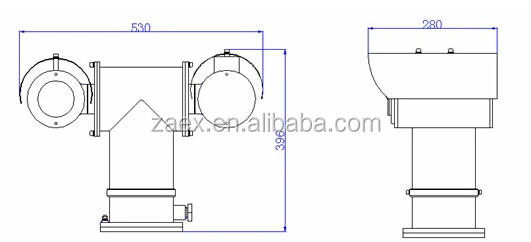

Outline Drawing:
Product parameter:
| Model | |||||
| Atmospheric pressure | 80KPa~106Kpa | ||||
| Auto keep temperature | 0°C ~ 65°C (32°F~149°F) | ||||
| Relative Humidity | ≤95% (+25°c) | ||||
| Ex-proof mark | CNEX: ·ExdⅡCT6 /·DIP A20 TA, T6 | ||||
| CNEX certificate no. | CNEx: 14.0068 | ||||
| Ingress Protection | IP67 | ||||
| Power supply | AC85-265V | ||||
| Electric current | 3100mA | ||||
| window glass | Tempered glass for visible light Zinc selenide with AR/AR coating for thermal vision Germanium with AR/DLC coating for thermal vision | ||||
| Material | SS304 (industrical chemical factories, outdoors and so on) SS316L(in highly corrosive areas such as marine, petrochemical, naval and offshore platforms) | ||||
| Net weight | 27KG/ 59.4LBS | ||||
| Variable angle | horizontal rotation: 360° continuous vertical rotation:-90° to +90° | ||||
| Variable speed | rotation speed: 10°/S(max) | ||||
| Wiper | Yes | Yes | no | Yes | Yes |
| telephoto speed limit | Yes | Yes | Yes | Yes | Yes |
| Preset patrol | 128 | 128 | 128 | 128 | 128 |
| Control protocol | TCP/IP/PELCO-D/PELCO-P, other | ||||

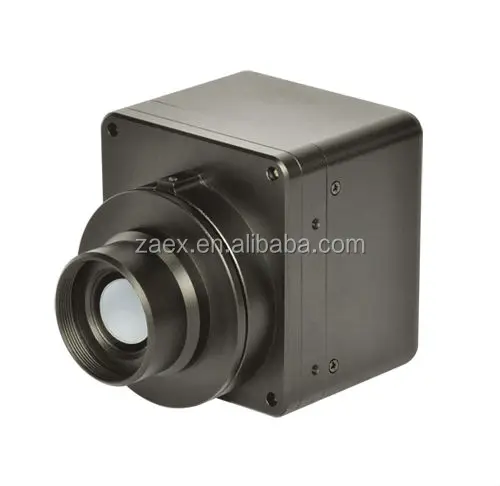

thermal imaging camera:
| detector | uncooled FPA | uncooled FPA |
| resolution | 160*120 384*288 640*480 | 384*288 640*480 |
| pixel pitch | 25μm | 17μm |
| lens | 5mm,9mm,13mm,19mm, 25mm,50mm,75mm,100mm | 5mm,9mm,13mm,19mm, 25mm,50mm,75mm,100mm |
| start time | 6s | 3s |
| electrnoic zoom | 384*288, 2X 640*480, 2X,4X,8X | 384*288, 2X 640*480, 2X,4X,8X |
| size | 160*120,& 384*288, 48.5*49*51mm 640*480 , 69*58*57 mm | 44.5*44.5*37.5 mm 44.5*44.5*43.25 mm |
CCD camera:
| sony | |
| Image Device | 1/4-type EXview HAD CCD |
| Effective Pixels | 380000 pixels |
| Lens Value | 36X |
| Minimum Illumination | 1.4 lux |
| Horizontal Resolution Value | 530 TV Lines |
After sale service & promise:
1. Supply oem & odm order, independent Q.C department, 3 times of quality checking,
2.100% percent of pass before shipping
3. One year of warranty, 0.1%-0.5% spare unit
4. IS09001, CNEX, MA, on progress of FCC &ATEX certification
Free & Easy, your best choice
Our advantage:
1. We can do the designs according to the customers’ requirement
2. We can offer you the high quality & reasonable price
3. We can offer you a good after-sell service
4. We have strong professional design team
5. Promptly delivery. Small order is welcome.
FAQ
What is hazardous locations/ area?
Hazardous locations/ area refer to a place where contains of flammable gas, vapor, VOCs( volatile organic chemicals),
dusts, powder. In industry plants like chemical process plant, oil, natural gas, petroleum, offshore platform, refinery, coal mine, handling of large quantities of flammable liquids, dust, gas creates a risk of leaks. Many other area would also have a dangerous concentration of flammable substances during process upsets, equipment deterioration
or maintenance, or during an incident.
What is explosion proof products?
To meet the criteria for the explosion proof rating, all explosion proof products have an enclosure, which must be able to
contain any explosion originating within its housing and prevent sparks from within its housing from igniting vapors,
gases, dust, or fibers in the air surrounding it. it is the enclosures ability to prevent an internal spark or explosion from
causing a much larger blast.equipment must meet the temperature requirements of the specific application in which
it is to be installed. This means that the operating temperature of the motor (and its enclosure) or other component
cannot be greater than the lowest ignition/combustion temperature of the gases or dusts in the atmosphere
where the component is to be installed.
What’s the vandal proof/ vandal resistant camera?
A vandalproof camera is a camera and housing intended to resist vandalism, making sure the camera will continue
to operate in conditions where people attempt to break it or impair its function.
Buyers should not use vandal proof products in hazardous area, or replace the vandal proof products
as explosion proof products.
