Kinmore high speed 12v 18v 12000rpm motor electric hand blender dc motor for agitator
- Category: >>>
- Supplier: Shenzhen Kinmore Motor Co. Ltd.
Share on (60023687495):
Product Overview
Description

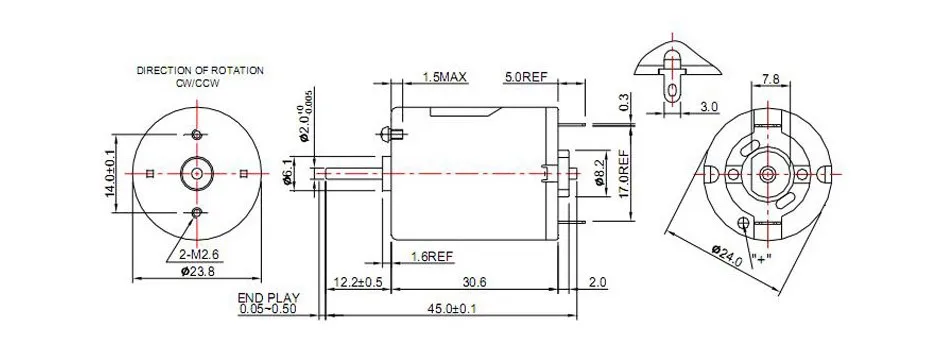

Model Number | RE(C)-280A | |
Rated Voltage | 12/24 V | |
Output | 4.9 W | |
Direction of Rotation | CCW | |
No Load Speed | 16383 rpm | |
No Load Current | 0.15 A | |
Rated Torque | 3.4 mNm | |
Rated Speed | 13762 rpm | |
Rated Current | 0.79 A | |
Stall Torque | 21.37 mNm | |
Stall Current | 4.2 A | |
All technical data can custom made for different application | ||
Unit Conversion
1. What kind of motor do you supply?
Kinmore specializes in making DC motors & gear motors with the diameter ranging from 6-80 mm; automotive motors and vibration motors are our strength area too; we also provide brushless motors.
2. What's the lead time for samples or mass production?
Normally, it takes 15-25 days to produce samples; about mass production, it will take 35-40 days for DC motor production and 45-60 days for gear motor production.
3. Could you mind sending the quotation for this motor?
For all of our motors, they are customized based on different requirements. We will offer the quotation soon after you send your specific requests and annual quantity.
4. Do you offer some kinds of accessories like encoder, PCB, connector, soldering wired for the motor?
We specialize in motors, instead of accessories. But if your annual demand reaches a certain amount, we will apply to the engineer for offering the accessories.
5. Are you motors certificated with UL, CB Tüv, CE?
All of our motors are UL, CB Tüv, CE compliant, and all our items are making under REACH and ROHS. We could provide motor's exploring drawing and BOM for your products UL certificated. We also could make motors built-in filters based on your EMC directive for your EMC passing.
2. What's the lead time for samples or mass production?
Normally, it takes 15-25 days to produce samples; about mass production, it will take 35-40 days for DC motor production and 45-60 days for gear motor production.
3. Could you mind sending the quotation for this motor?
For all of our motors, they are customized based on different requirements. We will offer the quotation soon after you send your specific requests and annual quantity.
4. Do you offer some kinds of accessories like encoder, PCB, connector, soldering wired for the motor?
We specialize in motors, instead of accessories. But if your annual demand reaches a certain amount, we will apply to the engineer for offering the accessories.
5. Are you motors certificated with UL, CB Tüv, CE?
All of our motors are UL, CB Tüv, CE compliant, and all our items are making under REACH and ROHS. We could provide motor's exploring drawing and BOM for your products UL certificated. We also could make motors built-in filters based on your EMC directive for your EMC passing.
