Yeeso most eye catching LED billboard trailer, scissor lifting cellphone Shape LED screen trailer

Product Overview

Description

Yeeso most eye-catching LED billboard trailer, scissor lifting Iphone Shape LED screen trailer



1. high definition led big screen
2.scissor type lifting system
3. Iphone shape sliding LED billboard trailer



Features of  LED billboard trailer, scissor lifting Iphone Shape LED screen trailer

1.Great Mobility , It could be moved to anywhere as you like;
2. Stylish outlook design, The outlook adopts a chassis of Lamborghini design which carries a LED display in IPhone shape to look luxury and fashionable.

3.  High definition outdoor LED screen, P10,P8/P6 led display is optional, large led tube from EPISTAR, The screen brightness over 6500cd/ square meters after 5 years.

4. Waterproof&Shock proof design, both the led display screen and eletrical system or the control system takes waterproof &shockproof design.

5. any animated copy, camera feedsback, TV comercials, one site Live broadcast.

6. Support bluetooth and wifi remote control, you could use your phone to upload the files quite easily.

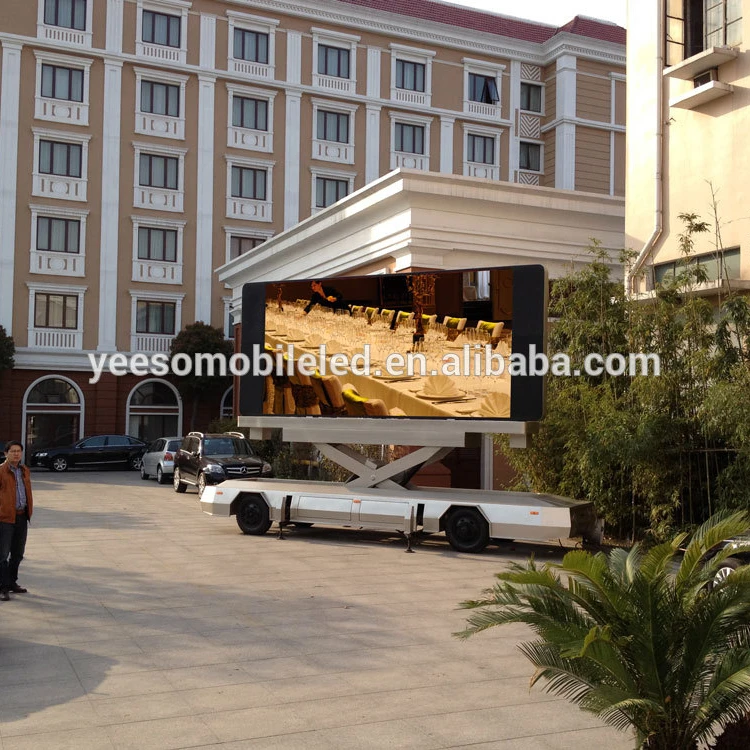

Pic Show of  LED billboard trailer, scissor lifting Iphone Shape LED screen trailer



Technical Parameters of  LED billboard trailer, scissor lifting Iphone Shape LED screen trailer

Model	YES-T12
Vehicle Chassis
Brand	YEESO	External dimension		6800mm×1920mm×2350mm
Material	16# manganese steel	sheet metal structure		1.2mm plate steel
Tire	650 rubber tire	Gross mass		4750KG
Brake	Manual & Hit hydraulic brake	Minimum turning diameter		>=18000mm
Hydraulic Lifting Platform & Support Legs
Hydraulic lift platform	Lifting type: Scissor, Platform size: 3200mm×750mm×400mm
Lifting height	2000mm		load bearing		5T
Sliding system	Slider type folding system for screen
Supporting system	leading screw supporting legs system; Lifting height: 300mm;  Each afford: 5T
LED Screen
Screen size	4800mm×2400mm		Module size		160mm(W)×160mm(H)
Chip	R,G,B: EPISTAR		Pixel pitch		10 mm
Brightness	> =6500cd/m²		Max power consumption		1200W/m²
Average power consumption	500W/m²		Life span		100,000hour
Power Supply
Input voltage	three-phase five-wire 380V		Output voltage		220V
Electrical current	50A		Power consumption		Average: 0.5wh/m²
Multi-Media Control System
Industrial PC	Processor:Dual Core CPU;  Display card: 1G;  Hard disk:500G;  CD-ROM: DVD;  Internal storage:2G
Monitor	KVM 15-inch LCD display		Power amplifier		unilateral power output: 200W
Speakers	Max power consumption: 200W		Control system of LED screen		LINSN



CE Certificate of  LED billboard trailer, scissor lifting Iphone Shape LED screen trailer
