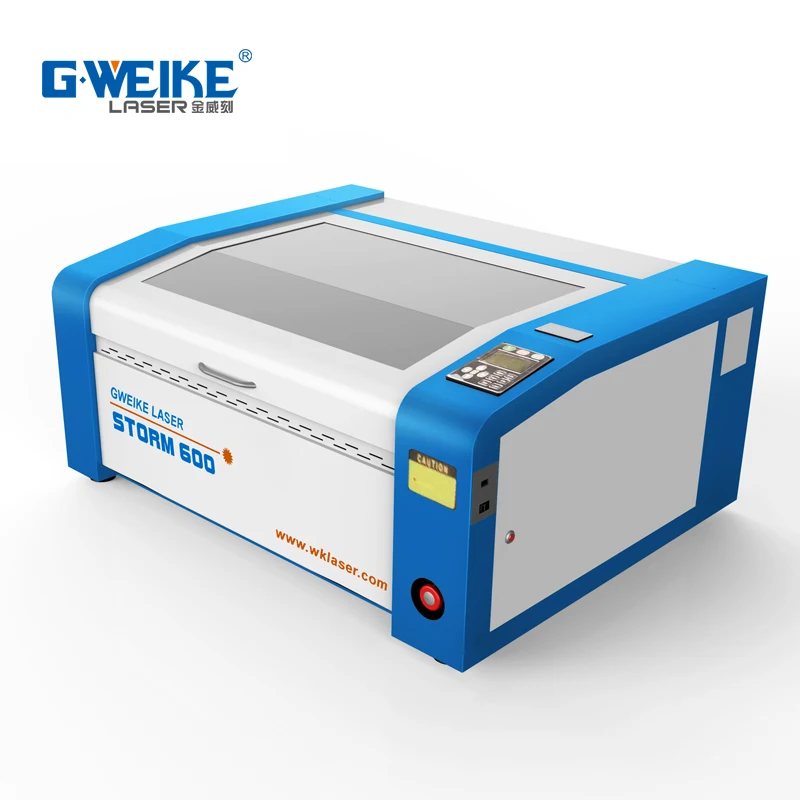

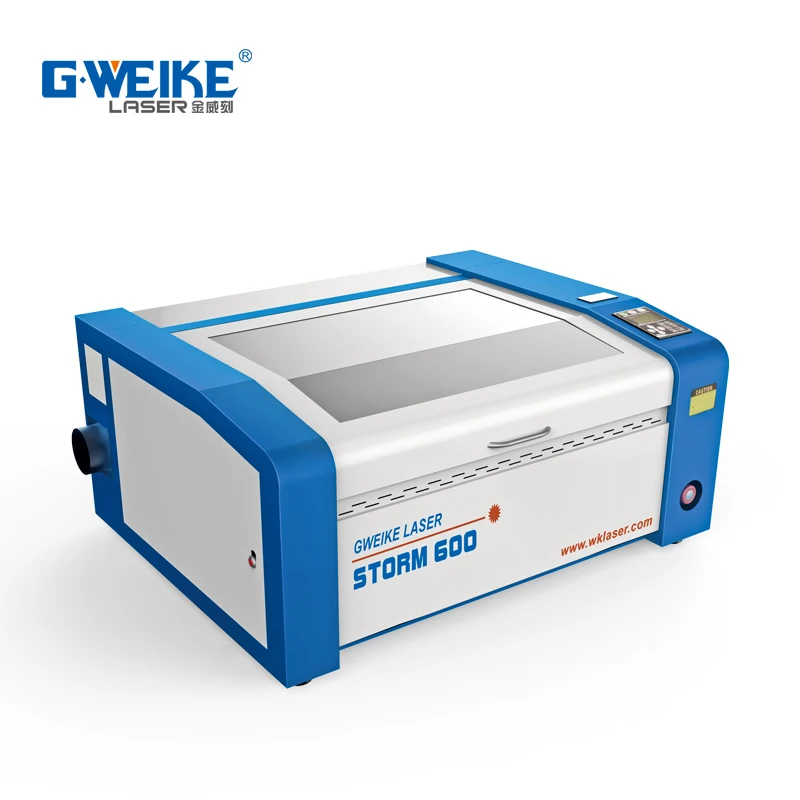

This mini machine is especialy designed for art & crafts engraving industry.
This machine adopts imported linear guide, with DSP system control software. The machine has a stable performance and applicable for different industries.
It is the ideal choice for non-metal processing industry.
Specification:
Laser -type
Sealed CO2 laser tube
Laser power
35w
Engraving area
560*350mm
Whole machine size
950*740*450mm
Engraving speed
0-48,000mm/min
Resetting positioning accuracy
±0.02mm
Working voltage
AC110-220V±10%,50-60Hz
Gross power
<1,000w
Operating temperature
0-45°C
Operating humidity
5-95%
Minimum shaping character
English 1*1mm
Graphic format supported
BMP,PLT,DST,DXF,and AI
Driving system
stepper
Cooling mode
Water-cooling and protection system
Auxiliary equipments
Exhaust-fans,air-exhaut pipe
Controlling software
DSP control system
Compatible software
CorelDraw AutoCAD Photoshop
Net weight
150kg
Applicable materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber,ceramic, glass and other nonmetal materials.
Applicable industries:
advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
