digital dial indicator
- Category: Dial Indicators >>>
- Supplier: Orientools Industrial Co. Ltd. [Shanghai China]Orientools
Share on (60024570544):
Product Overview
Description

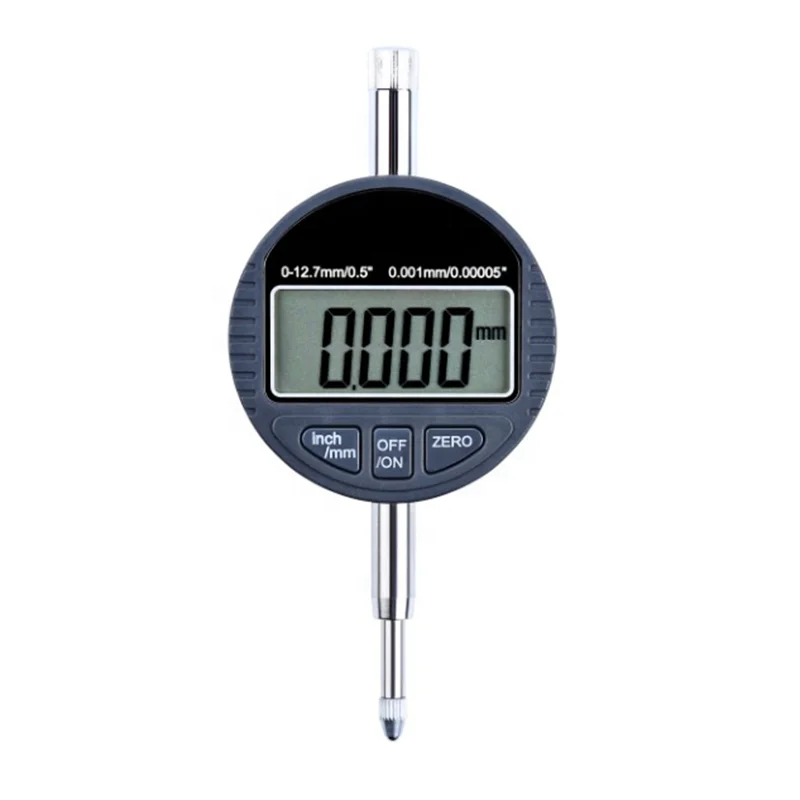

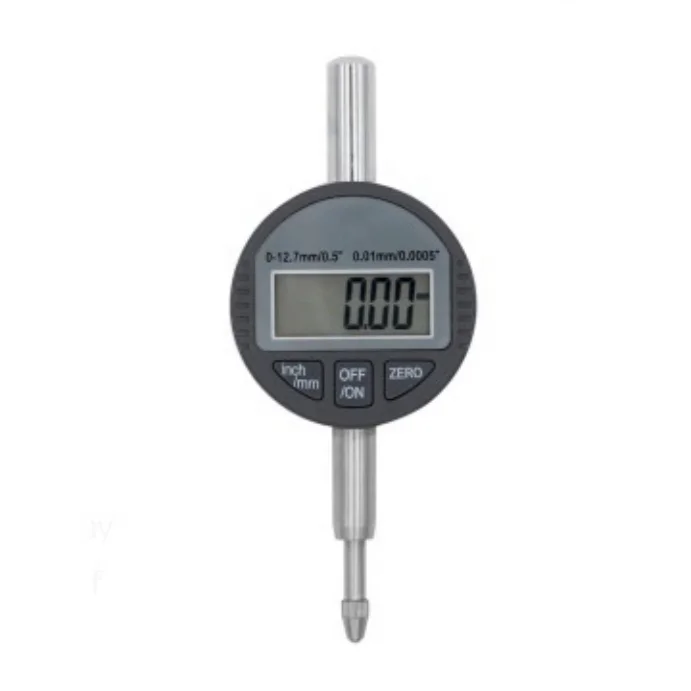

Digital Dial Indicator
Product Description
 | Attach an indicator to a rigid structure and use it to read the out-of-round of a bicycle wheel, for instance. Indicators operate from the movement of a plunger. As it moves up and down, the motion is translated to a measurement. Unlike the digital caliper and micrometer, an indicator must be attached to an immovable surface. Similar to the others, a digital indicator can be read directly from the numeric display. |
Specification
Product Name | DIGITAL DIAL INDICATOR |
Item No. | DI01/DI02 |
Designs | Different Choice |
Range | 0-12.7mm/25.4mm |
Resolution | Metric 0.01mm/ 0.001mm |
Accuracy (in/mm) | +/-0.02mm/ 0.03mm/0.005mm/0.007mm |
Stem Diameter | Φ8 |
Spindle | m2.5*0.45 |
L | 120MM |
Display Type | LCD |
Button | Three buttons |
Battery choose | SR44/LR44 |
Box choose | Solid plastic box |
Original Data Set | Yes |
Auto Power Off | Yes |
Delivery date | 15-20 days |
Packing | 50pcs in an outer carton |
Weight | Net Weight Gross weight 13.2kgs 14.7kgs |
Meas | 49*36*22cm |
