DC voltage sensor 0 300V, 0 1000V (SVL1 Series)
- Category: >>>
- Supplier: Shenzhen Socan Technologies Co. Ltd.
Share on (60024645350):
Product Overview
Description
DC voltage sensor 0-300V, 0-500V, 0-1000V (SVL1 Series)
OUTPUT DC 0-5V
Features
1. Rail mounting, simple and convenient.
2. Galvanic isolation between primary and secondary circuit.
3. Wide bandwidth, excellent accuracy, good linearity and fast response.
4. Measure AC,DC,Pulse and mixed currents
5. Excellent thermal conductivity and scalability
6. High performance core and imported resin assembled.
7. 48 hours room temperature aging and eight hours high temperature aging, long-term and stable operation even in harsh working condition.
8. CE & RoHS approved and pass ISO9001:2008 certification.
Sample order welcome.
Please send inquiry for more details!
Hall Current Sensor and Voltage Sensor advantages:
The Hall Sensor is one of the most widely used sensors in the field of electronic measurement.
Can completely replace the traditional transformer and shunt, and has high accuracy, good linearity, wide bandwidth, fast response, strong and not overload the circuit measuring the energy loss of the advantages.
Applications:
Hall current sensors are widely used in Frequency control devices(AC Drives/Variable Frequency Drive, inverter device, UPS Communication power supply, welding machines, electric locomotives, substations, CNC machine tools, electrolytic plating, Computer monitoring, network monitoring and other facilities need to be isolated in the sense current and emerging solar, wind and metro rail signals, automotive electronics and other fields.

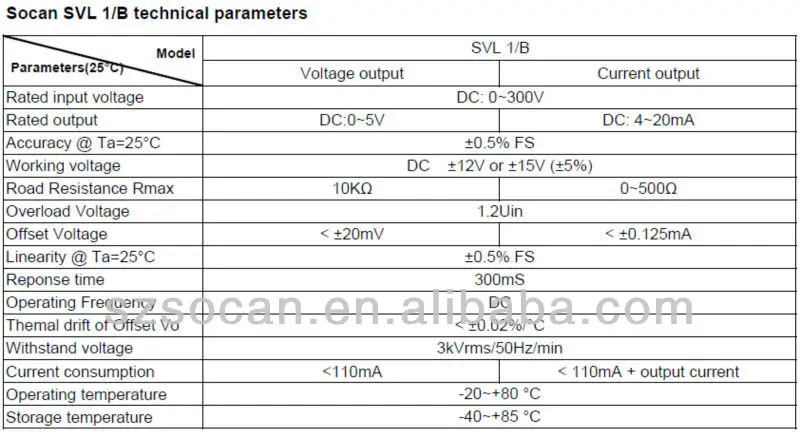

Description for SVL 1/B Direct Current Appliances :
l SVL1/B is a new generation voltage sensor/transmitter develop on the basis of hall effect.
l The signal can be converted from dc high-voltage signal to low-voltage direct current output, easy for measurement.
l Interface with terminal connection, you can directly connect to the digital panel meter or other indicating instrument.
l Widely used in the DC panel and other equipment.
l All electronic is imported components assembled, along with excellent circuit design, all products processed via 48 hours room temperature aging and eight hours high temperature aging, and by rigorous factory testing, it has excellent characteristics with long-term stable operation even in harsh working conditions.
Instructions
1.Dual DC voltage isolation conversion, convert the high DC voltage signal into low voltage signal output, easy
measurement.
2.Directly connect with all types of A / D converter, and also can directly connect to the digital panel meter or
other indicating instruments.

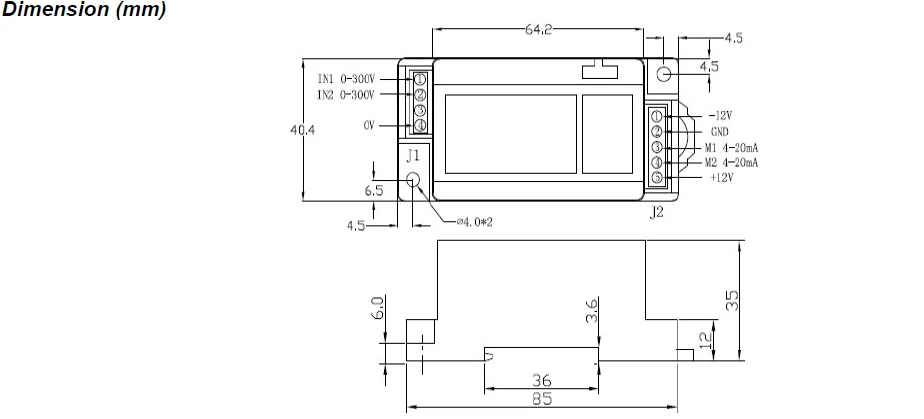

3.Rail mounting, simple and convenient.
Packaging & Shipping
Net Weight: 68G/Unit
6 UNITS PER CARTON BOX
Express or by Air transportion
Applications
- in industrial domain such as Inverters (AC Drives, Frequency drive),
- UPS (uninterruptiable power supply,
- static converters for DC motor drives,
- SMPS (Switched Mode Power Supplies),
- Power supplies for welding applications,
- Combined box and so on.
Company

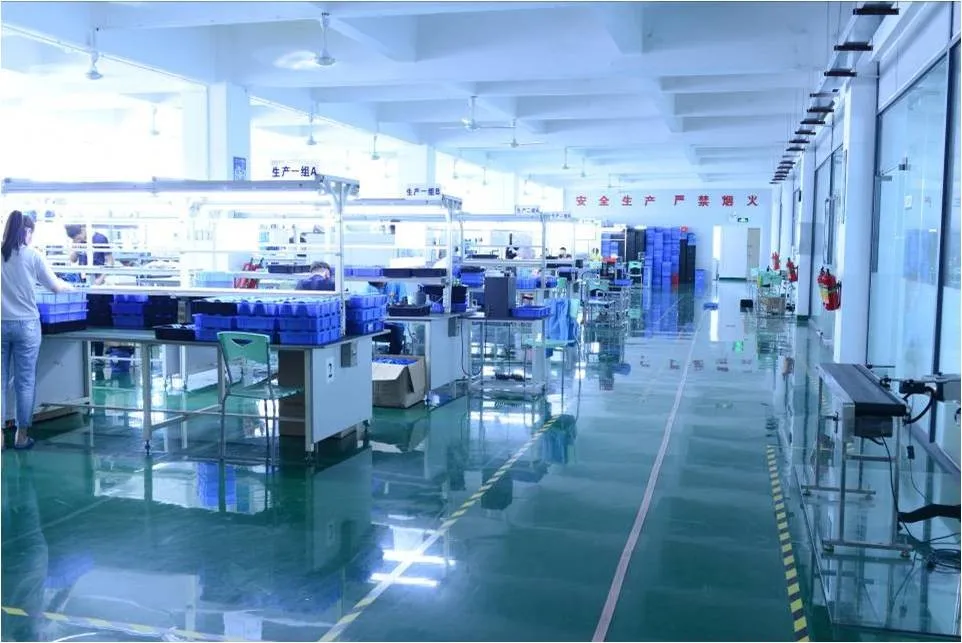

The obvious advantage of our company is the service that we have a complete service system, including pre-sales, sales and after-sales. And a credible sales network has been set up and we have our regular clients from over 100 contries and regions worldwide. We have been in this line of business for more than 12 years.We are well-established in this industry. And our products already passed CE certificate, UL certificate, FCC certificate, ROHS certificate and so on. These products are superior in quality and able to compete internationally. Our company persisting in people-oriented, has highly educated R&D team, rich experienced technicials.At the same time, we have our own factory which occupies 3200 square meters, now we have an annual output of 5,000,000 or more products.Our core value is "Technical Innovation, Pursue Perfection".
Buying Guide
FAQ
Q: Are you real producer or trade company ?
A: Yes, we are manufacturer, we have our own factory, welcome to see our factory .
Q: Can I get samples to check your quality ?
A: Yes, after price and model confirmation, we can send samples, usually sample is charged.
A: Yes, we are manufacturer, we have our own factory, welcome to see our factory .
Q: Can I get samples to check your quality ?
A: Yes, after price and model confirmation, we can send samples, usually sample is charged.
If will be return back in your future order.
Q:What is the delivery time ?
A:It is based on the models and your quantity. Usually, standard models requires 3-8 days after receiving deposit for the first order ,
5 days for repeat order. For customerized model requires 7-10 days to produce. We suggest to contact us 2 weeks in advance.
A:It is based on the models and your quantity. Usually, standard models requires 3-8 days after receiving deposit for the first order ,
5 days for repeat order. For customerized model requires 7-10 days to produce. We suggest to contact us 2 weeks in advance.
Q:What is the payment term ?
A:We accept payment by T/T, Western Union, Paypal, L/C
A:We accept payment by T/T, Western Union, Paypal, L/C
Q:Do you accept OEM/ODM service?
A: Yes. We accept OEM/ODM service with qty.
Choosing the model
Plesase choose model according to the data sheet when place order.
1. Confirm the window size of current sensor, make sure the conductor could went through the sensor.
2. Confirm the primary input current, for example, SCK3-100A, refers to 100 Amps primary input current sensor
3. Confirm working voltage, the working voltage for our current sensor could be ±12V, ±15V ( If is dual power supply), or +12v, +5v (if is single power supply)
4. Confirm the output signal.
If you have special requires behind this, please double confirm with our sales, we offer customerized solutions.
Shipping method
OEM and Sample
1. As a manufacturer, we provide OEM service.
2. Sample order is welcome,
Current Sensor is more precise product for power electronics and industrial control equipments. As for now, you can request samples from us directly
Initial contact – Describe your requests with models, qty.
Consultation sample details with our support – Response from Soan within 48 hours
Get sample invoice from support and we will dispatch your sample soon
We will reply you for your inquiry in 24 hours.
after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
