Factory Hand Pallet Jack With Brake

Product Overview

Description

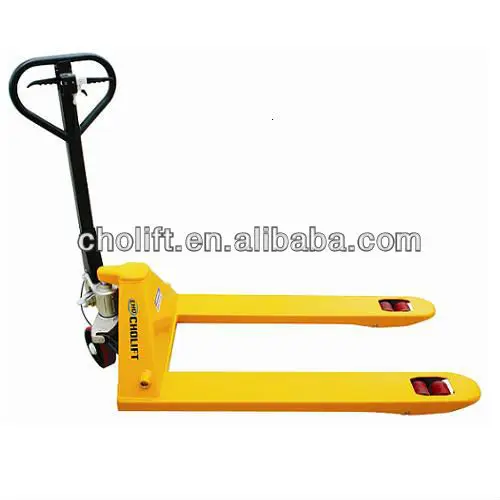

Hand Pallet Jack With Brake

 Feature:

1. Color : red/ yellow/ blue/ green/ black etc, as per customer request

2. Capacity:  2500kg, 3000kg, 3500kg

3.  Fork Length: 800/900/1150/1220/1500/1800/2000/3000mm or other size customer need.

4.  Fork Width: 520/550/685/900/1000/1100/1200mm

5. Packing: 6pcs/pallet, pallet size: 210*70*70cm

6. Advanced Robot welding ensure high strength, good finish, no bubble in the welding

7. With CE certificates, waiting for your order!



Our advantages:
1) More than 22 years experience team in manufacturing, service.

2) With ISO certificates service and quality is before profit

3) Sample order is welcomed

4) Delivery term: FOB Ningbo, CIF, Ex-w factory etc.

5) CE/TUV, ISO certificates

6) Free maintenance design

7) Fast delivery time within 30days

8) Optimized round fork tips ensures easy operation

9) 54mm fork thickness ensures high capacity



  Specifications:



Model	SBB
Load capacity/rated load	Q(kg)	2500/3000/3500
Load center distance	C(mm)	500
Tyre size, front	mm	180x50
Tyre size, rear	mm	80x70/74x70
Lifting height	H3(mm)	200/190
Lowered fork height	H13(mm)	85/75
Overall length	L1(mm)	1534/1604
Distance between fork-arms	B5(mm)	520/550/685









Innovation design: details



1) High reliability, suitable for a variety of environments. It can be used for 3 ~ 5 years under normal maintenance.

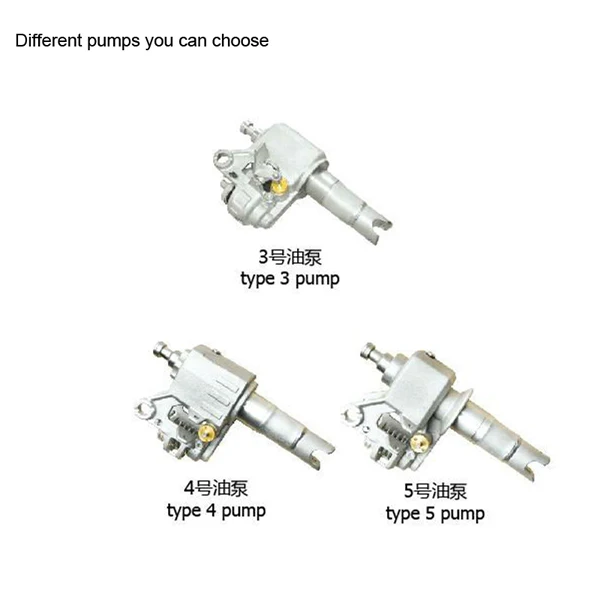

2) The first design of forging& casting integral pump, which prevents any loosening and leakage.



3) High-strength alloy steel carefully crafted, increased loading capacity.



4) Set the active safety valve to prevent overloading of operation.



5) Maintenance-free design, ensure security, reduce service cost.











Hand pallet truck with brake foot brake pallet truck pallet jack with brake hydraulic pallet truck with brake

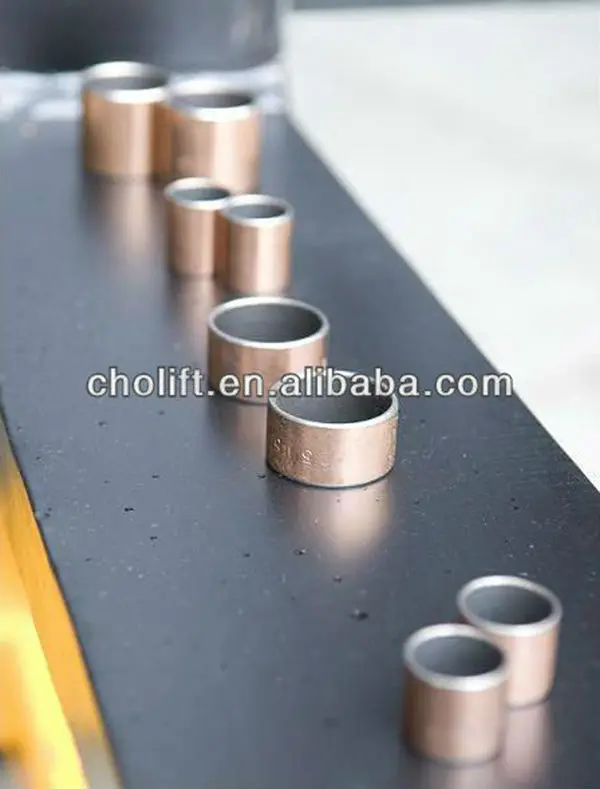

With copper bushin, no need to add grease, reduce maintanance cost.

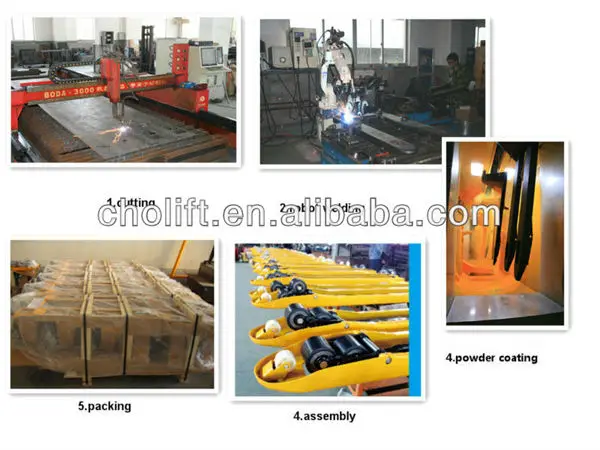

 Production line:



 Exhibition:

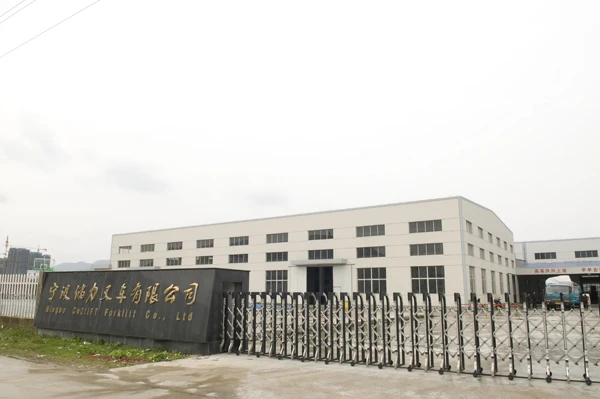

Our factory:



Certifications:
