alibaba best sellers Roll To Roll Non Woven Flexo Printing Machine

Product Overview

Description

alibaba best sellers Roll To Roll Non Woven Flexo Printing Machine

1. Main Variables:

A. Model: YT-41600

B. Material: Non-woven fabric

C. Max. Width of Printing: 1560mm

D. Max. Length of Printing: 200-1000mm

E. Max. Speed of Printing: 50m/min

F. Thickness of Plate(including glue):2.38mm

G.. Machine Dimension: 4300*2600*2400

H. Machine Weight: 4000kg

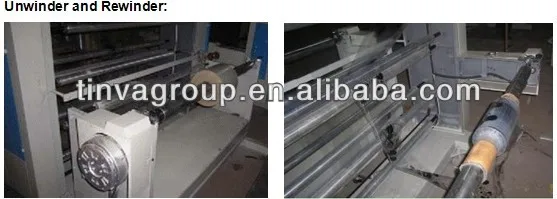

2. Unwind Unit:

A. Max. Length of Roller: 1650mm

B:Max. Length of Effective Roller: 1600 mm

C:Dia. Of Roller: 76mm

D:Max. Dia. Of Unwind: 1000mm

E:Method of Unwind: Magnetic powder with Auto. Tension, EPC Device, Air shaft

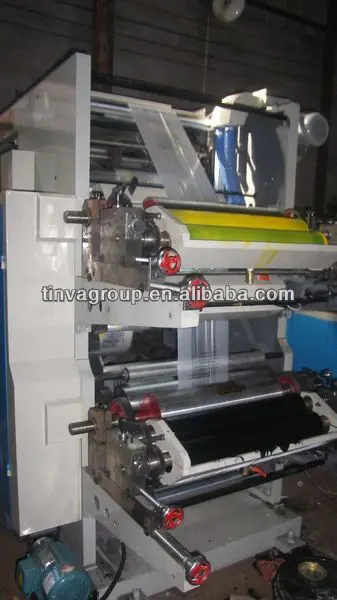

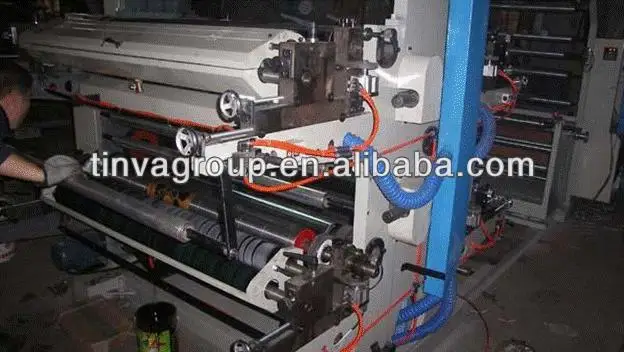

3.Printing Unit:

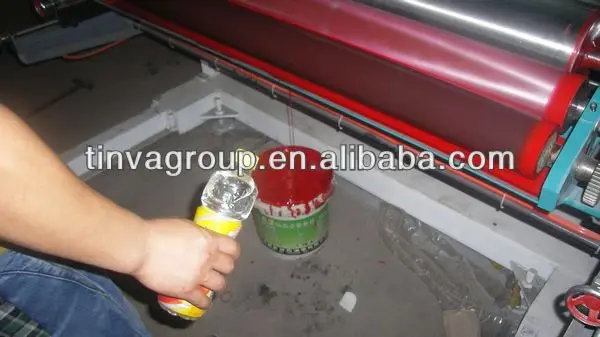

A.:Constitution of Printing:Chrome plated Roller, Rubber Roller, Metal Anilox roller,

Plate-glued roller

B:Girth of Pressing Roller: One set of perimeter 400mm for free

C:Material of Plate: Resin and Rubber

D:Principle of Work: Gears Drive

E:Type of Chromatically: 360 degree circulating

F:Way of Adjusting: Manual

G:Plated-glued roller adjusting: Manual

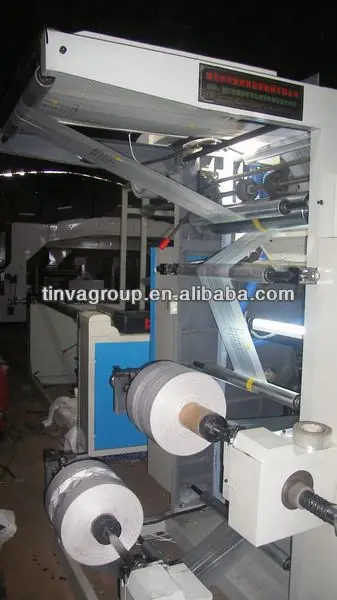

4.Rewind Unit:



A:Max. Length of Roller: 1650mm

B:Max. Length of Effective Roller: 1600mm

C:Dia. of Roller: 76mm

D:Max. Dia of Wind: 1000mm

E:Way of Rewind: Torque Motor, Air shaft



Note: Special design of machine for stretch film material, different rewinding way from normal machine.

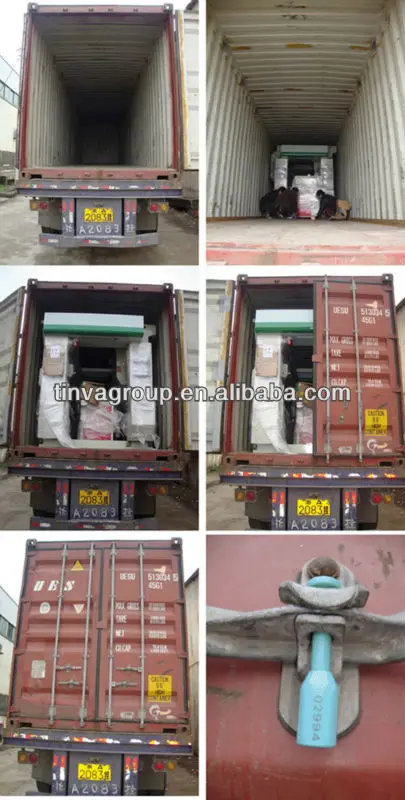

Packing detail: package with stretch film and FIX in container



Delivery detail: 30 days after order confirmed and advanced payment.









• we are professional bag making machine, film printing machine, medical pouch making machine manufacturer with 20 years experience in Ruian City, China.
• All products have been certified by the State Bereau of Technical Supervision, and have been exported to South Aisa, Europe, USA, Middle-east, Russia and so on.
•
