PZ 3 Refractory gunning machine

Product Overview

Description

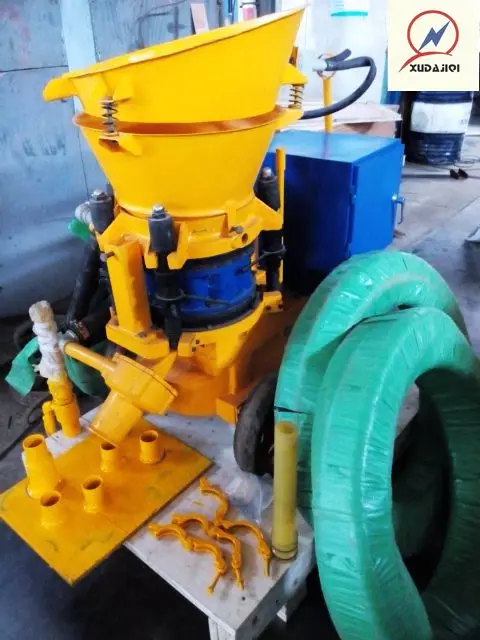

PZ-3 Refractory gunning machine



Applications:



1. XuDa PZ-3 gunning machine is mainly used for tunnel, hydro-power engineering,

    mines, underground engineering, civil engineering and slope stabilization, etc.

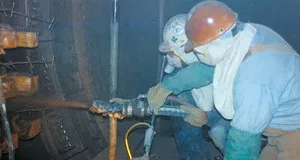

2. Refractory material spraying and repair for industrial kilns or kilns's inner .

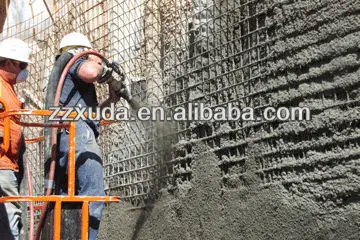

                          reinforce for wall                                                       fireproof spraying

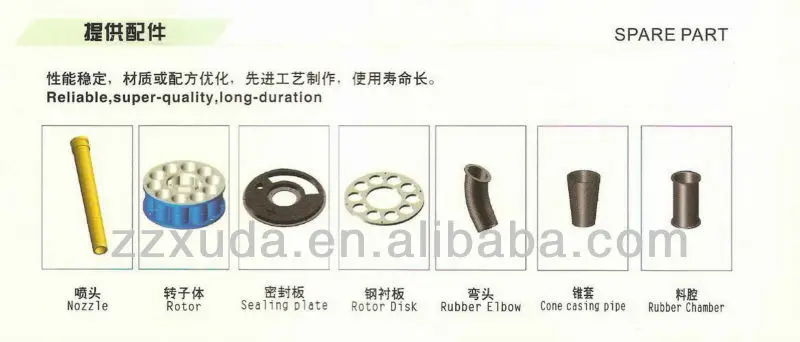

Spare parts:



Features:



1. Advantages: This is a high-effective shotcrete machine, which is mainly used for dry

    -mix, damp-mix shotcreteing and steel fiber reinforced shotcreting.



2. Non-adhesion going through rotor with new material chamber, completely eliminate

    bonding and blocking during operation so as to reduce clearance and maintenance

    period.



3. Four-point clamping device make it easy to adjust the press between seaing plate

    and rotor disk so as to no air and dust leak and prolong consumption parts life.



Principle:





Technical Data:



Item	PZ-3
Output	3m3/h
Max. conv. dist	200m
Water cement ratio	0.4
Max. Aggregate. size	10mm
Hose inner size	42mm(2'')
Operating air pressure	0.2~0.6MPa
Air consumption	5~6m3/min
Motor power	3kW(4hp)
Voltages	380v,440v,660v,1140v 50HZ/60HZ
Basic chassis	type , skid ,rail wheel

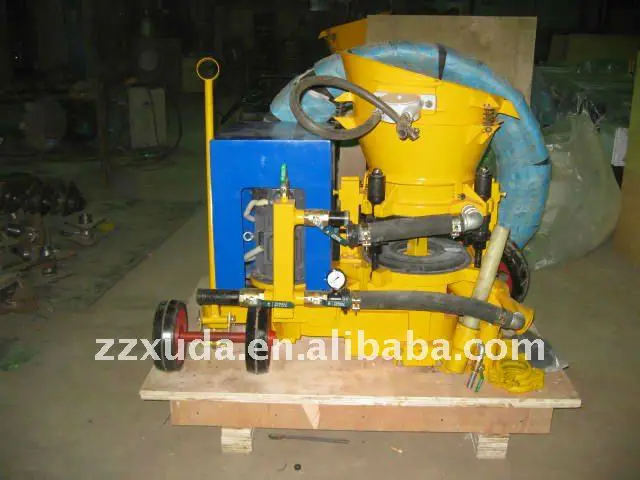

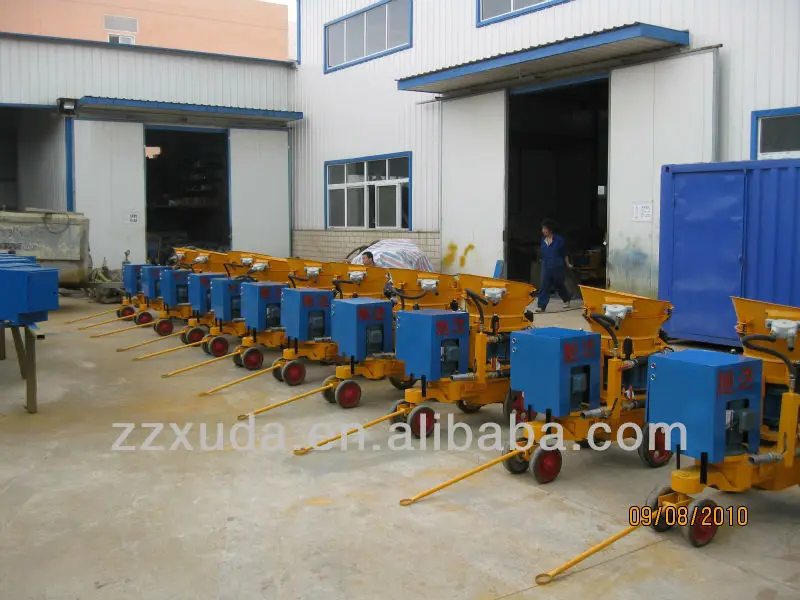

Finished product:





Packing:

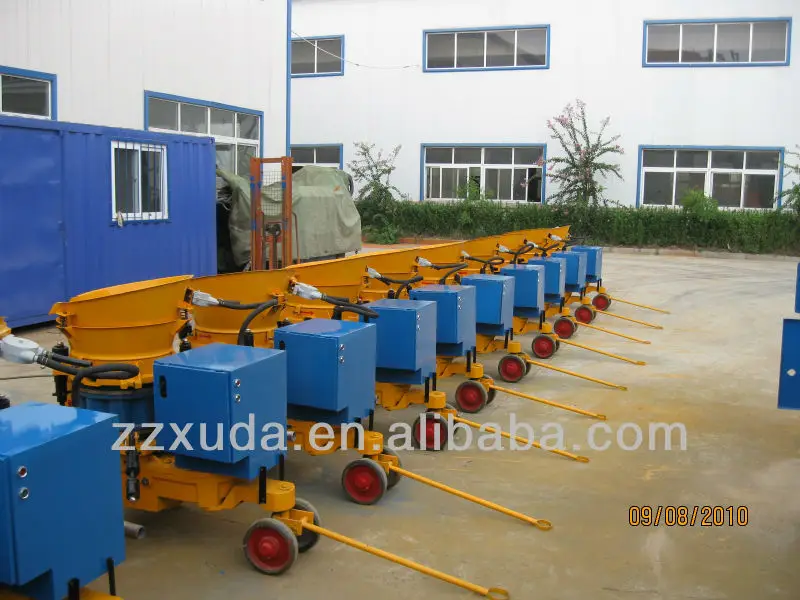

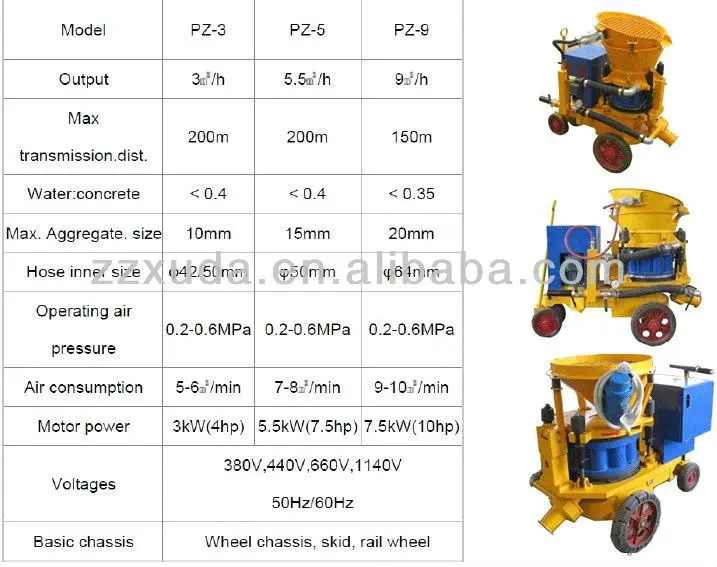

PZ Series shotcrete machine:







Company profile:



1. Zhengzhou Xuda Machinery Co., Ltd. is a comprehensive manufacturing company with

    20 years experience in Zhengzhou city.Our main product are Wet-mix shotcrete machine,

    Dry-mix gunite machine, Hydraulic injection pump,Cement grouting pump,Squeeze pump,

    etc.

2. With a shotcrete machine manufacturing factory which cover about 1000 square meter,we

    employ 3 high quality talents and 10 specialized workers.Lots of them have 10-20 years

    experiences.



                         office   building                                                             workshop
